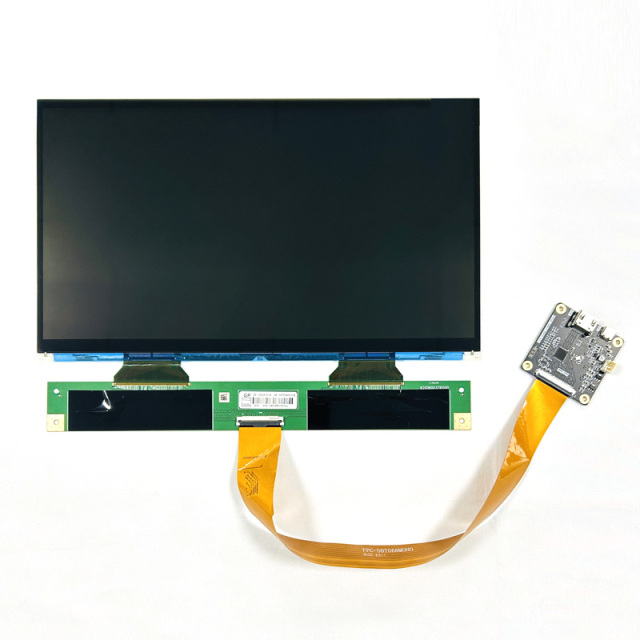

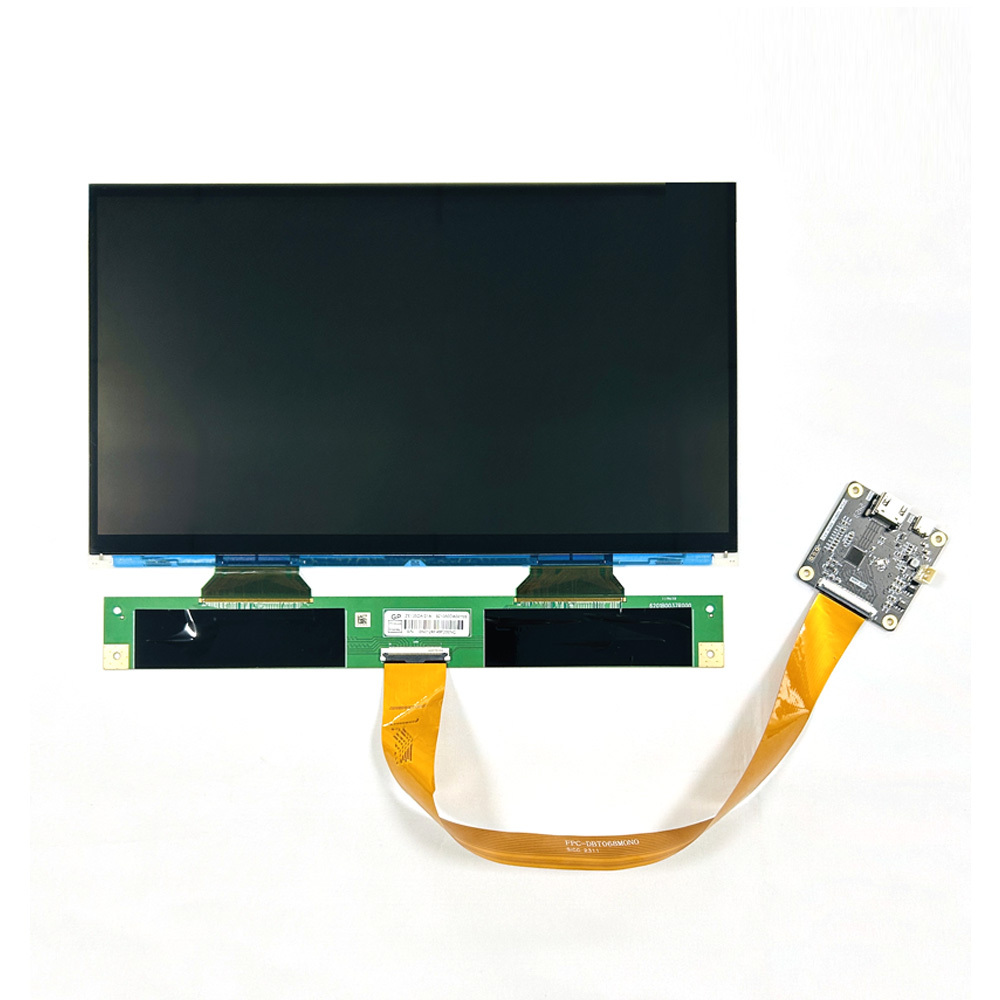

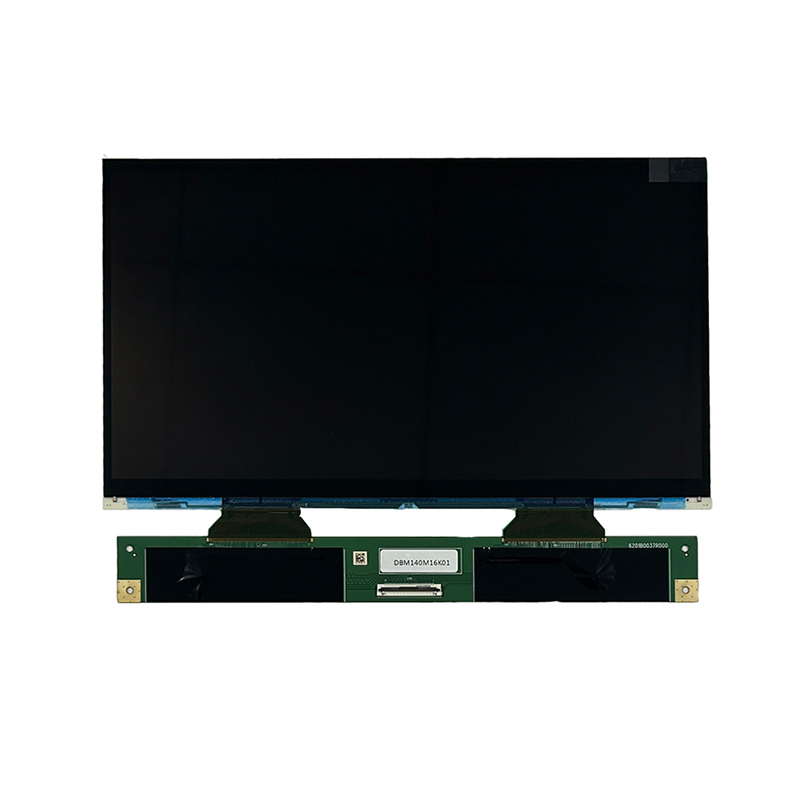

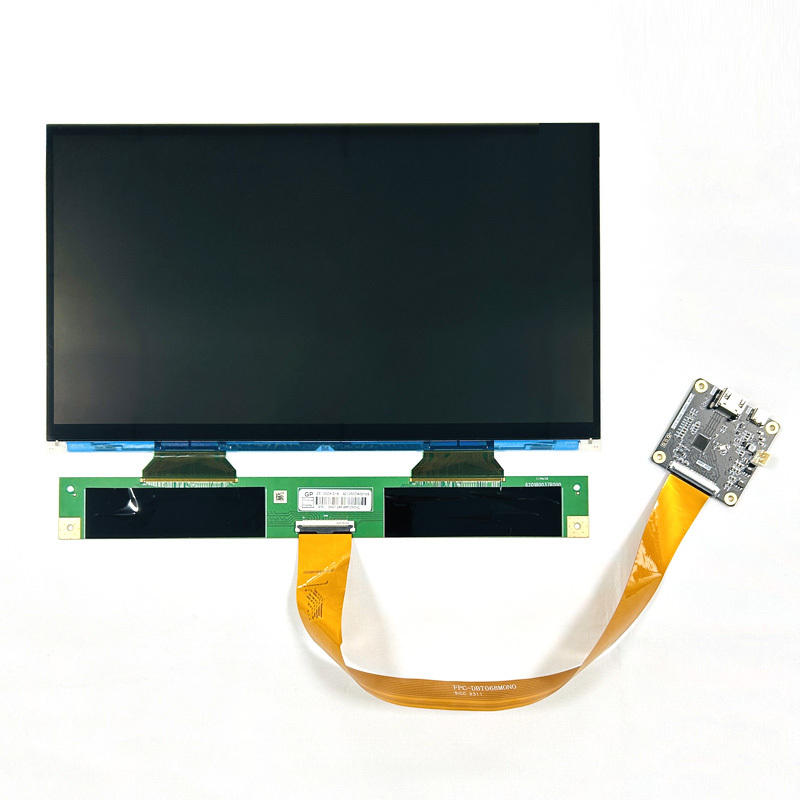

The DBM140M16K01 is a 14-inch ultra-high-resolution Mono TFT IPS-LCD module with a native 15120 × 6230 pixel resolution, developed by Shenzhen Aptus Technology Co., Limited for advanced 3D printing equipment, large-format resin-based SLA/DLP systems, professional industrial machines, and other precision applications requiring extremely detailed visual information.
Combining an expansive 14-inch display area, exceptionally high resolution, and IPS display technology, the DBM140M16K01 is designed for applications where display detail, viewing consistency, and interface clarity are important. The high pixel count enables manufacturers to present detailed 3D model previews, sliced layers, exposure parameters, machine status, process information, and other graphical content on a highly dense display platform.
For professional 3D printer manufacturers, the display is an important part of the human-machine interface. As additive manufacturing systems become more capable and complex, operators need to interact with increasingly information-rich interfaces. The DBM140M16K01 provides a large, high-resolution mono display platform that can help equipment manufacturers create professional control panels and monitoring interfaces that complement the precision of their printing technology.
The available product specification is identified as Document Version 1.0, dated May 30, 2024. It includes general specifications, pin assignment, electrical characteristics, display timing, optical characteristics, mechanical information, handling precautions, reliability testing, and packing information.
The DBM140M16K01 is designed for next-generation equipment requiring exceptionally high display resolution and a larger interface area.
14-inch Mono TFT IPS-LCD for a spacious professional display interface
15120 × 6230 native resolution for extremely detailed graphical content
Ultra-high pixel density suitable for complex model and sliced-layer visualization
IPS technology designed to provide consistent image presentation across different viewing positions
Large screen format for professional 3D printer control panels
Mono display architecture suitable for high-detail equipment interfaces
Detailed pin assignment documentation for engineering evaluation
Electrical characteristics covering LCD parameters, power sequence, and display timing
Optical characteristics and definitions included in the product specification
Mechanical drawing available for system integration
Reliability test information for product qualification
Handling precautions for appropriate product integration and operation
Packing drawing and related packaging information
Suitable for evaluation in customized and project-specific display solutions
The combination of 14-inch size and 15120 × 6230 resolution makes this module particularly suitable for manufacturers developing premium 3D printing systems where a highly detailed interface is part of the overall product experience.
| Parameter | Specification |
|---|---|
| Model | DBM140M16K01 |
| Display Type | Mono TFT IPS-LCD |
| Display Size | 14 inches |
| Resolution | 15120 × 6230 pixels |
| Display Technology | TFT IPS-LCD |
| Display Mode | Mono |
| Primary Application | High-Resolution 3D Printing |
| Target Equipment | SLA/DLP Printers |
Engineering Note: The table summarizes the currently available product information. Detailed numerical specifications such as active area, pixel pitch, mechanical dimensions, electrical limits, optical performance, timing values, backlight characteristics, and other engineering parameters should be confirmed against the latest controlled DBM140M16K01 specification supplied by Aptus.
Modern professional 3D printers are expected to display more information while maintaining an intuitive and highly detailed user interface. A printer control panel may need to show complex 3D models, layer previews, support structures, exposure parameters, printing progress, temperature information, machine status, and configuration menus.
The 15120 × 6230 resolution of the DBM140M16K01 provides an exceptionally dense pixel structure. This is particularly useful for equipment manufacturers that want to present fine graphical information with a high level of detail.
The 14-inch physical display size provides another important advantage. A larger screen gives designers more space to organize controls and information. Instead of compressing multiple functions into a small interface, manufacturers can create more spacious layouts with larger preview areas, clearer controls, and better information hierarchy.
The use of IPS technology can also be beneficial in professional equipment where the display may be viewed from different positions. During printer operation, technicians may not always stand directly in front of the screen. Consistent viewing characteristics can therefore contribute to a more practical operator interface.
The DBM140M16K01 is an excellent candidate for evaluation in large-format SLA printers requiring a high-resolution operator interface. The 14-inch display provides sufficient physical space for detailed model previews, layer information, printing parameters, and machine controls.
DLP-based resin printing systems can benefit from a high-resolution display for presenting detailed graphical information. The DBM140M16K01 can be evaluated for professional DLP equipment where interface clarity and display density are important design requirements.
Industrial additive manufacturing equipment often requires detailed monitoring interfaces and extended operator interaction. The large display area allows manufacturers to organize machine information, process parameters, and graphical content more effectively.
For high-end desktop and professional resin printers, the display contributes to the perceived quality of the complete machine. A 14-inch ultra-high-resolution mono display can help manufacturers create a distinctive interface that reflects the precision of the printing system.
The 15120 × 6230 resolution provides an extremely dense display platform for detailed graphical interfaces. This can be useful when displaying complex models, fine structures, charts, layer previews, and technical parameters.
A 14-inch display provides more physical space for interface design than smaller printer screens. Equipment designers can allocate dedicated areas for model visualization, system information, controls, and status indicators.
IPS technology is designed to maintain consistent image presentation across different viewing positions. This can be useful in professional environments where technicians may inspect the machine from different angles.
Mono LCD technology can be appropriate when the application prioritizes fine graphical detail and display clarity rather than full-color content. This makes the module relevant to specialized professional equipment interfaces.
The DBM140M16K01 specification provides technical information covering pin assignment, electrical characteristics, power sequencing, display timing, optical characteristics, mechanical design, reliability, handling, and packaging.
Integrating an ultra-high-resolution LCD into a professional 3D printer requires careful system-level engineering.
The first consideration is mechanical compatibility. The 14-inch module must fit within the intended printer enclosure, mounting structure, and front-panel design. The mechanical drawing provided in the product documentation can support this evaluation.
The second consideration is electrical compatibility. Engineers should verify the LCD parameters, absolute maximum ratings, power requirements, pin assignment, and other electrical characteristics against the selected controller architecture.
The third consideration is display timing. At extremely high resolutions, controller compatibility and timing become particularly important. The DBM140M16K01 specification includes display timing and power-sequence information for engineering evaluation.
The fourth consideration is optical performance. The display's optical characteristics should be reviewed together with the enclosure, viewing environment, backlight requirements, and intended operator position.
Finally, manufacturers should consider reliability and production qualification. Reliability testing and inspection procedures should form part of the validation process before the display is approved for mass production.
Aptus understands that professional 3D printer manufacturers often require display components that must fit a specific system architecture. The selection process therefore needs to consider the complete application rather than resolution alone.
When contacting Aptus for the DBM140M16K01, customers can provide:
3D printer type and printing technology
Target display resolution
Display size requirements
Controller or driver architecture
Interface requirements
Mechanical installation dimensions
Optical requirements
Expected operating environment
Prototype or sample requirements
Estimated production volume
Target mass-production schedule
This information allows Aptus engineers to evaluate the display against the customer's application and identify potential integration considerations at an early stage.
The DBM140M16K01 is supported by an engineering-oriented product specification rather than a marketing-only description. The available Version 1.0 documentation includes general specifications, pin assignment, absolute maximum ratings, LCD electrical parameters, power sequence, display timing, optical characteristics, mechanical drawings, handling precautions, reliability testing, and packing information.
This type of documentation is important for B2B customers because integrating a high-resolution LCD requires coordination between mechanical, electrical, firmware, optical, and quality teams.
Mechanical engineers can review the mechanical drawing, hardware engineers can evaluate the pin assignment and electrical characteristics, system engineers can review timing and power sequencing, and quality teams can consider reliability and inspection requirements.
The currently referenced specification is Version 1.0, dated May 30, 2024. Customers should request the latest controlled specification from Aptus before final design approval and mass production to ensure that all technical parameters are current.
Shenzhen Aptus Technology Co., Limited specializes in TFT-LCD, mono LCD, high-resolution display modules, and customized display solutions for professional and specialized equipment.
Aptus works primarily with B2B customers that require display components for equipment integration and product development. Its engineering-oriented service covers display selection, technical evaluation, sample testing, integration support, and production planning.
The company supports display applications across specialized equipment and advanced manufacturing sectors, including high-resolution mono display solutions for professional 3D printing systems.
Aptus's technical approach focuses on the practical requirements of display integration, including mechanical compatibility, electrical characteristics, display timing, optical performance, reliability evaluation, and production requirements.
For manufacturers developing next-generation 3D printers, this engineering-focused approach provides a foundation for evaluating whether a particular high-resolution mono LCD is suitable for the intended equipment platform.
The DBM140M16K01 is a 14-inch Mono TFT IPS-LCD module with a native resolution of 15120 × 6230 pixels, developed for high-resolution 3D printing equipment and other precision applications.
The DBM140M16K01 has a native resolution of 15120 × 6230 pixels. This exceptionally high pixel count makes the module suitable for applications requiring highly detailed graphical information.
Yes. The module can be evaluated for professional SLA and DLP 3D printers, particularly large-format and high-end systems requiring a large, ultra-high-resolution display interface.
IPS technology is designed to provide consistent image presentation across different viewing positions. This can be useful in professional equipment where operators or technicians may view the control panel from different angles.
A 14-inch display provides more physical space for model previews, menus, machine parameters, status information, and controls. This allows equipment designers to create a more spacious and information-rich user interface.
The specification includes general specifications, pin assignment, absolute maximum ratings, LCD electrical parameters, power sequence, display timing, optical characteristics, mechanical drawings, handling precautions, reliability testing, and packing information.
The currently referenced specification is Version 1.0, dated May 30, 2024. Customers should request the latest controlled version before final product qualification.
Yes. The detailed controlled specification can be requested from Aptus's technical or sales team. Numerical engineering parameters should be confirmed using the latest official documentation.
Sample evaluation can be discussed with the Aptus team. Customers should provide their target application and technical requirements to facilitate compatibility evaluation.
Project-specific customization and integration requirements can be discussed with Aptus. Depending on the project, mechanical, optical, electrical, interface, and other display requirements may be evaluated.
Customers should ideally provide the application, target display size and resolution, interface requirements, controller information, mechanical constraints, expected quantity, project stage, operating environment, and production schedule.
If you are developing a large-format SLA printer, professional DLP printer, industrial resin 3D printer, premium desktop resin printer, research system, or precision manufacturing machine, the DBM140M16K01 provides an ultra-high-resolution display platform for advanced equipment interfaces.
The DBM140M16K01 14-inch 15120 × 6230 Mono TFT IPS-LCD module combines an exceptionally high pixel count, a large display area, and IPS display technology for advanced professional equipment. For 3D printer manufacturers seeking a high-resolution display platform for next-generation SLA/DLP systems, the module is a strong candidate for technical evaluation.
Contact Aptus Display to discuss your application, request the latest specification, and determine whether the DBM140M16K01 is suitable for your next 3D printing platform.
👉 Request a quote or sample
📧 Or email us directly: info@aptusdisplay.com
Click here for the complete product catalog
