H-DMI To MIPI Driver Board

No.H-DMI To MIPI

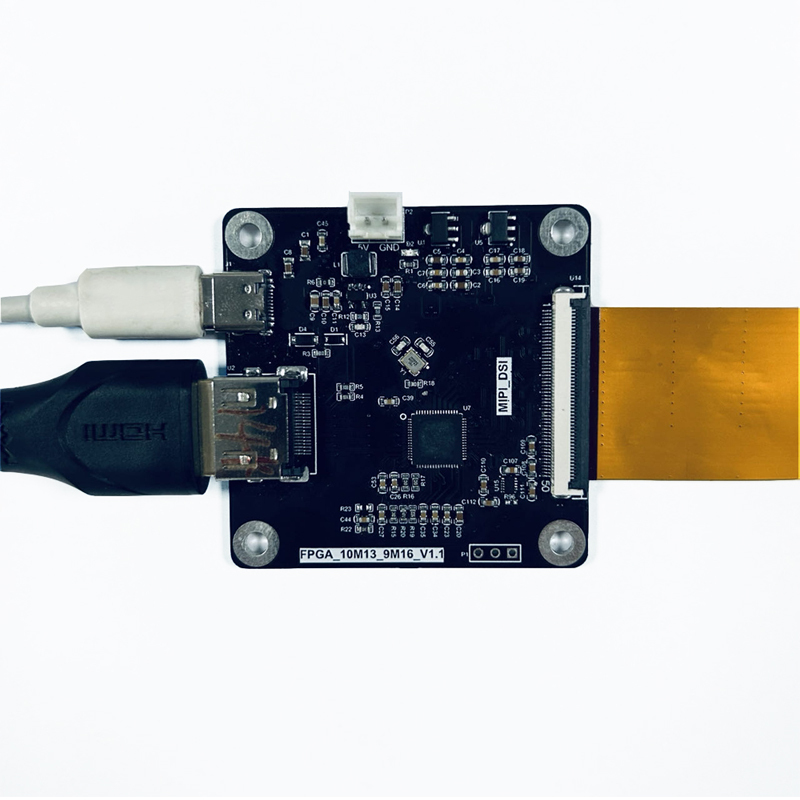

This is a super driver board which convert HDMI to MIPI DSI for LCD display. Itsupports MONO LCD 9K/12K/14K/16K.

  • H-DMI To MIPI Driver Board
  • H-DMI To MIPI Driver Board
  • H-DMI To MIPI Driver Board
  • H-DMI To MIPI Driver Board

SPECIFICATION

HDMI to MIPI DSI Driver Board

Product Overview:
Introducing the BHTM08 V1.0, a superior driver board designed to convert HDMI signals to MIPI DSI for LCD displays.  This cutting-edge technology supports MONO LCDs with 9K, 12K, 14K, and 16K resolutions, ensuring compatibility and high-definition display across a wide range of applications.

Key Features:

HDMI to MIPI DSI Conversion: Seamlessly convert HDMI input to MIPI DSI output, bridging the gap between different display technologies.
Support for High-Resolution Displays: Compatible with 9K, 12K, 14K, and 16K MONO LCDs, providing sharp and detailed visuals.
Optimized Timing Settings: Customizable timing settings to ensure the best performance for various LCD configurations.

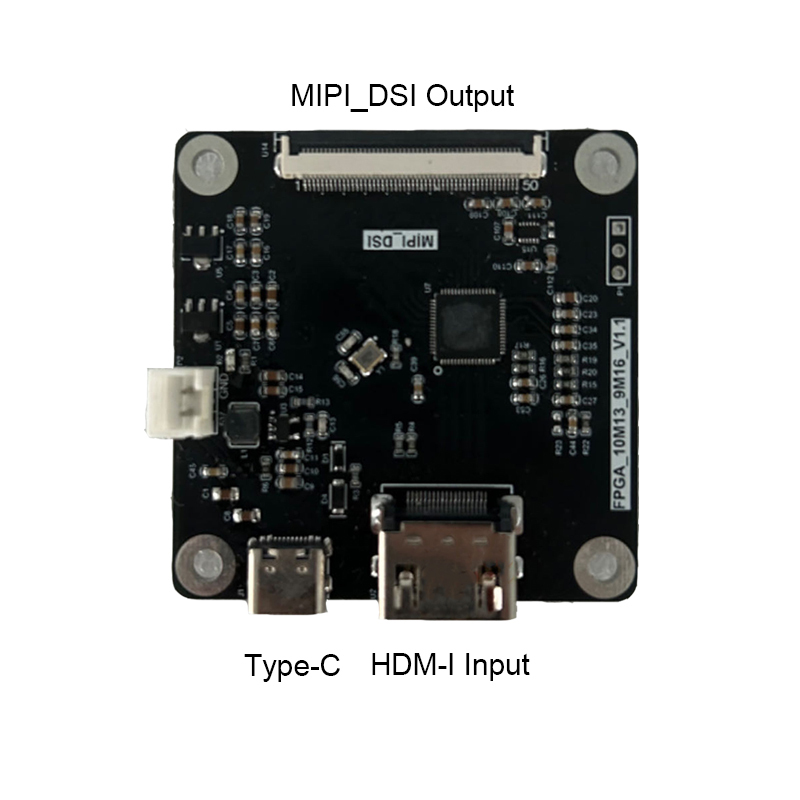

Main Interface Definition and PCB Structure Size:
The BHTM08 V1.0 is equipped with a well-defined main interface and a compact PCB structure size, making it suitable for integration into various systems without compromising on space.

Timing Settings:
We offer detailed timing settings for different LCD models to ensure optimal display performance.  Here are the specifications for three popular models:
