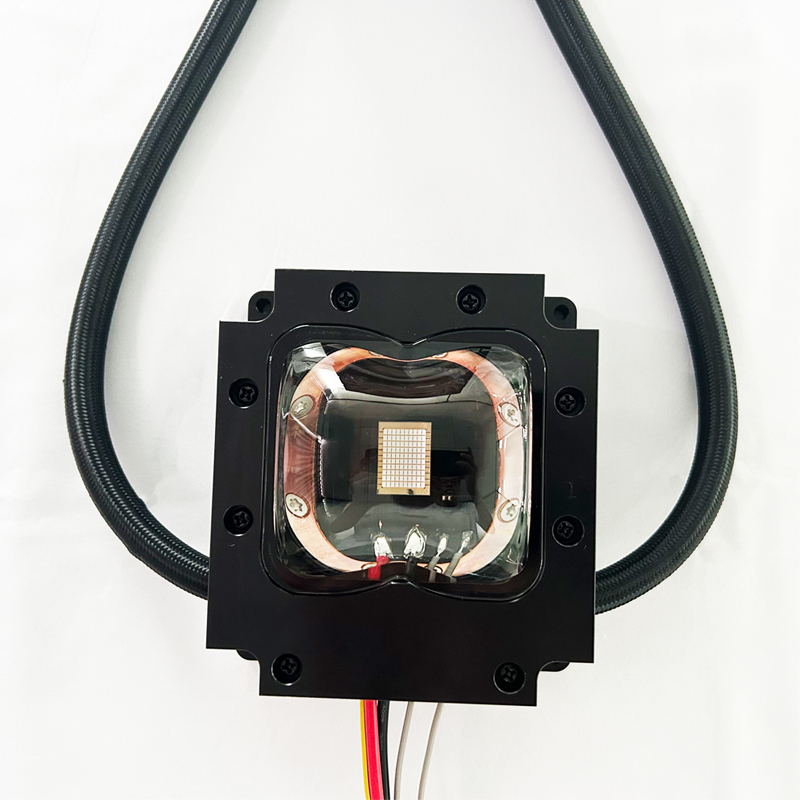

Product Details: S Series 12.8/13.3 Inch UV LED Light Source - UVA-S100V01Introducing the UVA-S100V01: Advanced Water-Cooled UV Light Source for 3D PrintingAptus International Co., Ltd. presents the S series UVA-S100V01, a 12.8/13.3-inch UV LED light source designed for the precise curing of 3D printer photo-curing components. This water-cooled solution ensures optimal performance and longevity in high-intensity 3D printing applications.
Key Features:- Parallel Light Technology: Minimizes diffuse reflection for enhanced image boundary recognition and high contrast, ideal for high-precision measurements.
- High-Intensity Output: Over 100mW/cm² light intensity through the Fresnel lens, ensuring efficient curing.
- Even Light Distribution: Achieves ≥85% evenness for uniform curing across the surface.
- Powerful LED Array: A 10x10 matrix of 100 LEDs in a 10 series and 10 parallel configuration for a robust light source.
Technical Specifications:- Input Voltage: 33-35V
- Input Current: 7.5-8.5A (recommended 8A)
- Light Intensity: >100mW/cm² (measured with Linshang LS125 UV radiometer probe UVALED-X3)

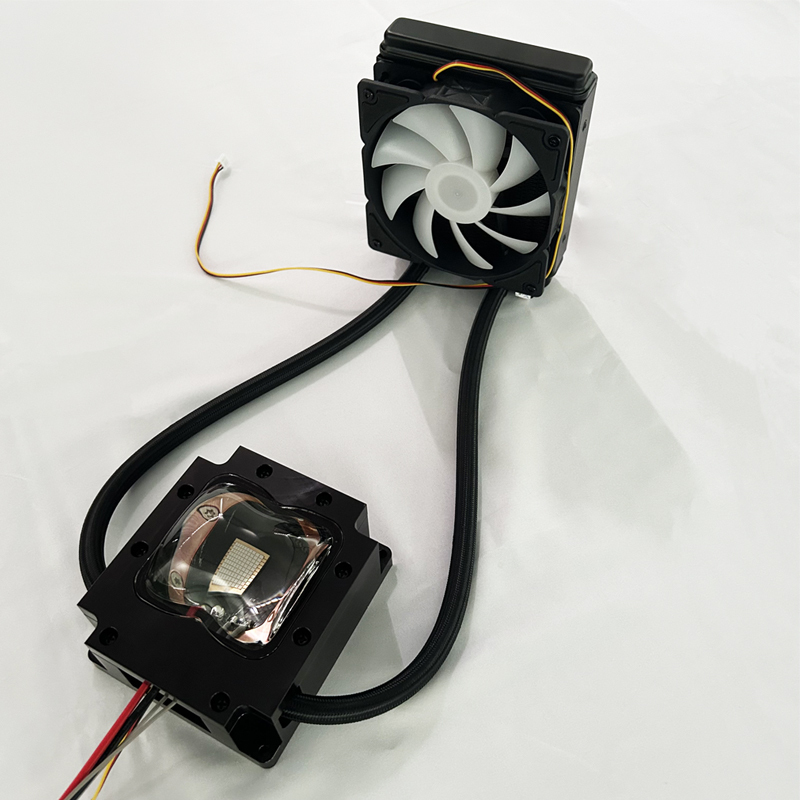

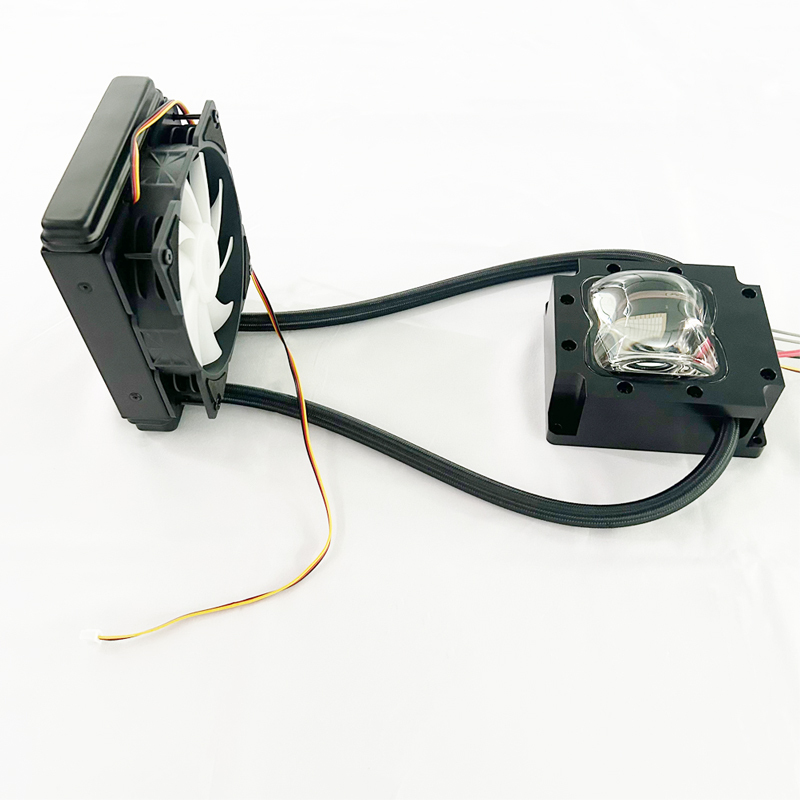

Structural and Cooling System:- Water Cooling: Equipped with a UVA120 integrated radiator and water pump for effective heat dissipation, essential for large-format 3D printing.
- Fresnel Lens: Detailed dimensional drawings for precise installation, with a recommended distance of 170-173mm from the lens to the heat sink base.
Installation and Safety:- Installation Recommendations: Step-by-step guidelines for optimal positioning and distance between the Fresnel lens and LCD, ensuring the best light source effect.
- Safety Note: Before lighting, confirm the water pump and fan are operating normally to prevent damage to the power cable and ensure the longevity of the light source.
