►Size:13.6
►Resolution:6480x3600 dots
►View Direction : ALL o`clock
►Interface : EDP
►Control-Board : Yes
►Transmittance: 9%
►Operating Temperature : -20~70℃

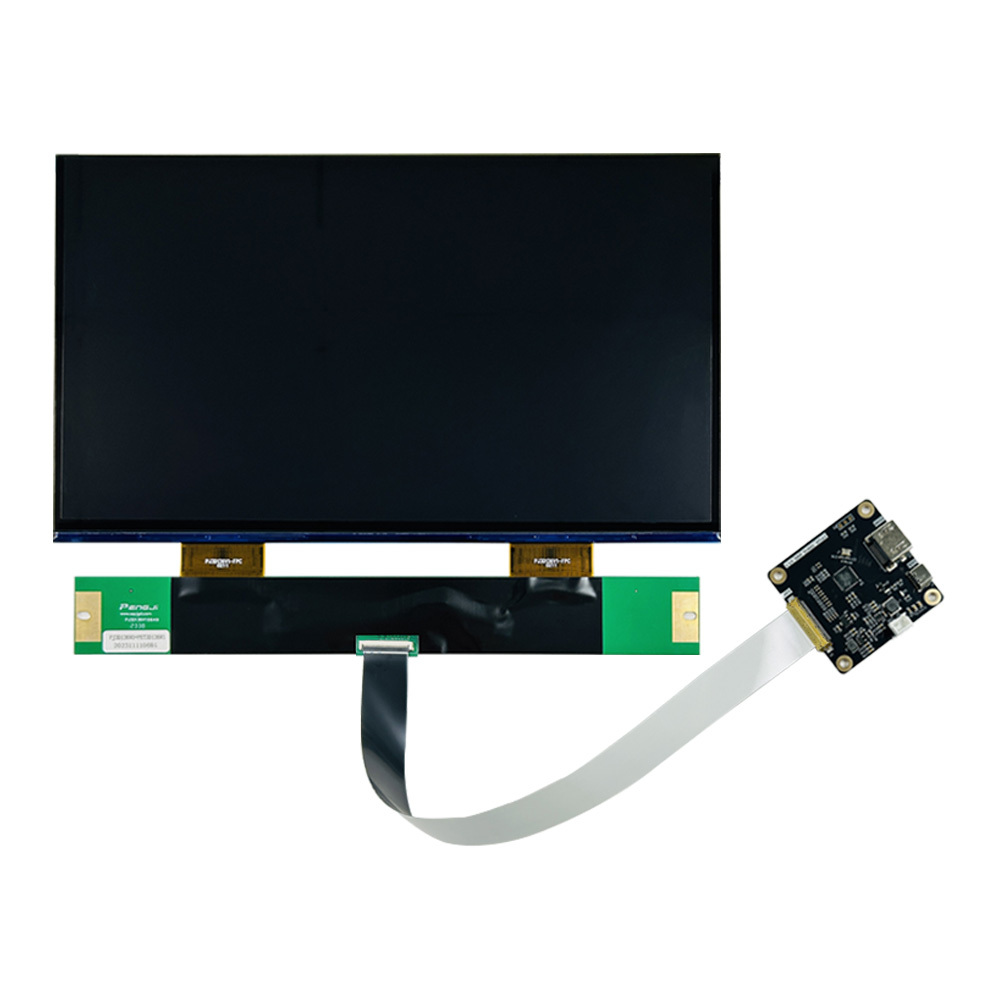

Discover the 13.6-inch 7K mono LCD display (6480×3600) for high-precision 3D printers. eDP interface, custom UV light systems and HD-MI boards available.

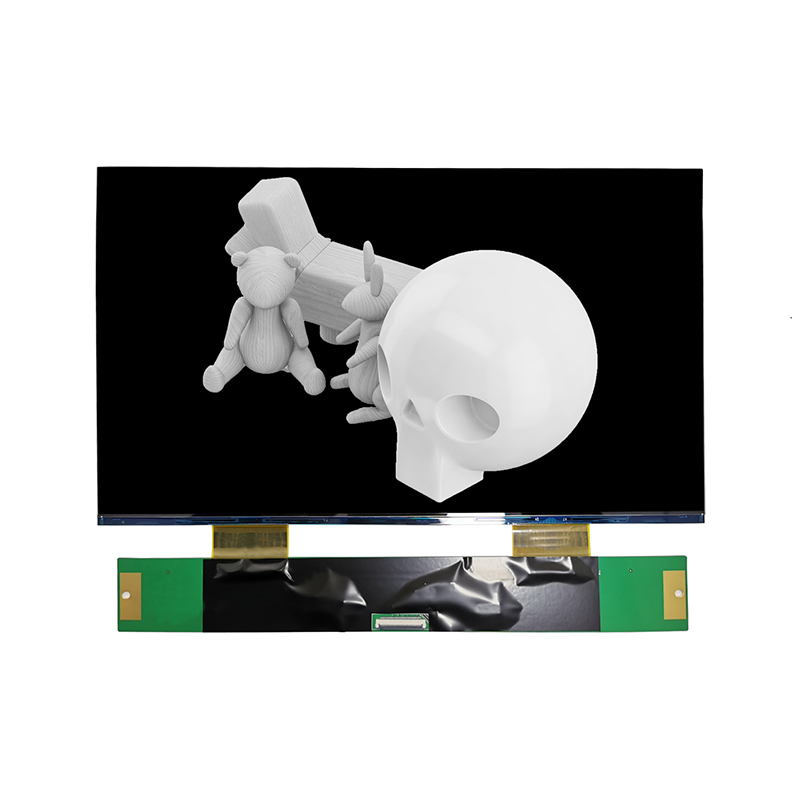

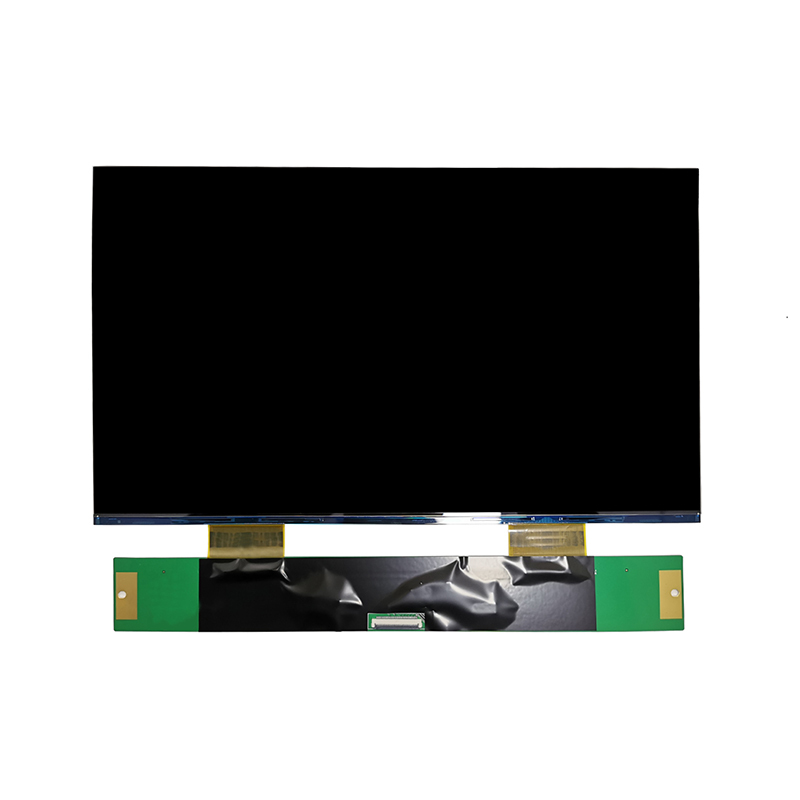

The DBM136E7K01 is a 13.6-inch high-resolution mono TFT-LCD module with a native 6480 × 3600 pixel resolution, designed for professional 3D printing equipment, large-format resin printers, precision manufacturing systems, and other applications requiring a large, highly detailed display interface. Developed by Shenzhen Aptus Technology Co., Limited, this mono LCD combines a generous 13.6-inch viewing area with ultra-high pixel density to provide clear visualization of 3D models, sliced layers, machine parameters, exposure information, and real-time operating status.
For manufacturers of professional SLA and DLP 3D printers, display performance is an important part of the overall machine experience. A larger display can make complex graphical information easier to view, while the 6480 × 3600 resolution provides a highly detailed image suitable for advanced user interfaces and model visualization. The DBM136E7K01 is therefore an attractive display solution for equipment manufacturers developing premium desktop, industrial, research, and large-format 3D printing systems.
The available product specification is identified as Document Version 1.0, dated September 29, 2021. It covers mechanical design, interface definition, interface timing, absolute maximum ratings, DC characteristics, backlight information, optical specifications, reliability testing, inspection standards, and handling precautions.
The DBM136E7K01 is designed for applications where screen size, image detail, and professional system integration are important.
13.6-inch mono TFT-LCD for a larger and more comfortable display area
6480 × 3600 native resolution for highly detailed graphical content
High pixel density for displaying detailed 3D models and sliced-layer information
Mono TFT technology suitable for high-detail equipment interfaces
Large-format screen design for professional 3D printer control panels
Detailed interface definition and timing information for engineering integration
Mechanical drawings available in the controlled specification
DC electrical characteristics documented for system evaluation
Backlight and optical specifications included
Reliability testing information for product qualification
Inspection standards supporting quality-control processes
Handling precautions documented for engineering and production use
Suitable for project evaluation and customized display requirements
The combination of a 13.6-inch form factor and 6480 × 3600 resolution makes the DBM136E7K01 particularly relevant to 3D printer manufacturers that want a large, detailed user interface without moving to a significantly larger commercial display format.
| Parameter | Specification |
|---|---|
| Model | DBM136E7K01 |
| Display Type | Mono TFT-LCD Module |
| Display Size | 13.6 inches |
| Resolution | 6480 × 3600 pixels |
| Display Technology | Mono TFT-LCD |
| Primary Application | Professional 3D Printing |
| Target Equipment | SLA/DLP Printers |
Engineering Note: The table above summarizes the currently available product information. Detailed numerical values for active area, pixel pitch, mechanical dimensions, electrical limits, backlight characteristics, optical performance, timing parameters, and other engineering specifications should be confirmed against the latest controlled DBM136E7K01 specification supplied by Aptus.
Professional 3D printers increasingly require displays that can present complex information clearly. A typical high-end resin printer interface may need to show a model preview, layer information, exposure settings, support structures, print progress, temperature data, machine status, and configuration parameters.
A high-resolution display helps present this information with greater graphical detail. The 6480 × 3600 resolution of the DBM136E7K01 provides a dense pixel structure across a 13.6-inch screen, making it suitable for applications where manufacturers want a highly detailed user interface.
The larger 13.6-inch size is another important advantage. Compared with smaller printer displays, a larger screen provides more physical space for menus, previews, status indicators, charts, and machine controls. This can be particularly useful for professional equipment operated by technicians for extended periods.
For manufacturers, the display is not simply an output component. It is part of the machine's human-machine interface and can influence usability, perceived product quality, and operator interaction.
The DBM136E7K01 is well suited for large-format resin 3D printers that require a spacious, high-resolution user interface. The 13.6-inch screen provides additional room for model previews, print parameters, layer information, and machine controls.
Professional DLP printers can use a high-resolution mono TFT-LCD as part of their equipment interface. The DBM136E7K01 can be evaluated for systems requiring detailed visualization of models, exposure parameters, printing status, and machine configuration.
Industrial additive manufacturing equipment often requires displays capable of supporting continuous operator interaction. The larger display area can help technicians access machine information and monitor complex printing processes more comfortably.
Premium desktop 3D printers increasingly use larger and higher-resolution interfaces to differentiate professional products from entry-level equipment. A 13.6-inch 6480 × 3600 mono display provides a high-resolution platform for this type of product development.
A professional 3D printer interface needs to balance information density with usability. The DBM136E7K01 offers several characteristics that can help manufacturers achieve this balance.
Large 13.6-inch display area:
The additional screen area gives equipment designers more flexibility when arranging menus, graphical previews, process information, and machine controls.
6480 × 3600 resolution:
The high native resolution allows detailed graphical content to be displayed with a dense pixel structure, which is valuable for complex model previews and technical interfaces.
Mono TFT-LCD architecture:
A mono display can be appropriate for applications where detailed graphical information, contrast, and pixel density are prioritized over full-color presentation.
Engineering documentation:
The product specification includes mechanical, electrical, interface, optical, reliability, and inspection sections, helping engineering teams evaluate the component during system development.
Selecting a high-resolution LCD for a 3D printer requires system-level evaluation. Manufacturers should consider more than screen size and resolution before beginning mass production.
Mechanical compatibility should be checked against the printer's enclosure and mounting structure. The available mechanical drawing can be used during the initial enclosure and integration design.
Electrical compatibility should also be evaluated, including the interface definition, DC characteristics, absolute maximum ratings, and required power conditions.
The display timing must be matched with the selected controller or driver architecture. Interface timing information in the controlled specification can support this engineering evaluation.
Optical characteristics and backlight requirements should also be reviewed according to the intended operating environment. For professional equipment, manufacturers should evaluate viewing conditions, enclosure design, thermal management, and expected operating duration.
Finally, reliability and inspection requirements should be incorporated into the product qualification process before volume production.
Professional equipment manufacturers often require display solutions that fit a specific mechanical and electrical architecture. Aptus supports customers during the display selection and evaluation process.
When contacting Aptus regarding the DBM136E7K01, customers can provide information such as:
Target 3D printer type
Required display size and resolution
Existing controller or driver architecture
Interface requirements
Mechanical installation space
Optical requirements
Operating environment
Sample quantity
Expected annual volume
Target production schedule
This information allows the engineering team to better understand the application and determine whether the DBM136E7K01 is appropriate for the project.
The DBM136E7K01 product documentation is structured for engineering evaluation rather than simply providing marketing-level specifications. The specification includes sections covering mechanical design, interface definition, interface timing, absolute maximum ratings, DC characteristics, backlight, optical performance, reliability testing, inspection standards, and handling precautions.
These sections are valuable to B2B customers because display integration involves multiple engineering disciplines. Mechanical engineers need dimensional information, hardware engineers need electrical and interface information, firmware teams may require timing information, and quality teams need reliability and inspection criteria.
The currently referenced specification is Version 1.0, dated September 29, 2021. Because specifications may be revised during product development or lifecycle management, customers should request the latest controlled version from Aptus before final design approval or mass production.
Shenzhen Aptus Technology Co., Limited is a display technology company specializing in TFT-LCD, mono LCD, high-resolution display modules, and customized display solutions for professional and specialized equipment.
Aptus works with B2B customers that require display components for equipment integration rather than consumer-oriented standard displays. Its engineering-oriented approach covers product selection, technical evaluation, sample testing, display integration, and production support.
The company provides display solutions for applications including professional equipment, industrial systems, specialized interfaces, and advanced 3D printing equipment.
For 3D printer manufacturers, Aptus can support projects involving high-resolution mono LCDs and other specialized display requirements. Customers can work with the technical and sales teams to evaluate mechanical compatibility, electrical requirements, optical characteristics, interface configuration, and production requirements.
This combination of product expertise, engineering support, controlled technical documentation, and project consultation helps customers reduce integration risks when developing new equipment.
The DBM136E7K01 is a 13.6-inch mono TFT-LCD module with 6480 × 3600 resolution, designed for professional 3D printers, large-format resin printing systems, precision equipment, and other high-resolution display applications.
The native resolution is 6480 × 3600 pixels. This high resolution provides a dense pixel structure suitable for detailed model previews, graphical interfaces, machine parameters, and other high-detail content.
Yes. The module can be evaluated for professional SLA and DLP systems, particularly large-format or high-end machines that require a larger high-resolution display interface.
A 13.6-inch display provides more physical screen area for model previews, menus, parameters, charts, progress information, and machine controls. This can improve interface organization and operator readability compared with smaller display formats.
The specification covers mechanical description, mechanical drawings, interface definition, interface timing, absolute maximum ratings, DC characteristics, backlight, optical specifications, reliability testing, inspection standards, and handling precautions.
The available specification is identified as Version 1.0, dated September 29, 2021. Customers should request the latest controlled specification before production.
Yes. Aptus can provide the applicable controlled technical documentation for qualified customers and project evaluations. Detailed numerical parameters should be confirmed against the latest specification.
Sample evaluation can be discussed with the Aptus sales and engineering team. Providing the target application and system requirements can help the team evaluate the appropriate display solution.
Project-specific customization and integration requirements can be discussed with Aptus. Depending on the project, mechanical, optical, interface, electrical, and other display requirements may be evaluated.
For a more accurate evaluation, provide your application, required quantity, target display resolution, interface requirements, available installation space, project stage, operating environment, and estimated production schedule.
If you are developing a large-format SLA printer, professional DLP printer and industrial resin 3D printer, the DBM136E7K01 provides a high-resolution 13.6-inch mono display platform for your product development.
The DBM136E7K01 13.6-inch 6480 × 3600 mono TFT-LCD module combines a large display area with extremely high resolution, making it a strong candidate for next-generation professional 3D printer interfaces and precision equipment. Contact Aptus Display to evaluate the module for your next equipment platform.
