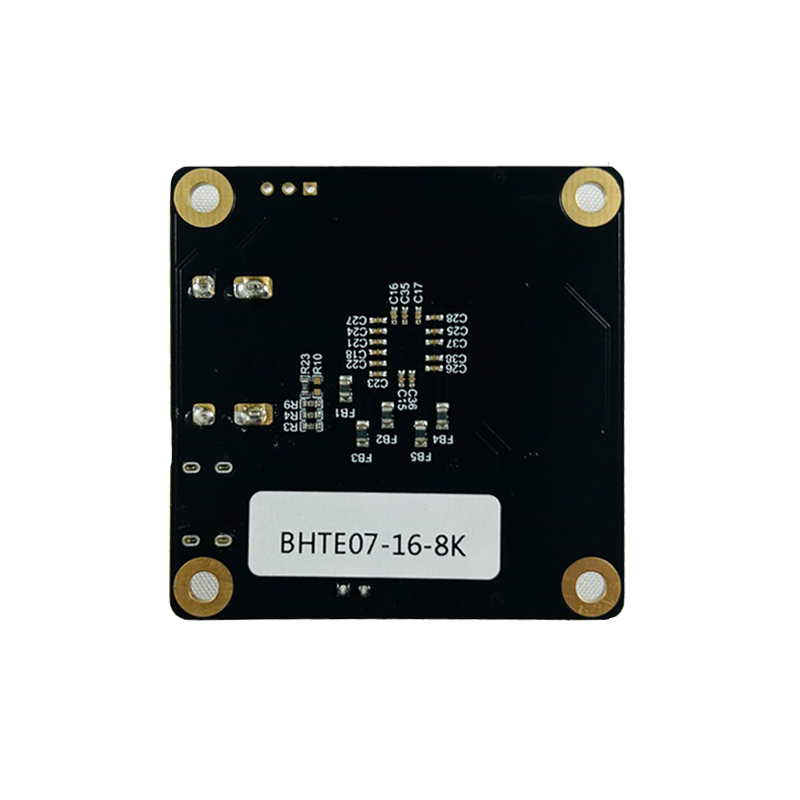

HD-MI to eDP Driver BoardProduct Overview:Discover the BHTE07 V1.0, a cutting-edge driver board that converts HD-MI signals to eDP for advanced LCD displays. This powerful solution supports MONO LCD resolutions of 5K, 6K, and 8K, delivering exceptional image quality and performance.
Key Features:HD-MI to eDP Conversion: Effortlessly transform HD-MI input into eDP output, ensuring compatibility with a variety of modern display technologies.
High-Resolution Support: Compatible with 5K, 6K, and 8K MONO LCDs for crisp and detailed visual output.
Customizable Timing Settings: Tailor the display performance to your specific needs with adjustable timing settings.

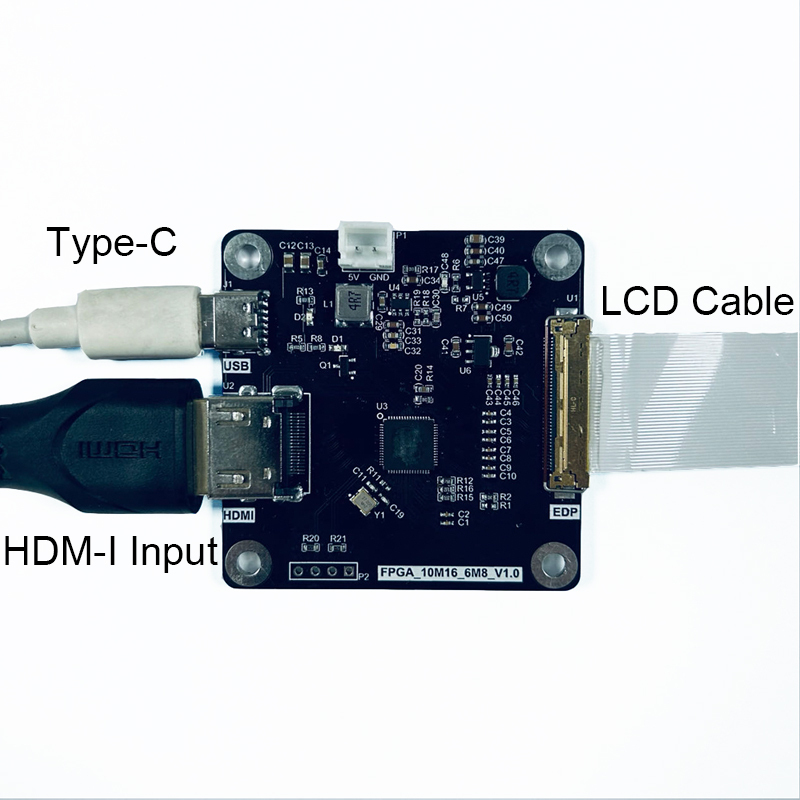

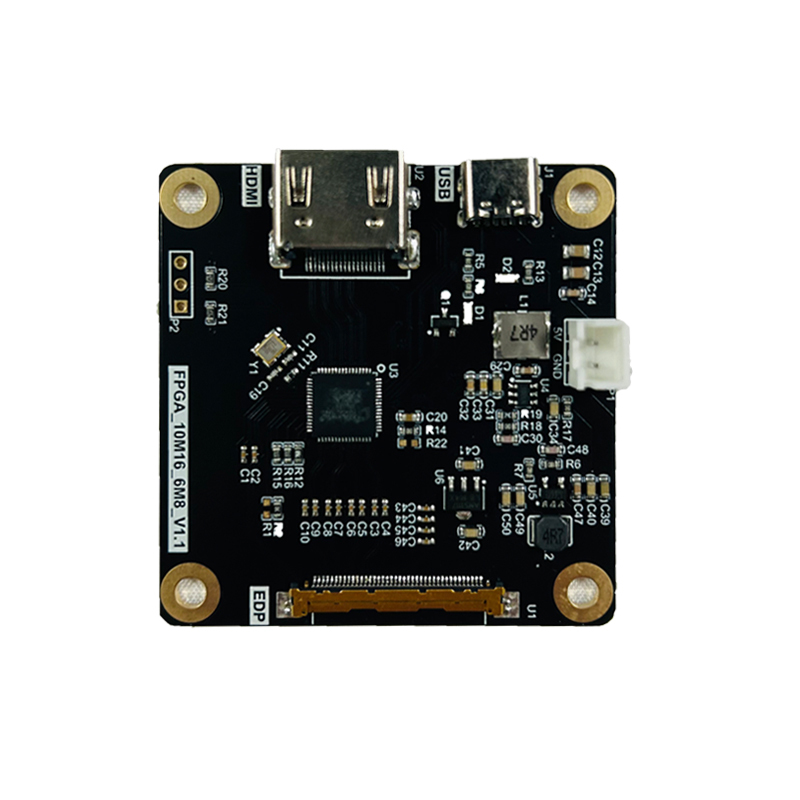

Main Interface Definition and PCB Structure Size:
The BHTE07 V1.0 is designed with a clear main interface and a compact PCB structure, making it an ideal choice for integration into various systems without taking up excessive space.
Timing Settings:We provide detailed timing settings for different LCD models to ensure optimal display performance. Here are the specifications for four popular models:
