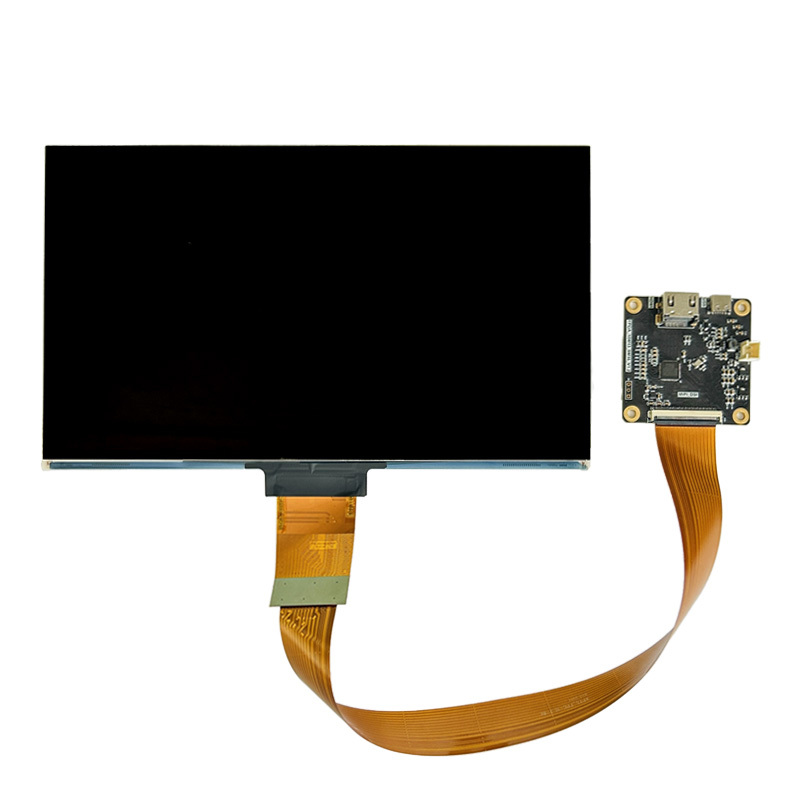

►Size:10.3 inch
►Resolution :7680*4320 dots
►View Direction : ALL o`clock
►Interface : MIPI 50Pin
►Control-Board : Yes
►Transmittance:.4%
►Touch Screen : No
►Operating Temperature : -20~70℃
Explore the 10.3-inch 8K mono LCD (7680×4320) with MIPI 50Pin interface—ideal for high-resolution resin 3D printers. Supports 405nm UV curing systems.

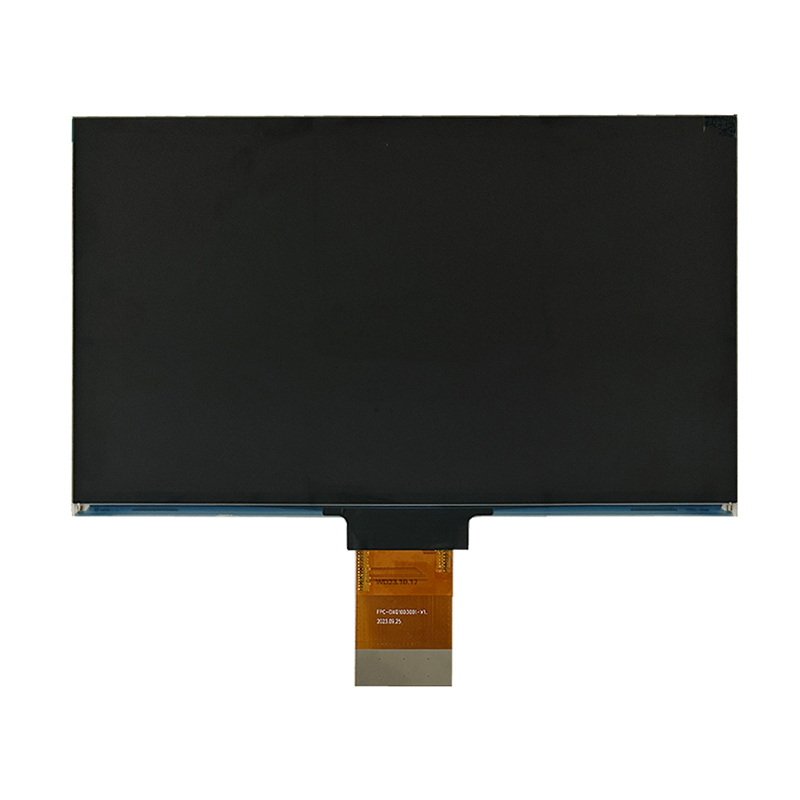

The DBM103M8K01 is a 10.3-inch 8K mono LTPS TFT-LCD module designed for high-resolution display and imaging applications, with particular suitability for professional resin 3D printing equipment. Featuring a native 7680 × 4320 resolution, Low-Temperature Poly-Silicon (LTPS) TFT technology, and a black-and-white active-matrix architecture, this display provides an ultra-dense imaging platform for advanced 3D printer interfaces, high-detail visualization, and specialized equipment.
As professional 3D printing technology continues to evolve, equipment manufacturers increasingly require displays that can present detailed model previews, sliced-layer information, machine parameters, exposure settings, and operating status with excellent image definition. The DBM103M8K01 provides a compact 10.3-inch form factor combined with true 8K resolution, making it an attractive display solution for manufacturers developing high-end SLA, DLP, and other precision additive manufacturing equipment.
The module uses LTPS TFT technology as its switching architecture and adopts a monochrome active-matrix display design. Its high pixel density makes it suitable for applications where detailed black-and-white imaging and compact mechanical integration are important.
The DBM103M8K01 combines ultra-high resolution with LTPS technology in a compact professional display format.
The panel provides a native 7680 × 4320 pixel resolution, commonly referred to as 8K UHD. This provides significantly greater image detail than conventional Full HD and 4K display architectures.
For 3D printer manufacturers, high-resolution visualization can improve the presentation of complex models, sliced layers, support structures, machine status information, and detailed interface graphics.
The 8K specification should be considered a display characteristic rather than a direct measurement of final printed resolution. Actual printing performance depends on the complete optical engine, exposure system, resin, mechanical structure, software, and calibration.
The DBM103M8K01 uses Low-Temperature Poly-Silicon (LTPS) TFT technology. LTPS is well suited to high-pixel-density display architectures and provides a technology platform for compact, high-resolution TFT-LCD designs.
For equipment developers, the use of LTPS enables the module to support an extremely dense pixel arrangement within its 10.3-inch diagonal format.
Unlike conventional RGB color TFT displays, DBM103M8K01 is a mono or black-and-white active-matrix TFT-LCD.
A monochrome display architecture can be advantageous in specialized equipment where grayscale or black-and-white imaging is sufficient and extremely high pixel density is a priority.
This makes the module particularly relevant for professional 3D printing equipment and other specialized imaging systems that require detailed monochrome content.
The 10.3-inch diagonal size provides a balance between viewing area and system integration requirements.
For 3D printer manufacturers, a 10.3-inch panel can be incorporated into professional equipment without requiring the larger enclosure dimensions associated with larger display formats.
The compact form factor is suitable for desktop professional printers, research equipment, and specialized industrial systems.
| Category | Parameter | Specification | Unit / Note |
|---|---|---|---|
| Product | Model | DBM103M8K01 | — |
| Display | Display Type | Mono TFT-LCD | Black & White Active Matrix |
| Display Size | Diagonal | 10.3 | inch |
| Resolution | Horizontal × Vertical | 7680 × 4320 | pixels |
| Resolution Class | Display Resolution | 8K | Ultra-high resolution |
| TFT Technology | Technology | LTPS | Low-Temperature Poly-Silicon |
| Display Architecture | Pixel Type | Monochrome | Black & White |
| Document | Version | 1.1 | — |
| Documentation | Release Date | 2021.12.31 | — |
Note: The specifications above are based on the available DBM103M8K01 product information. Detailed mechanical dimensions, optical characteristics, electrical parameters, FPC pin assignment, timing specifications, reliability information, and handling requirements should be confirmed with Aptus Display before final system design.
The display is an important component of a professional 3D printer's user interface and imaging architecture. As additive manufacturing equipment becomes more sophisticated, users need increasingly detailed information during model preparation, machine setup, exposure management, and print monitoring.
The DBM103M8K01 provides an 8K monochrome imaging platform that can be evaluated for applications requiring exceptionally dense image information.
For a resin printer manufacturer, the benefits can include:
High-resolution display of detailed model previews.
Clear presentation of sliced-layer graphics.
Detailed support and structure visualization.
High-definition machine interface graphics.
Compact integration into professional printer designs.
LTPS technology suitable for high-density pixel architectures.
Monochrome imaging for specialized applications.
An 8K platform for next-generation equipment development.
The actual suitability of the panel depends on the printer's optical architecture, controller, software, mechanical design, and intended operating conditions. Aptus Display recommends system-level evaluation before production deployment.
The DBM103M8K01 can be evaluated for professional resin 3D printers that require a high-resolution monochrome display or imaging component.
Its 8K resolution provides a highly detailed image platform for displaying models, layers, structures, parameters, and other visual information.
SLA equipment manufacturers can consider the module when developing high-resolution interfaces or specialized monochrome imaging systems.
The panel's LTPS architecture and 7680 × 4320 resolution provide a suitable technical foundation for applications where high pixel density is a major design requirement.
Advanced resin printing platforms often require detailed graphical interfaces and precise visual feedback. DBM103M8K01 can be evaluated for compatible system architectures where a monochrome high-resolution display is preferred.
For DLP systems, compatibility should be evaluated according to the specific optical engine and system architecture.
Integrating an 8K LCD into professional equipment requires more than simply selecting a panel with a high pixel count.
The system controller must be capable of supporting the required display resolution and interface architecture. Engineers should confirm the complete electrical and timing specifications before selecting the host controller.
An 8K display places greater demands on system-level signal integrity than conventional lower-resolution displays. PCB routing, FPC design, connector selection, grounding, power integrity, and high-speed signal management should be considered during hardware development.
For 3D printing applications involving LCD-based exposure, the LCD should be evaluated together with the UV light source and optical system. Light uniformity, optical efficiency, thermal conditions, exposure parameters, and mechanical alignment can all affect final system performance.
Continuous operation can generate heat within the display and surrounding optical assembly. The thermal design should therefore be evaluated under actual operating conditions rather than relying only on the nominal panel specification.
The 10.3-inch diagonal format should be incorporated into the printer's mechanical design together with FPC routing, connector clearance, mounting structure, protective components, and optical spacing.
A prototype validation stage is recommended before mass production.
Shenzhen Aptus Technology Co., Limited, operating through Aptus Display, specializes in LCD display products and customized display solutions for professional equipment manufacturers, system integrators, and technology companies.
Aptus Display provides solutions covering TFT-LCD modules, monochrome LCD technologies, touch panel solutions, high-resolution displays, and other display-related products for specialized applications.
For 3D printing manufacturers, display integration can involve much more than the LCD panel itself. The complete solution may include the display module, controller, interface electronics, optical system, cables, mechanical structure, thermal management, and system-level software.
Aptus focuses on supporting customers throughout the display selection and integration process. Depending on project requirements, customers can discuss display size, resolution, interface, mechanical dimensions, optical requirements, environmental conditions, customization, sampling, and production requirements with the engineering and sales team.
This engineering-oriented approach helps customers evaluate whether a particular display is appropriate for their intended product before moving into large-scale production.
Choosing a display supplier for professional equipment requires consideration of both product specifications and long-term engineering support.
Aptus Display provides several advantages for customers evaluating high-resolution mono LCD technology:
Display industry experience: Aptus has experience supplying LCD solutions for professional and specialized equipment applications.
Engineering support: Customers can discuss mechanical, electrical, optical, interface, and system integration requirements with the technical team.
High-resolution display capability: Aptus supports advanced display solutions including high-resolution mono LCD modules for specialized applications.
Customized project support: Projects with specific dimensions, interfaces, optical requirements, or mechanical constraints can be evaluated on a project-by-project basis.
Technical documentation: Engineering teams can request relevant mechanical drawings, electrical specifications, timing information, reliability documentation, and other technical materials where available.
B2B supply capability: Aptus supports sample evaluation, prototype development, project communication, and volume production requirements for qualified customers.
The DBM103M8K01 has a native resolution of 7680 × 4320 pixels, which is classified as 8K resolution.
No. DBM103M8K01 is a monochrome black-and-white active-matrix TFT-LCD module.
The module uses LTPS, or Low-Temperature Poly-Silicon TFT technology, which is suitable for high-pixel-density display architectures.
Yes. The 10.3-inch 8K mono LTPS TFT-LCD can be evaluated for professional resin 3D printers, SLA systems, DLP-related equipment, research printers, and other specialized additive manufacturing platforms.
Its actual suitability depends on the complete printer architecture and should be verified during engineering evaluation.
Not necessarily. LCD resolution is only one factor in overall printing performance. Final print resolution and detail depend on the complete optical system, light source, resin, exposure parameters, mechanical accuracy, calibration, and software.
The module has a 10.3-inch diagonal display size.
Yes. Aptus Display can provide available technical documentation for qualified project evaluations. Detailed documentation may include mechanical drawings, optical characteristics, electrical parameters, FPC information, timing specifications, reliability information, and handling requirements.
Customization requirements can be discussed with the Aptus engineering team. Depending on the project, requirements may include mechanical integration, interface compatibility, optical matching, or other display-related modifications.
The available product information identifies Document Version 1.1, with a release date of December 31, 2021.
For current projects, customers should request the latest available specification before finalizing the design.
If you are developing a professional resin 3D printer, SLA machine, DLP printing system, research printer, or specialized high-resolution imaging device, the DBM103M8K01 can be evaluated as a potential 8K mono LCD solution.
To help Aptus engineers evaluate your project efficiently, we recommend including:
Target application
Printer or equipment type
Required display resolution
Display size
Host processor or controller
Interface requirements
Optical system information
Mechanical installation dimensions
Operating temperature
Sample quantity
Estimated production volume
Customization requirements
Providing these details allows the Aptus team to assess display compatibility and recommend the appropriate technical solution.
If you are looking for an 8K mono LCD module, LTPS TFT-LCD, high-resolution 3D printer display, or customized monochrome display solution, contact Aptus Display for product information, sample evaluation, technical documentation, and project consultation.
The DBM103M8K01 10.3-inch 7680 × 4320 mono LTPS TFT-LCD module combines true 8K resolution, LTPS TFT technology, monochrome active-matrix architecture, and a compact professional form factor. It provides 3D printer manufacturers and specialized equipment developers with an ultra-high-resolution display platform for evaluating next-generation professional applications.
👉 Request a quote or sample
📧 Or email us directly: info@aptusdisplay.com
Click here for the complete product catalog

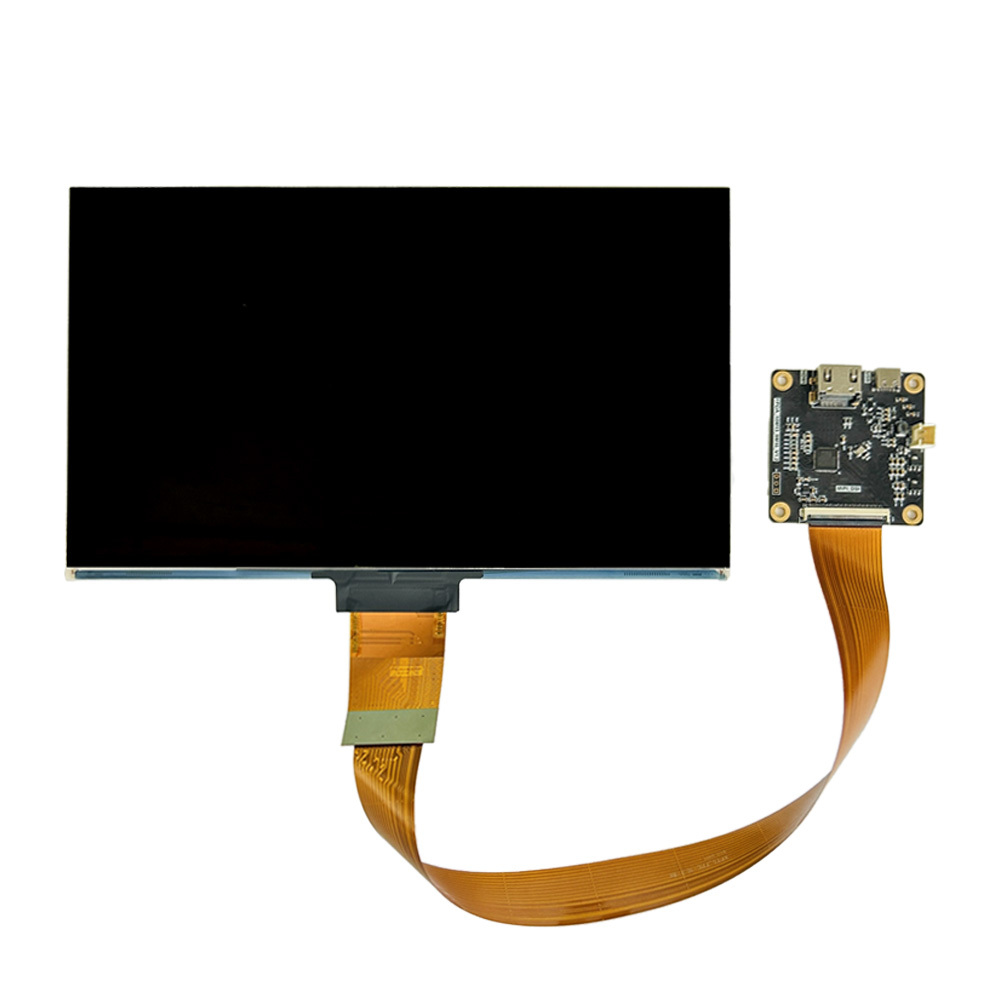

LCD driver board：
