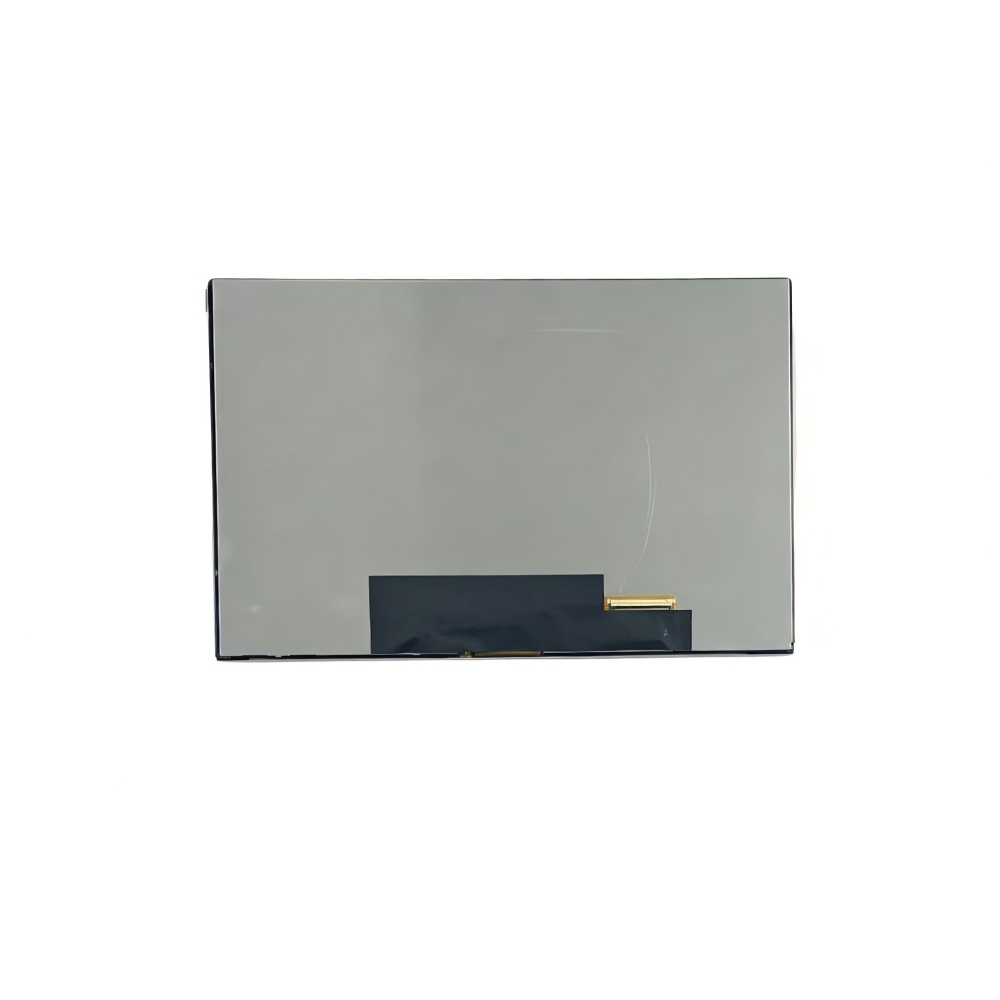

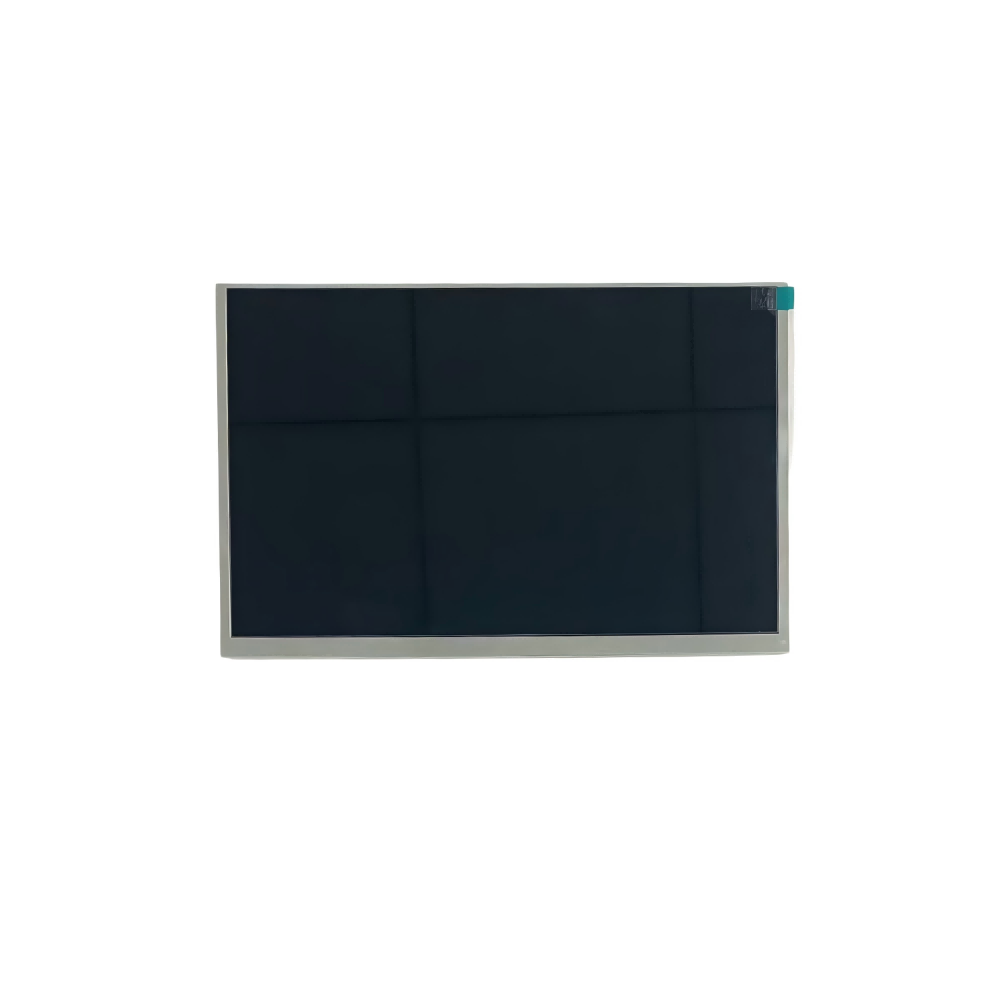

10.1 Inch 1280x800 LVDS 40PIN 1000nits Wide Temperature High Brightness Industrial LCD Module DBT101HIEWA03

The DBT101HIEWA03 is a rugged 10.1-inch industrial TFT LCD module featuring 1280x800 WXGA resolution, LVDS 40PIN interface, ultra-high 1000 cd/m² brightness (typical, min 900), and wide operating temperature range of -30°C to +80°C. Built exclusively for demanding industrial equipment where standard displays cannot survive extreme conditions, continuous operation, or harsh environments.

In industrial control systems, displays serve as the critical visual interface between operators and complex machinery. They must deliver reliable performance under wide temperature variations, vibration, electrical noise, and 24/7 duty cycles. The DBT101HIEWA03 is engineered specifically for these requirements, providing long-term stability, high visibility, and seamless integration into industrial automation and control equipment.

As a professional industrial LCD manufacturer, Aptus focuses on high-performance modules designed for factory automation, HMI systems, and embedded industrial applications. This module combines exceptional brightness for improved readability in bright factory lighting, wide temperature tolerance for unconditioned cabinets, and robust construction for continuous industrial use.

Key Features

• Ultra-high brightness: Typical 1000 cd/m² (Minimum 900 cd/m²) – ensures clear visibility in bright industrial lighting or factory floors
• Wide temperature range: Operating -30°C to +80°C – handles thermal cycling and extreme conditions in industrial environments
• 1280 × 800 WXGA resolution with 16.7 million colors and high contrast (Typical 1000:1, Min 800:1)
• Full wide viewing angle: 85/85/85/85° (U/D/L/R) – clear viewing from any operator position
• LVDS 40PIN interface – supports high-speed, long-distance, low-EMI transmission ideal for noisy industrial settings
• Compact outline: 229.46 × 149.1 × 4.8 mm; Active area: 216.96 × 135.6 mm
• 3.3V VCC power supply for efficient industrial integration
• Industrial-grade durability: Resilient to thermal stress, vibration, and continuous 24/7 operation

Full Technical Specifications

Typical Applications

The DBT101HIEWA03 is designed exclusively for industrial equipment and control systems where reliability, high visibility, and environmental tolerance are essential. It excels in:

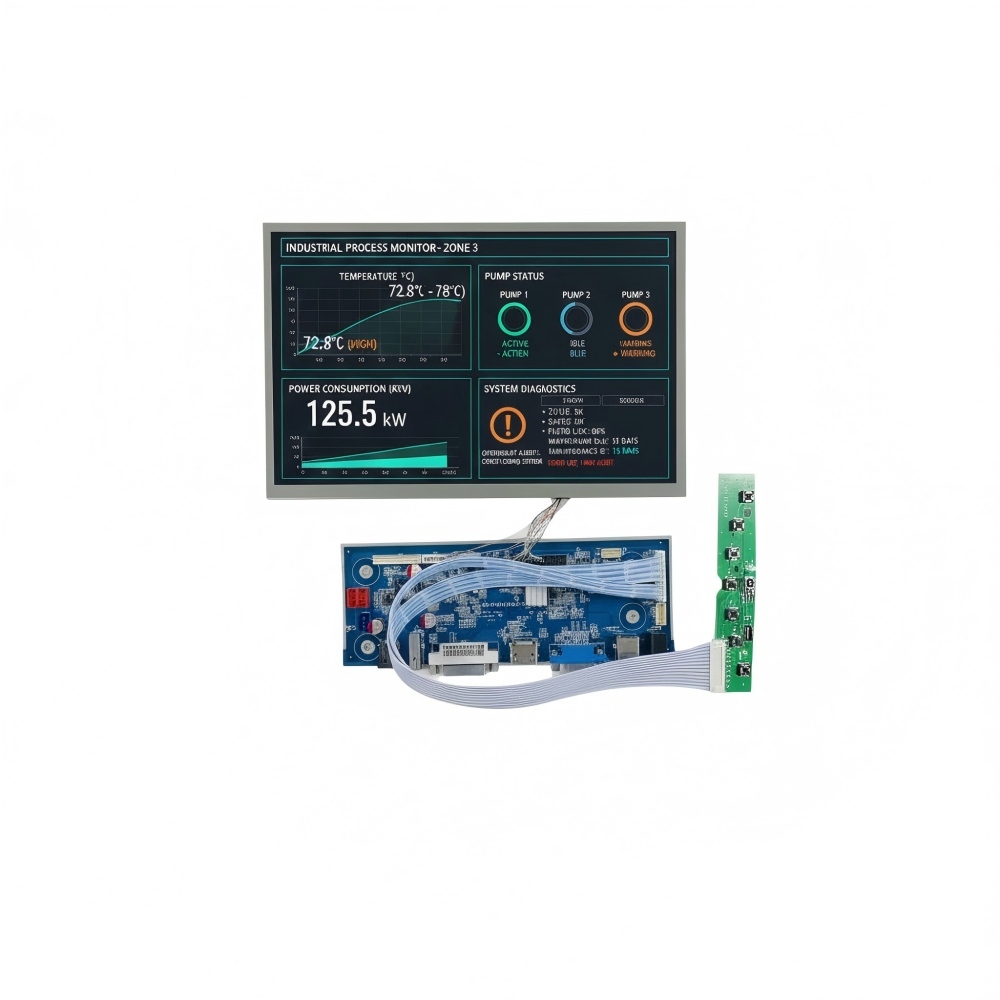

• Industrial HMI Panels: Operator interfaces for machinery control, displaying real-time process data, parameters, alarms, and diagnostics in factory environments.
• PLC Control Systems: Programmable logic controller displays for automation lines, enabling monitoring, adjustment, and troubleshooting in production facilities.

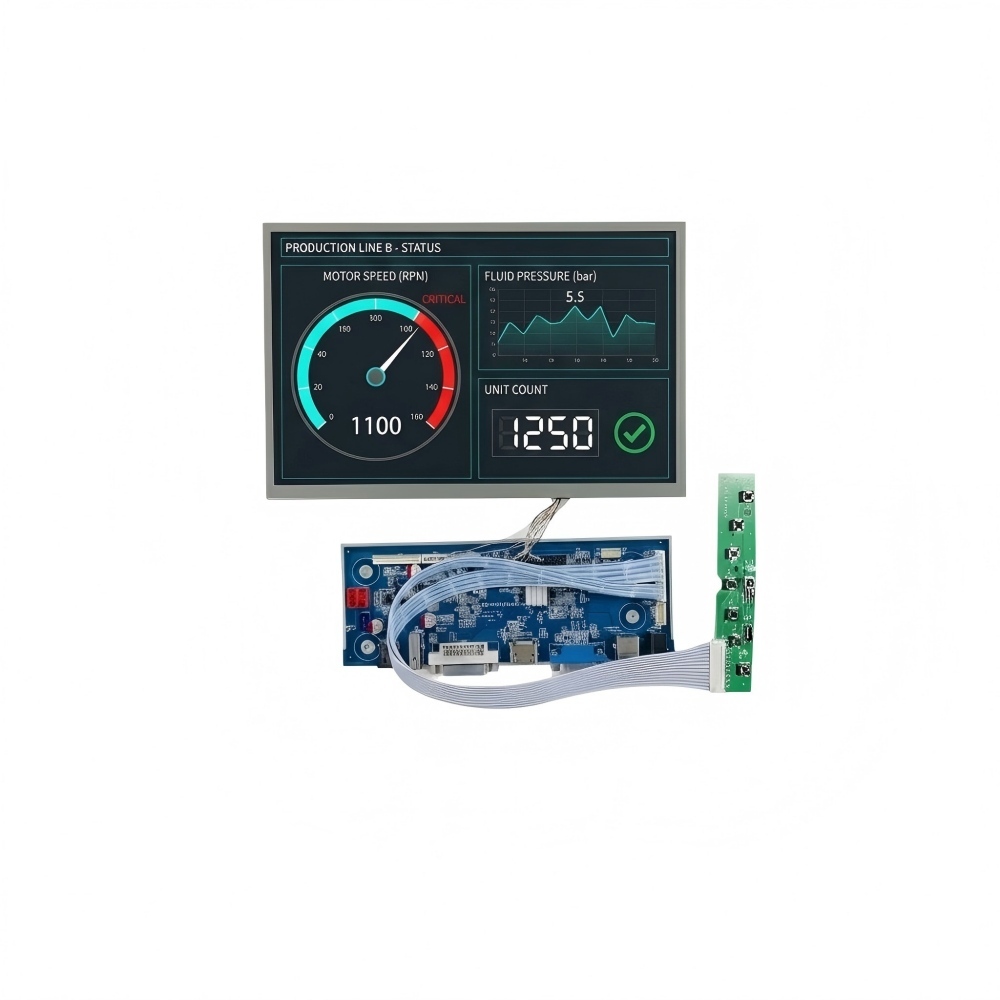

• Factory Automation Equipment: Embedded displays in robotic systems, conveyor controls, assembly machines, and process monitoring stations for continuous 24/7 operation.
• Industrial Control Cabinets & Consoles: Status and monitoring displays in electrical cabinets, control rooms, and unconditioned industrial settings with temperature variations and vibration.

These applications require displays that maintain performance under harsh industrial conditions, provide clear visuals for operators, and integrate reliably with industrial controllers and protocols.

Why Choose Aptus DBT101HIEWA03?

Aptus Display is a specialized industrial LCD manufacturer focused on high-reliability TFT modules for global B2B industrial customers. We prioritize engineering excellence, strict quality control (reliability testing, thermal cycling), advanced brightness and wide-angle technologies, and long-term supply stability.

Our services include custom industrial display design (brightness, optics, touch integration), interface customization, mechanical adaptations, firmware optimization, and wholesale supply with competitive pricing and logistics support. Ideal for OEMs building durable industrial equipment.

Contact us today for quotes, samples, custom configurations, or bulk pricing!

FAQ

What is the brightness level and why is it important for industrial use?

Typical 1000 cd/m² (min 900 cd/m²) – provides excellent readability in bright factory lighting, control rooms, or areas with ambient light interference.

What is the operating temperature range?

-30°C to +80°C – suitable for industrial equipment in unconditioned environments, cold storage areas, or hot production floors.

What interface is used?

LVDS 40PIN – enables high-speed, low-noise, long-distance signal transmission, perfect for industrial controllers and noisy factory settings.

What are the viewing angles?

85/85/85/85° (U/D/L/R) – full wide-angle viewing ensures clear visibility for operators from various positions around the equipment.

Can this module be customized for specific industrial projects?

Yes – we offer touch screen integration (PCAP/resistive), custom brightness/optics, cover glass, mechanical changes, and interface adjustments.

What is the minimum order quantity and lead time?

Supports small-batch and wholesale orders. Standard products: 7-10 days shipment; custom versions: 4-6 weeks. Contact for details.
