UV-S25 UV Light Source For 3D Printer

Product Details: S Series 5.96/6.6 Inch UV LED Light Source - UVA-S25

Introducing the S Series UV Light Source for 3D Printing Precision
The UVA-S25V01 is a cutting-edge UV light source designed specifically for the precise curing of 3D printer photo-curing components.  With its advanced parallel light technology, this light source ensures high contrast at the edge and reduced diffuse reflection, making it ideal for high-precision measurements and 3D printing applications.

Key Features:
- Optimized for 3D Printing: Tailored for the curing of 3D printer components, the UVA-S25V01 provides the ideal light intensity for photo-curing.
- Parallel Light Technology: Reduces diffuse reflection and enhances image boundary recognition, crucial for the detailed work of 3D printing.
- High-Intensity Output: Delivers light intensity of >100mW/cm², ensuring efficient and effective curing.
- Even Light Distribution: With an AA area evenness of ≥85%, the light source provides uniform curing across the surface.
- LED Array: Consists of a 5x5 matrix of LEDs, arranged in 5 series and 5 parallel, for a powerful and consistent light source.

Technical Specifications:
- Input Voltage: 17-17.5V
- Input Current: 4.5-5A (recommended 5A)
- Light Intensity: >100mW/cm² (measured with Linshang LS125 UV radiometer probe UVALED-X3)

Installation Recommendations:
- Fresnel Lens Distance: The recommended distance between the Fresnel lens and the heat sink base is 82-85mm.
- Horizontal Positioning: Align the center of the Fresnel lens with the center of the LED lamp of the light source, with a deviation controlled within ±1mm.
- Distance to LCD: The optimal distance between the Fresnel lens and the LCD is within 0-6mm.

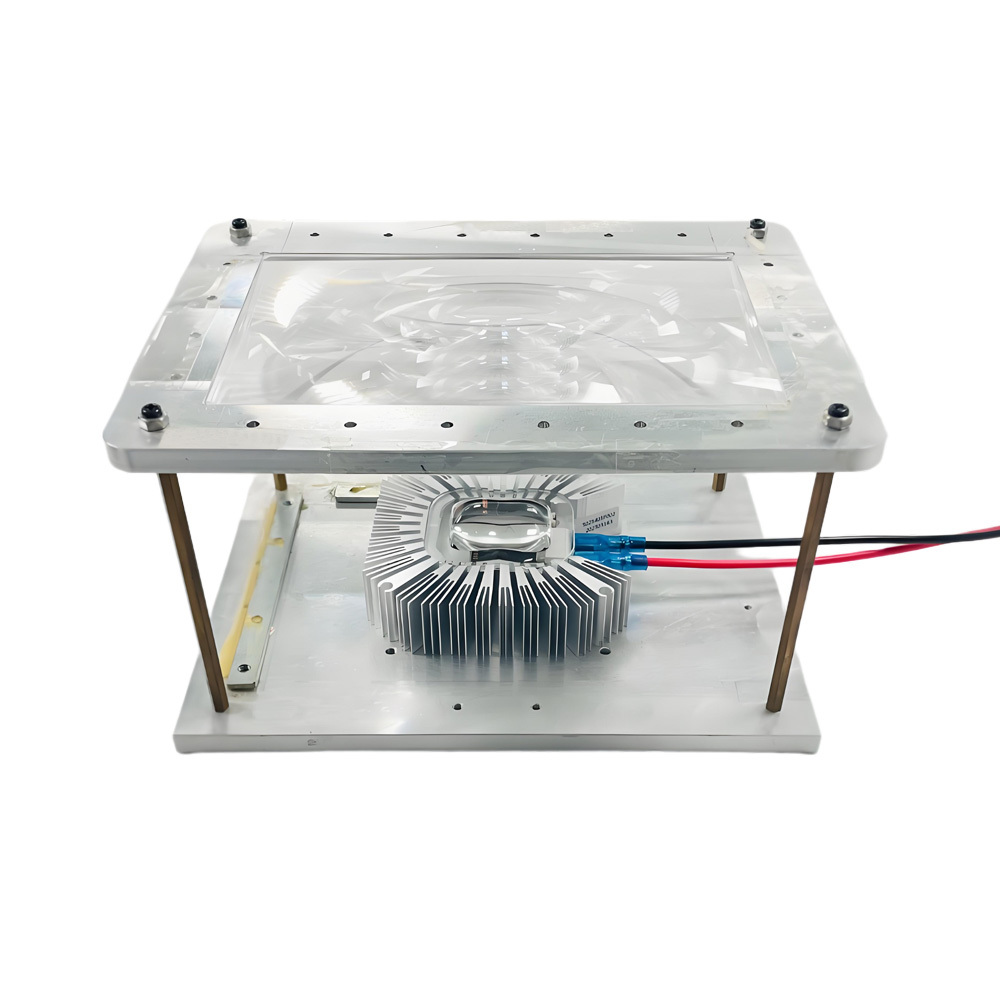

- Suggested Installation Method: Place the Fresnel lens, glass cover, and LCD in sequence on the metal platform, with the glass thickness recommended to be 3-4mm.

Product Structure and Design:

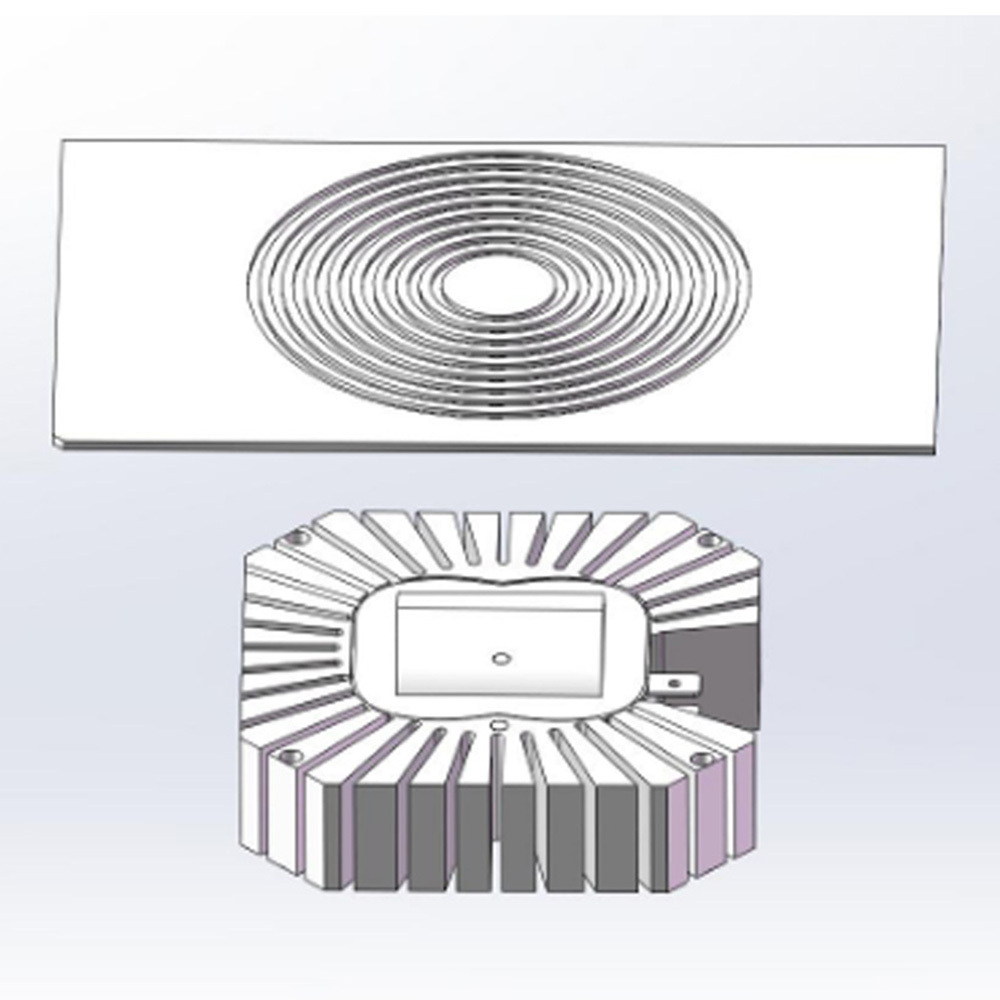

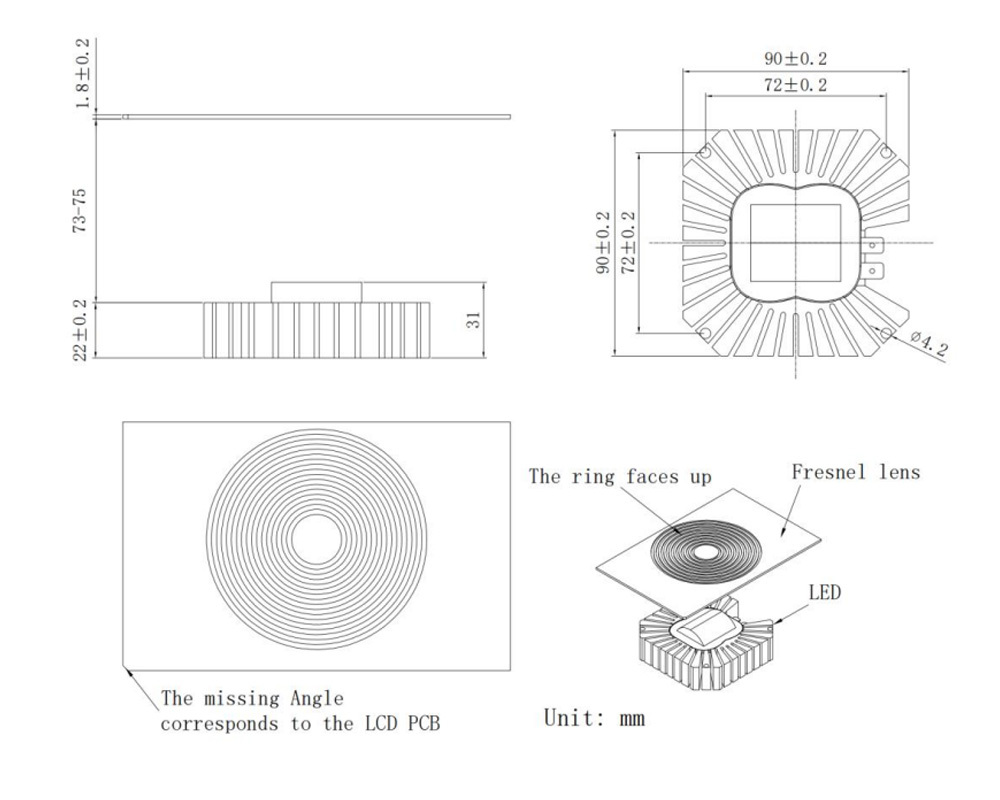

The UVA-S25V01 features a robust structure with a 3D dimensional drawing provided for precise installation.  The product engineering drawing is available for detailed reference, ensuring a perfect fit for your 3D printer setup.
