In the evolving ecosystem of industrial IoT and maker projects, the interface between the user and the machine is critical. Our 7 inch DSI touchscreen for Raspberry Pi stands out as a premium, integrated display solution. Powered by the high-performance DSI700-V1.01 driver board, this kit eliminates the clutter of HDMI cables and external power supplies, offering a streamlined MIPI DSI connection directly to your Raspberry Pi single-board computer.

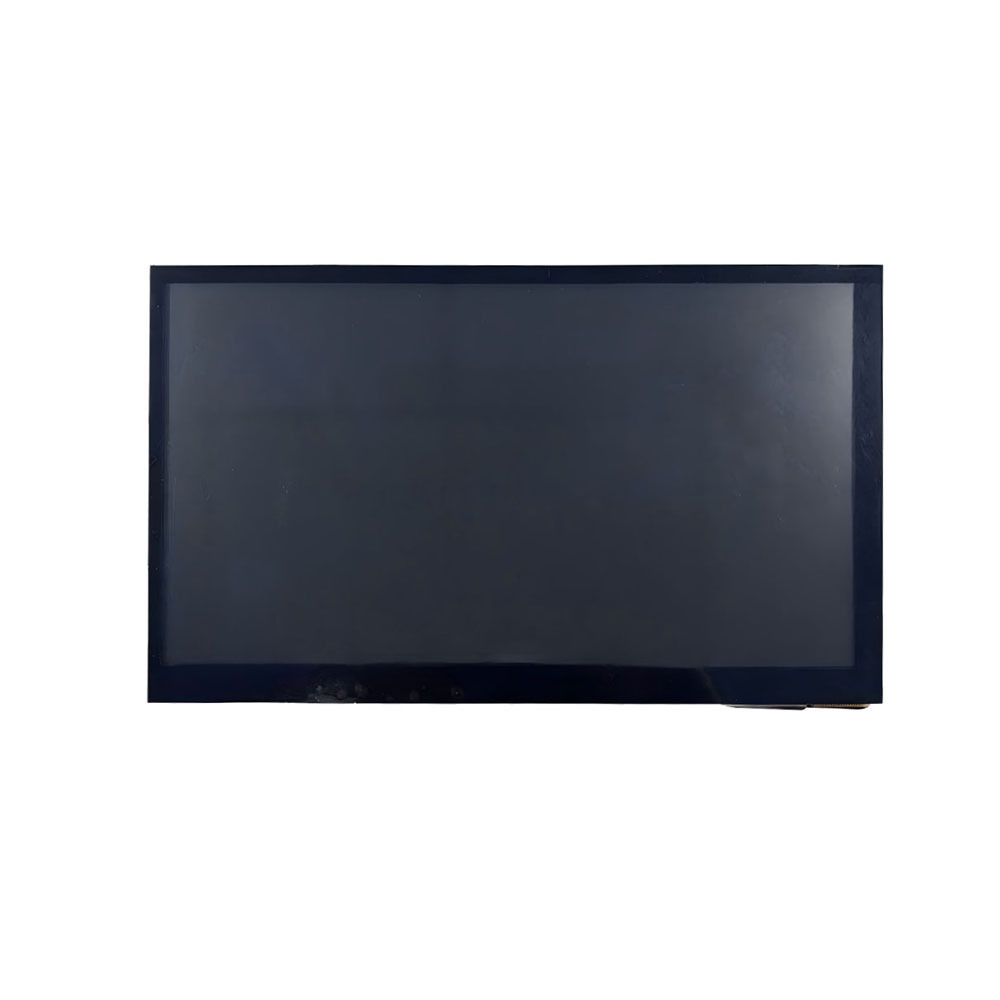

The core of this solution is a vivid 7-inch IPS panel. Unlike standard TN screens, the IPS technology ensures wide viewing angles and consistent color reproduction from every direction. With a hardware resolution of 1024x600, it provides the perfect pixel density for high-definition dashboards and control interfaces. To ensure longevity in demanding environments, the screen is protected by a 6H hardness tempered glass cover, making it resistant to scratches and impacts.
Interaction is seamless with the integrated 5-point capacitive touch system. Whether you are performing multi-touch gestures like zooming or simply navigating a complex HMI, the high-sensitivity touch controller ensures lag-free response. This 1024x600 IPS Raspberry Pi display is designed to work out-of-the-box with the latest Raspberry Pi OS versions, providing a tablet-like experience for your custom hardware.

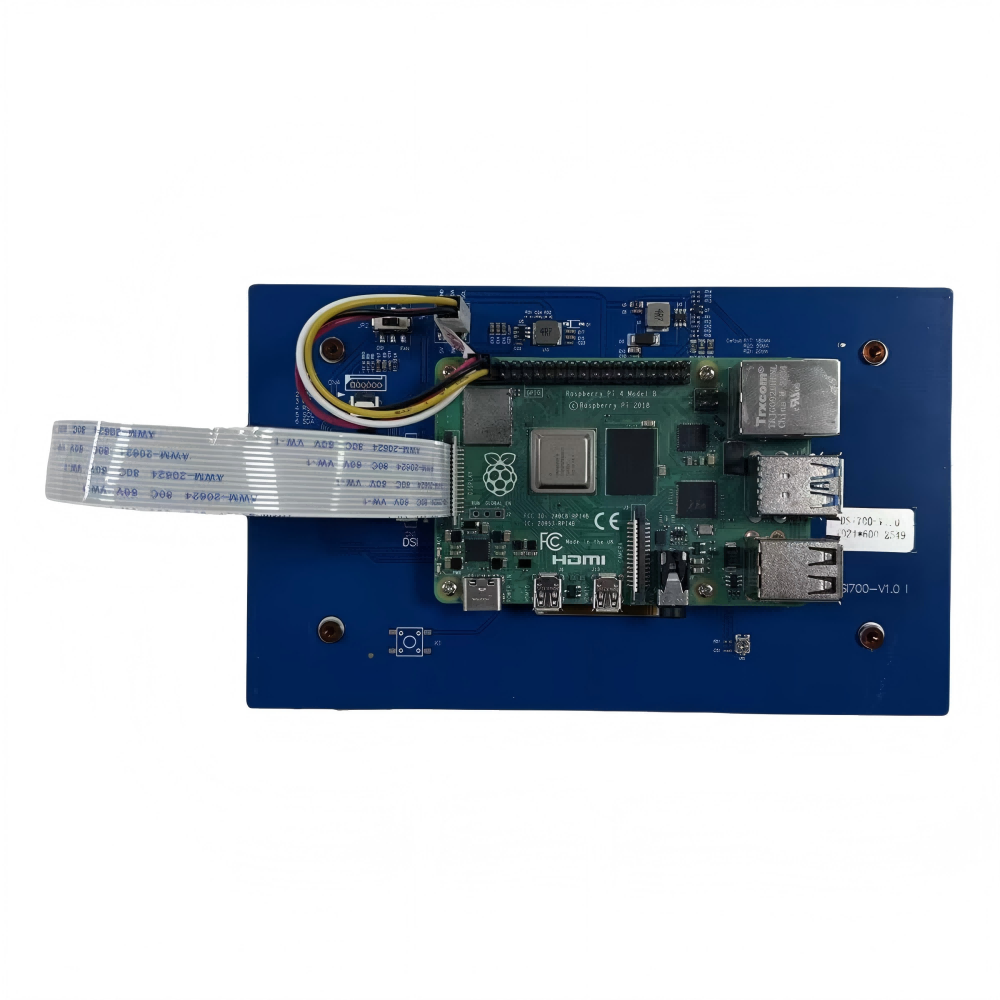

What sets this package apart is the DSI700-V1.01 Multi-function DSI-LCD AD board. This specialized driver board acts as the intelligent bridge between the Pi and the LCD panel.
Key Technical Advantages of DSI700-V1.01:
Flexible Power Management: Features a JP2 jumper selection, allowing users to choose between 3.3V (from the DSI cable) or an external 5V input via the JP1 header for high-brightness stability.
Adjustable Backlight Logic: The board includes reserved current-limiting resistors (R17, R20, R21). Users can manually adjust the hardware backlight current to optimize for low power consumption or maximum outdoor visibility.
Compact Integration: The board is designed to mount directly to the back of the LCD, maintaining a slim profile for enclosure integration.
| Feature | Detailed Parameter | Technical Note |
| Display Type | 7.0" IPS Panel | Wide Viewing Angle |
| Resolution | 1024 x 600 Pixels | Hardware Resolution |
| Interface | MIPI DSI (15-pin & 22-pin) | Direct Pi Connection |
| Touch Type | 5-point Capacitive Touch | Driver-free on Pi OS |
| Surface Hardness | 6H Tempered Glass | Scratch Resistant |
| Refresh Rate | 60Hz | Smooth Video Playback |
| Driver Board | DSI700-V1.01 | Multi-function AD Board |
| Compatibility | Pi 5, 4B, 3B+, CM4, CM5 | Full Range Support |
| OS Support | Bookworm, Bullseye, Buster | Latest Kernel Support |
| Brightness Control | Software Dimming | Pulse Width Modulation (PWM) |
| Input Voltage | 5.0V DC | via JP1 or DSI Cable |
As the latest Raspberry Pi 5 DSI display solution, this hardware is fully optimized for the newest generation of SBCs. It supports the 22-pin DSI interface found on the Pi 5 and Compute Module 5 (CM5) using specialized FPC cables, while maintaining backward compatibility with the 15-pin DSI ports on the Raspberry Pi 4B and 3B+ series.
Kernel Support: Fully compatible with the vc4-kms-v3d and vc4-kms-dsi-7inch drivers.
Backlight Control: Easily adjust screen brightness via terminal commands or OS sliders, ideal for light-sensitive applications.
Rotation Support: Easily configurable via config.txt or the Screen Configuration tool in the desktop environment.
With its sleek 6H glass finish and responsive touch, this 7-inch screen is the ideal centerpiece for a smart home controller. Its low profile allows it to be flush-mounted into walls or custom enclosures.
The stability of the DSI connection makes it far superior to HDMI for industrial machinery. The DSI700-V1.01 driver board ensures that vibration won't result in signal loss, a common issue with bulky HDMI connectors.
Its low power consumption (approximately 500mA with backlight) allows for battery-powered operation. Developers can build handheld network sniffers, field diagnostic tools, or portable gaming consoles.
The IPS wide viewing angle ensures that customers can see information clearly from any position, making it perfect for small-scale point-of-sale systems or interactive information kiosks.
To ensure the best performance for your 7 inch DSI touchscreen for Raspberry Pi, follow these quick setup steps:
Physical Connection: Connect the DSI cable to the DSI1 port on your Pi 5 or the DSI port on your Pi 4B.
Edit Config: Open the configuration file using sudo nano /boot/firmware/config.txt.
Add Driver Line:
dtoverlay=vc4-kms-v3d
dtoverlay=vc4-kms-dsi-waveshare-panel,7_0_inchC,i2c1
Save and Reboot: Enjoy native touch and display support instantly.
A: No. Under standard operation, the screen draws power directly from the Raspberry Pi via the DSI ribbon cable. However, for high-brightness applications or long-term industrial use, the DSI700-V1.01 board provides a JP1 header for an optional external 5V input.
A: Yes, the capacitive touch works out-of-the-box with Raspberry Pi OS (Bookworm, Bullseye, and Buster). No external drivers need to be compiled.
A: Absolutely. The display supports PWM backlight control. You can adjust it through the terminal or by using the integrated brightness slider in the Raspberry Pi OS desktop.
A: Our IPS panel provides a 178-degree viewing angle and much better color accuracy, whereas TN panels often suffer from "color inversion" when viewed from the side or bottom.
A: Yes, this is a dedicated Raspberry Pi 5 DSI display solution. We provide the necessary 22-pin FPC cable compatibility to ensure it works perfectly with the new Pi 5 DSI/CSI ports.
If you are looking for a reliable, professional, and easy-to-integrate display, the 7 inch DSI touchscreen for Raspberry Pi with the DSI700-V1.01 driver board is the definitive choice. Its combination of 1024x600 IPS visuals, 6H durability, DSI support makes it the gold standard for Raspberry Pi display projects.
