Large-format LCD applications often require more than standard brightness. When a display is installed close to windows, under strong indoor lighting, or in semi-outdoor and outdoor environments, insufficient luminance can make information difficult to read.

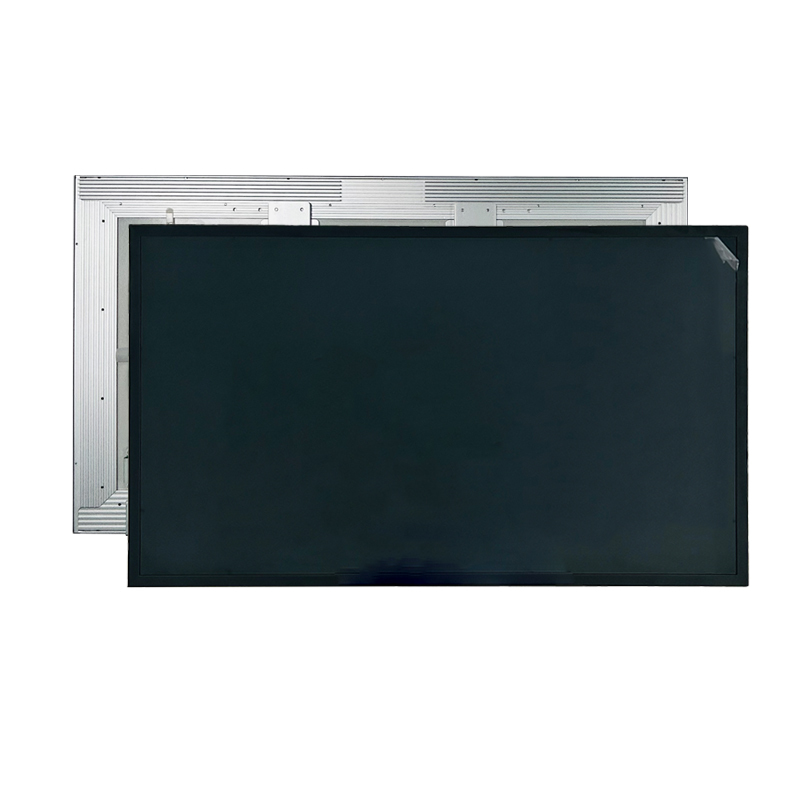

The DBT320BHN51L150A addresses this requirement with a 1500-nit high-brightness display. Its 32-inch screen provides a large visual area while maintaining the widely used 1920×1080 Full HD resolution.
The IPS panel provides a wide viewing angle, while the 3H hard coating and anti-glare surface treatment help improve durability and reduce the visual impact of reflections. The module uses a 51-pin LVDS interface, making it suitable for integration with compatible display controllers and embedded systems.
This combination makes the product particularly relevant for B2B display projects where engineers need a ready-to-integrate LCD panel rather than a consumer television or standard desktop monitor.
The most important characteristic of this LCD module is its 1500 cd/m² brightness.
Compared with conventional indoor LCD panels, a 1500-nit display is designed for applications where ambient light can negatively affect screen visibility. This makes it a suitable option for digital signage, information terminals, kiosks, and other professional display equipment.
However, brightness alone does not determine outdoor readability. System designers should also consider optical bonding, cover glass, anti-reflective or anti-glare treatment, enclosure design, thermal management, and the angle at which the display will be viewed.
For demanding outdoor installations, Aptus Display can evaluate the complete display structure according to the customer's application requirements.
The 1920×1080 resolution provides Full HD image quality across the 32-inch display area.
This resolution is particularly suitable for applications that need to display:
For many professional display applications, Full HD offers a useful combination of image quality, content compatibility, processing requirements, and system cost.
The display uses an IPS panel designed for wide-angle viewing. The product page specifies a viewing direction of 89/89/89/89, supporting visibility from different viewing positions.
This is especially useful for public-facing displays where users may not stand directly in front of the screen.
Potential applications include retail displays, transportation information systems, kiosks, public terminals, and industrial monitoring systems.
The DBT320BHN51L150A uses a 51-pin LVDS interface.
LVDS remains widely used in embedded and professional display systems because it provides a differential signaling method suitable for transmitting display data between a controller and LCD panel.
Before integrating the module, engineers should verify the complete electrical specifications, connector definition, signal timing, power requirements, cable configuration, and controller compatibility.
Aptus Display can provide engineering support for display integration and driver-board selection based on the customer's system architecture.
The LCD module features a 3H hard coating with anti-glare treatment.
This surface treatment is useful in applications where the display needs additional surface durability and improved viewing under ambient lighting.
For outdoor displays, anti-glare treatment can be particularly valuable because reflected sunlight or surrounding light sources can reduce perceived contrast.
The final optical performance, however, depends on the entire display stack, including the LCD, cover glass, bonding method, surface treatment, enclosure, and installation angle.
The specified operating temperature range is –30°C to +80°C.
This broad temperature range makes the module suitable for professional equipment that may operate in environments with substantial temperature variation.
For outdoor or industrial systems, engineers should still perform complete system-level thermal testing because the actual temperature inside an enclosed display can differ significantly from ambient temperature.

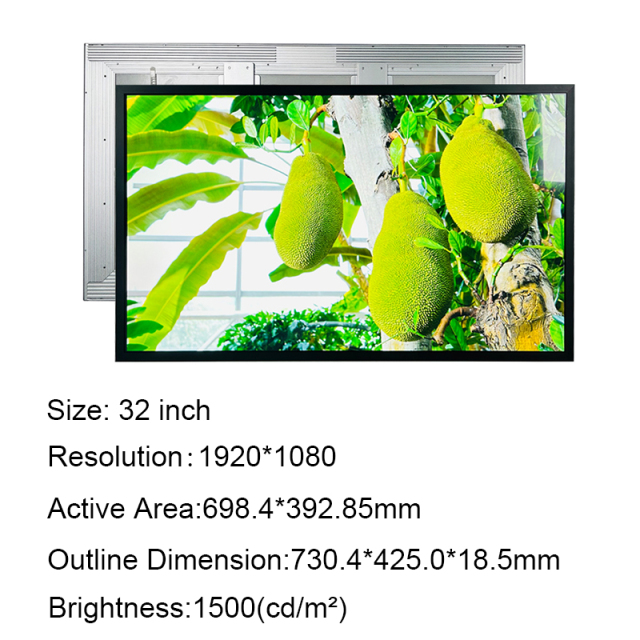

| Specification | Details |
|---|---|
| Product Model | DBT320BHN51L150A |
| Display Size | 32 inch |
| Display Type | TFT LCD Module |
| Panel Technology | IPS |
| Resolution | 1920 × 1080 Full HD |
| Brightness | 1500 cd/m² (nits) |
| Active Area | 698.4 × 392.85 mm |
| Outline Dimension | 730.4 × 425 × 18.5 mm |
| Viewing Direction | 89/89/89/89 |
| Interface | LVDS, 51-pin |
| Color Depth | 16.7M colors |
| Surface Treatment | 3H Hard Coating, Anti-Glare |
| Operating Temperature | –30°C to +80°C |
| Application | Professional Display / OEM / Outdoor & Industrial Applications |
Specifications are based on the current Aptus Display product information. For production projects, customers should confirm the latest datasheet, electrical specifications, connector definition, and mechanical drawing with Aptus Display before final integration.
Outdoor signage requires strong display visibility because direct sunlight and high ambient illumination can significantly reduce perceived image contrast.
The 1500-nit brightness of this 32-inch LCD module makes it a strong candidate for professional outdoor display equipment, including:
For applications exposed directly to sunlight, system designers should consider additional optical and thermal solutions.
Interactive and informational kiosks often need displays that remain readable throughout the day.
A 32-inch high-brightness LCD can provide a large interface area for displaying instructions, promotional content, maps, menus, service information, or interactive interfaces.
Depending on the project, Aptus Display can also support customized touch panel integration, cover glass, driver boards, cables, and mechanical integration.
Large industrial systems often require displays for monitoring equipment status, production data, automation processes, and operational information.
The combination of Full HD resolution, wide viewing angle, LVDS connectivity, and a –30°C to +80°C operating temperature specification makes this module suitable for certain industrial visualization applications.
For harsh industrial environments, engineers should evaluate vibration, humidity, dust, enclosure protection, thermal conditions, and continuous-operation requirements at the system level.
Airports, transportation facilities, stations, retail environments, and public buildings can use large-format displays to present information to multiple viewers.
The 32-inch screen size provides a practical viewing area without requiring the physical footprint of a much larger display.
The wide viewing-angle IPS technology is particularly useful when users approach the display from different directions.
The module can also serve as a display platform for OEM equipment manufacturers.
Rather than designing a display completely from scratch, OEM customers can begin with a proven LCD module and customize the surrounding system according to their requirements.
Potential customization areas include:
This approach can help reduce development time and simplify supply-chain management.
Choosing the right brightness level should start with the actual installation environment.
A standard indoor LCD may be sufficient for controlled indoor lighting. However, when the display is exposed to strong ambient light, the screen can appear washed out or difficult to read.
A high-brightness LCD provides greater luminance to compensate for the effect of ambient lighting.
For engineers, the decision should not simply be “How many nits do I need?” Instead, consider:
Ambient light + viewing angle + reflections + cover glass + optical bonding + thermal design + operating time.
This system-level approach is particularly important for outdoor displays.
The DBT320BHN51L150A therefore provides a strong starting point for high-visibility applications while allowing the surrounding display architecture to be customized according to the final product requirements.
When integrating this 32-inch LCD module into a new product, several technical factors should be checked before mass production.
Because this model uses a 51-pin LVDS interface, the display controller must be compatible with the panel's signal requirements.
Engineers should verify connector pinout, signal mapping, timing, power supply, backlight control, and cable configuration.
High-brightness LCDs require careful thermal design.
The system enclosure should provide an appropriate heat dissipation path and avoid excessive heat accumulation around the LCD and backlight system.
For outdoor equipment, thermal testing should cover both high ambient temperatures and continuous operation.
Outdoor readability depends heavily on reflected light.
The 3H anti-glare surface treatment of this LCD provides a useful starting point, but the final product should also consider cover glass reflectivity, viewing angle, enclosure geometry, and installation orientation.
If the display is intended for interactive kiosks or HMI equipment, a touch panel can be integrated with the LCD.
Aptus Display provides customized display solutions that can include touch integration and related display components.
Aptus Display is a professional LCD module supplier serving international customers with TFT LCD modules, customized display solutions, touch panel integration, and display engineering support.
According to the company's product information, Aptus Display has been based in Shenzhen since 2007 and serves customers in Europe and the United States. Its capabilities include R&D, customization, quality testing, supply-chain support, prototyping, driver-board and integration support, environmental testing, and long-term project support.
For OEM and system-integrator customers, the value of a display supplier extends beyond the LCD panel itself. Engineering communication, customization capability, sample support, production consistency, and lifecycle support can all affect the success of a display project.
Aptus Display can support customers from initial product selection and prototype development through customization and production.
Yes. The 1500-nit brightness makes the module suitable for professional applications requiring enhanced visibility in bright environments, including outdoor signage, kiosks, and public information displays. For direct-sunlight applications, additional optical and thermal design should be evaluated.
The display uses 1920×1080 Full HD resolution, providing a large viewing area suitable for advertising, information displays, industrial visualization, and OEM equipment.
The DBT320BHN51L150A uses a 51-pin LVDS interface. Engineers should confirm the detailed electrical specifications and connector pinout before integration.
The specified operating temperature range is –30°C to +80°C. System-level thermal validation is recommended for outdoor and enclosed equipment.
Yes. Aptus Display provides OEM display customization and integration support. Depending on project requirements, customization may include touch panels, driver boards, cables, mechanical structures, brightness, and other display-system components.
Typical applications include outdoor digital signage, kiosks, public information displays, industrial visualization equipment, retail displays, transportation information systems, and customized OEM products.
If you are sourcing a 32-inch 1920×1080 1500-nit LCD module for an OEM, ODM, outdoor signage, kiosk, industrial visualization, or commercial display project, Aptus Display can help evaluate the display requirements and recommend an appropriate integration solution.
