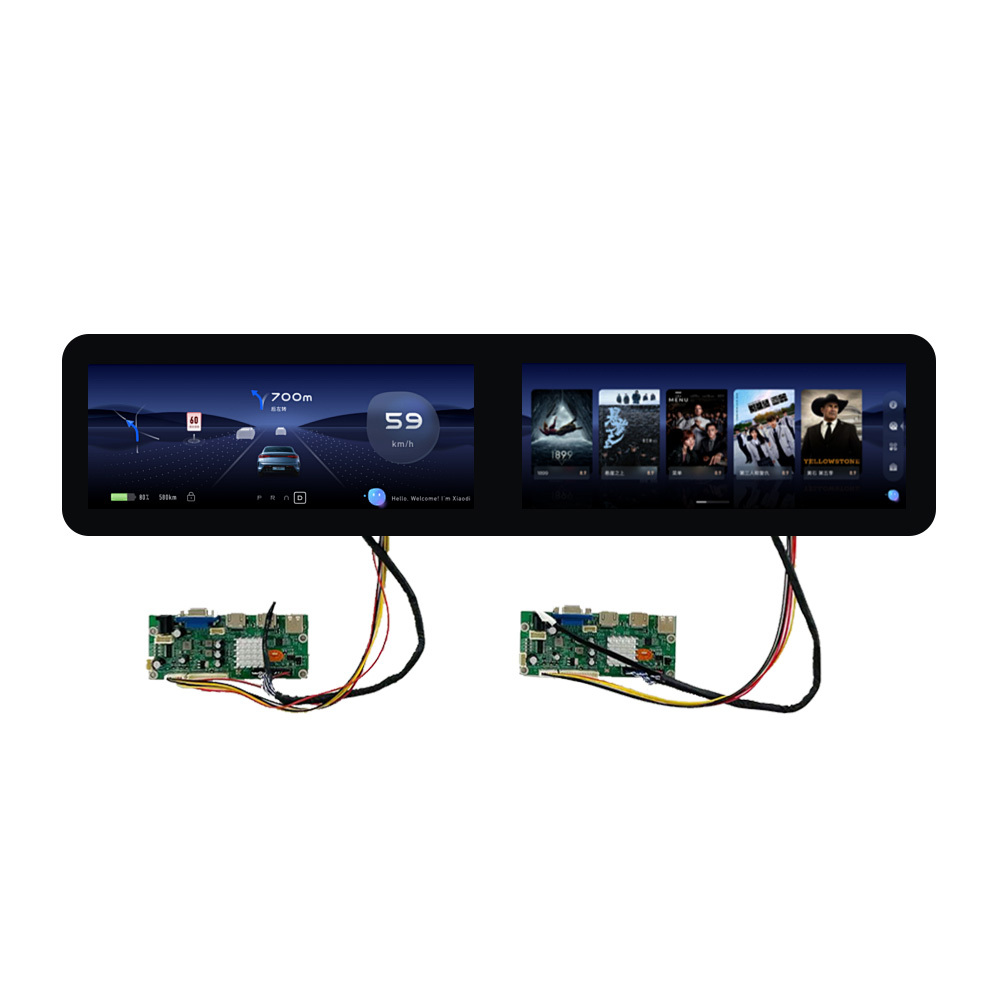

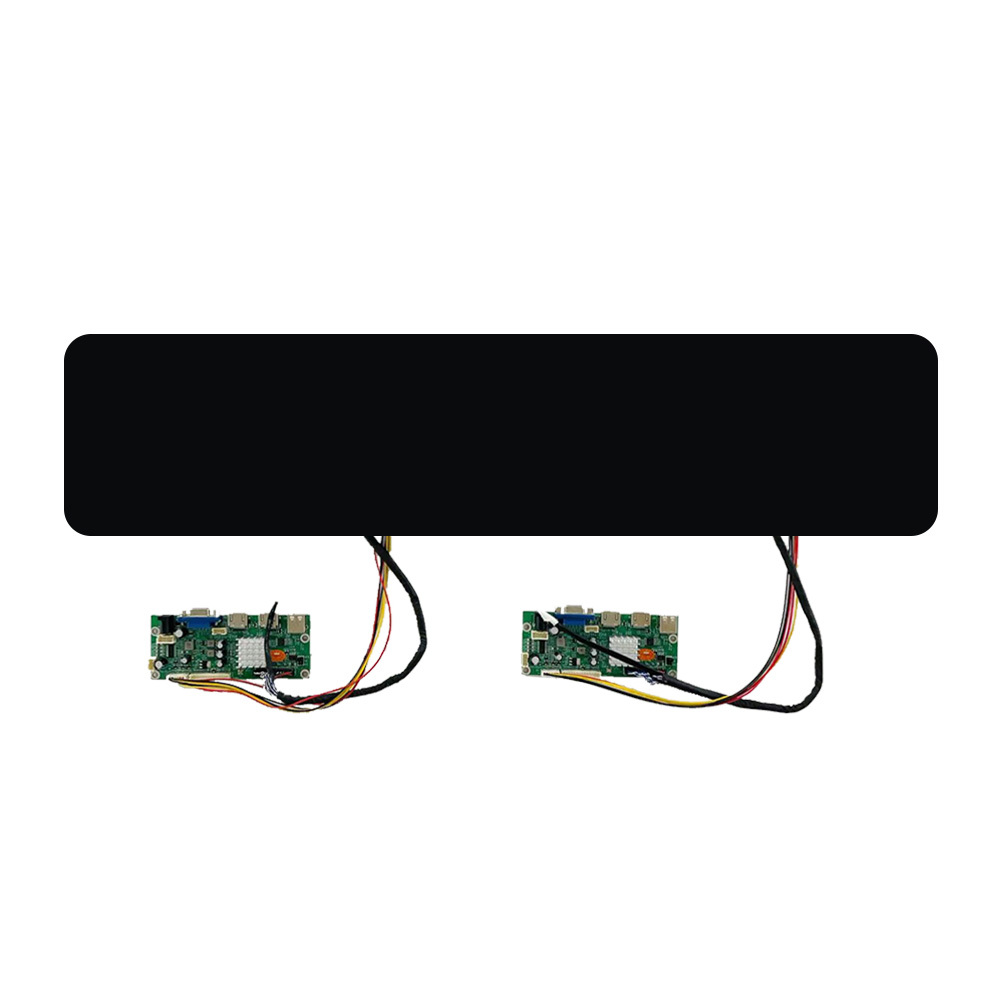

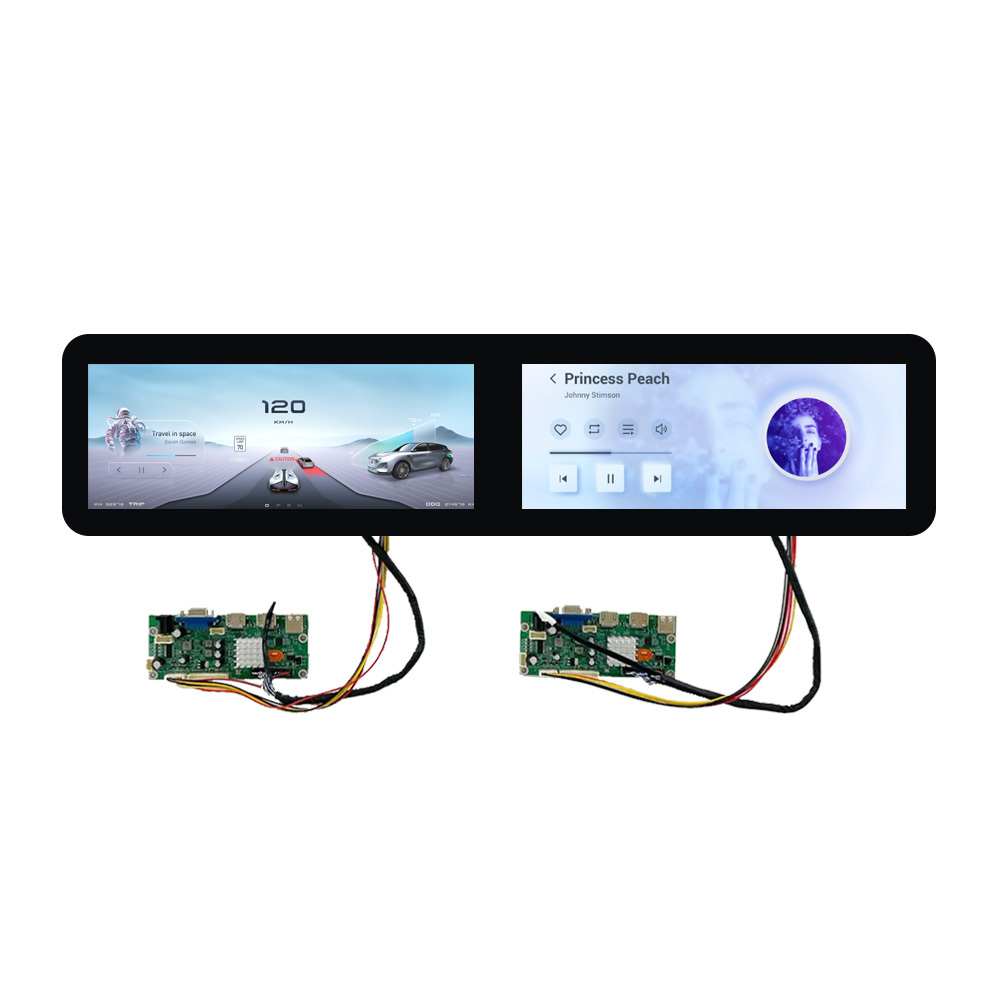

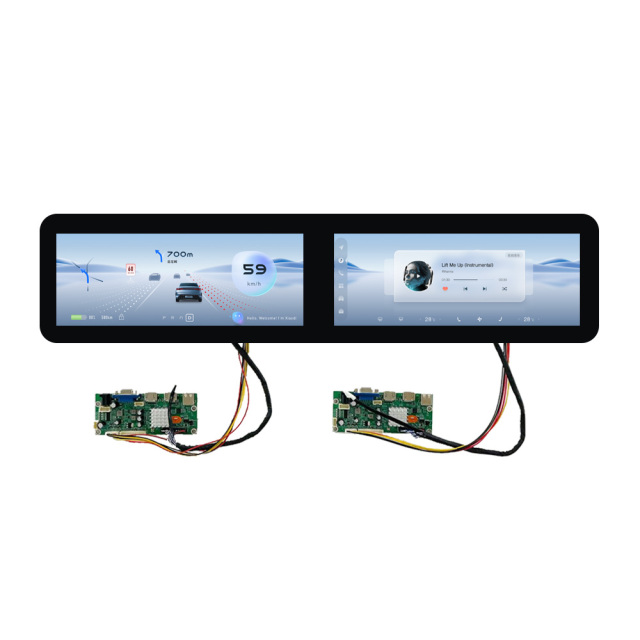

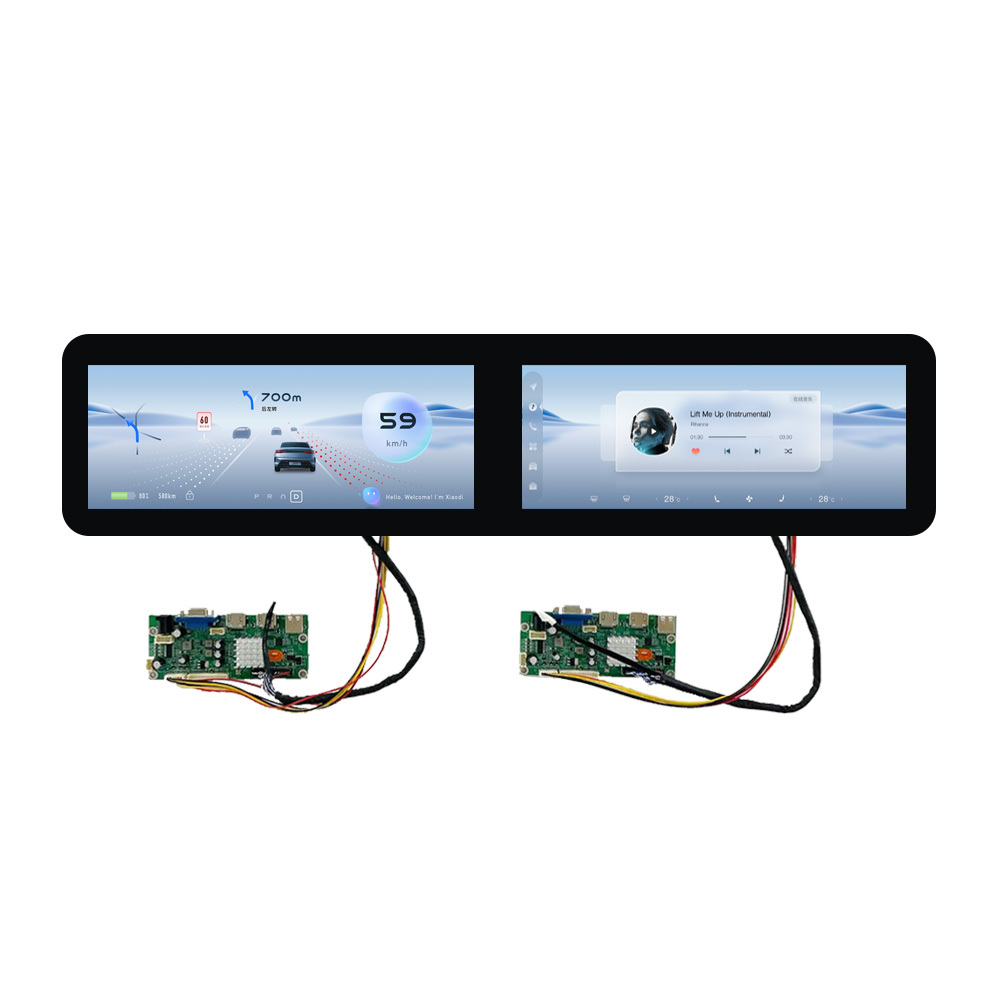

The DBT103AEG30L100B is an advanced dual-screen automotive display module designed by Aptus Technology for next-generation intelligent cockpit applications.
By combining two 10.3-inch high-resolution TFT-LCD modules into one seamless, ultra-wide display system, it delivers an immersive viewing experience for both drivers and passengers.
Engineered to meet automotive-grade standards, this module integrates AHVA wide-view technology, in-cell capacitive touch, and dual LVDS synchronization to ensure smooth image transitions, high color consistency, and excellent visibility under all lighting conditions.
The DBT103AEG30L100B is ideal for digital dashboards, center control displays, and co-pilot entertainment systems, offering both performance and design flexibility for modern vehicles.
| Item | Specification |
|---|---|
| Model Name | DBT103AEG30L100B |
| Display Type | Dual 10.3-inch LTPS TFT-LCD Modules (AHVA Technology) |
| Resolution | 1920 × 720 (Each) – Combined Wide Display |
| Aspect Ratio | 16:6 (Combined) |
| Touch Function | In-cell Capacitive Touch (TDDI Integrated) |
| Interface | Dual LVDS Channels |
| Active Area (Each Panel) | 243.65 × 91.37 mm |
| Brightness | 800–1000 cd/m² (typical) |
| Contrast Ratio | 1400:1 (typical) |
| Viewing Angle | 80° (U/D/L/R, CR≥10) |
| Display Mode | Normally Black, Transmissive |
| Surface Treatment | Hard Coating ≥ 3H, Anti-Glare |
| Operating Temperature | -30°C ~ +85°C |
| Storage Temperature | -40°C ~ +95°C |
| Power Supply Voltage | 3.3V (Logic) |
| Interface Connector | 51PIN LVDS Connector |
| Backlight Type | LED with Integrated Driver |
| Lifetime | 50,000 hours (Backlight Typical) |
| Certifications | RoHS Compliant, CISPR25 Class 3 (EMC) |

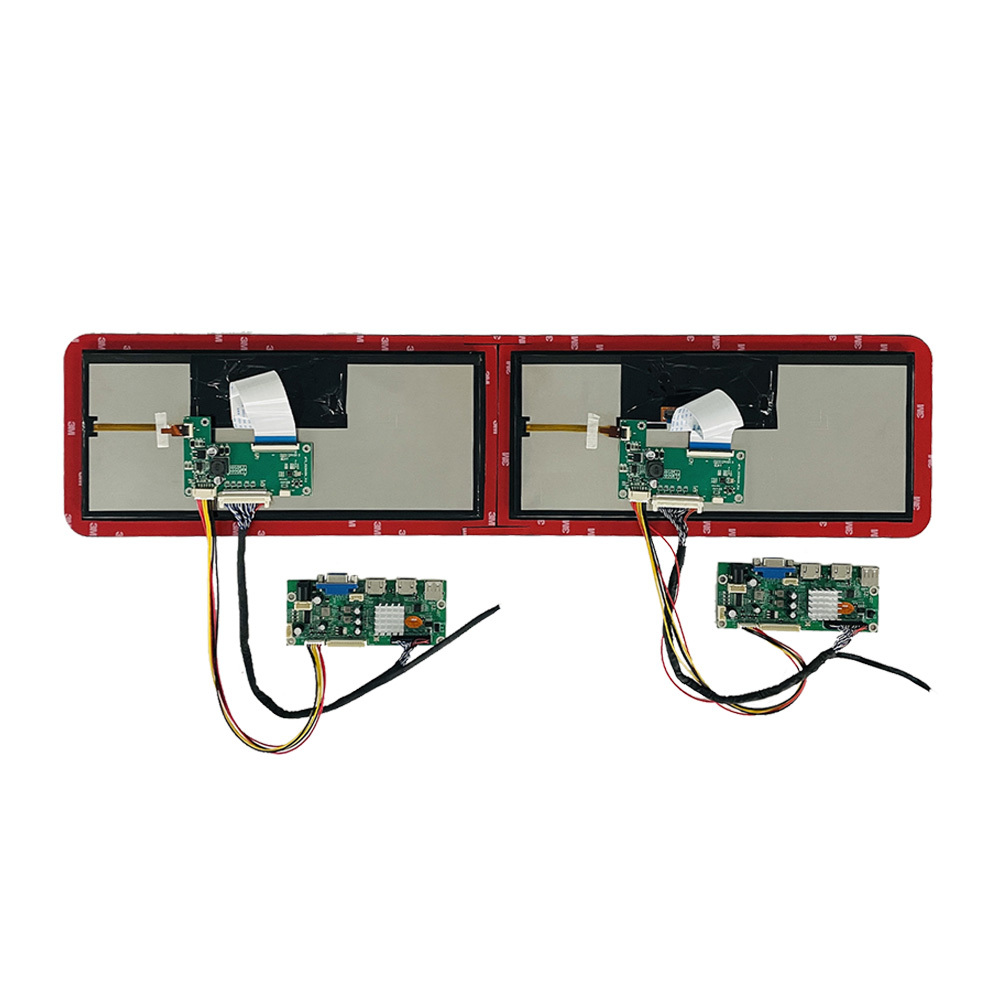

The DBT103AEG30L100B represents an engineering breakthrough in splicing design. Two 10.3-inch automotive LCD panels are precisely aligned to form a continuous, ultra-wide display with virtually invisible seam lines.
Each module features an LTPS (Low Temperature Poly-Silicon) panel with AHVA wide-view technology, ensuring consistent brightness and color performance even from extreme angles.
To achieve perfect synchronization between the two panels, Aptus engineers designed a custom LVDS timing controller and optimized firmware to ensure both halves operate as a single display unit. This allows for smooth transitions, unified color balance, and responsive touch performance across the entire active area.
The result is a sleek and continuous digital surface ideal for dashboard and passenger displays — combining functionality, style, and safety in one seamless solution.
The DBT103AEG30L100B delivers exceptional image quality tailored for automotive environments.
High Brightness for Sunlight Readability: Up to 1000 nits, ensuring excellent visibility even in direct sunlight.
AHVA Wide Viewing Angles: Stable image performance from any position, minimizing color shift for both driver and passenger.
High Contrast Ratio: 1400:1 for deep blacks and vivid color reproduction.
Fast Response Time: 25 ms (typical), maintaining smooth transitions for digital dashboards and infotainment content.
In-Cell Touch Integration: Reduces optical layers, improves transparency, and provides a thinner, lighter structure.
Anti-Glare Coating: Reduces reflection and enhances driver comfort during daytime driving.
These features make the display not only visually impressive but also ergonomically optimized for real-world driving conditions.
Built to perform under harsh automotive conditions, the DBT103AEG30L100B meets stringent reliability and qualification tests.
High Temperature Operation: +85°C for 500 hours
Low Temperature Operation: -30°C for 500 hours
Thermal Shock: -40°C ~ +85°C, 200 cycles
High Humidity: 60°C / 90% RH for 500 hours
Vibration Resistance: Compliant with JIS D1601 Standard
Electrostatic Discharge (ESD): ±8 kV air / ±6 kV contact (IEC61000-4-2 Class B)
Aptus ensures each display undergoes full optical calibration, mechanical durability testing, and EMC validation to guarantee long-term stability and automotive-grade quality.
Aptus provides complete system integration services for the DBT103AEG30L100B to help customers easily incorporate it into their cockpit designs.
Key engineering supports include:
Dual LVDS board customization and synchronization firmware
Thermal design and metal frame structure optimization
Touch firmware tuning for seamless cross-panel gesture detection
Optional custom bezels, bonding, or optical lamination for interior styling
With these flexible customization options, the module can be adapted to different dashboard layouts, screen curvatures, or infotainment systems, making it a versatile choice for automotive display designers.
The DBT103AEG30L100B is suitable for a wide range of automotive and commercial vehicle applications, including:
Digital instrument clusters with extended layout
Co-pilot infotainment and entertainment displays
Dual-view dashboard displays
Center control units in electric and smart vehicles
Premium cockpit systems in SUVs, sedans, and EVs
Its panoramic format supports wide-format HMI interfaces, allowing designers to create interactive and dynamic user experiences that enhance both aesthetics and functionality.
Seamless Splicing Design: Continuous wide screen without visible boundary.
Automotive Reliability: Qualified for harsh environments with high durability.
Custom Engineering Support: From LVDS board design to optical bonding.
Enhanced UX: Smooth touch and vivid display enrich driver-passenger interaction.
Flexible Adaptation: Ideal for both luxury and commercial vehicle platforms.
This combination of performance, reliability, and customization capability makes the DBT103AEG30L100B an ideal solution for future cockpit innovations.
The DBT103AEG30L100B Dual 10.3-Inch Automotive LCD Display embodies Aptus Technology’s commitment to engineering precision and display innovation.
By integrating two high-performance 10.3-inch modules into one cohesive display system, it redefines how digital information is presented within the vehicle interior.
From sunlight-readable performance to advanced touch interaction, every detail is designed for the demands of modern mobility.
Aptus Display continues to support global automotive partners with custom display solutions, delivering reliable, high-quality, and visually compelling modules for the intelligent cockpit era.
