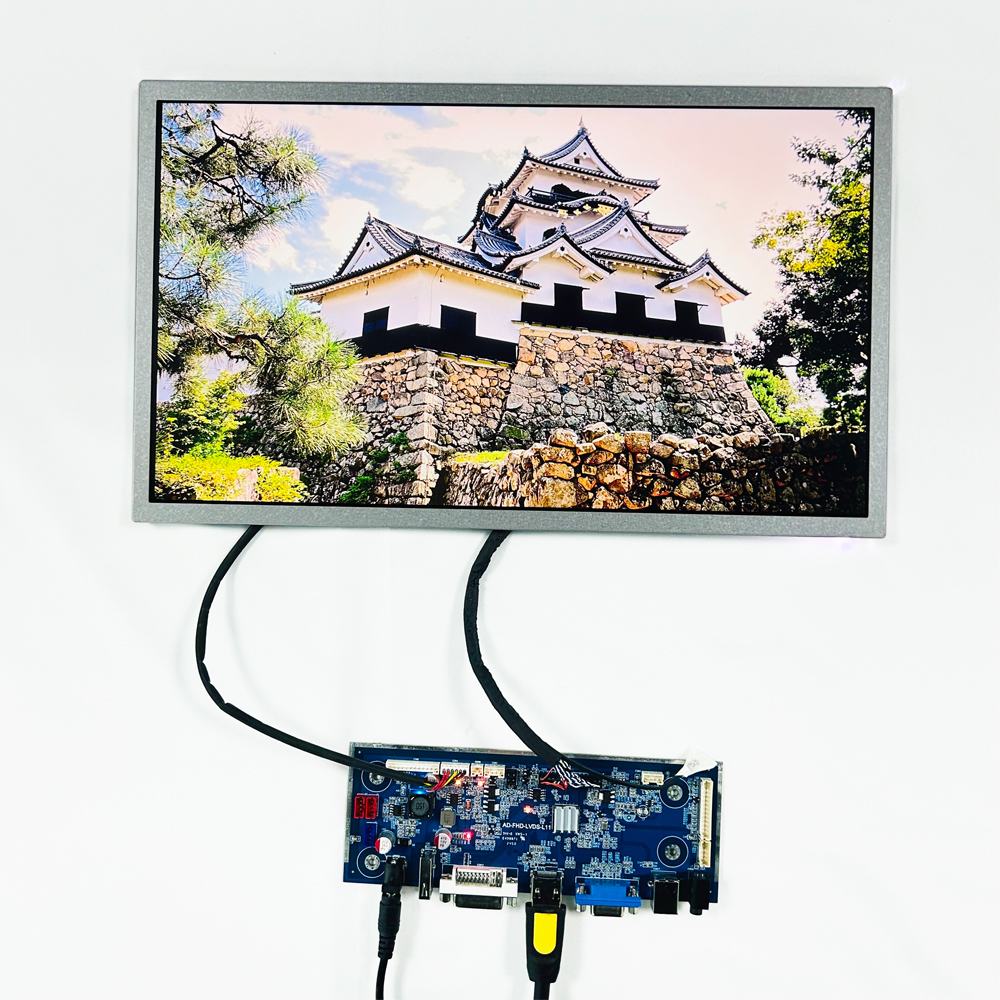

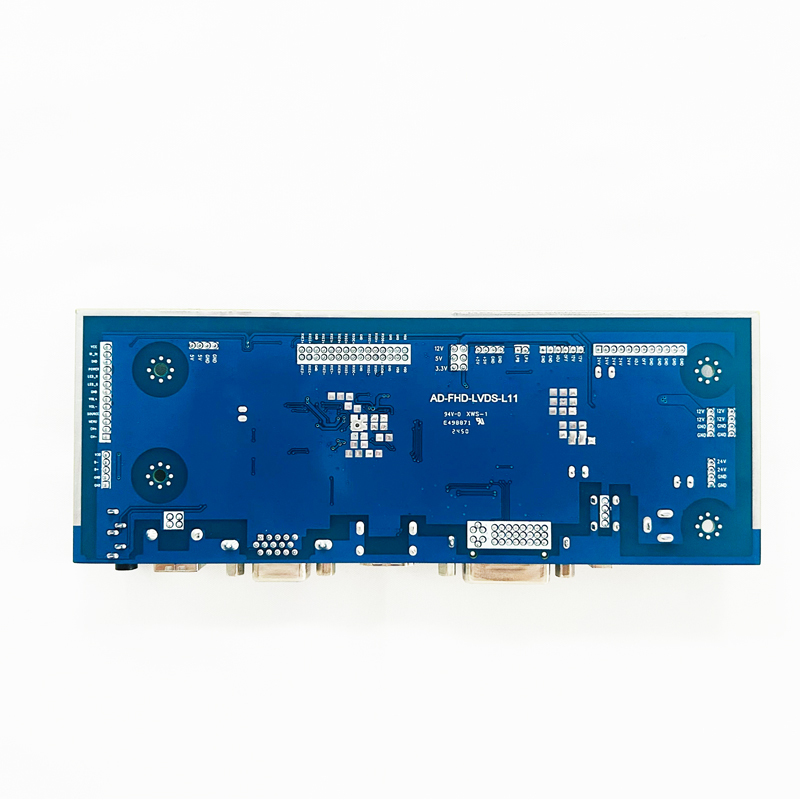

AD-FHD-LVDS-L11: Mid/High-End LCD Monitor Solution

Overview:
The AD-FHD-LVDS-L11 is a state-of-the-art LCD monitor solution designed for mid to high-end applications. It features a robust MSTAR single-chip TV processing IC, ensuring superior picture quality and a multitude of functions. With a rich array of interfaces and a mature system, this product is tailored for 32" LCD/LED and plasma screens commonly found in the market.

Key Features:
- High-Quality Visuals: Enjoy full 3D interlace, 3D video decoding, and 3D digital noise reduction for crisp and clear visuals.
- USB Functionality: The monitor supports USB (2.0) functionality, making it versatile for various multimedia applications.
- Input Options: Equipped with VGA, DVI, and HDMI (1.4) ports, ensuring compatibility with a wide range of input devices.
- Resolution Support: Supports a screen resolution of 1920*1080, delivering high-definition images.
- LVDS Signal Output: Dual 6/8/10bit LVDS signal output for enhanced display performance.
- Voltage Flexibility: The screen voltage can be set to 3.3V/5V/12V, with a factory default of 5V, allowing for customization to suit various screen requirements.
- ESD Protection: Features ESD contact protection of ±8KV (class 3B) and air protection of ±25KV (class 4B) for reliable operation in various environments.

Technical Specifications:
- Video Input: Supports VGA with a maximum resolution of 1920*1080 and a line frequency of 50~67.5KHz.
- Power Supply: Operates on an input voltage of 24V with optional supply voltages of 3.3V/5V/12V.
- Backlight Voltage: 12V for consistent brightness.
- Power Efficiency: Low power consumption with a standby power consumption of less than 1W.
- OSD Languages: Offers a range of OSD menu languages including Chinese, English, German, French, Russian, Italian, Spanish, Arabic, Persian, and more.
- Key Functions: Includes POWER/MENU/SOURCE/LEFT/RIGHT for easy navigation.
- Comb Filter and Noise Reduction: Both 3D comb filter and noise reduction are supported for enhanced image clarity.
- TXT Support: Optional support for text-based features such as V-CHIP, CC, WSS, and VPS.

USB Multimedia Support:
The AD-FHD-LVDS-L11 supports a variety of video multimedia playback formats, including MPG, MPEG, H264-TS, MP4, AVI, RMVB, MKV, and ASF, with video decoding specifications up to 1920x1080 @ 30P and a bit rate of 20Mbit/sec.

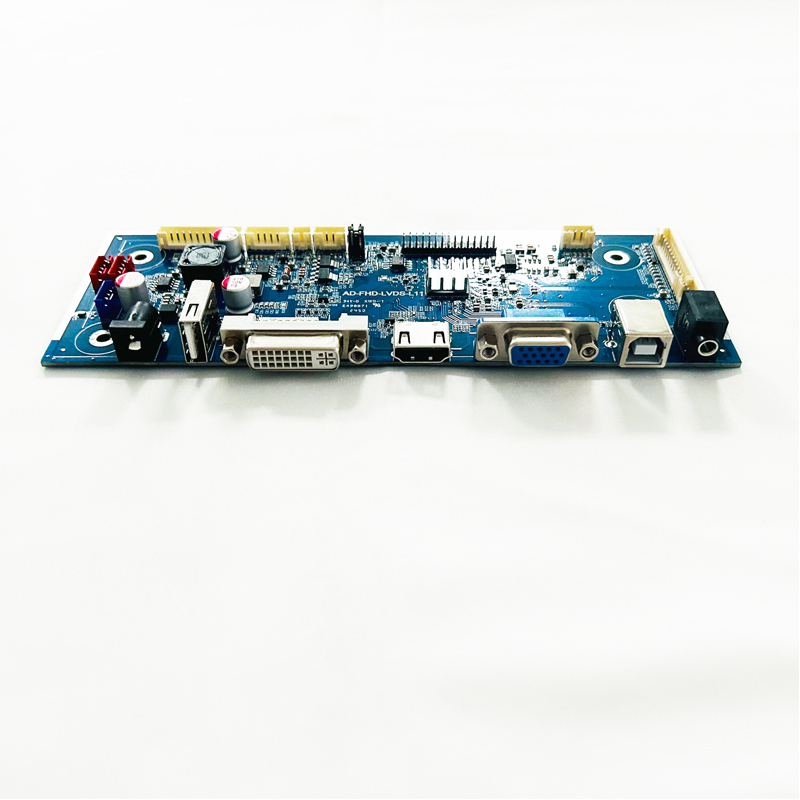

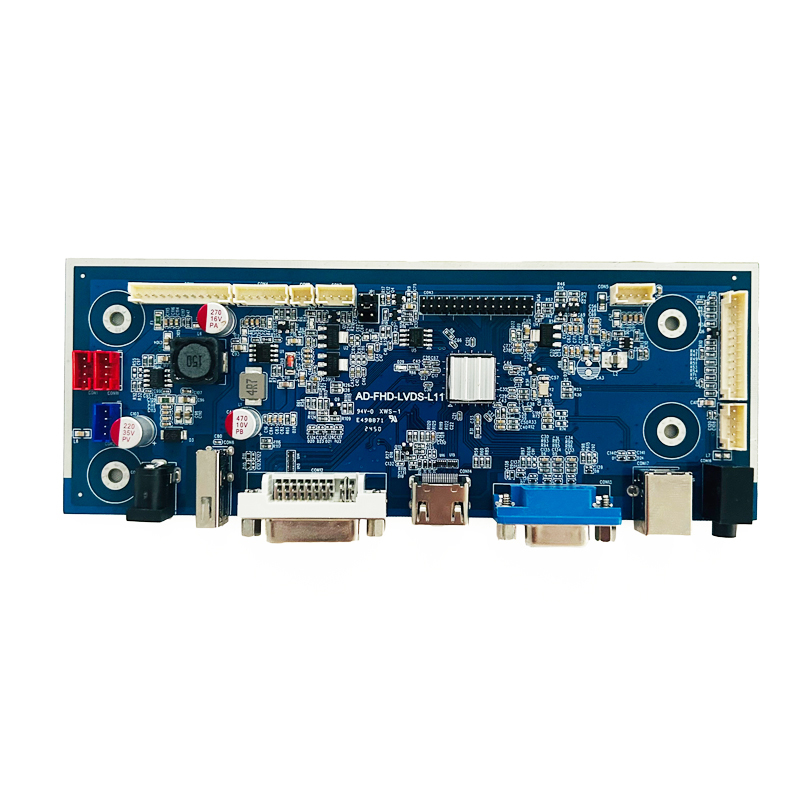

Interface Definitions:
- Power Input: 24V power input socket and 5V/12V backlight control sockets.
- USB Interface: Supports multimedia and software upgrade via USB.
- LVDS Output: 6/8/10-bit LVDS output interface for high-quality signal transmission.

Physical and Electrical Performance:
- Operating Voltage: 18-26V.
- Stand-by Current: 10-40mA.
- Temperature Range: Operating from -20°C to 85°C and storage from -40°C to 85°C.
- Humidity: Working humidity of 40-95% and storage humidity of 40-95%.
