Discover BOE’s wide temperature high brightness TFT LCD panels (18.5" to 75") with FHD/UHD resolutions, extreme operating ranges up to -30°C to +80°C, and high-luminance LED backlights. Ideal for outdoor digital signage, rail transit, control systems, and industrial equipment in harsh environments.
Are you searching for a truly rugged wide temperature high brightness TFT LCD that survives freezing winters down to -30°C storage and scorching summers up to +85°C operation while staying perfectly readable under direct sunlight? BOE’s DV-series outdoor panels deliver exactly that. Designed for 24/7 harsh-environment use, these displays combine extreme temperature tolerance, powerful LED backlights (up to 3500 nits), anti-glare treatment, and industrial-grade reliability.
Whether you need a compact 18.5" panel for outdoor rail transit or a massive 75" UHD screen for commercial signage, this guide gives you the complete picture — including a side-by-side comparison table, detailed model specs, real-world applications, and expert advice on choosing the right wide temperature high brightness solution for your outdoor project.
Outdoor devices face extreme conditions: -30°C storage in winter warehouses, +80°C surface temperatures in summer sun, rain, dust, and constant UV exposure. Standard consumer LCDs fail quickly. BOE’s wide temperature series uses high TNI liquid crystal (up to 105°C), special polarizers, and reinforced glass to guarantee stable image quality. Combined with high-luminance LED backlights and low-reflection coatings, these panels remain crystal-clear even in bright daylight — making them the go-to choice for outdoor commercial digital display, control system terminals, gas stations, landscape signage, and rail transit systems.

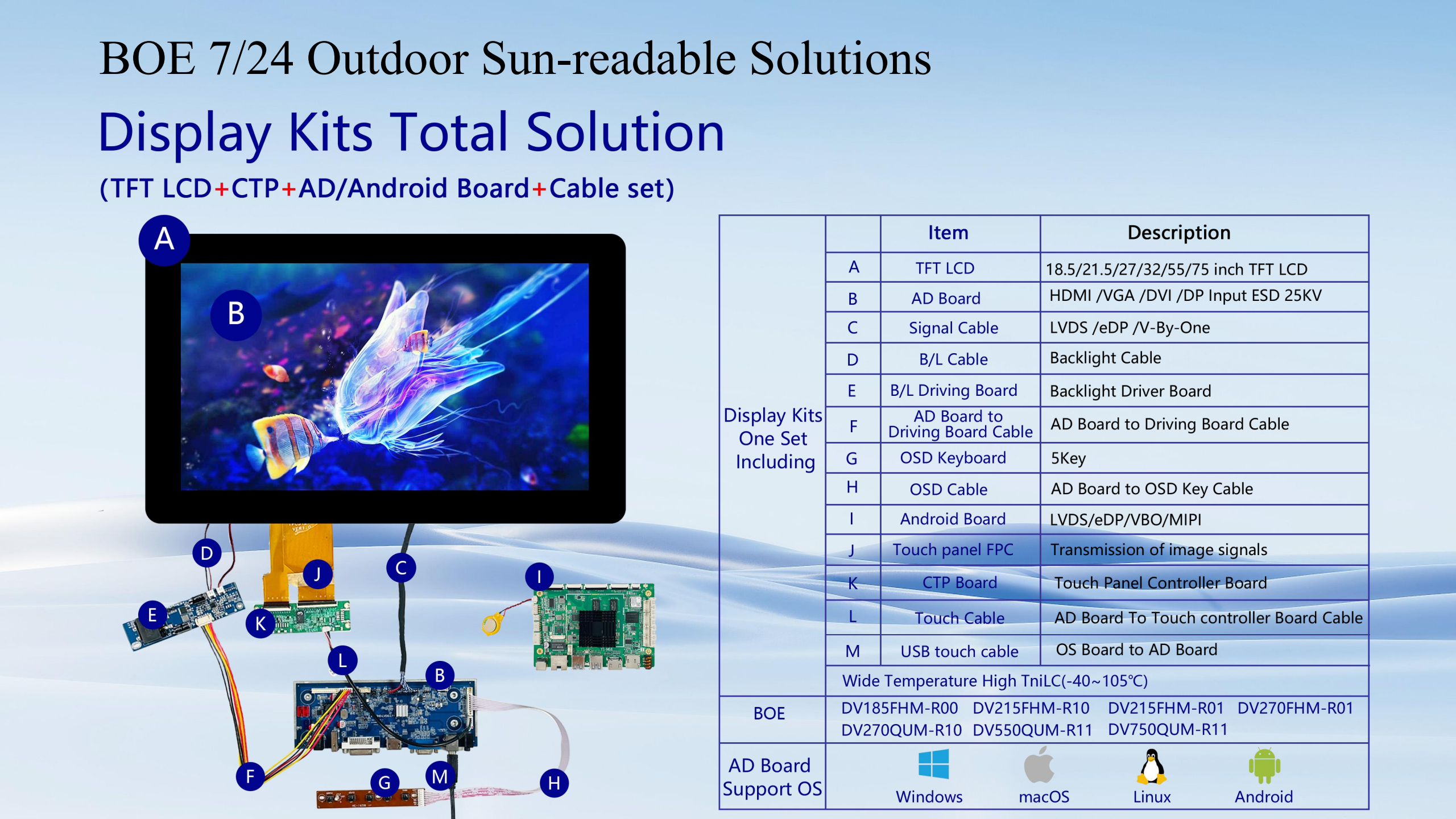

All models support landscape/portrait mounting, DE-only timing, RoHS compliance, and proven 7×24-hour operation.
| Size(inch) | Model.NO | Resolution | Active Area(mm) | Outline Dimensions(mm) | Touch Panel | LCD Driver Board | Viewing Angle | PIN | Interface | Brightness | Operation Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 18.5 | DV185FHM-R00 | 1920*1080 | 408.96*230.04 | 430.4*252.2*18 | Available | AD/Android Board | 89/89/89/89 | 30PIN | LVDS | 1000 | -20~60 |
| 21.5 | DV215FHM-R10 | 1920*1080 | 478.656*260.28 | 499*286.2*15.2 | Available | AD/Android Board | 89/89/89/89 | 30PIN | LVDS | 1500 | -20~60 |
| 21.5 | DV215FHM-R01 | 1920*1080 | 476.64*268.11 | 495.6*292.2*11.2 | Available | AD/Android Board | 89/89/89/89 | 30PIN | LVDS | 350 | -20~85 |
| 27.0 | DV270FHM-R01 | 1920*1080 | 597.888*336.312 | 626*363.8*15 | Available | AD/Android Board | 89/89/89/89 | 30PIN | LVDS | 1500 | -20~80 |
| 27.0 | DV270QUM-R10 | 3840*2160 | 596.736*335.664 | 623.34*362.3*18.7 | Available | AD/Android Board | 89/89/89/89 | 30PIN | eDP | 1000 | -20~60 |
| 55.0 | DV550QUM-R11 | 3840*2160 | 1209.6*680.4 | 1235.6*708.6*67.8 | Available | AD/Android Board | 89/89/89/89 | 51PIN | V-by-One | 3500 | -20~60 |
| 75.0 | DV750QUM-R11 | 3840*2160 | 1649.664*927.936 | 1675.7*956.1*66.8 | Available | AD/Android Board | 89/89/89/89 | 51PIN | V-by-One | 3500 | -20~60 |
All panels feature RGB vertical stripe, normally black mode, anti-glare (3H / AGLR / haze 25%), wide viewing angle, and full landscape/portrait support — exactly what outdoor wide temperature equipment demands.
DV185FHM-R00 (18.5" FHD) Ultra-compact yet rugged. Slim 12.4 mm depth, low power, and haze 25% anti-glare make it ideal for rail transit and space-limited outdoor kiosks. 16.7M colors and fast response time guarantee smooth visuals in any weather.
DV215FHM-R10 & DV215FHM-R01 (21.5" FHD Series) The 21" family is the sweet spot for most outdoor projects. The R01 version stands out with -20°C to +85°C operating range and High TNI 105°C liquid crystal — perfect when surface temperatures hit extreme levels. Both offer 10.7 mm slim design and excellent low-reflection performance.
27" Series – DV270FHM-R01 (FHD) & DV270QUM-R10 (UHD) Choose FHD for cost-effective gas station and signage use, or UHD for sharper detail. Both have dual edge LED bars for uniform high brightness and support 7×24h dynamic video playback.
DV550QUM-R11 (55" UHD) Flagship large-format panel with selectable 2500 or 3500 nit brightness, local dimming (48 blocks), and direct D-LED backlight. AGLR low-reflection treatment + wide temperature polarizer (80°C) ensures perfect readability outdoors.
DV750QUM-R11 (75" UHD) The biggest and brightest — 3500 nit D-LED for true billboard performance. 30 kg robust construction and V-by-One interface handle the largest outdoor control system and landscape signage installations.
• Wide Temperature Protection: High TNI LC + special polarizers prevent black spots or image washout in extreme heat/cold. • Sunlight Readability: High-luminance backlights + anti-glare coatings deliver clear images even at 10,000+ lux ambient light. • Reliability: All models passed thermal shock, high humidity, vibration, and 7×24h continuous testing. • Easy Integration: LVDS, eDP, or V-by-One interfaces with precise power sequencing and gamma correction. • Eco-Friendly: RoHS & Halogen Free, low power options for smaller sizes.
Q: Do these panels really support -30°C to +80°C? A: Storage goes down to -30°C on all models. Operating range reaches +85°C on the DV215FHM-R01 and +60°C on others with high TNI protection — ideal for outdoor wide temperature equipment.
Q: What brightness is sunlight readable? A: 2500–3500 nit models (55" & 75") are designed for direct sun. Smaller panels use high-luminance edge LEDs with anti-glare for excellent outdoor visibility.
Q: Can I use them in portrait mode for signage? A: Yes — every model officially supports landscape and portrait installation.
Q: Are they suitable for 7×24h outdoor operation? A: Absolutely. Larger models explicitly state 7×24h support with dynamic video.
Q: What interface do I need? A: LVDS (2-port) for 18–27", eDP or V-by-One for 27"+ UHD models.
Q: Do you provide custom configurations? A: Yes — contact us for volume, touch integration, or optical bonding.
BOE’s DV-series TFT LCD panels are field-proven in rail transit, gas stations, commercial signage, and industrial control systems worldwide. With extreme temperature tolerance, sunlight readability, and long-term durability, they reduce downtime and maintenance costs dramatically.
Need help selecting the perfect model for your -30°C to +80°C outdoor project? Our engineers are ready to provide datasheets, 3D drawings, and samples.
Contact us today — let’s build the toughest outdoor display solution together.
