Explore the 8-inch wide temperature LCD module for industrial control, featuring RGB 50-pin interface, 400nits brightness, and reliable operation in harsh environments.
Industrial automation and embedded control systems continue to demand higher performance, long-term reliability, and adaptability to harsh environments. Industrial LCD modules play a crucial role in these systems, enabling clear visual feedback, robust signal interfacing, and dependable operation under extended temperature ranges.
The 8-inch 800×480 RGB 50-pin 400nits LCD module is engineered specifically for industrial control applications requiring a wide temperature range and stable visual performance. Through optimized design for embedded integration and long-term availability, this module offers a reliable solution for system integrators and OEM manufacturers.
An industrial LCD module is not just a display—it is a ruggedized visual interface designed to meet the strict requirements of industrial control environments. Unlike consumer-grade displays that operate in controlled indoor conditions, industrial LCD modules are built to withstand wide ambient temperature variations, continuous duty operation, mechanical vibration and electrical noise, and long-term stable performance.

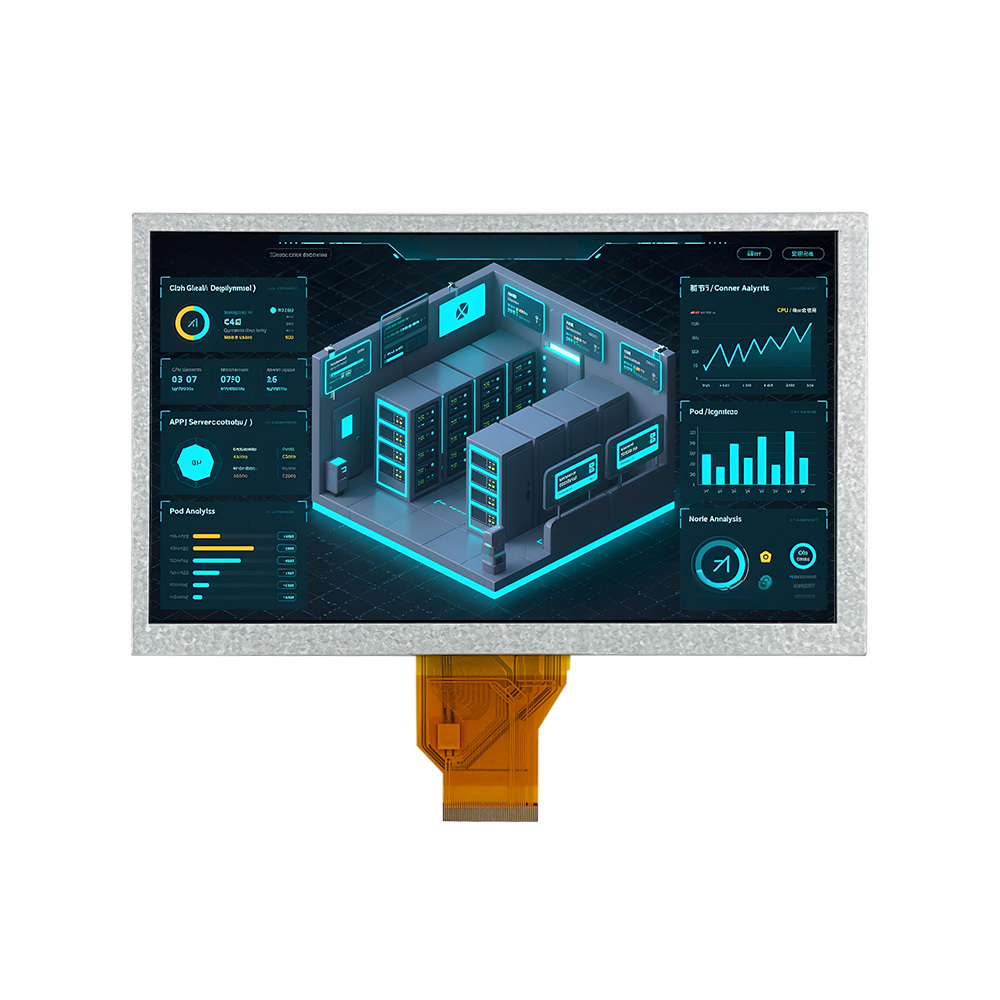

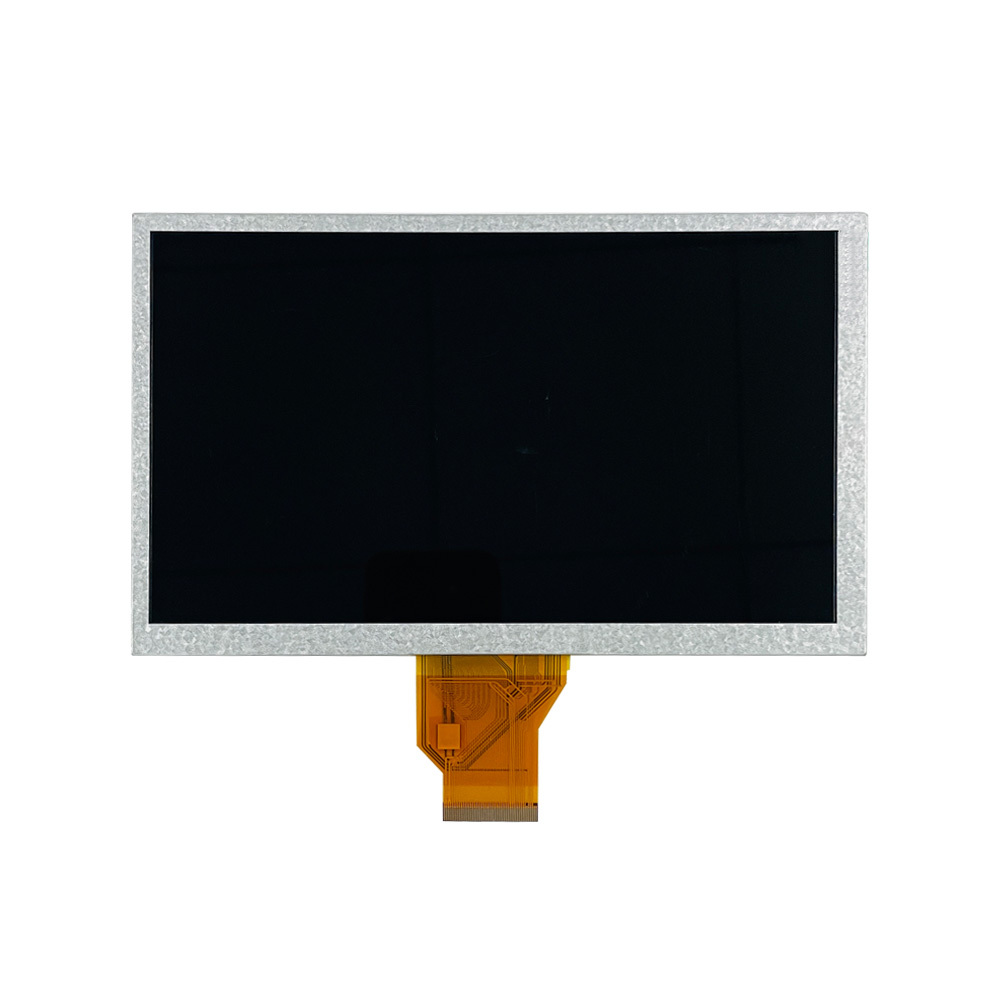

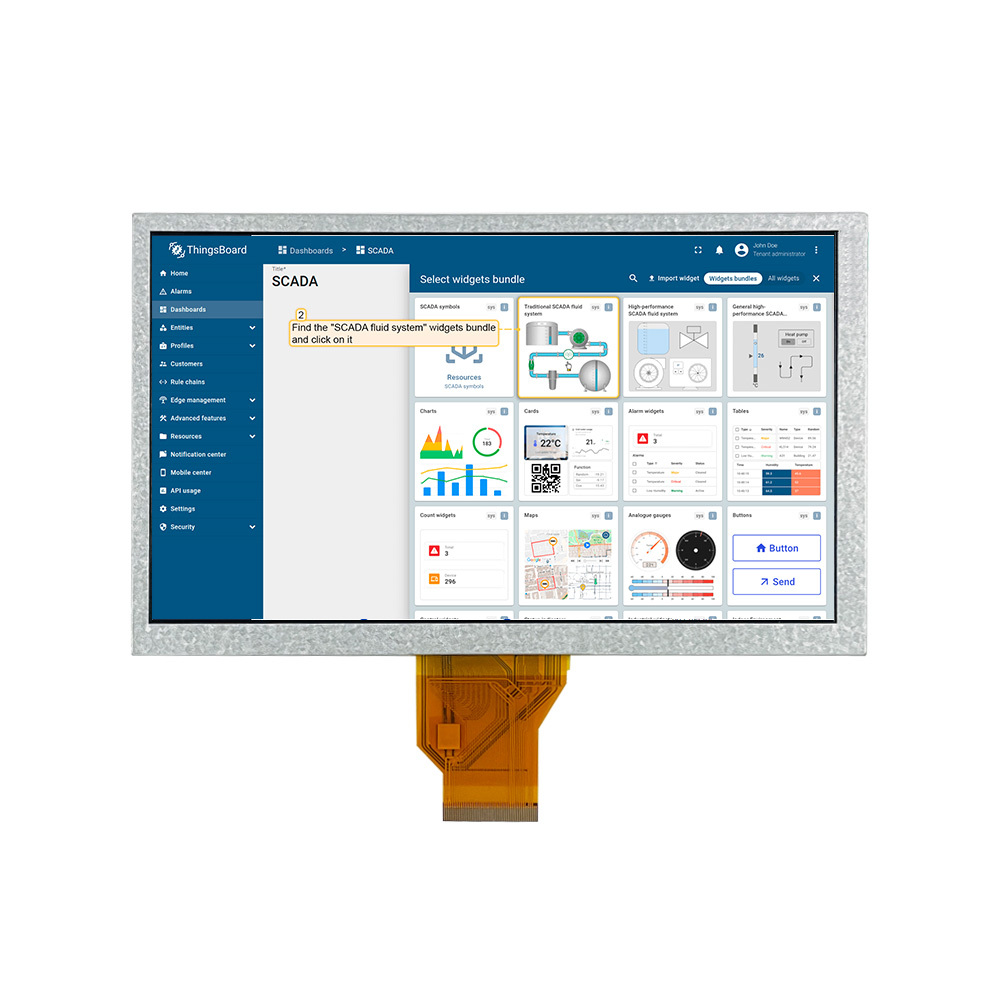

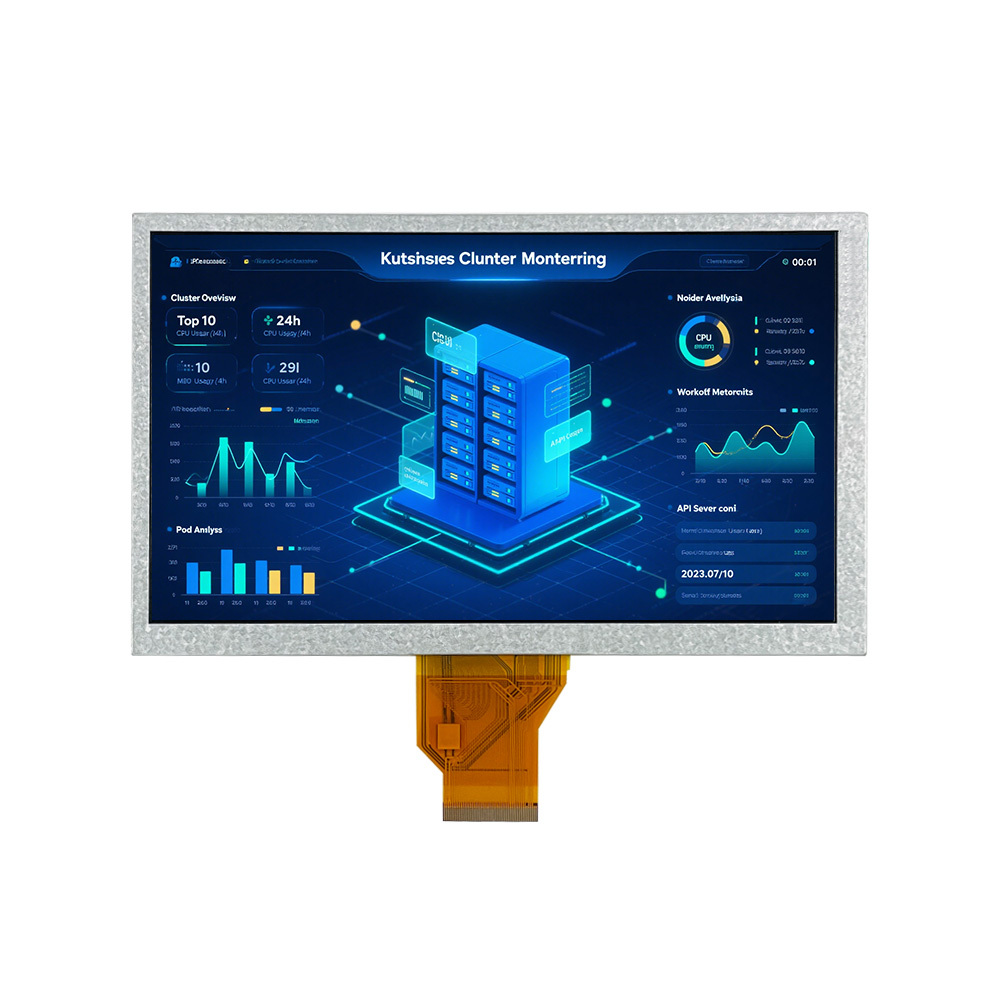

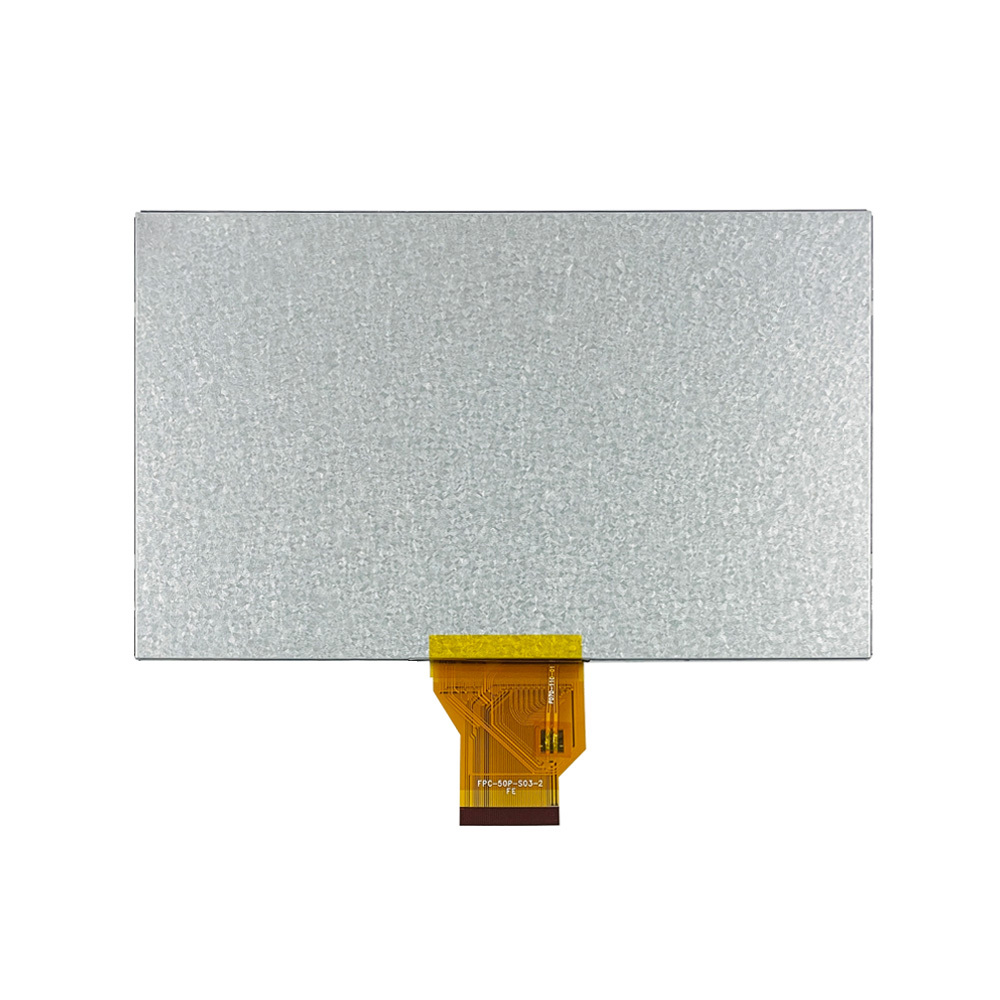

The 8-inch 800×480 RGB 50-pin LCD module with 400 nits brightness is a purpose-built industrial display designed for embedded and control applications. It features an 8-inch diagonal size with practical 800×480 resolution, RGB 50-pin interface for direct embedded integration, 400 nits brightness suitable for industrial lighting conditions, wide operating temperature support, and compact mechanically robust structure.
Industrial control systems are frequently installed in environments without strict temperature regulation. A wide temperature LCD module ensures stable image quality across temperature extremes, reliable response times during thermal transitions, reduced risk of backlight or panel degradation, and improved overall system uptime.
Industrial environments often feature strong ambient lighting, reflective surfaces, or indirect sunlight. With 400 nits brightness, this industrial LCD module provides improved contrast and clarity, consistent readability in factory and control room environments, and balanced power consumption for embedded systems.
| Parameter | Specification |
|---|---|
| Model Name | DBT080IVN50R040A |
| Display Size | 8 inch |
| Resolution | 800 × 480 dots |
| Active Area | 176.64 × 99.36 mm |
| Module Size | 192.8 × 116.9 × 6.4 mm |
| Viewing Direction | 70/70/50/70 (U/D/L/R) |
| Interface | RGB 50PIN |
| Brightness | 400 cd/m² |
| Operating Temperature | -30°C ~ +85°C |
Industrial-grade LCD modules are widely deployed in applications where reliability and environmental tolerance are critical.
Aptus Display focuses on industrial LCD display solutions tailored for control systems and embedded applications. Our product portfolio emphasizes environmental reliability, interface stability, and long-term supply consistency.
We support industrial projects with display modules designed to perform reliably in real-world operating conditions, helping customers maintain system stability throughout the product lifecycle.
Aptus Display provides a comprehensive range of services to support industrial display integration: industrial-grade LCD module supply, technical guidance for embedded and control systems, display configuration support for industrial environments, and long-term supply planning for OEM projects.
Contact us today for the latest quote, custom solutions, or wholesale pricing!
It uses a standard RGB 50PIN interface, ideal for direct connection to embedded controllers and industrial PCBs.
Yes, 400 cd/m² provides clear readability in typical factory and control room lighting conditions.
Yes, it operates from -30°C to +85°C, specifically designed for harsh industrial environments.
70/70/50/70 degrees (up/down/left/right), ensuring good visibility from most angles in control panels.
Yes, we offer full customization including PCAP/resistive touch, cover glass, and mechanical modifications.
We support small-batch wholesale. Standard products ship in 7-10 days; custom versions in 4-6 weeks.
If your project requires industrial-grade wide temperature LCD modules, expert guidance on integration, or tailored display solutions for industrial control systems, we’re here to help.
Reach out to our technical sales team today — let us provide the right industrial display module that meets your performance, environmental, and lifecycle needs.Contact us now to discuss specifications, customization, and pricing.
