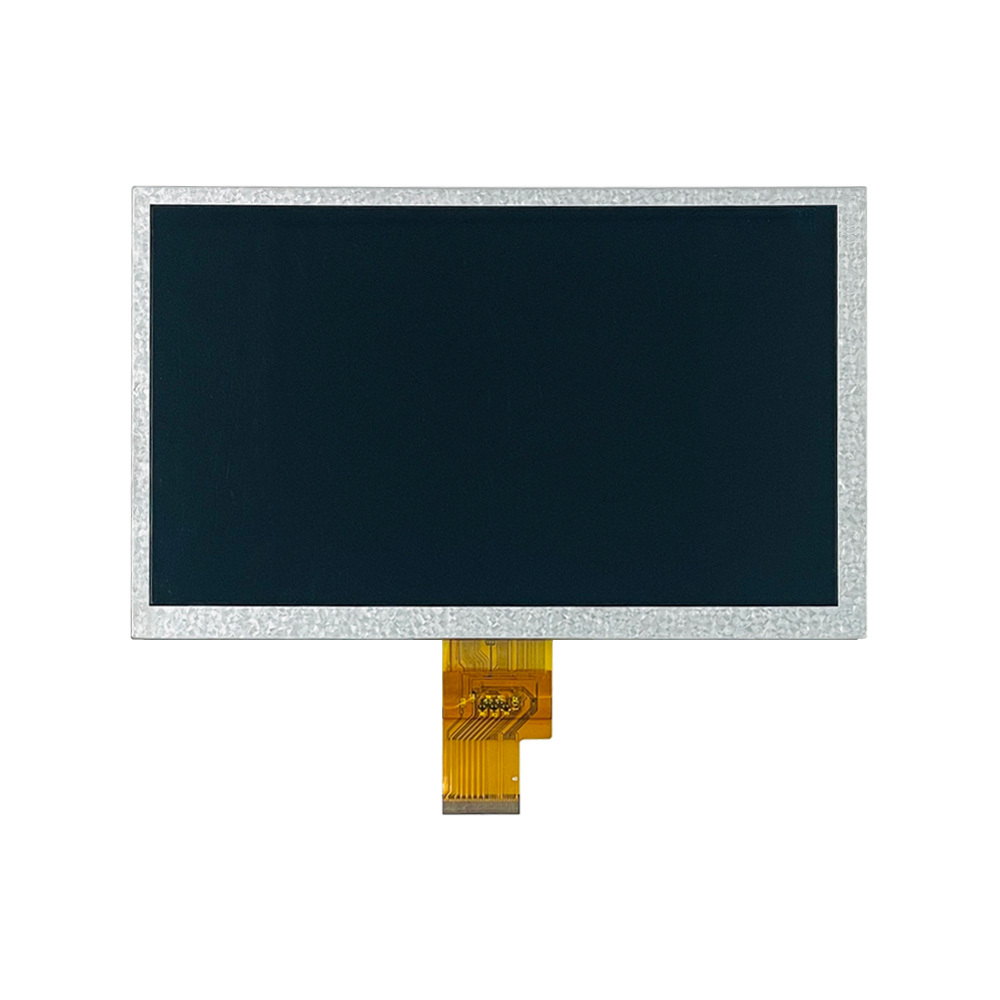

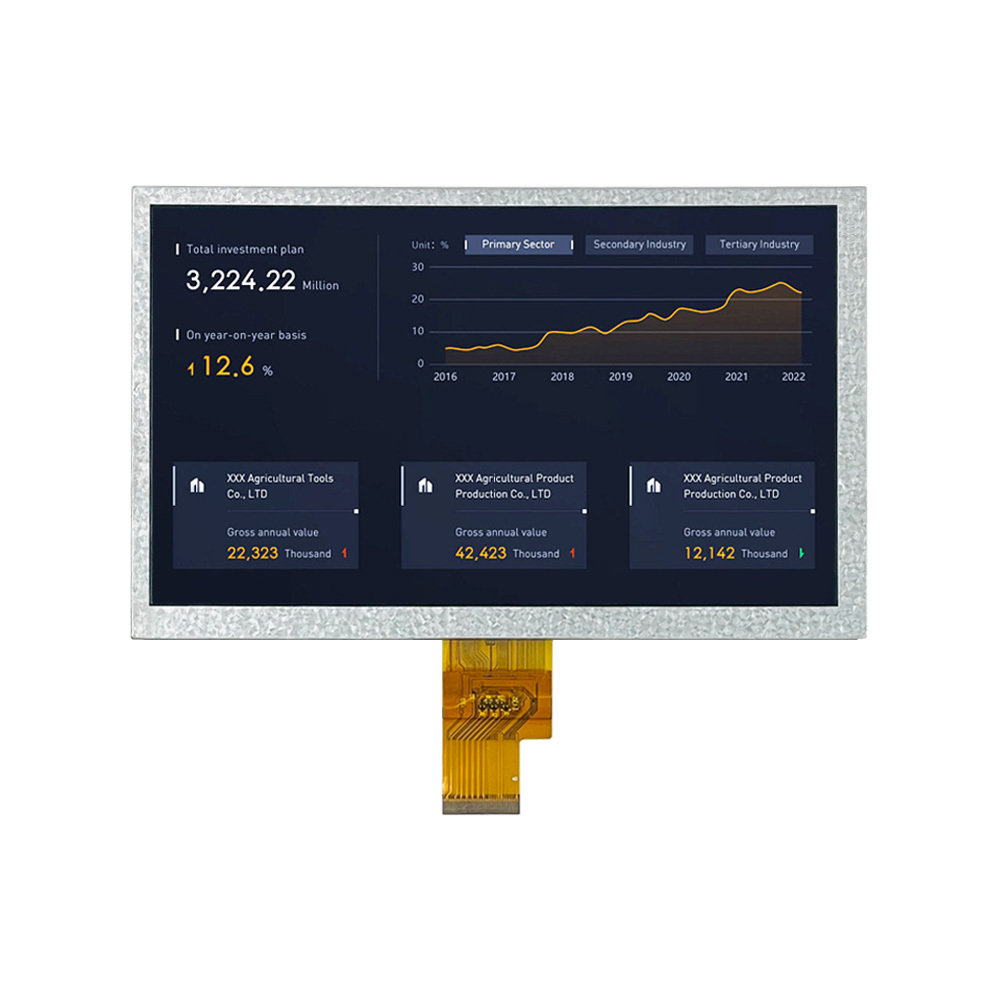

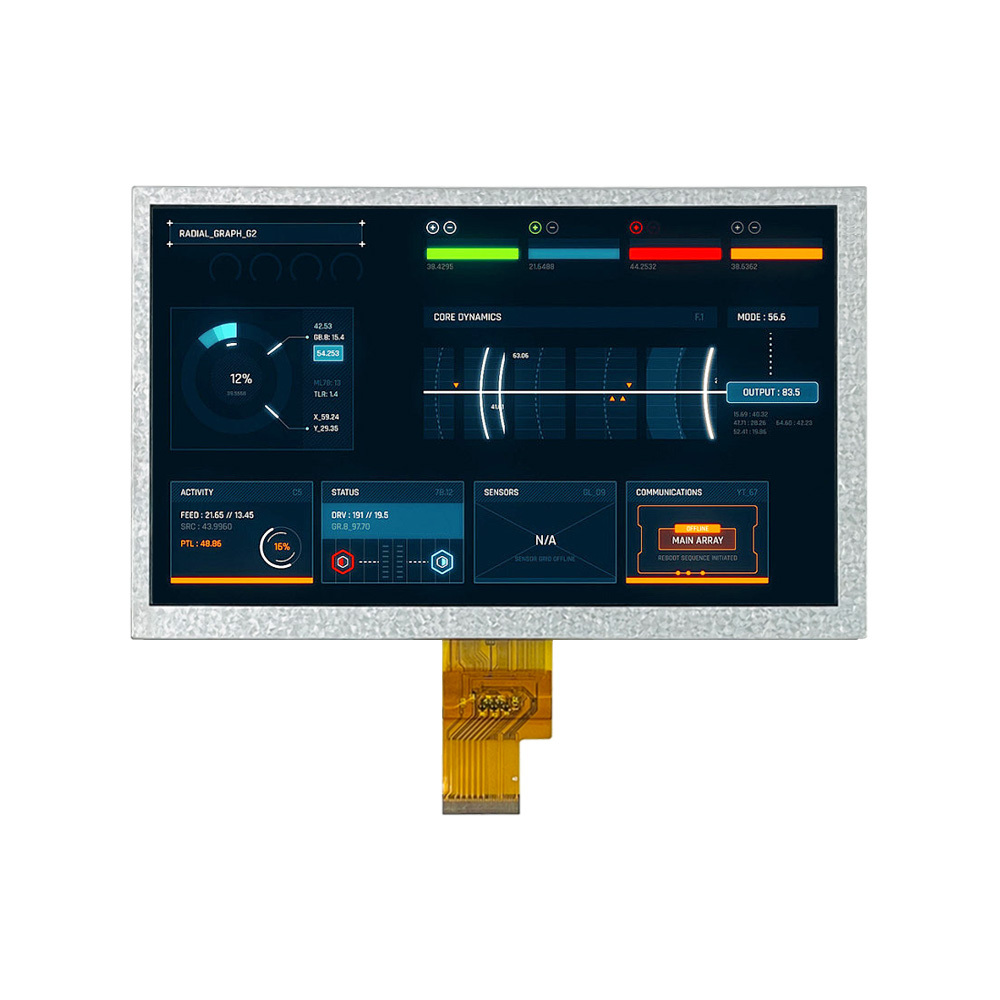

The DBT080IAN40L040A is an 8.0-inch color TFT LCD module designed for system integration rather than consumer entertainment products. Its 1024×600 resolution provides a useful widescreen format for graphical user interfaces, monitoring screens, control dashboards, equipment status information, and embedded operating interfaces.
The display uses a 40-pin LVDS interface, supporting 6-bit or 8-bit LVDS input according to the current product specification. LVDS is widely used in embedded and industrial display systems because it provides a practical high-speed differential signaling architecture for transferring display data between a host controller and TFT LCD panel.
With a typical brightness of 400 cd/m², the module is suitable for many indoor industrial and professional environments where standard display brightness is not sufficient. The display also provides a viewing-angle specification of 75/75/70/75, helping maintain image visibility from different viewing positions.
The module has an active area of 176.64 × 99.36 mm while maintaining a total thickness of only 6.4 mm, making it suitable for equipment where the internal installation space is limited.
| Parameter | Specification |
|---|---|
| Model | DBT080IAN40L040A |
| Display Size | 8.0 inch |
| Resolution | 1024 × 600 pixels |
| Display Type | TFT LCD |
| Display Mode | Normally White, Transmissive |
| Interface | LVDS |
| Connector | 40-Pin |
| LVDS Configuration | 6-bit / 8-bit selectable |
| Brightness | 400 cd/m² typical |
| Contrast Ratio | 600:1 |
| Active Area | 176.64 × 99.36 mm |
| Module Dimensions | 192.8 × 116.9 × 6.4 mm |
| Viewing Direction | 6 o’clock |
| Viewing Angle | 75/75/70/75 |
| Display Colors | 16.7M |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Backlight | White LED |
| Backlight Lifetime | Up to 20,000 hours |
Final electrical, mechanical, optical and interface parameters should be confirmed against the latest datasheet before mass production.
Selecting an LCD module for an embedded product involves more than simply choosing a screen size. Engineers typically need to consider resolution, interface, brightness, dimensions, operating temperature, viewing angle, backlight lifetime, and integration requirements.
The 8 inch 1024×600 format provides a useful balance between physical display size and information density. Compared with smaller 5-inch or 7-inch displays, an 8-inch panel provides additional space for control buttons, menus, graphs, measurement information, icons, and equipment status indicators.
The 1024×600 resolution is also suitable for modern graphical user interfaces. It gives system designers more flexibility when arranging operating controls and information on a single display.
For OEM equipment manufacturers, the compact 192.8 × 116.9 × 6.4 mm outline can simplify mechanical integration where enclosure space is constrained.
The DBT080IAN40L040A provides a typical brightness of 400 cd/m², making it suitable for many professional indoor environments.
Brightness requirements depend heavily on the installation environment. Industrial control cabinets, automation equipment, building management systems, embedded terminals, and indoor equipment generally have different optical requirements from outdoor kiosks exposed directly to sunlight.
For applications requiring higher sunlight readability, Aptus Display can evaluate higher-brightness LCD alternatives or customized optical configurations. The company's TFT LCD portfolio includes multiple brightness levels and display configurations, allowing engineers to select a more appropriate module for their specific environment.
The 40-pin LVDS interface is one of the key features of this 8-inch LCD module.
For OEM engineers, interface compatibility is critical because the host controller, timing configuration, LVDS mapping, connector definition, and display parameters must match the selected panel.
The DBT080IAN40L040A supports LVDS input with 6-bit or 8-bit configuration, providing flexibility for different system architectures. Before integration, engineers should verify the exact LVDS signal mapping, timing parameters, power requirements, connector orientation, and host controller compatibility using the latest technical documentation.
Aptus Display can also provide engineering support for display integration, controller-board compatibility, cable solutions, touch panel integration, and customized display configurations.
The module is specified for an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C. This makes it suitable for a broad range of indoor industrial and embedded applications where equipment may experience temperature variation during operation or storage.
Temperature performance is particularly important for equipment installed in factories, control cabinets, building-management systems, automation machinery, and other professional environments.
For applications requiring operation outside the standard temperature range, Aptus Display also offers wide-temperature LCD solutions that can be evaluated according to the project environment and reliability requirements.

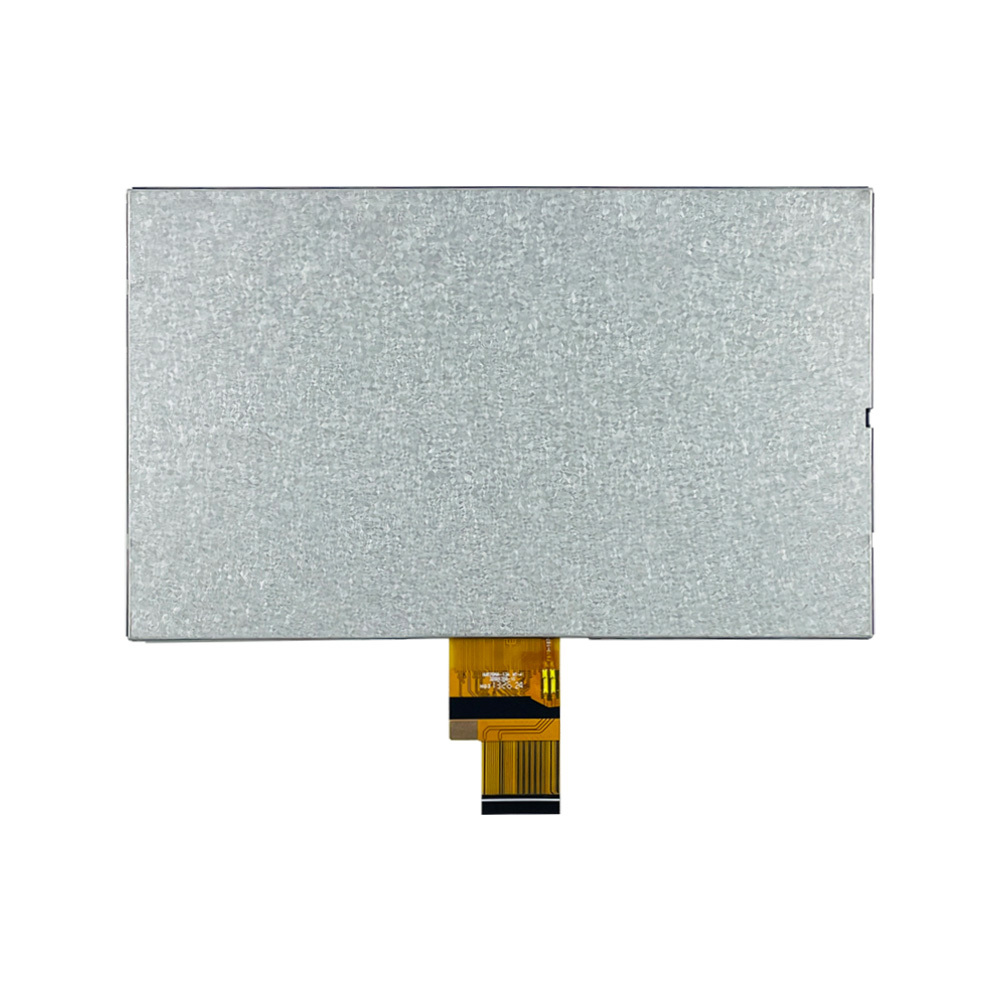

The module measures 192.8 × 116.9 × 6.4 mm, with an active display area of 176.64 × 99.36 mm.
The relatively slim 6.4 mm profile gives product designers more flexibility when developing compact equipment enclosures.
During mechanical integration, engineers should evaluate mounting structure, bezel clearance, cable routing, connector location, heat dissipation, panel protection, and tolerance requirements. If the standard module does not perfectly match the enclosure, Aptus can assess semi-custom or customized mechanical solutions.
The 8-inch display is well suited to industrial automation equipment where operators need to monitor machine status, production parameters, alarms, measurements, or process information.
It can be integrated into machine control interfaces, automation terminals, inspection equipment, production-line systems, and embedded industrial controllers.
An 8-inch 1024×600 display provides sufficient interface space for HMI applications requiring multiple menus, status indicators, graphical controls, and operating parameters.
The 400 cd/m² brightness and -20°C to +70°C operating range make the module suitable for many indoor industrial HMI environments.
The display can also be considered for smart home and building-control interfaces where users need to interact with lighting, HVAC, access control, energy management, or other building systems.
The 1024×600 resolution provides enough screen area for graphical dashboards and intuitive menu structures.
For embedded equipment manufacturers, the DBT080IAN40L040A can serve as the visual interface between a controller and the end user.
Typical applications can include monitoring terminals, instrumentation, control equipment, testing systems, measurement devices, and specialized embedded computers.
The module can be evaluated for professional equipment requiring an integrated color display rather than a standard consumer monitor.
Its compact dimensions and LVDS interface make it particularly suitable for OEM equipment where the display must be integrated directly into the product enclosure.
Aptus Display does not only supply standard TFT LCD modules. The company also supports customized and semi-custom display development for OEM projects.
Depending on project requirements, customization may include:
Display size and resolution customization
LVDS, MIPI, RGB and other interface solutions
Brightness optimization
Touch panel integration
Capacitive touch panel solutions
Resistive touch panel solutions
Cover glass customization
Surface treatment
Anti-glare solutions
Cable and connector customization
Driver board integration
Mechanical adaptation
Extended-temperature display solutions
This approach allows OEM customers to start from a standard LCD module while adapting the display to their actual product architecture.
For industrial display applications, reliability should be evaluated at both the component and system levels.
Aptus Display states that its LCD modules undergo inspection and reliability-related testing covering areas such as temperature operation and storage, thermal cycling, humidity endurance, optical uniformity, luminance verification, vibration and shock evaluation, and backlight aging.
For production projects, customers should define their required environmental conditions, operating lifetime, optical requirements, mechanical constraints, and quality standards before finalizing the display model.
Shenzhen Aptus Technology Co., Limited is an LCD display supplier based in Shenzhen, China, with more than 10 years of experience in LCD display development, production, and supply. The company provides TFT LCD modules, customized LCD displays, touch panels, display accessories, and related engineering solutions for international OEM customers.
Aptus Display's product portfolio covers multiple display sizes, resolutions, interfaces, brightness levels, temperature ranges, and touch configurations. Its TFT LCD catalog includes LVDS, MIPI and RGB display solutions, as well as high-brightness and wide-temperature products.
For customers developing new equipment, Aptus can support the process from display selection and sample evaluation to customization and production integration.
Yes. The DBT080IAN40L040A is designed for professional industrial and embedded applications. Its 1024×600 resolution, 400 cd/m² brightness, LVDS interface, compact mechanical dimensions, and -20°C to +70°C operating temperature make it suitable for many indoor industrial systems.
The module uses a 40-pin LVDS interface. The current product specification indicates support for 6-bit or 8-bit LVDS input. Engineers should confirm the detailed pin definition and timing configuration with the latest datasheet before integration.
400 cd/m² can be suitable for many indoor environments, but direct sunlight applications generally require a higher-brightness display and additional optical optimization. If the product will be installed outdoors or behind a window exposed to strong sunlight, contact Aptus Display to evaluate a higher-brightness or sunlight-readable solution.
Yes. Aptus Display provides touch panel integration and customized display solutions. Depending on the project, customers can evaluate capacitive or resistive touch panel configurations, cover glass, surface treatment, cables, and other integration requirements.
Yes. Customers can contact Aptus Display to request product samples, quotations, and technical consultation. For engineering evaluation, it is recommended to provide the host controller information, required quantity, application environment, mechanical requirements, and interface specifications.
When evaluating this product for an OEM project, we recommend checking the following requirements:
Display: Confirm that 8 inches and 1024×600 resolution meet the user-interface requirements.
Interface: Verify 40-pin LVDS compatibility with the controller board and confirm signal mapping.
Brightness: Determine whether 400 cd/m² is appropriate for the installation environment.
Temperature: Compare the -20°C to +70°C operating specification with the actual equipment environment.
Mechanical dimensions: Confirm that the 192.8 × 116.9 × 6.4 mm module fits the enclosure.
Touch requirements: If operator interaction is required, evaluate touch panel integration at the beginning of the design process.
Production requirements: For long-term projects, discuss sample approval, lifecycle requirements, quality standards, forecast quantity, and customization requirements with the supplier.
If you are looking for an 8 inch 1024×600 LVDS LCD module supplier for an industrial, embedded, HMI, automation, or professional equipment project, the DBT080IAN40L040A is a practical display option to evaluate.
Aptus Display can provide samples, technical documentation, quotations, display selection support, and customized LCD solutions according to your project requirements.
