►Size : 8.88 inch
►Resolution : 480*1920 dots
►View Direction : IPS
►Interface : MIPI
►Brightness (cd/m²): 600

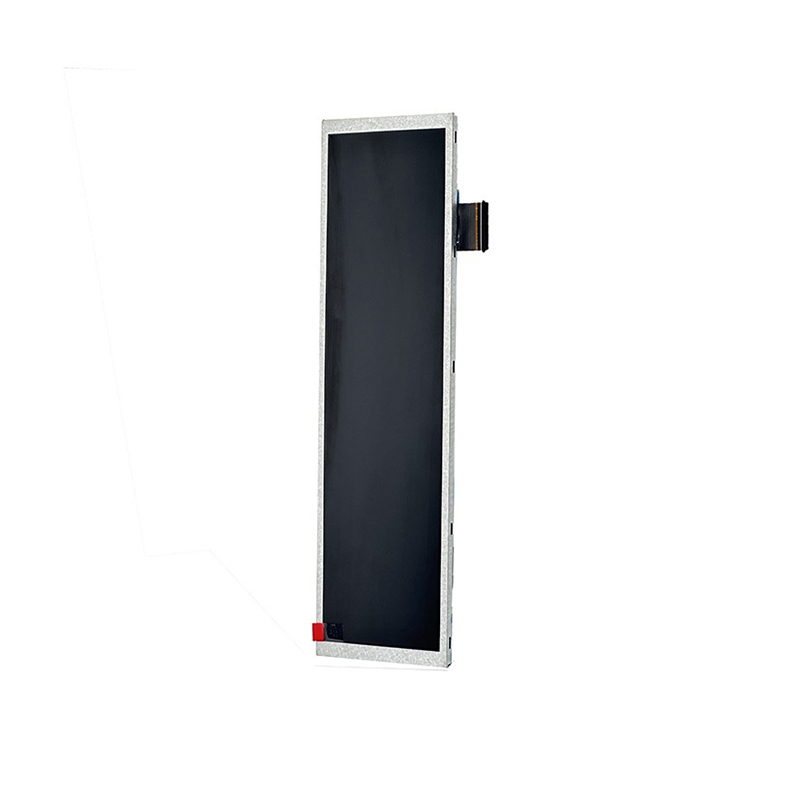

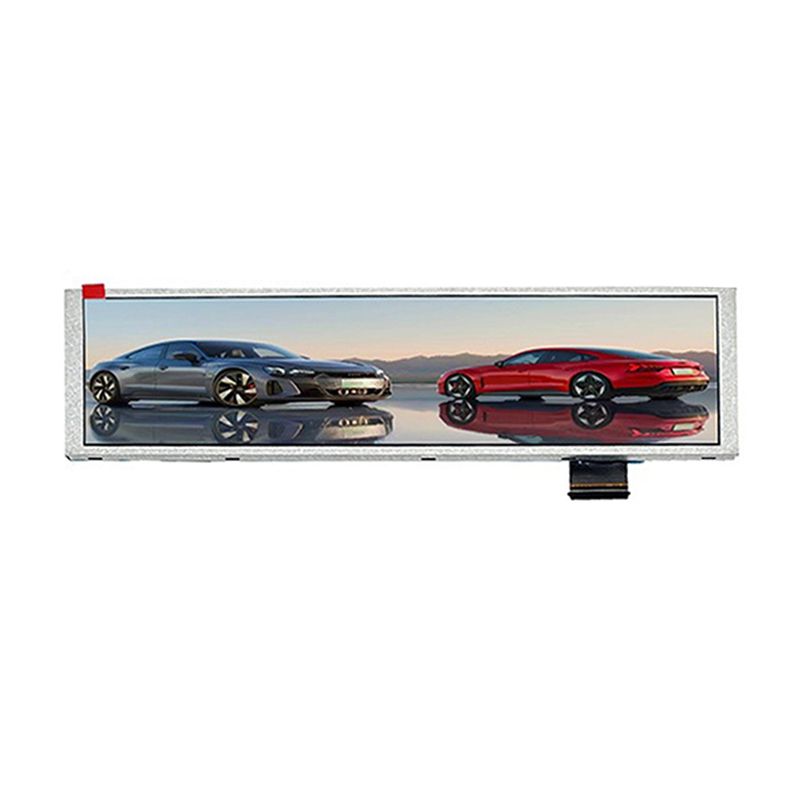

8.88 Inch 480*1920 MIPI Interface Bar Type LCD Display
The DBC088HVN40M060A is an 8.88-inch bar-type LCD display module from Shenzhen Aptus Technology Co., Limited. Unlike conventional TFT LCD panels designed around standard 16:9, 4:3, or square formats, this module uses a long and narrow display geometry with a 480 × 1920 pixel resolution.
This unusual aspect ratio gives product designers greater flexibility when creating equipment with narrow vertical installation areas. Instead of adapting a standard display to an enclosure and leaving unused space, engineers can select a display whose physical proportions are specifically suited to elongated product designs.
The display provides an active display area of approximately 54.72 × 218.88 mm, while the overall outline is approximately 64.3 × 231.3 mm. The module thickness is approximately 4.8–5.1 mm, making it suitable for compact embedded equipment where installation depth is an important design consideration.
The display uses IPS technology and a normally black display mode. It supports 16.7 million colors and a pixel pitch of approximately 0.114 × 0.114 mm, providing a detailed image across the elongated viewing area.
For system integration, the module uses a MIPI interface and is equipped with a recommended Hirose FH34SRJ-40S-0.5SH(50) FPC connector. Aptus also indicates that brightness, pin definition, cover glass, touch panel, driver board, and other aspects can be customized according to project requirements.
The defining characteristic of this product is its elongated physical format.
An 8.88-inch diagonal measurement combined with a 480×1920 resolution creates a tall, narrow display area that can be integrated into products where conventional LCD dimensions are unsuitable.
This type of display can be especially useful for:
The bar-type structure also provides opportunities for product designers to create distinctive visual interfaces without increasing the overall footprint of the equipment.
The module provides a 480 × 1920 RGB resolution, resulting in a total of 921,600 pixels.
The high vertical resolution provides sufficient space for detailed graphics, text, icons, menus, product information, advertisements, and vertically arranged user interfaces.
With a pixel pitch of approximately 0.114 × 0.114 mm, the display is designed to provide detailed visual output within its relatively compact physical area.
For digital signage applications, the elongated resolution can be used for vertically oriented advertising content. For equipment interfaces, the long display area can accommodate multiple information sections in a single screen.
The DBC088HVN40M060A uses IPS display technology, which is well suited to applications where users may view the display from different positions.
IPS technology can help maintain consistent image presentation across different viewing directions compared with display technologies with narrower viewing characteristics.
This is particularly useful in retail environments, public-facing equipment, professional machines, and embedded systems where the user may not always stand directly in front of the display.
The product is specified with a headline brightness of 600 cd/m². The detailed optical specification gives a center white luminance of approximately 480–600 cd/m².
This brightness level provides enhanced visual output compared with many standard indoor LCD modules and can be useful for bright indoor environments, retail equipment, information terminals, and other applications where display visibility is important.
However, brightness alone does not determine whether an LCD is suitable for direct sunlight. For outdoor applications, engineers should evaluate the complete optical system, including cover glass transmission, anti-reflection treatment, optical bonding, enclosure design, thermal management, and ambient lighting.
The module uses a MIPI interface, making it suitable for embedded systems designed around compatible MIPI display architectures.
MIPI can be particularly useful in compact embedded products because it is widely adopted in modern processor and system-on-module designs.
Before integration, system engineers should confirm the host processor's MIPI compatibility, lane configuration, timing parameters, connector definition, initialization sequence, power requirements, and display controller configuration.
Aptus can assist with interface and FPC requirements during the project development stage.
| Parameter | Specification |
|---|---|
| Product Model | DBC088HVN40M060A |
| Display Type | Bar-Type TFT LCD Module |
| Display Size | 8.88 inches |
| Resolution | 480 × 1920 pixels |
| Pixel Configuration | RGB Vertical Stripe |
| Display Technology | IPS |
| Display Mode | Normally Black |
| Interface | MIPI |
| Brightness | 480–600 cd/m² center white luminance |
| Headline Brightness | 600 cd/m² |
| Color Depth | 16.7 million colors |
| Pixel Pitch | 0.114 × 0.114 mm |
| NTSC Color Gamut | 50% NTSC |
| Contrast Ratio | Approximately 600–800 |
| Response Time | Approximately 40 ms |
| Surface Treatment | Hard Coating (HC) |
| Backlight | White LED |
| Active Area | 54.72 × 218.88 mm |
| Outline Dimensions | Approximately 64.3 × 231.3 mm |
| Module Dimensions | 64.0–64.6 × 231.0–231.6 × 4.8–5.1 mm |
| Weight | Approximately 110 g |
| Supply Voltage | 3.0–3.6 V |
| FPC Connector | Hirose FH34SRJ-40S-0.5SH(50) |
| Operating Temperature | -20°C to +70°C* |
| Storage Temperature | -30°C to +80°C* |
*The Aptus bar-display product list identifies this model with an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C. The exact production configuration should be confirmed with Aptus engineering before mass production.
Traditional LCD displays are generally designed for standardized aspect ratios. While these formats work well for televisions, monitors, tablets, and many industrial HMIs, they are not always suitable for specialized equipment.
A bar-type LCD takes a different approach.
Instead of designing the product around the limitations of a standard rectangular display, the display itself can become part of the product's industrial design.
The 480×1920 resolution of the DBC088HVN40M060A creates a long visual canvas that can be used vertically. This makes it possible to place large amounts of information into a narrow physical area.
For example, a retail fixture can display product information from top to bottom. A self-service machine can place instructions and promotional content in a single vertical interface. A professional equipment manufacturer can organize status information, system parameters, and warnings into vertically stacked interface sections.
This makes the product particularly relevant to OEM and ODM projects requiring a custom bar LCD display.
Smart retail is one of the most natural applications for an elongated LCD.
The 480×1920 format can be used to display:
Because the display is vertically elongated, it can be installed alongside products, inside display cabinets, or within specialized retail fixtures without requiring the footprint of a conventional monitor.
The 600-nit-class brightness can also provide enhanced visibility in relatively bright indoor retail environments.
The DBC088HVN40M060A can be used for specialized vertical digital signage.
The 480×1920 resolution allows content creators to design vertically oriented advertising and information layouts.
Potential applications include:
The unusual aspect ratio can also help businesses create differentiated signage rather than using the same standard 16:9 format found in conventional commercial displays.
The compact module dimensions make the display suitable for embedding into specialized equipment.
Engineers can use the screen to display:
The slim approximately 5 mm module thickness can help simplify integration into compact product structures.
The display can be considered for industrial and professional equipment requiring an elongated user interface.
For example, a machine manufacturer could arrange operating parameters vertically while using the remaining screen area for system status and notifications.
For demanding industrial environments, however, the final display solution should be evaluated according to temperature, vibration, humidity, dust, mechanical shock, electromagnetic interference, and enclosure requirements.
Self-service equipment often has limited space for display installation.
A bar-type LCD can provide a large information area without requiring a large rectangular opening.
Potential applications include:
If touch interaction is required, Aptus can evaluate a customized touch panel and cover glass solution for the application.
The elongated display format can also be integrated into specialized appliances and commercial equipment where a conventional screen does not match the physical product design.
Manufacturers can use the display for operating instructions, status information, settings, product information, or visual feedback.
The availability of customization options provides additional flexibility when the standard module needs to be adapted to a specific product.
One of the key advantages of working with a specialized display supplier is the ability to customize the display around the customer's system requirements.
For the DBC088HVN40M060A, Aptus states that brightness, PIN definition, cover glass, touch panel, driver board, and other components can be customized.
Potential customization projects can include:
The standard configuration provides approximately 600 cd/m² maximum center white luminance. Customers with different ambient-light requirements can discuss alternative brightness specifications with Aptus.
The FPC and connector configuration can be evaluated according to the customer's motherboard and mechanical design.
For interactive applications, a capacitive touch panel can be evaluated as part of the complete display assembly.
Cover glass can be customized according to requirements such as mechanical protection, appearance, surface treatment, and touch integration.
A customized driver board can help connect the LCD module with the customer's host system where a standard controller solution is not suitable.
For projects requiring improved outdoor visibility or reduced reflections, customers can discuss optical solutions such as anti-reflection treatment and optical bonding.
Before selecting the DBC088HVN40M060A for mass production, engineers should evaluate both the LCD specifications and the host system.
The first consideration is the MIPI interface. The host processor or system board must support the required display interface configuration.
The second consideration is mechanical integration. The module is approximately 64.0–64.6 mm wide and 231.0–231.6 mm long, with a thickness of approximately 4.8–5.1 mm. Engineers should use the latest mechanical drawing rather than relying solely on nominal dimensions when designing mounting structures.
Thermal conditions should also be reviewed. The published bar-display product list gives an operating temperature range of -20°C to +70°C. Applications outside this range should be discussed with Aptus before finalizing the design.
For outdoor or high-brightness environments, the optical stack should also be considered. Display brightness, cover glass transmission, reflection, bonding, and thermal management work together to determine real-world readability.
The DBC088HVN40M060A is described by Aptus as undergoing reliability testing including high- and low-temperature storage, thermal cycling, and vibration testing.
These tests are relevant for professional applications where the display must operate under changing environmental and mechanical conditions.
However, display reliability is ultimately dependent on the complete system design. Mounting structure, thermal conditions, power stability, enclosure design, cable routing, mechanical stress, and operating environment can all influence long-term performance.
For OEM projects, Aptus can evaluate the standard module against the customer's environmental and mechanical requirements and determine whether customization is appropriate.
Shenzhen Aptus Technology Co., Limited specializes in LCD display solutions and customized display development for customers across different professional markets.
Aptus's product portfolio includes TFT LCD modules, bar-type LCD displays, touch panel LCD modules, wide-temperature displays, flight simulator displays, gaming LCD modules, LCD accessories, and other display solutions.
The company provides display products covering different sizes, resolutions, interfaces, brightness levels, and application requirements.
For customers developing a specialized product, Aptus can provide more than a standard LCD panel. Depending on the project, customers can discuss:
Aptus also maintains a dedicated technical content structure covering Display Interfaces, Touch & HMI Solutions, Industrial Display Solutions, and Integration Tips, helping engineers evaluate display technologies and integration considerations during product development.
This engineering-oriented approach is particularly valuable for B2B customers who need to move from a display specification to a production-ready solution.
The DBC088HVN40M060A uses a 480 × 1920 RGB resolution with a vertical stripe pixel arrangement. This high-resolution elongated format is designed for narrow and vertically oriented display applications.
This model uses a MIPI interface. The recommended FPC connector listed by Aptus is Hirose FH34SRJ-40S-0.5SH(50). Engineers should confirm the complete MIPI configuration and pin definition before production.
The product headline specification lists 600 cd/m², while the detailed optical specification gives a center white luminance range of approximately 480–600 cd/m². Aptus also indicates that brightness can be customized.
Yes. The DBC088HVN40M060A uses IPS display technology, making it suitable for applications where viewing from different positions is required.
Yes. Aptus specifically indicates that touch panel, cover glass, brightness, PIN definition, and driver board can be customized according to project requirements.
The module is approximately 64.0–64.6 mm wide, 231.0–231.6 mm long, and 4.8–5.1 mm thick. The active area is approximately 54.72 × 218.88 mm.
The Aptus bar-display product list specifies -20°C to +70°C operating temperature and -30°C to +80°C storage temperature for this model. Customers with more demanding environmental requirements should contact Aptus for evaluation.
The approximately 600 cd/m² brightness can improve visibility in bright environments, but brightness alone does not establish direct-sunlight readability. Outdoor applications should be evaluated based on the complete optical and thermal system, including cover glass, anti-reflection treatment, optical bonding, enclosure, and ambient temperature.
Yes. Aptus lists driver board customization as one of the available customization options for this bar-type LCD module.
If you are developing a product that requires an 8.88-inch 480×1920 MIPI bar LCD display, the DBC088HVN40M060A provides a specialized solution for applications where conventional LCD formats are not suitable.
Its combination of:
8.88-inch display size + 480×1920 resolution + IPS technology + MIPI interface + 600 cd/m² brightness + slim bar-type design
makes it a strong candidate for vertical digital signage, smart retail equipment, embedded displays, professional equipment, information terminals, dashboards, kiosks, and customized OEM/ODM products.
