►Size : 8.82 inch
►Resolution : 768 x 768
►View Direction : IPS
►Interface : LVDS
►Control-Board : Yes
►Brightness (cd/m²): 500
Experience cutting-edge display technology with our 768x768 Square TFT LCD Display. Designed for seamless integration in commercial applications, this custom LCD display offers outstanding resolution, reliability, and eco-friendly efficiency. Ideal for wholesale and tailored solutions from a trusted LCD display manufacturer.
Elevate Your Flight Simulation Experience with the DBC088HXN60L050A Square LCD Display.
Overview:

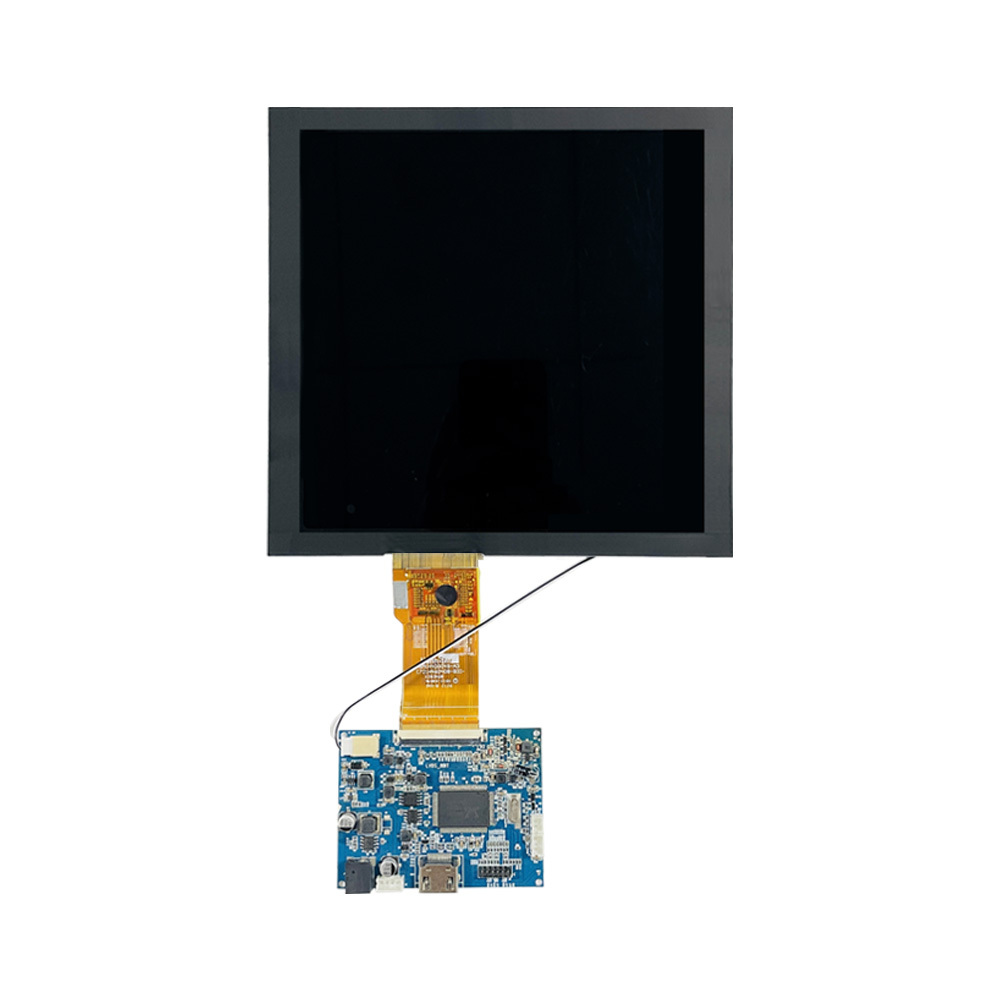

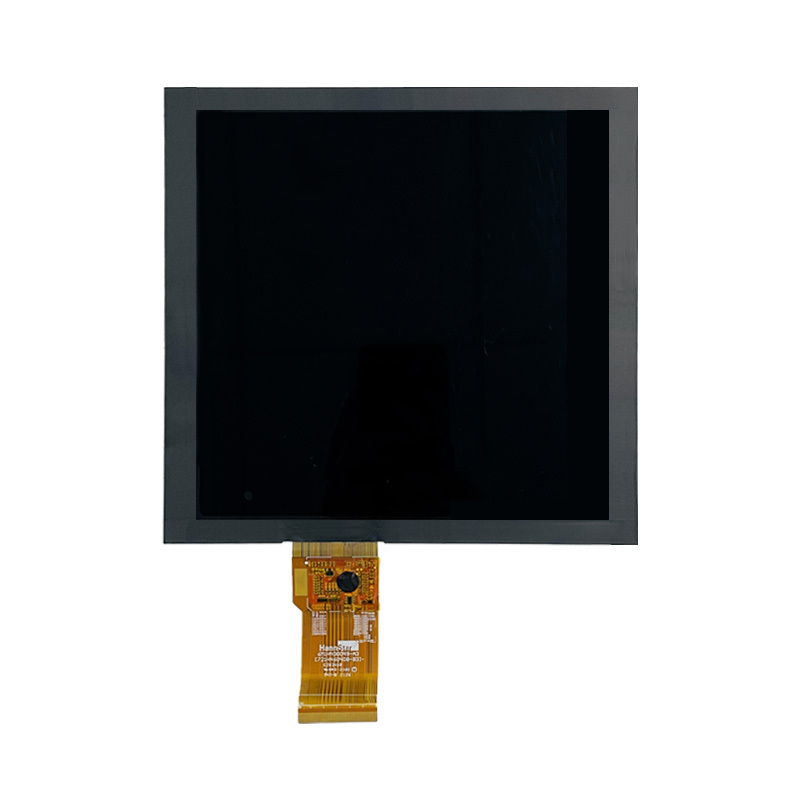

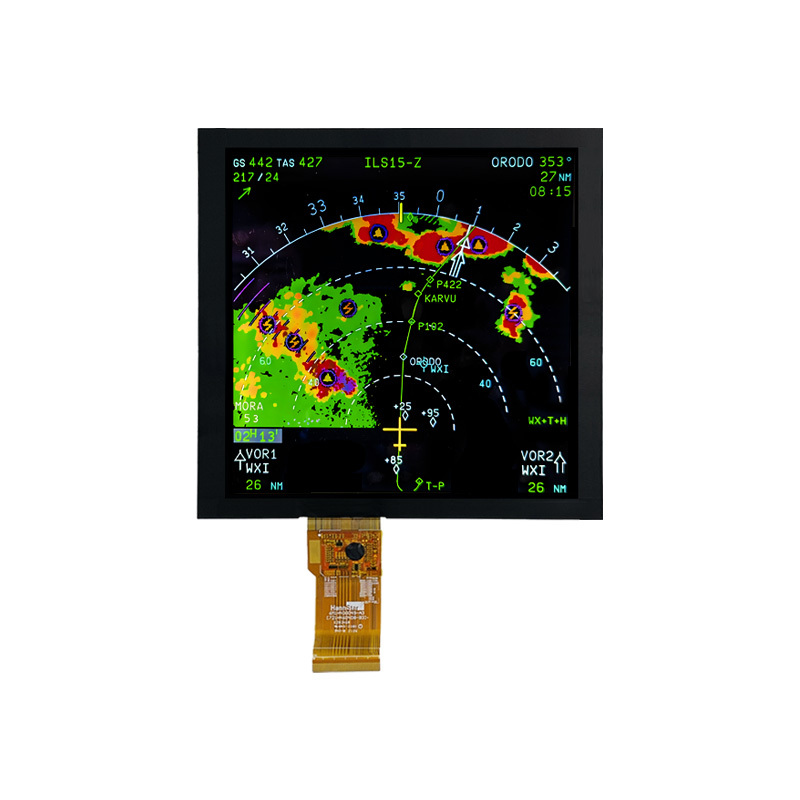

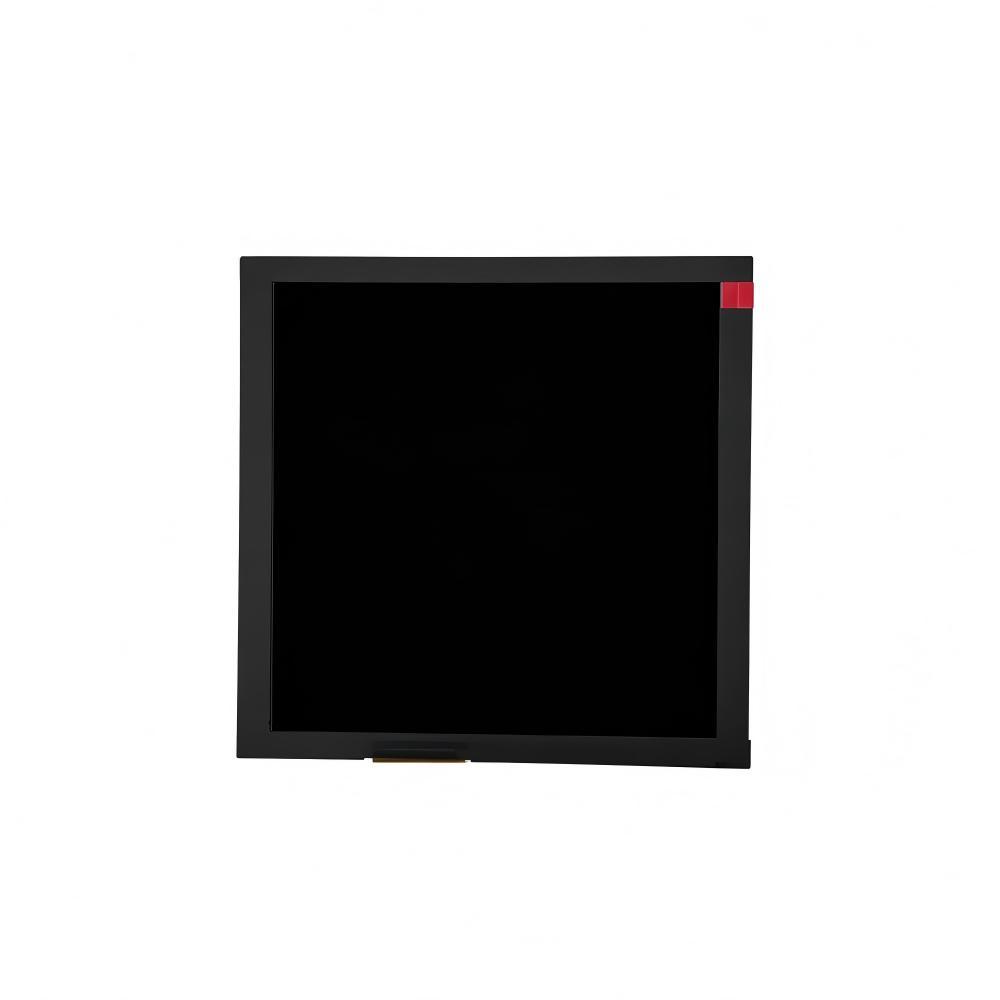

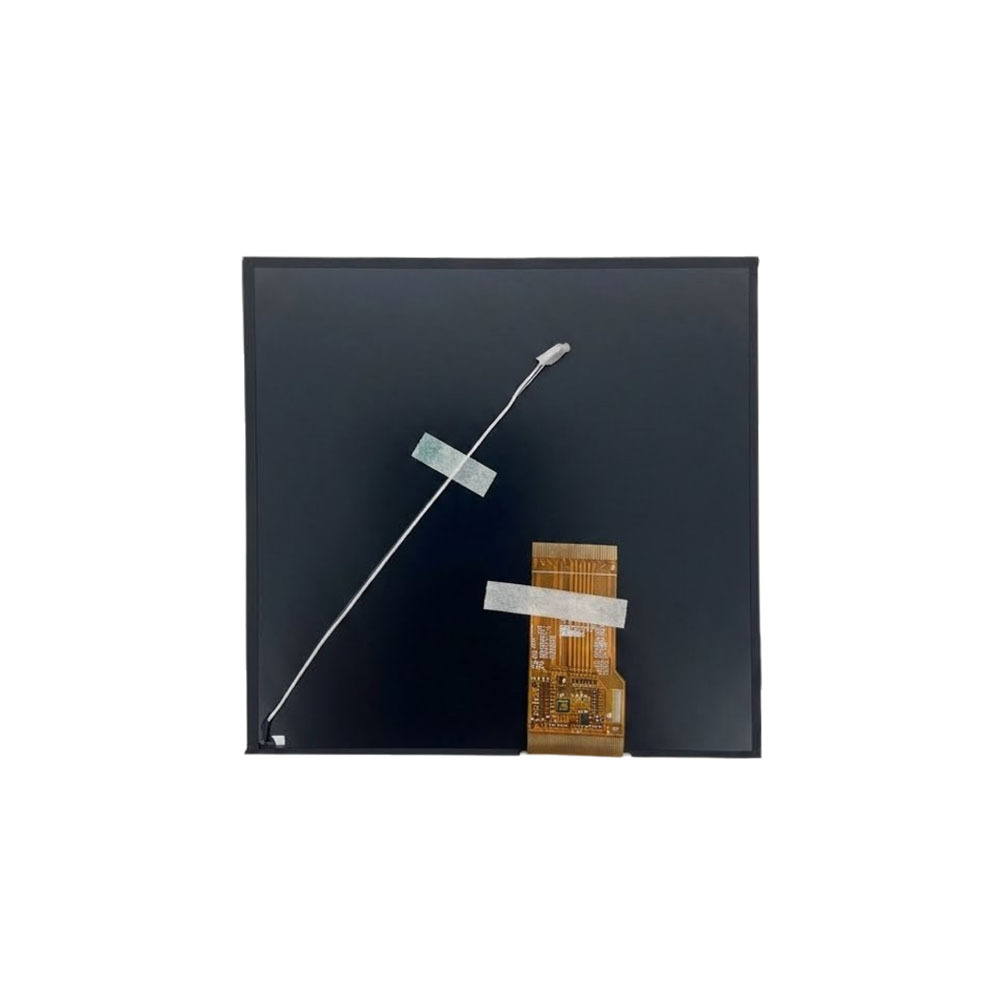

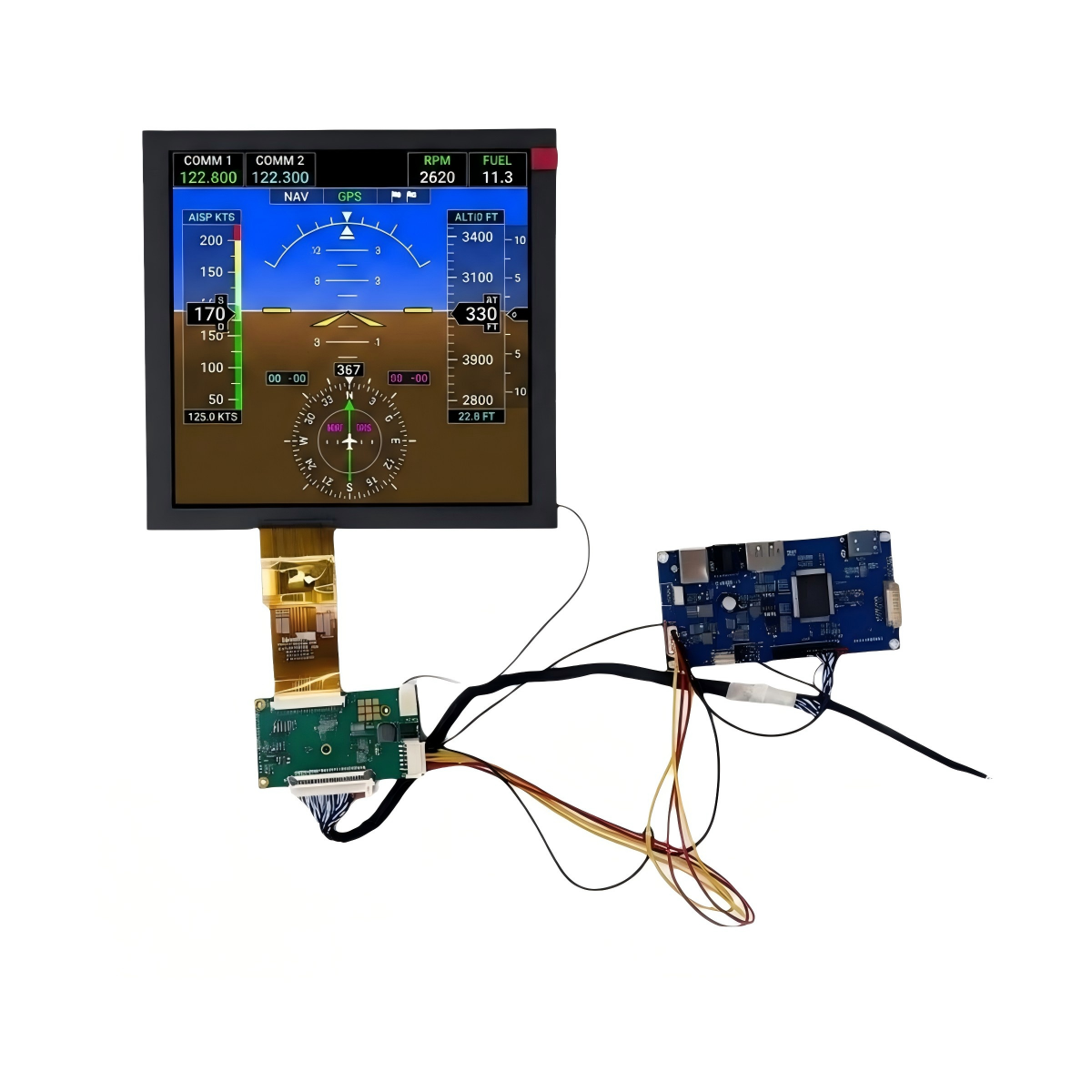

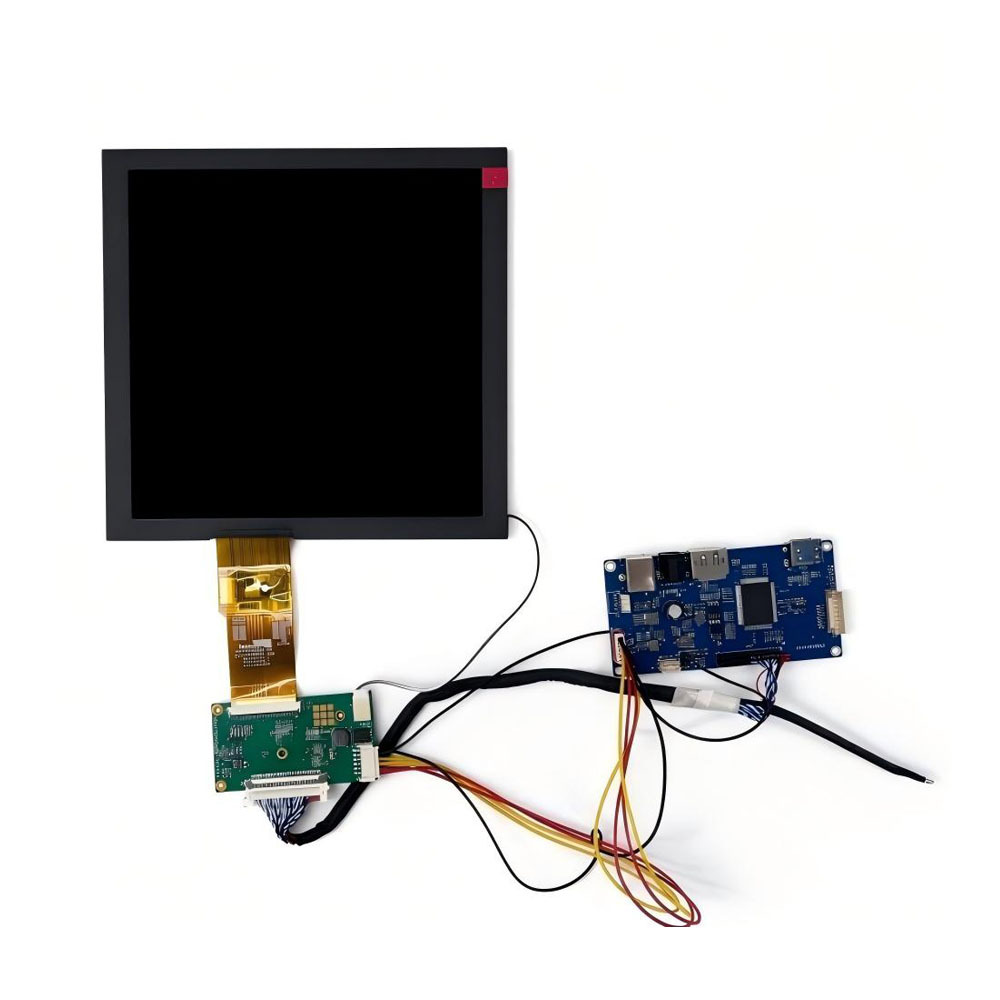

The DBC088HXN60L050A is an 8.8-inch square LCD display module designed specifically for flight simulator applications. With its high-definition resolution and advanced features, this display module delivers exceptional performance and reliability, making it ideal for creating immersive and realistic flight simulation environments.
Brightness, PIN defination, Coverglass,Touch Panel, Driver board, etc can be also customized.
| Size (Inch) | Resolution | Model NO. | Active Area (mm) | Outline Dimensions (mm) | Interface | Brightness | Operation Temperature(℃) | Storage Temperature(℃) |
|---|---|---|---|---|---|---|---|---|
| 5.1 | 480*480 | DBC051AFN50R050A | 91.44*91.44 | 106.0*106.0*6.27 | RGB | 500 | -10~60 | -20~70 |
| 6.8 | 768*768 | DBC068IXN40L050A | 121.54*121.54 | 135.1*135.1*7.2 | LVDS | 500 | -10~50 | -20~60 |
| 7.0 | 720*720 | DBC070AEN40L050B | 125.82*125.82 | 145*145*9.0 | LVDS | 500 | -20~70 | -30~80 |
| 7.0 | 768*768 | DBC070AXN20L050A | 127.8*127.8 | 145*145*10.29 | LVDS | 500 | -20~70 | -30~80 |
| 8.82 | 768*768 | DBC088HXN60L100A | 158.4*158.4 | 184.8*179.75*7.7 | LVDS | 500 | -20~70 | -30~80 |
| 10.3 | 768*768 | DBC103HXN20L050A | 184.32*184.32 | 204*204*7.5 | LVDS | 500 | -30~85 | -40~85 |
