►Size : 8.8 inch
►Resolution : 1280*320 dots
►View Direction : IPS
►Interface : LVDS
►Brightness (cd/m²): 450

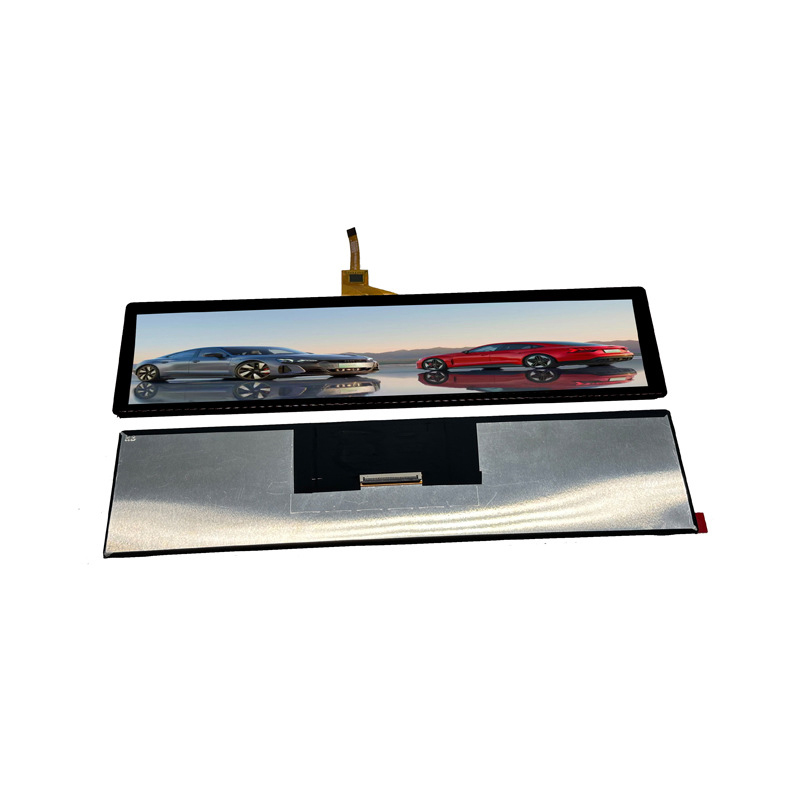

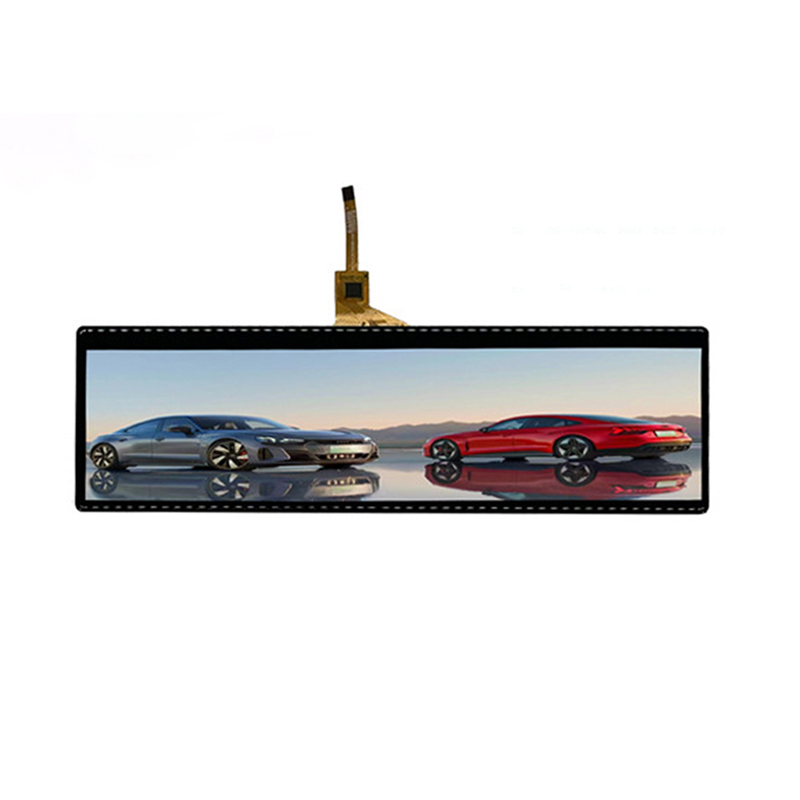

The 8.8-inch 1280×320 LVDS bar-type LCD display is a wide-aspect-ratio TFT LCD module designed for equipment and systems that need a long, narrow visual area rather than a conventional 16:9 screen. Model DBC088AEN40L045A combines an 8.8-inch display size, 1280(RGB) × 320 resolution, IPS viewing technology, LVDS interface, and approximately 400–450 cd/m² luminance. Its slim mechanical profile and elongated active area make it suitable for dashboards, retail signage, professional equipment, embedded information displays, and customized commercial or industrial display systems.
The DBC088AEN40L045A is a bar-type LCD display module developed by Shenzhen Aptus Technology Co., Limited for applications where conventional LCD aspect ratios do not match the physical design of the equipment.
With a resolution of 1280 × 320 pixels, the display provides a horizontally elongated visual area. This allows system designers to arrange information across a wide panoramic interface while keeping the overall display height relatively low.
The module has an active area of approximately 216.96 × 54.24 mm and overall dimensions of approximately 223.36 × 65.34 × 4.85 mm. This compact profile gives OEM designers greater flexibility when integrating a display into narrow equipment housings, control panels, dashboards, retail fixtures, and professional systems.
The display uses IPS technology, providing a wide viewing angle and stable image presentation from different viewing positions. It also supports an LVDS interface, making it a practical option for systems that already use LVDS-based display architecture.
For projects that require a different brightness, connector definition, touch panel, cover glass, or driver board, Aptus offers customization options based on project requirements.
The most distinctive feature of this module is its 1280×320 wide-aspect-ratio format.
Unlike conventional displays designed around 16:9 or 4:3 proportions, a bar LCD is optimized for applications where screen width is more important than screen height. The elongated format can accommodate horizontally arranged information, multiple data fields, status indicators, advertising content, or panoramic graphics.
This makes the module particularly useful when the display needs to fit into a limited vertical space.
The 8.8-inch diagonal screen provides a practical balance between readability and mechanical size.
For equipment manufacturers, the display can offer considerably more visual space than small embedded panels without requiring the enclosure volume associated with a conventional large-format LCD.
The 1280×320 resolution provides 409,600 pixels across the elongated display area.
This resolution is suitable for text, icons, graphical user interfaces, product information, advertisements, equipment status, and other visual content where horizontal information density is important.
The relatively fine pixel pitch of approximately 0.1695 × 0.1695 mm also contributes to clear image presentation.
The module uses IPS technology and provides a wide viewing angle of approximately 75–80 degrees according to the published specification.
This is useful for applications where users may view the screen from different positions rather than directly from the front.
For example, a public-facing information display or equipment dashboard may be viewed by multiple people from different angles. IPS technology helps maintain consistent visual performance across those viewing positions.
The LVDS interface provides a reliable digital display interface for compatible embedded systems and controller boards.
For system engineers, LVDS can be advantageous when the existing hardware architecture already supports LVDS output. Before integration, however, engineers should verify the exact LVDS configuration, connector definition, timing requirements, power requirements, and host-controller compatibility with Aptus.
The product page specifies 450 cd/m² brightness, while the detailed optical specification gives a typical luminance range of approximately 400–450 cd/m².
This brightness level is suitable for many indoor and controlled-light environments, including retail equipment, professional systems, embedded displays, dashboards, and information terminals.
For direct outdoor sunlight applications, brightness should be evaluated together with cover glass transmission, anti-reflective treatment, optical bonding, enclosure design, and ambient lighting. A 450-nit LCD should not automatically be classified as a direct-sunlight-readable display without evaluating the complete optical system.
| Parameter | Specification |
|---|---|
| Product Model | DBC088AEN40L045A |
| Display Type | TFT LCD Module |
| Display Size | 8.8 inches |
| Resolution | 1280 × 320 pixels |
| Pixel Configuration | RGB |
| Display Technology | IPS |
| Display Mode | Normally Black |
| Interface | LVDS |
| Brightness | 400–450 cd/m² typical |
| Headline Brightness | 450 cd/m² |
| Colors | 16.7 million |
| Active Area | 216.96 × 54.24 mm |
| Outline Dimensions | 223.36 × 65.34 × 4.85 mm |
| Pixel Pitch | 0.1695 × 0.1695 mm |
| Viewing Angle | Approx. 75–80° |
| Contrast Ratio | Approx. 1000–1500 |
| Response Time | Approx. 12–17 ms |
| Driver IC | EK79202D |
| Analog Supply Voltage | 3.0–3.6 V |
| Operating Temperature | -20°C to +70°C |
| Interface Type | LVDS |
| RoHS | Compliant |
| Touch Panel | Customizable |
| Cover Glass | Customizable |
| Driver Board | Customizable |
| Brightness | Customizable |
| Pin Definition | Customizable |
The specifications above are based on the current Aptus Display product information. Electrical parameters marked as application-dependent or requiring confirmation should be verified against the latest engineering datasheet before mass production.
A conventional LCD is not always the best solution for a specialized product enclosure.
When a machine, retail fixture, dashboard, or information terminal has a long horizontal installation area, a conventional 16:9 screen may leave unused space or force designers to redesign the enclosure around the display.
A bar-type LCD solves this problem by providing a display whose geometry is intentionally elongated.
The 8.8-inch 1280×320 format can be used to create interfaces that stretch horizontally across the product. This can improve information organization while maintaining a compact vertical profile.
For OEM designers, this means the LCD becomes part of the industrial design rather than simply being installed into an existing rectangular opening.
One of the most suitable applications for a bar-type LCD is smart retail display equipment.
The 1280×320 format can be used to display:
The elongated screen can be installed along shelves, display cabinets, product fixtures, or specialized retail equipment.
Its relatively low vertical height makes it possible to provide digital information without occupying a large portion of the customer's visual merchandising area.
The wide format is also suitable for specialized digital signage systems.
Instead of displaying conventional full-screen video, the 1280×320 resolution can be used for panoramic advertising, scrolling messages, product promotions, transportation information, menus, or brand graphics.
This can create a distinctive visual format that would be difficult to achieve with a standard 16:9 panel.
A bar LCD can be used as a dashboard display where multiple information fields need to be arranged horizontally.
Possible information includes:
The IPS viewing characteristics can help maintain visibility when operators view the dashboard from different positions.
The DBC088AEN40L045A can also be considered for professional equipment requiring a compact wide-format display.
Potential applications include specialized instrumentation, control equipment, automation interfaces, measurement equipment, and other embedded systems.
For projects involving harsh industrial environments, engineers should evaluate the required temperature range, vibration conditions, humidity, dust protection, mechanical mounting, and system enclosure together with the LCD specification.
The module's published operating temperature range is -20°C to +70°C, which provides a useful starting point for many professional equipment applications.
The panoramic form factor can also be useful for transportation-related information interfaces, equipment dashboards, and passenger information concepts where a wide, narrow display is preferable.
However, applications involving formal automotive or transportation safety requirements should be evaluated separately according to the relevant industry standards and environmental specifications.
Self-service machines can benefit from a horizontally elongated display when the user interface needs to present instructions, status information, advertising, or transaction information in a compact area.
The display can potentially be integrated into kiosks, vending systems, lockers, ticketing equipment, and other specialized machines.
If touch interaction is required, Aptus can evaluate a customized touch panel configuration.
Standard LCD modules do not always meet the mechanical and electrical requirements of a finished product.
Aptus lists several customization options for this bar LCD, including brightness, pin definition, cover glass, touch panel, and driver board.
This provides OEM and ODM customers with the opportunity to develop a display around their actual system architecture.
Depending on project requirements, customization can be discussed for:
For an engineering evaluation, customers should provide the required display dimensions, resolution, interface, brightness, operating temperature, touch requirement, installation environment, estimated annual quantity, and target application.
Selecting the correct LCD requires more than matching screen size and resolution.
The LVDS interface should first be checked against the host system. Engineers should confirm signal configuration, timing, connector pinout, power supply, initialization requirements, and controller compatibility.
Mechanical integration is another important consideration. The module measures approximately 223.36 × 65.34 × 4.85 mm, while the active area is approximately 216.96 × 54.24 mm. Designers should use the latest mechanical drawing when creating the enclosure or mounting structure.
Thermal design should also be evaluated for continuously operating equipment. The published operating temperature range is -20°C to +70°C. If the final product operates beyond these conditions, Aptus should be consulted about a wide-temperature configuration.
For touch applications, engineers should additionally consider cover-glass thickness, touch-controller compatibility, optical bonding, electromagnetic interference, glove operation, and intended user environment.
The DBC088AEN40L045A is described by Aptus as undergoing reliability-related testing, including high- and low-temperature storage, thermal shock, and electrostatic discharge testing. The product is also listed as RoHS compliant.
For OEM customers, reliability should be evaluated according to the complete application rather than the LCD panel alone.
A display installed inside a retail cabinet, industrial machine, outdoor kiosk, or transportation system can experience very different thermal, mechanical, optical, and environmental conditions.
Aptus can work with customers during the engineering stage to determine whether the standard module meets the requirements or whether customization is appropriate.
Shenzhen Aptus Technology Co., Limited provides LCD display products and customized display solutions for customers in different professional markets.
Aptus focuses on TFT LCD modules, bar-type LCD displays, touch panel solutions, driver boards, display accessories, and customized display integration. The company's product portfolio includes different display sizes, resolutions, interfaces, and application-oriented display solutions.
For customers developing a new product, Aptus can support the process from initial display specification through sample evaluation and customization.
Key advantages include:
Aptus supports customization of display parameters and related components, allowing customers to develop a display closer to their actual product requirements.
The product portfolio includes display solutions using interfaces such as LVDS and MIPI, helping engineers select a suitable architecture for different embedded systems.
Where required, Aptus can evaluate touch panel and cover-glass integration instead of supplying only the bare LCD module.
Customers can discuss mechanical dimensions, interface requirements, brightness, operating environment, touch requirements, and other technical factors with the Aptus team.
Aptus works with international OEM, ODM, engineering, and procurement customers and provides product consultation, samples, customization support, and quotation services.
The DBC088AEN40L045A has a 1280 × 320 RGB resolution, making it suitable for wide and narrow display applications.
Yes. This model uses an LVDS interface and is designed for integration with compatible LVDS display systems. Engineers should confirm the exact interface configuration and pin definition before production.
The product page lists 450 cd/m², while the detailed specification gives a typical luminance range of approximately 400–450 cd/m². Aptus also indicates that brightness can be customized for project requirements.
Yes. Aptus indicates that touch panels can be customized for this product. The final touch solution should be evaluated according to the required cover glass, controller, interface, mechanical structure, and application environment.
The published operating temperature range is -20°C to +70°C. If your application requires a wider temperature range, contact Aptus to discuss a customized display solution.
The 450-nit brightness can provide good visibility in many indoor and controlled-light environments, but direct sunlight applications require additional optical and thermal evaluation. For outdoor projects, Aptus can assess brightness, cover glass, anti-reflection treatment, optical bonding, thermal management, and other requirements.
Yes. Aptus lists driver board customization among the available customization options for this display.
If you are looking for an 8.8-inch 1280×320 LVDS LCD display for an OEM or ODM project, the DBC088AEN40L045A provides a compact wide-format starting point.
