The DBT070AVR40R035A 7-inch 800×480 resistive touch panel LCD module is a compact TFT LCD display designed for embedded HMI, industrial control equipment, automation systems, and interactive devices that require reliable touch input and straightforward RGB interface integration. With an 800×480 resolution, 350 cd/m² brightness, 40-pin RGB interface, wide viewing angle of 80°/80°/80°/80°, and a compact 165 × 104.09 × 9.55 mm mechanical profile, this display provides a practical balance between visual performance, touch functionality, integration flexibility, and system cost.
The DBT070AVR40R035A combines a 7-inch TFT LCD panel with a resistive touch panel (RTP) in one compact display module. It is particularly suitable for equipment where users need to interact directly with menus, parameters, machine status, measurement values, or control functions.
The 800×480 resolution provides sufficient image detail for common HMI interfaces, dashboards, menus, icons, numerical data, and graphical control screens. The 7-inch format is also large enough for comfortable viewing while remaining compact enough for embedded equipment and space-constrained enclosures.
A key advantage of this module is its 40-pin RGB interface, which provides a conventional parallel RGB connection for compatible embedded display controllers and control boards. This can make the module a practical choice for OEM engineers who are developing their own electronic architecture and need a display that can be integrated into an existing RGB-based platform.
The integrated resistive touch panel provides an additional input method without requiring a separate external touchscreen assembly. Resistive touch technology can be particularly useful in industrial environments where users may operate equipment with a stylus, gloves, or other pointed input devices.
The 7-inch display size offers a useful middle ground between compact embedded displays and larger industrial monitors. It can provide enough screen space for control interfaces while helping equipment designers maintain a relatively compact enclosure.

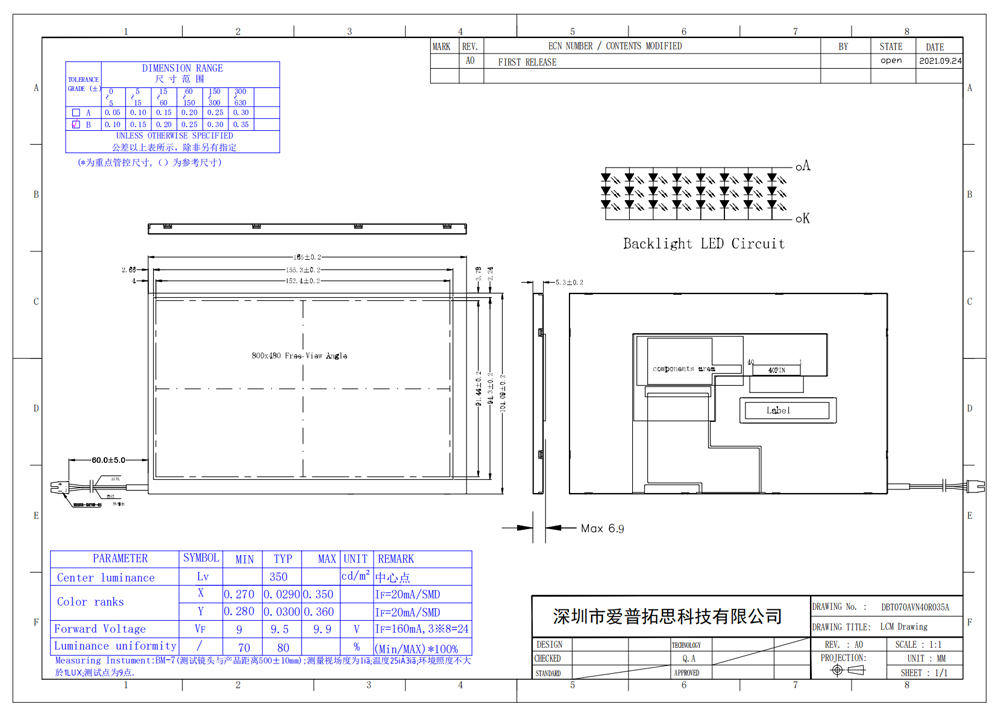

With a module size of 165 × 104.09 × 9.55 mm, the display is suitable for applications where PCB layout, enclosure space, and mounting dimensions must be carefully controlled.
The 800×480 resolution is well suited to embedded interfaces where clear text, icons, status indicators, control buttons, and graphical elements are required.
For industrial control panels, automation equipment, instrumentation, and operator interfaces, this resolution can provide a practical balance between image clarity and system processing requirements.
The resistive touch panel enables direct user interaction with the displayed interface. Compared with purely display-only modules, an integrated touch solution can simplify the overall HMI architecture by combining visual output and user input within the same assembly.
Resistive touch technology can also be advantageous for equipment operated in industrial environments where users may wear gloves or use a stylus.
The 40-pin RGB interface is an important consideration for engineers selecting a display module. The RGB interface allows the display to communicate with compatible display controllers and embedded hardware using a parallel RGB signal architecture.
Before integration, engineers should verify RGB timing, pin assignments, voltage levels, backlight requirements, and controller compatibility against the module's detailed datasheet.
The module provides a brightness rating of 350 cd/m², making it appropriate for many indoor industrial and embedded equipment applications. For applications exposed to direct sunlight or high ambient illumination, a higher-brightness LCD, optical bonding, anti-reflective treatment, or other sunlight-readable design options may be more appropriate.
The specified viewing angle is 80°/80°/80°/80°, providing visibility from multiple directions. This is useful for equipment where operators may not always view the display directly from the center position.
| Parameter | Specification |
|---|---|
| Product Model | DBT070AVR40R035A |
| Display Type | TFT LCD Module |
| Display Size | 7.0 Inch |
| Resolution | 800 × 480 Pixels |
| Touch Technology | Resistive Touch Panel (RTP) |
| Interface | RGB, 40-Pin |
| Active Area | 152.4 × 91.44 mm |
| Module Dimensions | 165 × 104.09 × 9.55 mm |
| Brightness | 350 cd/m² |
| Viewing Angle | 80° / 80° / 80° / 80° |
| Operating Temperature | -20°C to +70°C |
| Power Specification | VDD = 2V; VGH > 70% as listed |
| Compliance | RoHS |
| Application Type | Embedded HMI, industrial equipment, control systems and interactive devices |
The specifications above are based on the product information currently published by Aptus Display. Detailed electrical characteristics, timing parameters, connector pin definitions, mechanical drawings, and backlight requirements should be confirmed from the product datasheet before mass production.
The 7-inch resistive touch LCD module is well suited for industrial control interfaces. Machinery manufacturers can use the display to show operating parameters, production status, alarms, menus, and control functions.
The integrated touch panel allows operators to interact directly with the equipment, while the 800×480 resolution provides sufficient space for structured HMI layouts.
Automation equipment often requires a compact display for monitoring machine states and configuring operating parameters. This 7-inch LCD module can be integrated into PLC-based equipment, automation controllers, production machinery, and operator terminals where a parallel RGB interface is supported.
Test instruments and measurement systems frequently need displays capable of showing numerical data, graphs, menus, and status information. The 7-inch format provides a practical interface for presenting multiple data fields without requiring a large enclosure.
The resistive touch panel can also provide a straightforward method for navigating menus and entering commands.
Embedded HMI applications require more than a display panel. Engineers must consider mechanical dimensions, interface compatibility, touch input, power requirements, software control, and enclosure integration.
The DBT070AVR40R035A provides a combination of LCD display and resistive touch functionality that can help simplify the design of compact embedded operator interfaces.
For industrial equipment, access-control terminals, control cabinets, and other dedicated terminals, a 7-inch touch display can provide a more intuitive user interface than physical buttons alone.
The display can be configured by the system designer to show operating instructions, system status, alarm messages, parameter settings, and interactive controls.
Resistive touch panels remain relevant in many professional and industrial applications because their input method can be practical for equipment operated with gloves or styluses.
When selecting between resistive and capacitive touch technology, system designers should consider the operating environment, expected input method, user interface requirements, durability expectations, cover-glass design, and controller compatibility.
For applications where users require precise point input or may operate the equipment with gloves, a resistive touch panel can be a suitable solution.
Successful LCD integration requires more than matching the screen size and resolution. Before designing the PCB or enclosure, engineers should confirm the following:
Interface compatibility: Verify that the host processor or controller supports the required 40-pin RGB interface and corresponding timing parameters.
Electrical design: Confirm power-supply requirements, signal voltage levels, backlight driving conditions, and grounding requirements.
Mechanical design: Reserve sufficient installation space for the 165 × 104.09 × 9.55 mm module dimensions and account for mounting structures, cable routing, and enclosure tolerances.
Touch integration: The resistive touch panel should be matched with an appropriate touch controller and software architecture.
Environmental conditions: The specified operating temperature is -20°C to +70°C. For applications outside this range, customers should discuss wide-temperature alternatives with Aptus Display.
Optical requirements: At 350 cd/m², the module is positioned primarily for controlled or indoor environments. Outdoor products may require higher brightness and additional optical treatments.
Standard LCD modules are not always sufficient for OEM product development. Different products may require different brightness levels, touch technologies, interfaces, mechanical dimensions, connectors, FPC configurations, or optical treatments.
Aptus Display provides standard and customized LCD module solutions and states that its technical team supports semi-custom and total custom designs, including touch panel integration, connectors, FPC/interconnect solutions, and control-board development.
Depending on project requirements, customers can discuss options such as:
Custom resistive or capacitive touch panels
Different brightness levels
Customized FPC and connector configurations
Alternative LCD interfaces
Driver and controller board solutions
Mechanical and dimensional customization
Optical bonding solutions
Display and touch integration
Engineering samples and project support
This approach can help OEMs and system integrators reduce development complexity when a standard display does not exactly match their product requirements.
Aptus Display, operated by Shenzhen Aptus Technology Co., Ltd., specializes in LCD display modules, touch panel solutions, customized display integration, and related display technologies. The company's product portfolio includes TFT LCD modules, touch panel LCD modules, wide-temperature displays, flight simulator displays, bar-type LCD displays, gaming display solutions, LCD accessories, and other specialized display products.
Aptus Display focuses on supporting OEMs, engineers, system integrators, distributors, and equipment manufacturers with display selection, customization, technical support, quality control, and project-level engineering services.
For customers developing industrial equipment or embedded HMI systems, working directly with an experienced LCD module supplier can help address interface compatibility, mechanical integration, touch configuration, and long-term product requirements at an earlier stage of development.
Display reliability depends on more than panel specifications. Production consistency, incoming-material control, assembly quality, touch integration, electrical testing, and final inspection all contribute to the performance of an LCD module in the finished product.
Aptus Display provides technical consultation, customization, quality assurance, and after-sales support for display projects. Customers can work with the technical team to evaluate the suitability of a standard module or determine whether a customized display solution is more appropriate.
Yes. The DBT070AVR40R035A is specified as a 7-inch TFT LCD module with an 800×480 resolution, 40-pin RGB interface, and resistive touch panel.
The module uses a 40-pin RGB interface. Engineers should confirm the complete pinout, timing specifications, voltage requirements, and controller compatibility before hardware integration.
The specified brightness is 350 cd/m². This level is suitable for many indoor industrial and embedded applications. For direct sunlight applications, Aptus Display can evaluate higher-brightness or sunlight-readable alternatives.
The product page specifies an operating temperature range of -20°C to +70°C. If your equipment operates in a more extreme environment, a wide-temperature LCD module should be considered.
Yes. Aptus Display provides customization and technical support covering touch panel options, brightness, interfaces, dimensions, connectors, and other display integration requirements. Custom requirements should be evaluated according to project quantity, mechanical constraints, interface architecture, and performance requirements.
The 350 cd/m² brightness is generally more appropriate for indoor or controlled-light environments than direct sunlight. For outdoor applications, customers should consider higher brightness, anti-glare/anti-reflective treatment, optical bonding, and wider operating-temperature specifications.
If you are developing an industrial HMI, automation controller, measurement instrument, embedded terminal, or other interactive equipment requiring a 7-inch 800×480 RGB LCD module with resistive touch, the DBT070AVR40R035A can be evaluated as a practical display solution.
When contacting Aptus Display, provide your required display size, resolution, interface, touch technology, operating temperature, brightness requirement, estimated quantity, and application environment. This information allows the engineering team to recommend the most appropriate standard or customized LCD solution.
