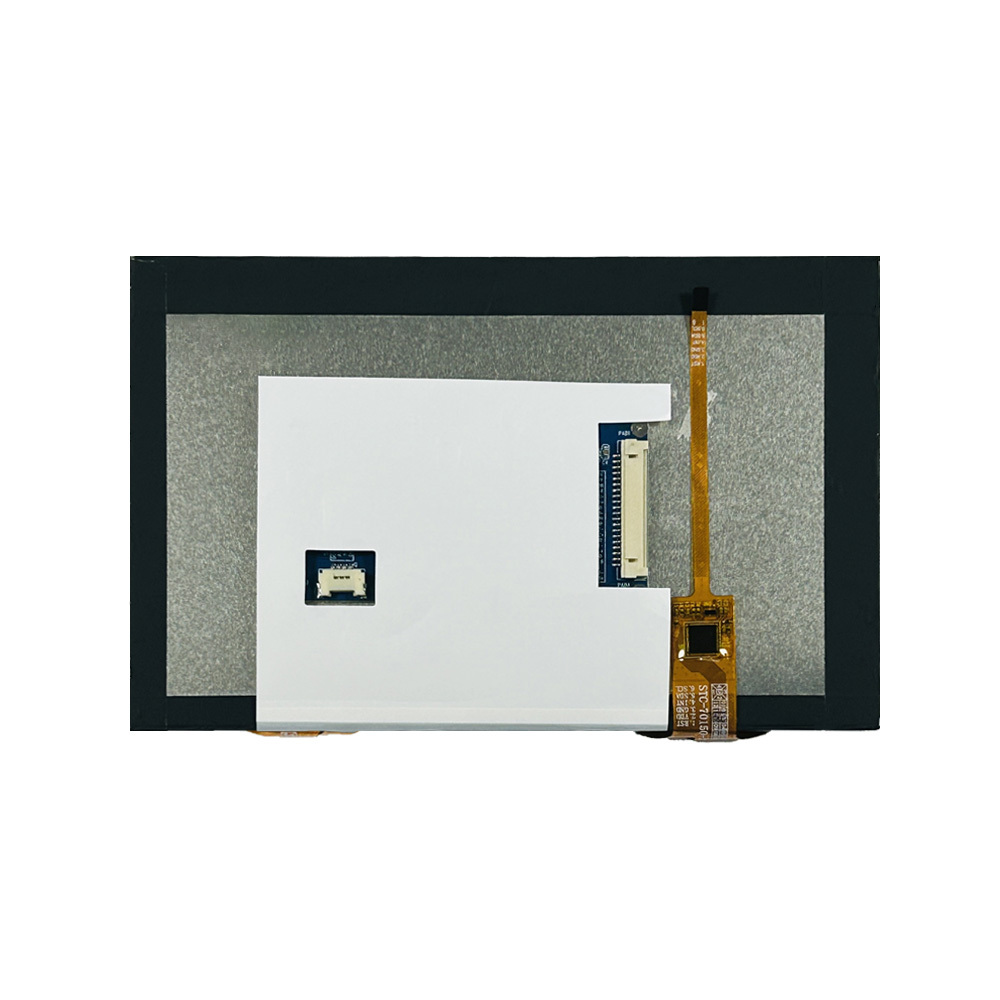

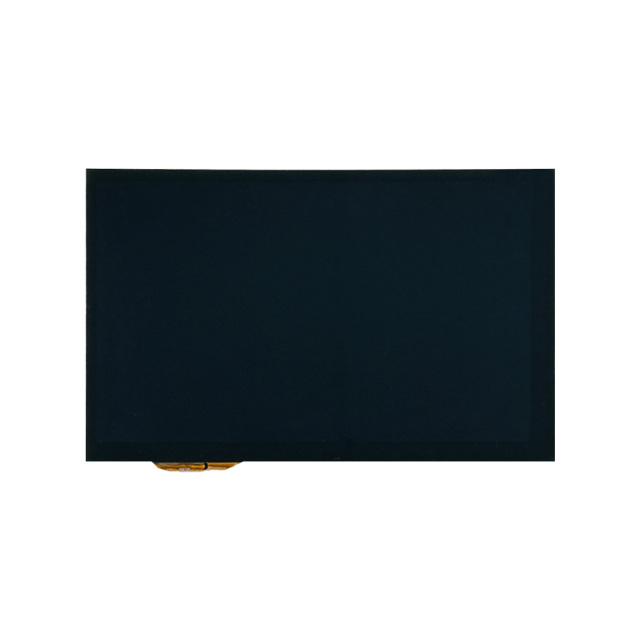

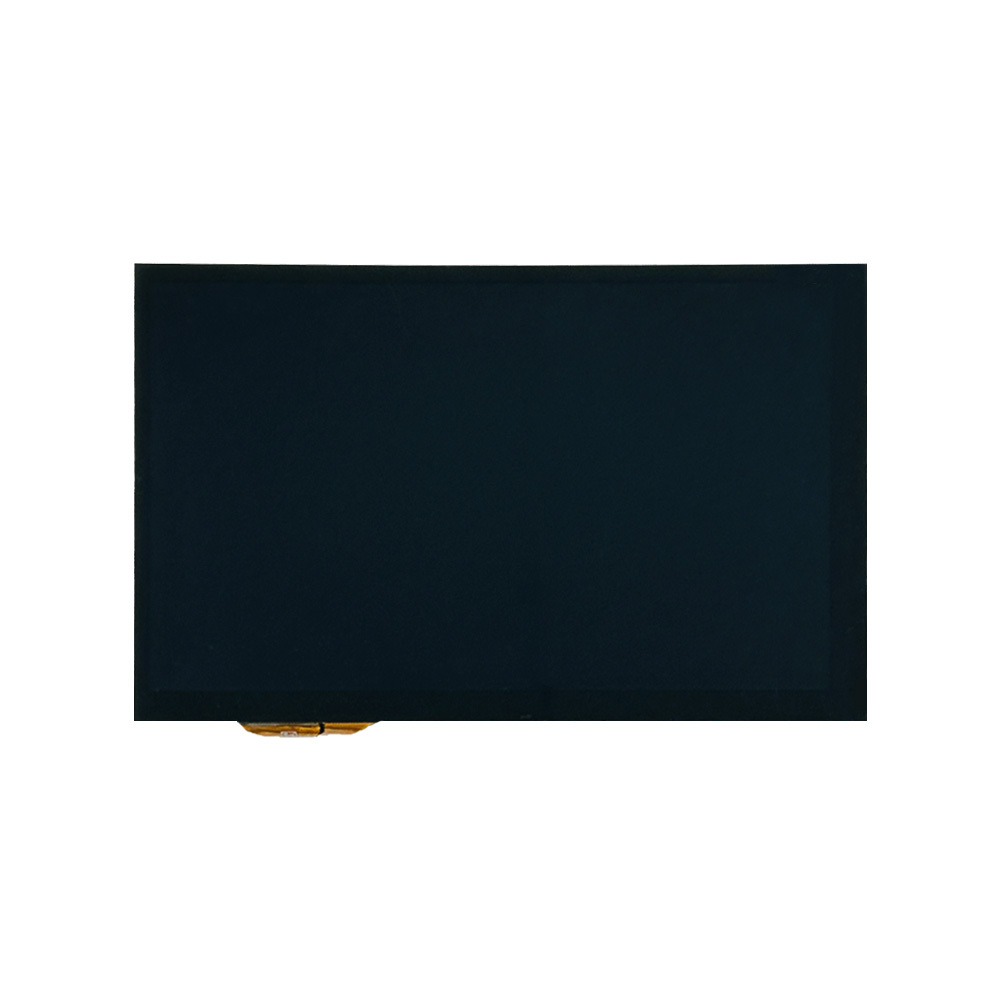

The 7 inch 800x480 20PIN LVDS CTP Touch Panel LCD Module is a compact TFT LCD display solution designed for equipment manufacturers, system integrators, HMI developers, and embedded device designers who need a reliable display with integrated capacitive touch functionality. Model DBT070AVC20L040A combines a 7.0-inch TFT LCD panel, 800 × 480 WVGA resolution, 400 cd/m² brightness, 20-pin LVDS interface, and capacitive touch panel in a compact 165 × 104 × 5.3 mm module.
With an active area of 152.4 × 91.44 mm, an 800:1 contrast ratio, 85° viewing angles in four directions, and an operating temperature range of -20°C to +70°C, this display module is suitable for embedded HMI equipment, industrial control interfaces, smart terminals, instrumentation, automation equipment, and other applications where compact size and touch interaction are important.
Aptus Display can also provide control-board solutions and customized LCD display development to simplify integration into customer equipment.
The 7-inch display size provides a practical balance between screen visibility and equipment footprint. It is large enough for menus, operating parameters, icons, status information, and interactive controls while remaining compact enough for embedded equipment.
This makes the module particularly suitable for equipment where panel space is limited but operators still require a readable graphical user interface.
The 800 × 480 resolution provides sufficient image detail for many HMI and embedded applications. It supports graphical interfaces, control menus, equipment status information, data visualization, and touch-based navigation without requiring the processing resources of a higher-resolution display.
For developers designing embedded systems, this resolution can also provide a practical balance between visual quality, system performance, and overall display cost.

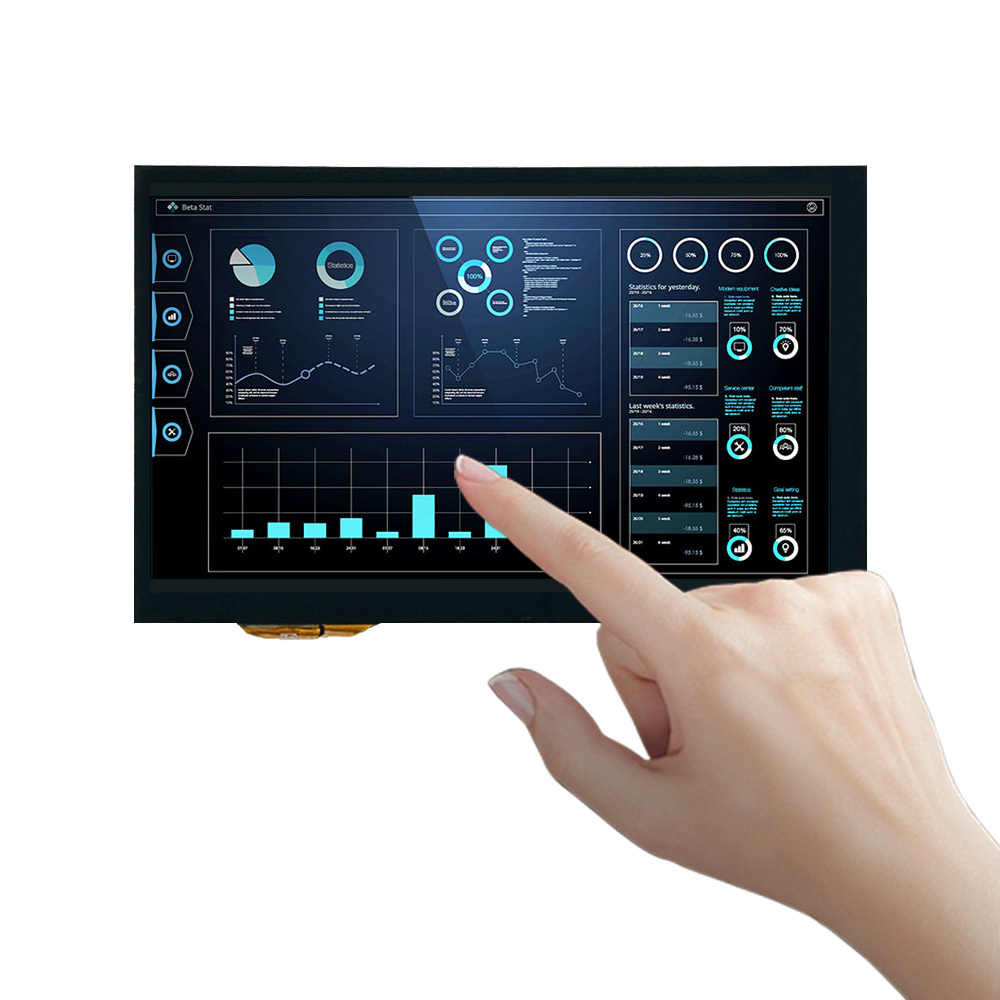

The module integrates a capacitive touch panel (CTP), allowing equipment manufacturers to develop interactive interfaces without adding a separate external touch panel.
Capacitive touch technology is well suited to modern HMI designs where users need to select menus, adjust parameters, operate controls, or navigate graphical interfaces directly on the display.
The display uses a 20-pin LVDS interface, providing a practical connection method for compatible embedded controllers and display systems. The product page also identifies the interface as RGB 24-bit, 20-pin, making it important for engineers to confirm the exact host-side signal definition and electrical requirements before integration.
Aptus Display can also support control-board solutions, which can help reduce engineering work during prototype development and system integration.
With a rated brightness of 400 cd/m², the display provides clear visual output for many indoor industrial, commercial, and embedded environments. It is particularly appropriate for equipment located in offices, workshops, control rooms, laboratories, retail equipment, and other controlled-light environments.
For strong direct sunlight applications, customers should discuss higher-brightness or sunlight-readable display requirements with Aptus Display.
The specified viewing angle is 85°/85°/85°/85° (U/D/L/R), allowing users to view the interface from different positions around the equipment. This is useful for shared equipment where operators may not always interact with the display from directly in front.
The anti-glare surface treatment helps reduce distracting reflections from surrounding light sources. This can improve interface visibility and operator comfort in environments where overhead lighting or ambient reflections may otherwise interfere with the display.
| Parameter | Specification |
|---|---|
| Product Model | DBT070AVC20L040A |
| Display Type | TFT LCD + Capacitive Touch Panel |
| Screen Size | 7.0 inch |
| Resolution | 800 × 480 pixels |
| Display Mode | Normally White, Transmissive |
| Active Area | 152.4 × 91.44 mm |
| Module Dimensions | 165 × 104 × 5.3 mm |
| Pixel Pitch | 0.1905 × 0.1905 mm |
| Viewing Angle | 85°/85°/85°/85° |
| Brightness | 400 cd/m² |
| Contrast Ratio | 800:1 |
| Interface | RGB 24-bit, 20-pin LVDS |
| Touch Technology | Capacitive Touch Panel (CTP) |
| Surface Treatment | Anti-Glare |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Control Board | Available |
| Product Category | Touch Panel LCD Module |
The specifications above are based on the product information currently published by Aptus Display. Engineers should confirm the latest mechanical drawings, electrical specifications, touch-controller requirements, and interface pin definitions with Aptus before mass production.
For equipment manufacturers, selecting an LCD module is not only about screen size and resolution. Mechanical dimensions, interface compatibility, touch integration, brightness, operating temperature, and long-term supply are all important considerations.
The DBT070AVC20L040A addresses several of these requirements in one compact module.
Its 165 × 104 × 5.3 mm mechanical size makes it easier to integrate into space-constrained equipment. The integrated CTP reduces the need to separately source and mechanically assemble a touch panel. The 20-pin LVDS interface provides a suitable connection option for compatible host systems, while the available control-board solution can support development and integration.
For B2B customers, another important advantage is the ability to discuss semi-custom or customized display requirements. Aptus Display states that its technical team supports standard, semi-custom, and total custom LCD solutions, including touch panels, connectors, FPCs, interconnect solutions, control boards, and system integration.
The 7-inch format is well suited to industrial HMI interfaces where operators need to monitor machine status, configure parameters, view alarms, or control equipment.
The combination of 800 × 480 resolution and capacitive touch provides enough graphical space for common industrial menus and control interfaces, while the -20°C to +70°C operating range supports a variety of indoor industrial environments.
Typical applications include:
Industrial automation equipment
Machine control interfaces
Factory monitoring systems
Process control equipment
Equipment configuration terminals
Industrial measurement instruments
The compact dimensions make this LCD module a practical option for embedded system designers. Developers can integrate the display into dedicated control terminals, smart devices, IoT equipment, and specialized electronic systems.
The 800 × 480 resolution can support graphical user interfaces without placing excessive processing requirements on the host system.
The capacitive touch panel makes the module suitable for interactive terminals where users need to select options, enter commands, or navigate menus.
Potential applications include:
Self-service terminals
Information terminals
Smart control panels
Access terminals
Interactive equipment
Small-format kiosks
For outdoor kiosks exposed to direct sunlight, however, customers should evaluate brightness, optical bonding, thermal design, touch performance, and environmental protection requirements separately.
The display can also be integrated into laboratory instruments, test equipment, measurement systems, and professional instrumentation.
The 7-inch screen offers sufficient space to display measurements, graphs, status information, configuration menus, and system alerts.
The module can be considered for commercial equipment that requires a compact interactive interface, particularly where a dedicated LCD touch panel is preferred over a general-purpose monitor.
Its compact form factor allows equipment designers greater flexibility when creating custom front panels and enclosures.
Before ordering samples, engineers should verify several points.
Mechanical integration: Confirm the module dimensions, active area, mounting structure, cable routing, and available enclosure space. The published module dimensions are 165 × 104 × 5.3 mm.
Display interface: Confirm that the host controller supports the required 20-pin LVDS/RGB configuration and verify the detailed pinout before PCB design.
Touch integration: The CTP requires compatible touch communication and controller integration. Customers should confirm the touch interface, connector, FPC arrangement, and controller requirements with the supplier.
Brightness: 400 cd/m² is appropriate for many indoor environments, but higher brightness may be necessary for strong ambient light or outdoor applications.
Temperature: The specified operating range is -20°C to +70°C. Applications outside this range should be evaluated for a wide-temperature LCD solution.
Control board: For faster prototyping, customers can discuss the available control-board solution with Aptus Display.
Different equipment projects often require different display specifications. A standard 7-inch LCD may be suitable for one project, while another may require a different resolution, brightness, interface, touch structure, cable, connector, or mechanical design.
Aptus Display provides standard and customized LCD module solutions and supports semi-custom development such as connectors, ZIF/FPC, touch panels, interconnect solutions, control boards, and system-integrated solutions.
Depending on the project, customers can discuss requirements such as:
Custom display size
Alternative resolution
Higher brightness
LVDS, MIPI, RGB or other interfaces
Capacitive or resistive touch panel
Customized FPC and connector
Touch-panel structure
Protective glass
Control-board integration
Cable and interconnect solutions
Mechanical customization
Sample development and validation
This approach can help OEMs and system integrators reduce the need to coordinate multiple display component suppliers.
Aptus Display, operated by Shenzhen Aptus Technology Co., Ltd., provides LCD display and touch-panel solutions for customers in different markets. The company's product portfolio covers TFT LCD modules, touch panel LCD modules, flight simulator displays, wide-temperature LCD displays, bar-type LCD displays, gaming display solutions, automotive LCD products, LCD accessories, and other display solutions.
Aptus Display's technical team supports both standard products and customized display development. Its capabilities include LCD module selection, touch-panel integration, control-board solutions, FPC and connector customization, and other display-related integration services.
For OEM and industrial customers, this supplier-side engineering support can be particularly valuable when the display must be integrated into a new product rather than used as a standalone monitor.
For B2B display projects, product quality is only one part of supplier evaluation. Engineering communication, sample verification, customization capability, production consistency, and technical support can also influence the success of a project.
Aptus Display provides technical assistance for display integration and offers standard as well as customized LCD solutions. Customers can provide their required display size, resolution, interface, quantity, operating environment, and application so that the technical team can recommend an appropriate configuration.
Yes. The 7-inch 800 × 480 CTP LCD module is suitable for many industrial HMI and embedded control applications. Its capacitive touch panel supports interactive operation, while the -20°C to +70°C operating temperature range provides flexibility for many industrial environments.
The product is specified with a 20-pin LVDS interface and RGB 24-bit configuration. Engineers should confirm the detailed electrical interface and pin assignment with Aptus Display before integrating the module into a custom PCB.
Yes. DBT070AVC20L040A integrates a capacitive touch panel (CTP), allowing users to interact directly with the graphical interface.
Yes. The product page indicates that a control-board solution is available. Customers developing prototypes or complete display systems can discuss the required controller and interface configuration with Aptus Display.
Yes. Aptus Display supports standard, semi-custom, and customized LCD display solutions. Depending on project requirements, customization may include display specifications, touch panels, connectors, FPCs, interconnects, control boards, and other integration elements.
If you are sourcing a 7 inch 800x480 LVDS LCD module, 7 inch capacitive touch display, or 20-pin LVDS touch panel LCD for an OEM or embedded project, the DBT070AVC20L040A can be evaluated as a compact display solution.
When contacting Aptus Display, we recommend providing:
Required display size
Resolution
Interface
Touch-panel requirement
Brightness requirement
Operating temperature
Target application
Estimated order quantity
Mechanical constraints
Sample requirements
Providing these details allows the technical team to evaluate compatibility and recommend the appropriate display configuration more efficiently.
