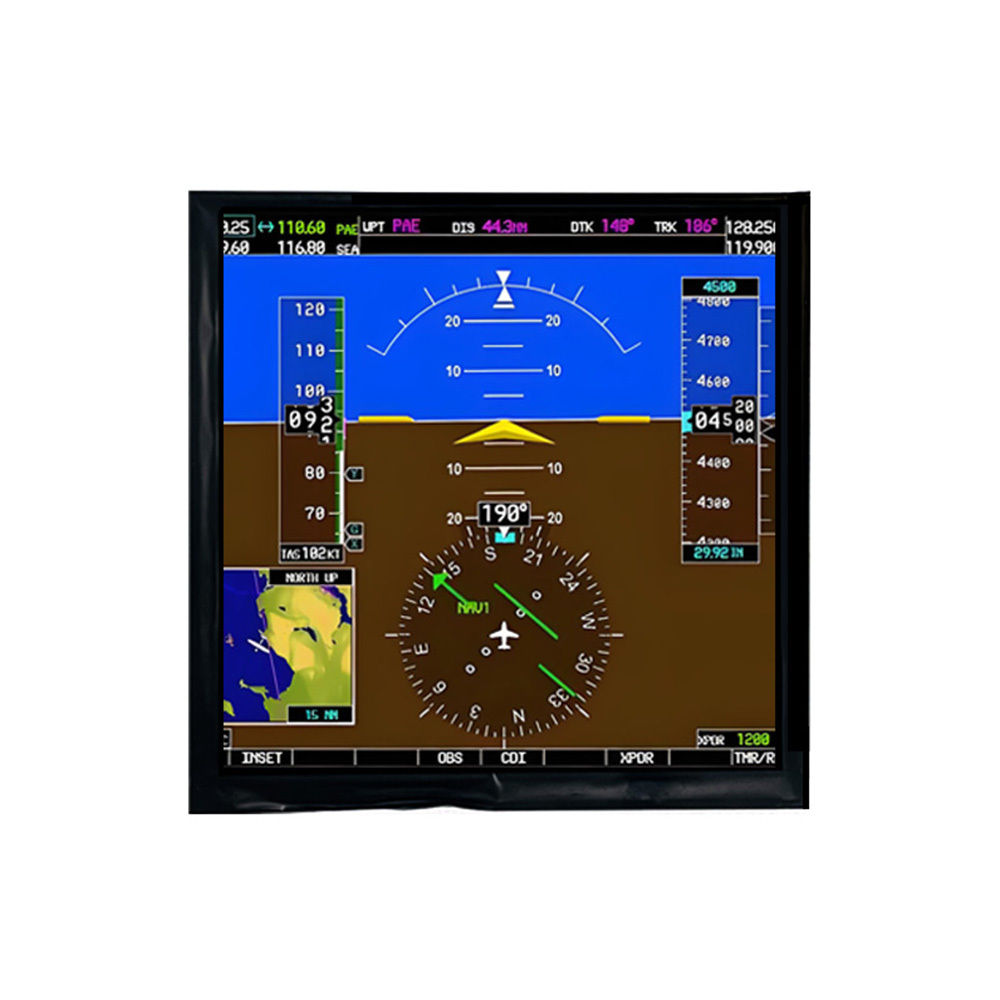

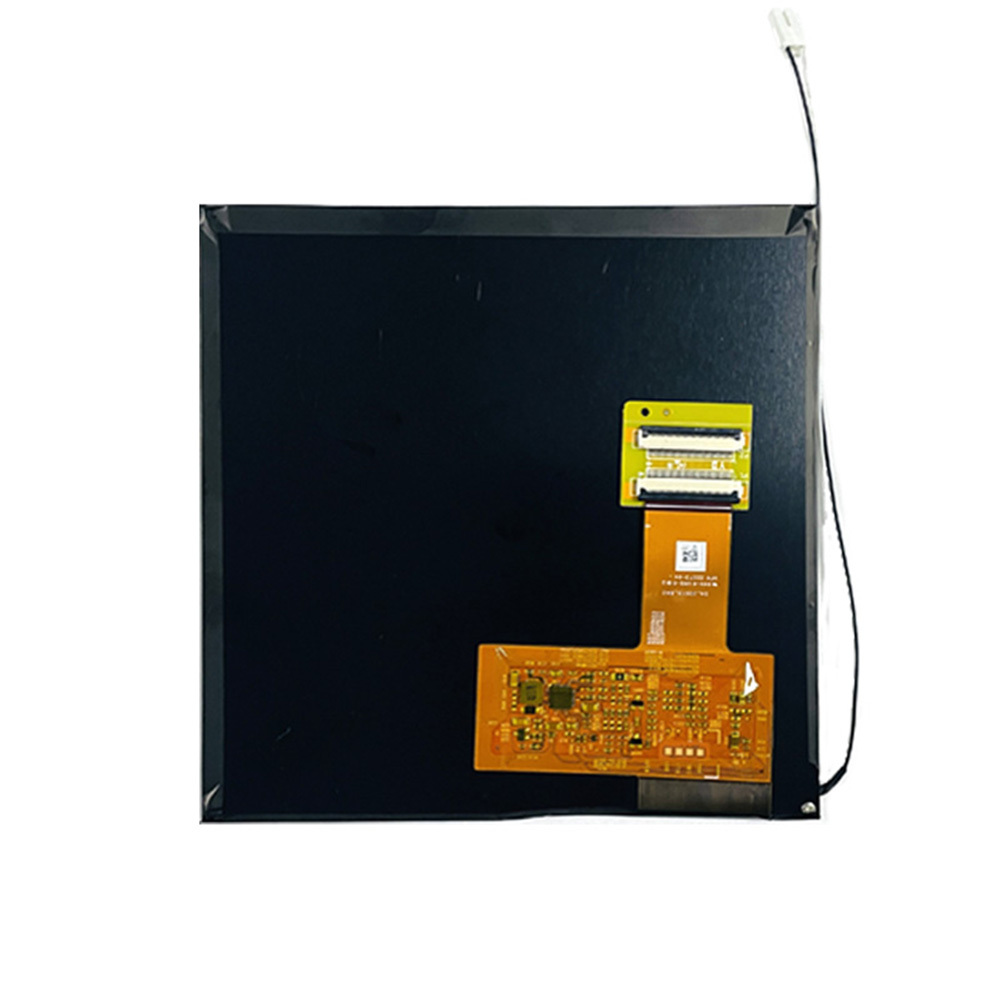

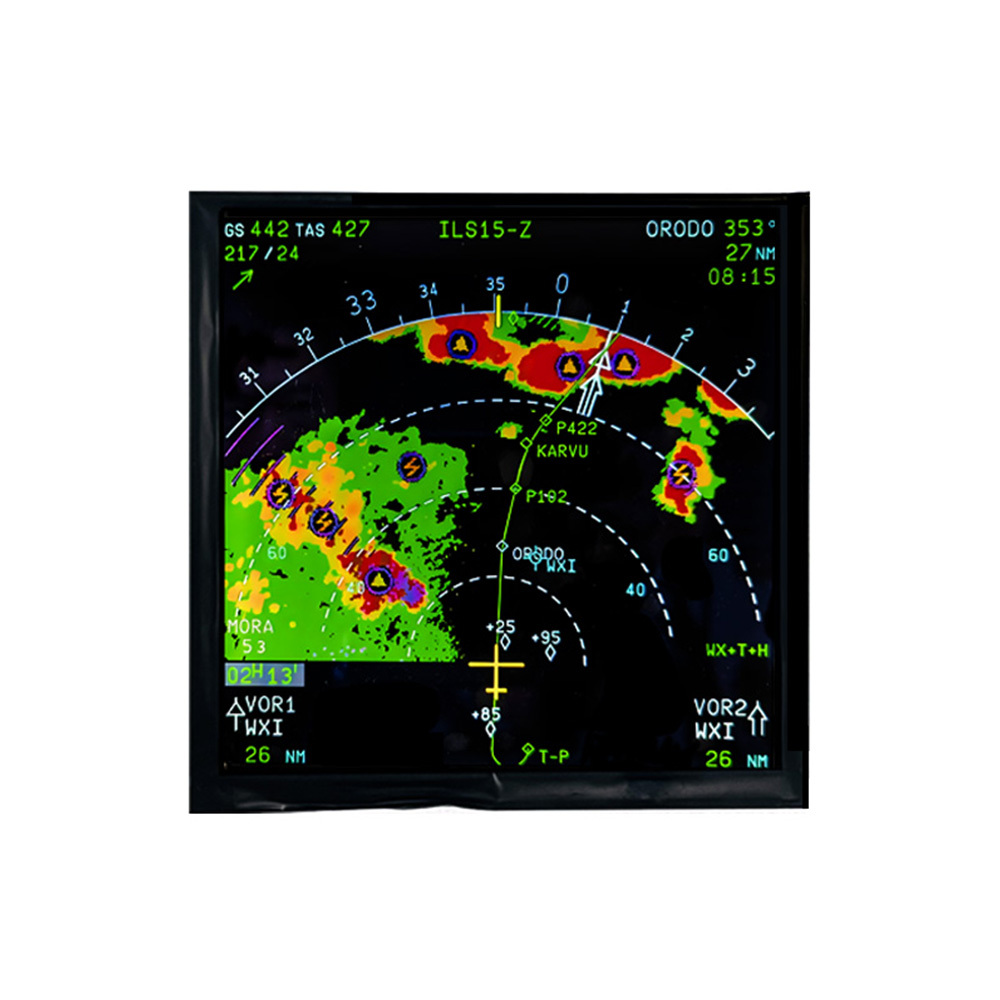

7 Inch Square TFT-LCD Module for Flight Simulators

Product Name: DBC070AEN40L050B Square TFT-LCD Module

Key Features:
- High Resolution Display: With a resolution of 720 RGB(H) x 720(V) pixels, this 7.0” square LCD module delivers sharp and detailed images, perfect for flight simulator applications.
- Advanced AHVA Technology: Utilizing Advanced Hyper-Viewing Angle (AHVA) technology, this TFT-LCD ensures wide viewing angles and consistent color representation, crucial for accurate flight simulation visuals.
- Interface Compatibility: Equipped with LVDS (8-bit, JEIDA, DE mode) interface, this display is designed for seamless integration with flight simulator systems.
- RoHS Compliance: Designed with environmental responsibility in mind, this module adheres to the Restriction of Hazardous Substances (RoHS) directive.
- High Brightness and Contrast: Boasting a typical brightness of 500 cd/m² and a contrast ratio of up to 1000:1, this display ensures clear and vivid images, enhancing the realism of flight simulations.

Technical Specifications:
- Display Resolution: 720 RGB(H) x 720(V) pixels
- Active Area: 125.82 x 125.82 mm
- Screen Size: 7.0” diagonal
- Dot Pitch: 174.75 µm
- Color Configuration: R. G. B. Stripe
- Color Depth: 16.7 million colors
- Overall Dimension: 145 x 90 x 5 mm
- Weight: TBD
- Display Mode: Normally Black
- Surface Treatment: AG (Anti-Glare)

Electrical Specifications:
- Power Supply Voltage: VDD 3.3V, VDDA 3.3V
- Power Consumption: VDD 25-80 mA, VDDA 200-800 mA
- Input Signal Voltage: Vi -0.3VDD to VDD
- Differential Input Data Format: LVDS
- Clock Frequency: 63-84 MHz
- Input Timing: Customizable for optimal display performance

Optical Specifications:
- Response Time: 20 ms (Rise and Fall)
- Viewing Angle: 80° (Top, Bottom, Left, Right)
- Contrast Ratio: 800:1 (at θ = 0°)
- Brightness: 500 cd/m²
- Chromaticity: X, Y values provided for White, Red, Green, Blue

Reliability and Durability:
- Temperature Range: -30°C to 80°C for ambient storage and operation
- Reliability Tests: High/low temperature storage, high/low temperature operation, high temperature and humidity, heat shock, shock, vibration, and drop tests

Safety and Handling:
- Static Electricity: Measures are taken to protect the module from electrostatic discharge damage.
- Storage: Products should be stored in a dark place at +25°C±10°C with low humidity (40% RH to 60% RH), away from sunlight or fluorescent light.

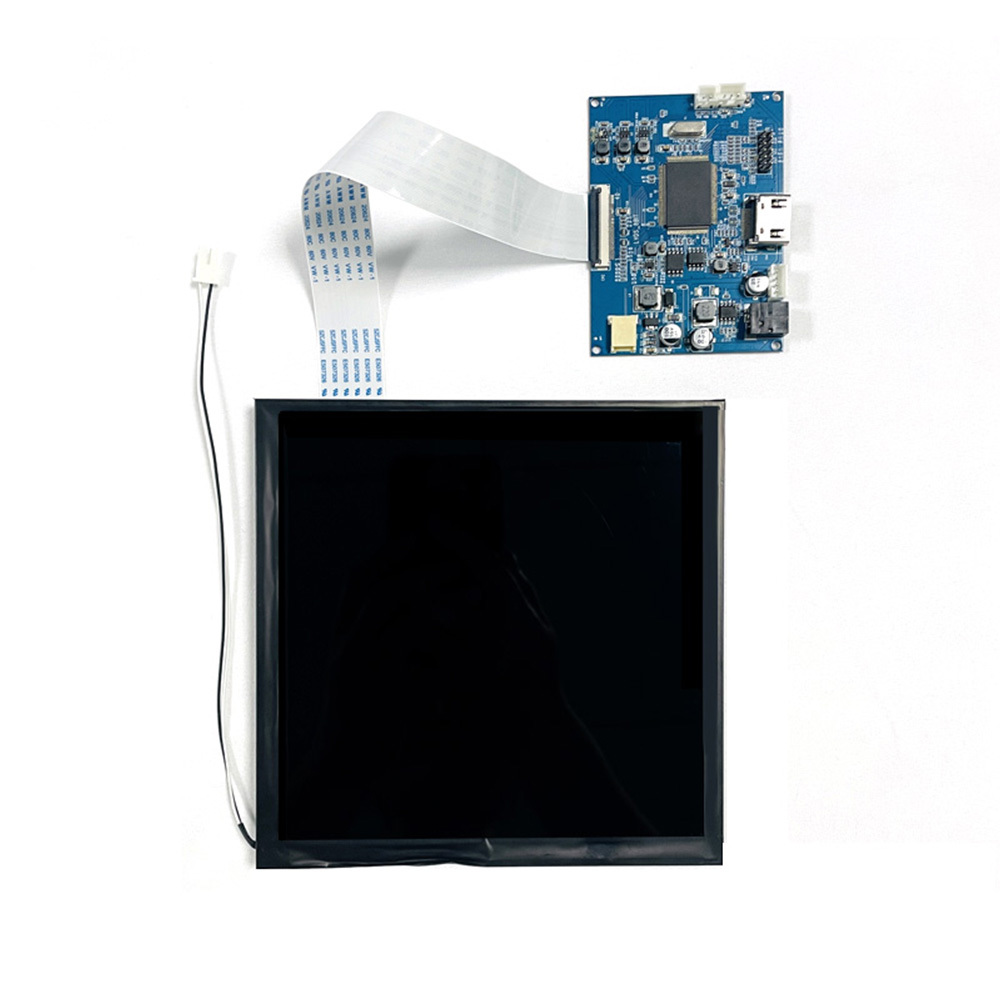

Brightness, PIN defination, Coverglass,Touch Panel, Driver board, etc can be also customized.
