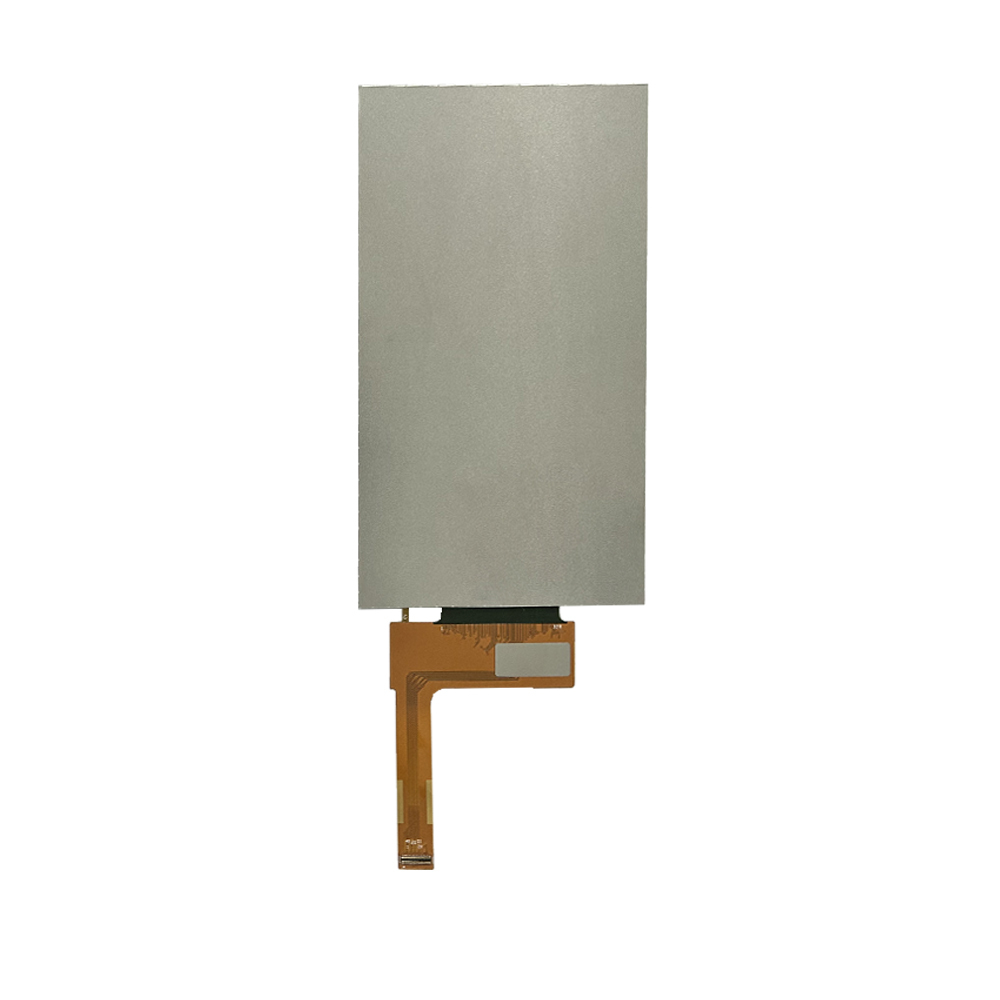

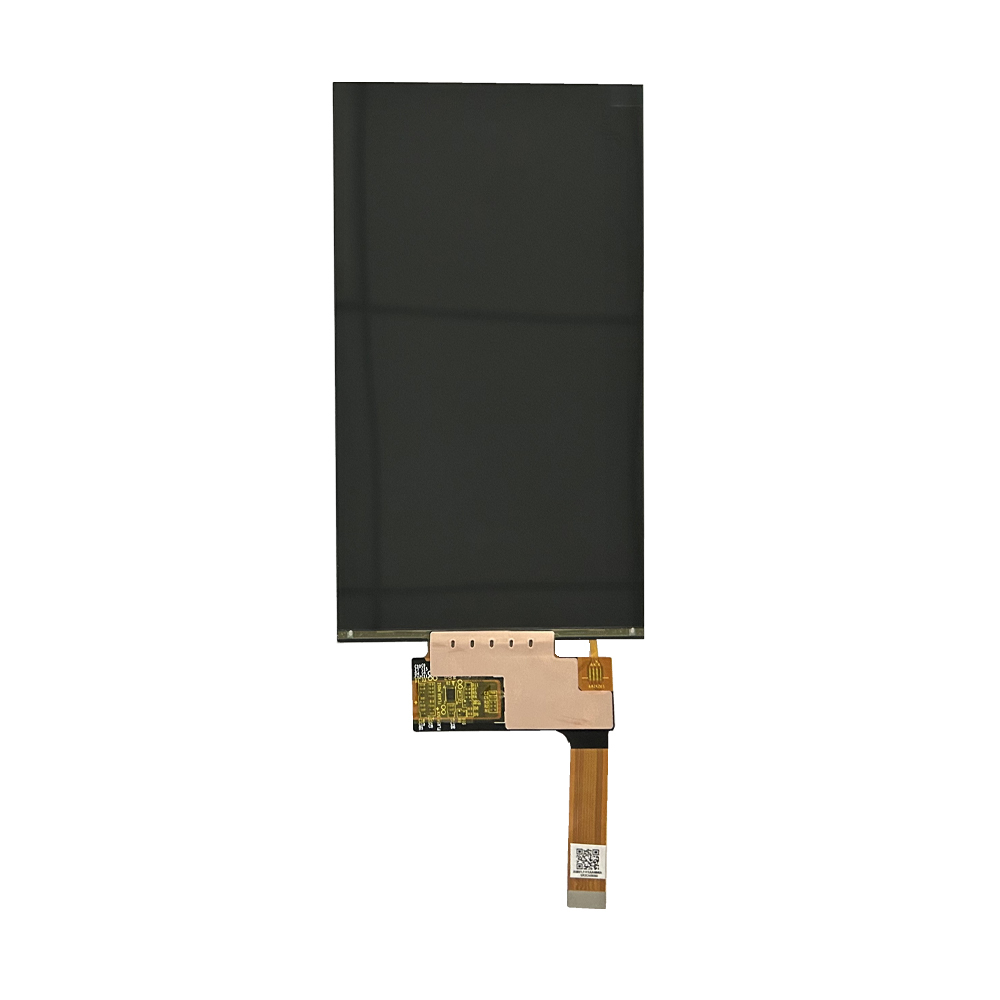

The 7‑inch 1080×1920 MIPI In‑Cell LCD display module offers a high‑definition, tall 9:16 aspect ratio panel optimized for modern embedded systems and industrial human‑machine interfaces (HMI). With an in‑cell touch integration option, ultra‑high pixel density, and MIPI interface compatibility, it’s suitable for compact control devices, smart industrial terminals, and vertical screen applications where clarity and responsiveness matter.
This display balances advanced visual performance with robust industrial adaptability, making it ideal for OEMs and system integrators developing modern graphical interfaces in automation, medical, smart terminals, and bespoke embedded solutions.
Unlike traditional 7‑inch landscape panels, this module features a 1920×1080 vertical resolution in a tall 9:16 orientation. Benefits include:
High pixel density for sharp text and icons
Excellent UI layout for portrait applications
Enhanced ergonomic readability for vertical displays
Ideal for modern graphical user interfaces
This layout is well‑suited to smart terminals, industrial tablets, access control systems, and vision‑centric displays in compact equipment.
The MIPI (Mobile Industry Processor Interface) offers:
High‑speed data transmission
Low power consumption
Native support for modern embedded processors
Simplified signal routing in compact boards
MIPI is widely used in embedded Linux, Android, and advanced microcontroller platforms, providing straightforward driver support and broad ecosystem compatibility.
In‑cell touch technology embeds the touch sensing layer within the LCD, resulting in:
Slim display stack‑up
Improved optical clarity
Faster touch response
Cleaner mechanical integration
This option is ideal for designers aiming for sleek, compact form factors without sacrificing touch performance.
Standard Brightness: 450 nit
High‑Brightness Option: 600 nit (Available)
Wide viewing angles for multi‑user environments
Stable color reproduction for industrial graphics
The enhanced brightness ensures sufficient readability in typical controlled‑lighting industrial environments and bright indoor spaces.
| Parameter | Specification |
|---|---|
| Display Size | 7.0 inch |
| Resolution | 1080 × 1920 (Full HD Portrait) |
| Aspect Ratio | 9:16 Portrait |
| Pixel Arrangement | RGB Stripe |
| Panel Type | TFT LCD In‑Cell |
| Brightness | 600 nit |
| Contrast Ratio | 1000:1 Typical |
| Viewing Angle | 80°/80°/80°/80° (L/R/U/D) IPS |
| Parameter | Specification |
|---|---|
| Interface | MIPI DSI |
| Lane Configuration | 2 or 4 lanes (depending on controller compatibility) |
| Input Voltage | 3.3V Typical |
| Backlight | White LED |
| Power Consumption | ~2.8W (Typical, Standard Brightness) |
| Parameter | Specification |
|---|---|
| Active Area | 86.83x154.37mm |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
Detailed datasheet, pin assignments and mechanical drawings are available upon request.
The tall 9:16 resolution is well‑suited for vertically oriented dashboards, data panels, and machine control terminals.
Embedded systems running Linux, Android, or real‑time OS benefit from the MIPI interface and in‑cell touch integration for sleek UI designs.
Medical and laboratory instruments with compact footprints can leverage the high pixel density for detailed interface layouts.
Smart access control panels and security terminals with vertical screen formats can enhance user readability and layout flexibility.
Display selection is only the first step — successful integration requires hardware, software, and mechanical alignment. Our engineering support can assist with:
MIPI controller compatibility analysis
Signal mapping and pin assignment guidance
Touch driver integration and calibration
Mechanical fitting & mounting advice
Optical performance optimization
This ensures smoother integration and shorter development cycles for OEM customers.
Yes. Proper configuration for industrial temperature ranges and sufficient cooling enables continuous operation.
Yes. In addition to the standard 450 nit brightness, a 600 nit high brightness version is available for environments with brighter ambient light requirements.
Yes. The MIPI DSI interface is designed for modern embedded processors with native MIPI support. Compatibility should be confirmed with the chosen controller or microprocessor.
The in‑cell touch option is available and integrates the touch sensing layer within the LCD structure, providing better optical clarity and a slimmer profile.
The 7‑inch 1080×1920 MIPI In‑Cell LCD display combines high pixel density, modern portrait orientation, and industrial adaptability for embedded systems, smart terminals, and compact HMI applications. With MIPI interface support, optional high brightness, and optional in‑cell touch integration, it is ideal for OEMs and embedded developers seeking a robust, high‑performance display solution.
