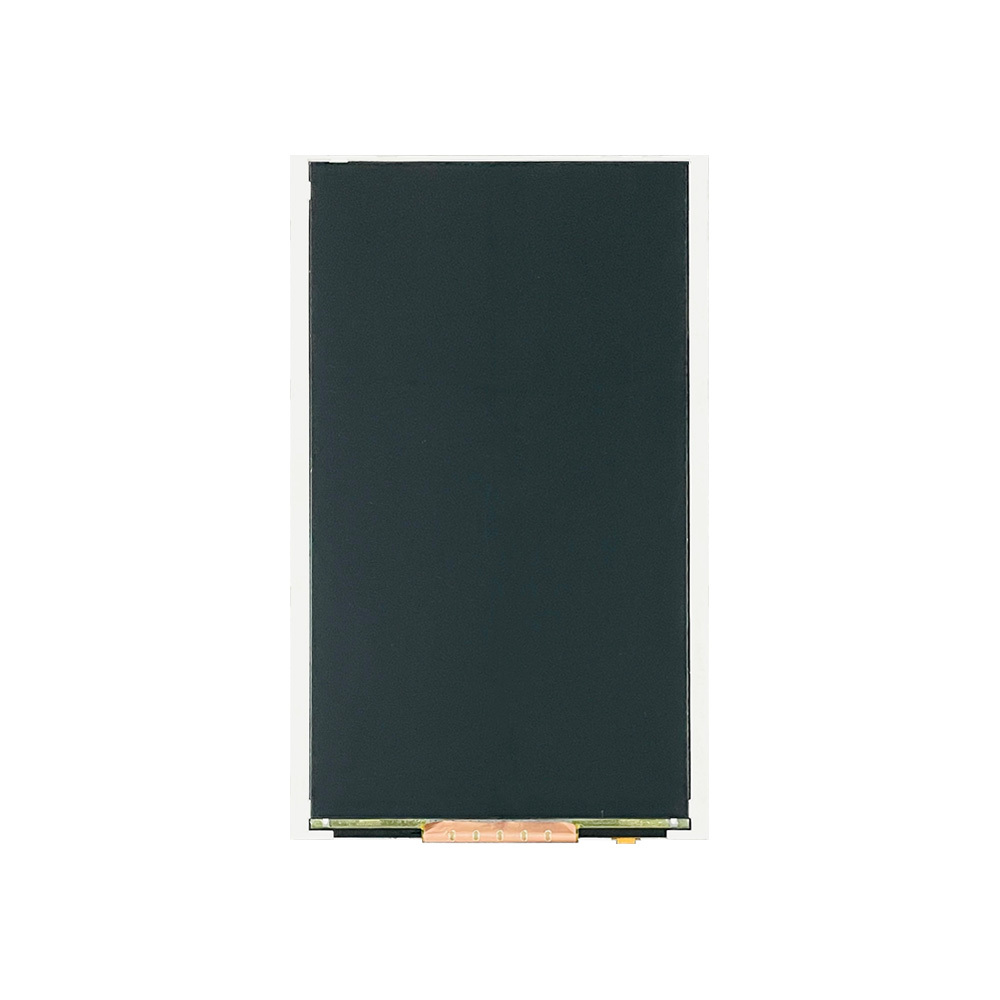

The 7-inch 1080×1920 high-brightness 2300nits 40PIN MIPI in-cell touch LCD module is a compact, high-resolution display solution designed for equipment that requires excellent readability, responsive touch interaction, and efficient system integration. Model DBT070THC40M230A combines an LTPS TFT-LCD panel, IPS-type SFT display technology, 4-lane MIPI interface, and integrated in-cell capacitive touch in a slim 4.58 mm module. With a 2300 cd/m² high-brightness backlight, it is particularly suitable for applications where standard 400–1000 nits displays may not provide sufficient visibility.
For OEM and ODM customers, this 7-inch LCD module provides a practical balance between compact mechanical dimensions, Full HD-class resolution, high brightness, wide viewing angles, and integrated touch functionality. Its portrait-oriented 1080×1920 resolution makes it especially useful for embedded interfaces, portable equipment, outdoor-facing control systems, smart terminals, industrial HMI devices, and other space-constrained products.
7-inch class display with 1080×1920 resolution
2300 cd/m² high brightness for improved visibility in bright environments
4-lane MIPI interface with 40PIN connection
In-cell capacitive touch panel integrated into the display structure
IPS-type SFT technology for wide viewing performance
88°/88°/88°/88° viewing angle
1000:1 typical contrast ratio
16.7 million display colors
LTPS TFT-LCD technology
Slim 4.58 mm module thickness
Operating temperature from -20°C to 70°C
RoHS-compliant construction
Suitable for OEM/ODM customization and system integration
The following specifications are based on the product information published by Aptus Display. For engineering projects, customers should confirm the latest datasheet, electrical characteristics, connector pin definition, and mechanical drawing with the Aptus engineering team before final design release.
| Parameter | Specification |
|---|---|
| Model | DBT070THC40M230A |
| Display Size | 7-inch class / 6.97 inch |
| Resolution | 1080 × 1920 pixels |
| Display Technology | LTPS TFT-LCD |
| Display Mode | SFT / IPS-type |
| Aspect Orientation | Portrait-oriented |
| Active Area | 86.832 × 154.368 mm |
| Outline Dimension | 97.98 × 164.22 × 4.58 mm |
| Pixel Pitch | 0.0804 × 0.0804 mm |
| Interface | MIPI, 4 Lane |
| Connector | 40PIN |
| Touch Technology | In-Cell Capacitive Touch |
| Brightness | 2300 cd/m² |
| Viewing Angle | 88° / 88° / 88° / 88° |
| Contrast Ratio | 1000:1 typical |
| Color Gamut | 55% NTSC typical |
| Color Depth | 16.7 million colors |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Typical Power Consumption | 150 mW, white pattern |
| Compliance | RoHS 2011/65/EU & 2015/863/EU |

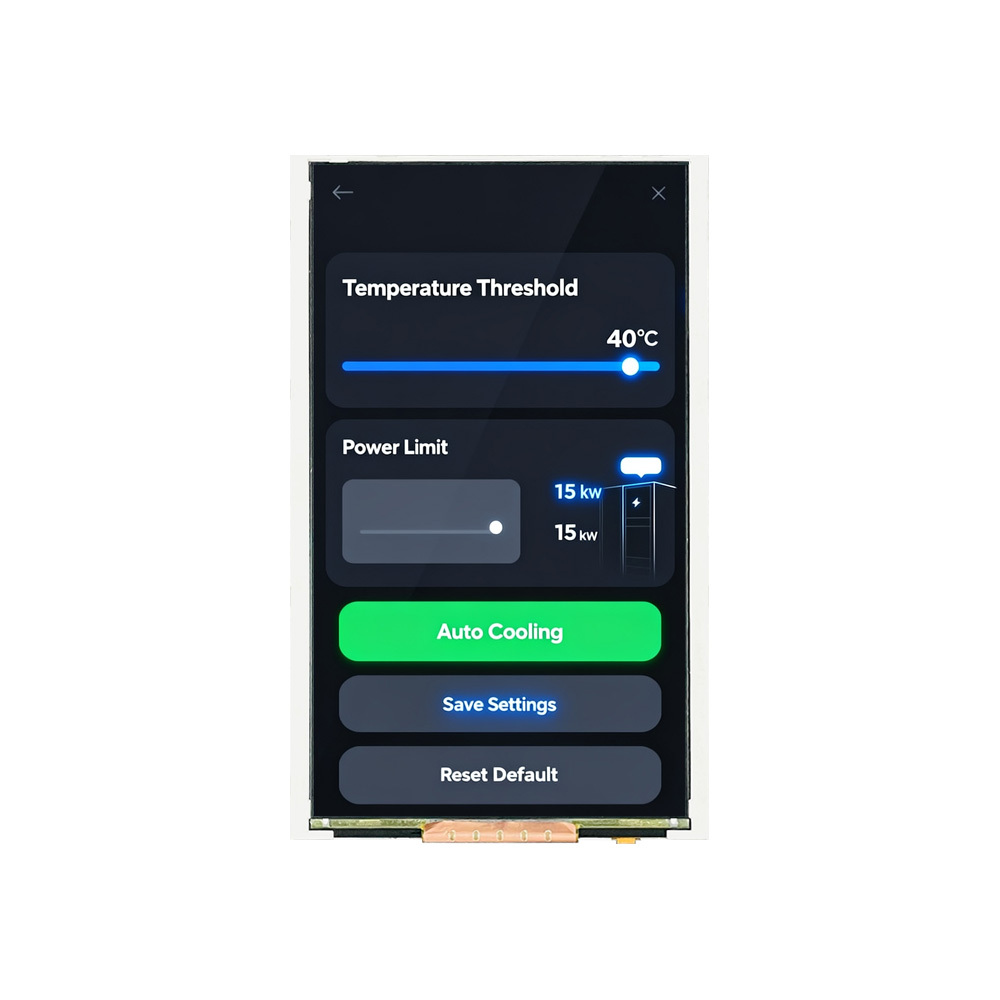

Brightness is one of the most important specifications when a display must operate in environments with strong ambient illumination. A conventional display designed primarily for indoor environments can become difficult to read when exposed to sunlight, outdoor lighting, or high-intensity ambient conditions.
This 7-inch LCD module is specified at 2300 cd/m², giving system designers substantially more brightness headroom than conventional low-brightness TFT displays. This makes the module a strong candidate for outdoor-facing equipment, portable terminals, industrial interfaces, and other applications where display readability is a critical design consideration. Aptus Display specifically positions the module for enhanced outdoor readability.
However, high brightness should not be considered a complete sunlight-readable solution by itself. The final optical performance also depends on cover glass, anti-reflection treatment, optical bonding, enclosure design, ambient lighting, and the viewing environment. For demanding outdoor projects, Aptus can work with customers to evaluate the complete display stack.
The 1080×1920 resolution provides a high pixel density in a compact 7-inch form factor. Compared with lower-resolution 7-inch displays, the higher pixel count allows designers to present detailed graphics, icons, text, dashboards, maps, images, and control interfaces with greater clarity.
The portrait-oriented configuration is particularly useful when the product's user interface is designed around vertically arranged information. It can also be incorporated into equipment where the available mechanical space is taller than it is wide.
For embedded product developers, this combination provides a useful platform for graphical HMI interfaces without requiring a physically large display.

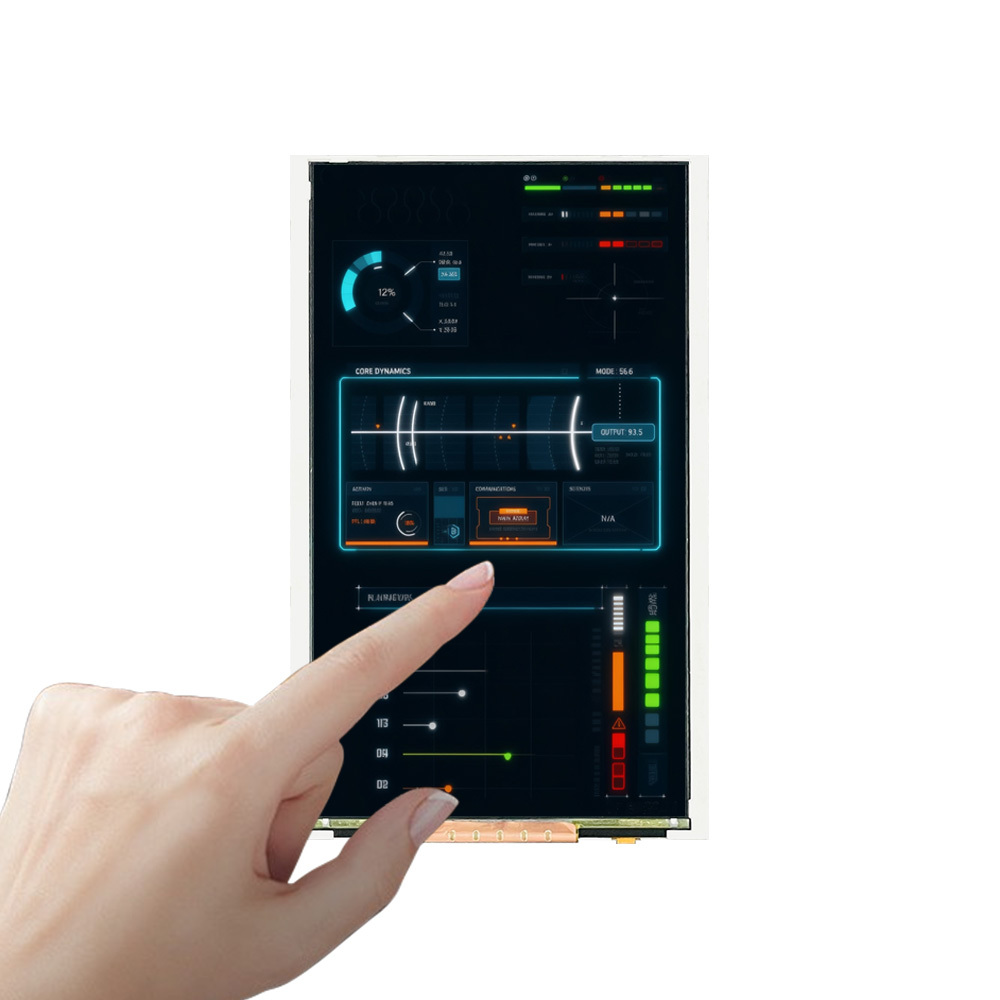

One of the major design advantages of this module is its in-cell touch architecture.
Instead of adding a separate external touch sensor layer above the LCD, in-cell technology integrates touch sensing into the display structure. This can help reduce the number of physical layers and contributes to a thinner, cleaner display assembly.
For OEM product designers, an integrated touch solution can provide several practical benefits:
Reduced overall display stack complexity
Slimmer mechanical integration
Lower potential optical reflection from additional layers
Cleaner industrial design
Integrated touch and display functionality
Easier development of compact interactive interfaces
The product page identifies the touch technology as In-Cell Capacitive Touch and highlights its suitability for compact devices and embedded control systems.
For projects requiring a separate cover lens, additional protection, specific touch sensitivity, or customized touch behavior, Aptus Display can discuss alternative touch structures and customization requirements with the customer.

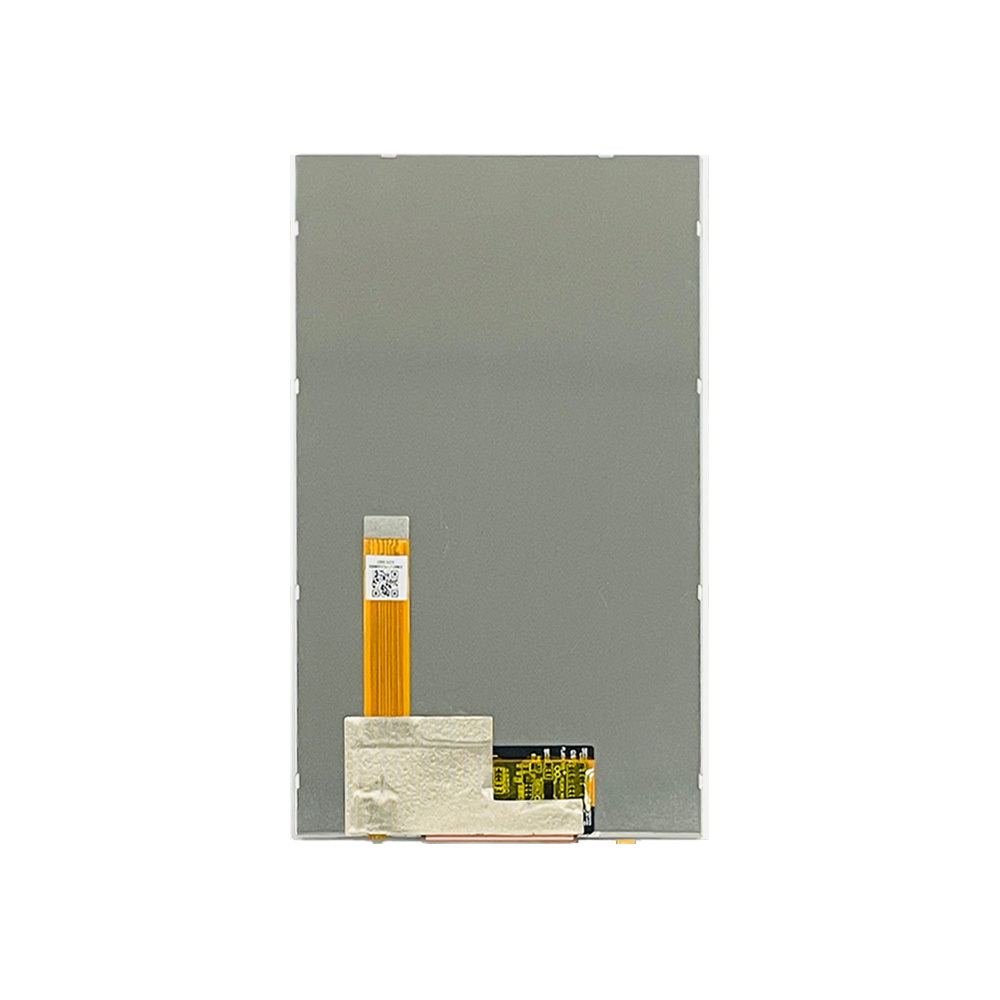

The module uses a 40PIN 4-lane MIPI interface, making it suitable for embedded platforms equipped with compatible MIPI DSI display interfaces.
MIPI is widely used in compact embedded systems because it can provide a high-speed digital display connection while supporting compact hardware designs. This is particularly relevant to developers working with custom embedded boards, application processors, SoCs, and other computing platforms.
Before selecting the module for a production project, engineers should verify:
MIPI DSI lane compatibility
Number of lanes supported by the host processor
Pixel format
Timing parameters
Initialization sequence
FPC and connector configuration
Backlight power requirements
Touch communication and controller compatibility
Available software or firmware support
Aptus Display can provide engineering assistance during the integration stage when the customer's host platform and system requirements are available.
The module uses an SFT/IPS-type display structure with a specified viewing angle of 88° in four directions. This wide viewing performance helps maintain consistent visual presentation when users view the display from different positions.
This characteristic is valuable for interactive equipment where the operator may not always stand directly in front of the display.
Potential applications include:
Industrial control panels
Portable terminals
Smart control interfaces
Outdoor equipment
Self-service terminals
Embedded HMI systems
Smart home control panels
Professional handheld equipment
The 1000:1 typical contrast ratio also provides a balanced foundation for displaying text, icons, graphical interfaces, and multimedia content.
The module measures approximately 97.98 × 164.22 × 4.58 mm, while the active area is 86.832 × 154.368 mm. Its slim profile allows system designers to create compact products without allocating excessive internal space to the display assembly.
The compact construction is particularly beneficial for equipment where enclosure thickness, internal component arrangement, and overall product weight are important considerations.
When developing a custom enclosure, engineers should use the official mechanical drawing rather than relying only on nominal product dimensions. Clearance for the FPC, connector, mounting structure, touch interface, backlight wiring, and thermal management should also be considered during mechanical design.
The specified operating temperature range is -20°C to +70°C, with a storage temperature range of -30°C to +80°C. This provides broader environmental capability than many standard indoor-only display modules.
This makes the module suitable for equipment that may experience temperature variation during transportation, installation, or operation.
For projects requiring extended temperature ranges beyond the standard specification, customers can discuss wide-temperature LCD requirements with Aptus Display during the product-selection stage.
The 2300nits brightness makes this module an attractive option for portable equipment that may be used in bright outdoor environments. The 7-inch form factor provides enough screen area for detailed interfaces while maintaining relatively compact equipment dimensions.
The combination of high resolution, capacitive touch, MIPI connectivity, and -20°C to +70°C operation makes the module suitable for embedded industrial HMI applications.
It can be used to display operating parameters, equipment status, alarms, configuration menus, production information, and graphical controls.
The integrated in-cell touch panel helps simplify interactive product design. The module can be incorporated into smart control terminals where users need to navigate menus, adjust settings, enter information, or control connected equipment.
The high-brightness configuration can benefit self-service equipment installed in locations with strong ambient lighting. Depending on the final enclosure and optical design, the display can be integrated into interactive terminals, information kiosks, and other operator-facing equipment.
The compact 7-inch format and portrait-oriented 1080×1920 resolution can support handheld or portable professional devices that require a relatively large user interface without using a full-size tablet-class display.
The module can also be considered for smart home panels and intelligent control interfaces where a combination of touch interaction, high image quality, and compact installation is required. Aptus identifies smart home panels among the intended application areas for this product.
Every embedded product has different mechanical, electrical, optical, and touch requirements. A standard LCD module may therefore not always be sufficient for a production project.
Aptus Display provides OEM and ODM-oriented customization services covering display and touch integration. Depending on project requirements, customization discussions can include brightness, contrast, interface configuration, touch structure, polarizer, cover glass, and operating temperature requirements. The company also states that its engineering team can support custom LCD development from prototype through mass production.
For projects using a different host interface, customers should not assume that a simple connector replacement is sufficient. MIPI, LVDS, and eDP implementations have different electrical and timing requirements. Aptus engineers can evaluate the complete system requirement and recommend an appropriate display architecture.
Aptus Display is a Shenzhen-based LCD display supplier providing TFT LCD modules, touch panel LCD modules, high-brightness displays, customized display solutions, and related display technologies. The company's product portfolio includes TFT LCD modules, touch panel solutions, flight simulator displays, wide-temperature LCDs, bar-type LCD displays, LCD accessories, and other specialized display solutions.
For OEM and ODM customers, Aptus Display's value is not limited to supplying a standard panel. Its engineering-oriented approach supports product development requirements involving mechanical integration, touch solutions, display interfaces, and customized display configurations.
The company's product page also highlights support for global customers across Europe, North America, and Asia, together with OEM/ODM development and quality-control processes.
When evaluating a long-term LCD supplier, buyers should consider more than unit price. Product consistency, engineering communication, customization capability, documentation, quality control, sample support, and production scalability can all affect the total development cost and project schedule.
The module is designed with a 2300 cd/m² high-brightness specification, which provides significantly higher brightness than conventional indoor LCD modules and improves visibility in bright environments. Actual sunlight readability depends on the complete optical system, including cover glass, anti-reflection treatment, bonding, enclosure, and ambient lighting conditions.
The display uses a 40PIN 4-lane MIPI interface. Host-side MIPI DSI compatibility, timing, initialization, and electrical requirements should be verified before production integration.
Yes. The product uses an in-cell capacitive touch panel, meaning the touch sensing function is integrated into the LCD structure rather than using a conventional separate external touch sensor.
The specified operating temperature is -20°C to +70°C, while the storage temperature range is -30°C to +80°C.
Yes. Aptus Display supports OEM/ODM display development and can discuss requirements such as brightness, contrast, interface configuration, touch structure, cover glass, polarizer, and temperature range. The exact customization scope should be confirmed according to the customer's project requirements.
If you are looking for a 7-inch 1080×1920 high-brightness LCD module for an embedded system, industrial HMI, outdoor terminal, portable device, or other professional application, the DBT070THC40M230A provides a strong starting point with high brightness, Full HD-class resolution, 40PIN MIPI connectivity, and integrated in-cell capacitive touch.
For a quotation or engineering evaluation, provide Aptus Display with your required display size, resolution, interface, brightness, touch requirements, operating temperature, quantity, application, and target delivery schedule. This information allows the engineering and sales teams to recommend the most appropriate standard or customized LCD solution.
Aptus Display can support customers from sample evaluation and technical confirmation through customized development and volume production.
