The DBT070BXN50R100A is an industrial-oriented 7-inch TFT LCD module developed for equipment manufacturers, system integrators, and engineering teams that need a compact display with high visual clarity.
Its IPS panel structure provides consistent image quality across a wide viewing range. The specified viewing angle is 85°/85°/85°/85°, with the product page specifying the condition as CR ≥ 10. This makes the module suitable for control interfaces where operators may view the display from different positions rather than directly from the front.
The display uses a 50-pin RGB interface, allowing it to be integrated into compatible embedded hardware and control systems. For new equipment development, engineers can select an appropriate controller or interface board according to the host processor and system architecture.
The 1000 cd/m² brightness is one of the key advantages of this module. Compared with conventional 300–500-nit TFT displays, a 1000-nit panel provides substantially stronger luminance for applications installed in brightly illuminated factories, control rooms, semi-outdoor equipment, machinery interfaces, and other environments where ordinary displays may appear too dim.
The display provides a rated brightness of 1000 cd/m², making it suitable for applications where standard-brightness TFT modules may have insufficient visibility. High brightness is particularly useful when equipment is installed close to windows, under strong industrial lighting, or in environments with changing ambient illumination.
However, 1000 nits should not automatically be interpreted as fully sunlight-readable performance. Actual outdoor readability also depends on optical bonding, anti-reflective treatment, cover glass, ambient light, viewing angle, and enclosure design. For demanding outdoor projects, Aptus can evaluate the complete display configuration based on the installation environment.
The 1024×600 resolution provides 614,400 pixels, offering a practical balance between image detail, processing requirements, and display size.
For industrial HMI applications, this resolution provides enough space for status indicators, numerical values, buttons, graphs, equipment parameters, warning messages, and operating menus without requiring a physically large panel.
The IPS TFT LCD architecture supports a wide viewing angle of 85° in each direction, according to the product specification.
This is useful for machine operators who may interact with a control panel from an offset position. Consistent visual performance from different viewing positions can improve the usability of industrial equipment and reduce the need to position the operator directly in front of the display.
The module uses a 50-pin RGB interface, making it suitable for embedded systems designed around compatible RGB display controllers.
For engineers replacing an existing LCD, interface compatibility should be evaluated together with resolution, timing parameters, power requirements, connector configuration, FPC arrangement, mounting dimensions, and software initialization.
The module measures only 164.8 × 100 × 5.5 mm, providing a relatively compact form factor for embedded equipment.
This makes it easier to integrate into control panels and equipment where internal installation space is limited.
| Parameter | Specification |
|---|---|
| Product Model | DBT070BXN50R100A |
| Display Type | IPS TFT-LCD |
| Screen Size | 7 Inch |
| Resolution | 1024 × 600 pixels |
| Pixel Arrangement | RGB Stripe |
| Interface | 50-Pin RGB |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 800:1 |
| Display Colors | 16.7M |
| Response Time | 30 ms typical |
| Viewing Angle | 85°/85°/85°/85° |
| Active Area | 154.21 × 85.92 mm |
| Module Dimensions | 164.8 × 100 × 5.5 mm |
| Backlight | 27-LED White LED |
| Supply Voltage | 3.3 V |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
The specifications above are based on the product information published by Aptus Display.
Display selection for industrial equipment is not simply a matter of choosing the largest screen or highest resolution. Engineers normally need to balance brightness, viewing angle, physical dimensions, interface compatibility, power requirements, operating temperature, and long-term availability.
For a 7-inch embedded display, the DBT070BXN50R100A offers a practical combination.
A conventional 7-inch 800×480 module may be adequate for basic status information, but the 1024×600 format provides additional workspace for modern HMI layouts. Meanwhile, the 1000-nit backlight provides additional luminance headroom for bright environments.
The IPS panel further improves viewing flexibility, while the 50-pin RGB interface makes the module suitable for embedded hardware platforms designed around RGB display output.
For equipment manufacturers, this can reduce the need to increase the physical display size simply to achieve a more usable interface.
The DBT070BXN50R100A is well suited to human-machine interface (HMI) applications. A 7-inch display provides enough screen area for equipment dashboards, parameter settings, alarm notifications, machine status, and operator controls.
Typical HMI applications can include:
The 1000-nit brightness can be particularly beneficial when the HMI is installed in a brightly illuminated production environment.
Automation systems often require compact embedded displays to show operating conditions, machine parameters, production status, and diagnostic information.
The 1024×600 resolution gives designers enough interface space to organize multiple data fields while maintaining a compact overall equipment footprint.
CNC equipment, cutting machines, assembly equipment, and other machinery can use embedded TFT displays for operating menus, machine status, parameter configuration, and alarm information.
The IPS viewing angle can be useful when operators need to view the interface from different positions around the machine.
Power monitoring systems, energy management equipment, charging infrastructure controllers, and other monitoring devices can benefit from a high-brightness compact display.
The screen can be used to present numerical data, system status, warning messages, charts, and operating instructions.
The compact 7-inch format is suitable for embedded terminals where designers need more visual area than a small 4.3-inch or 5-inch panel but do not want to install a large 10.1-inch display.
This makes the module appropriate for a wide range of specialized equipment and control terminals.
When integrating the DBT070BXN50R100A into an existing product, engineers should not evaluate the display based only on its physical size and resolution.
The first consideration is the 50-pin RGB interface. The host controller must support the required RGB signal configuration and timing. The display's supply requirement is specified as 3.3 V, but the complete power architecture should be reviewed before production integration.

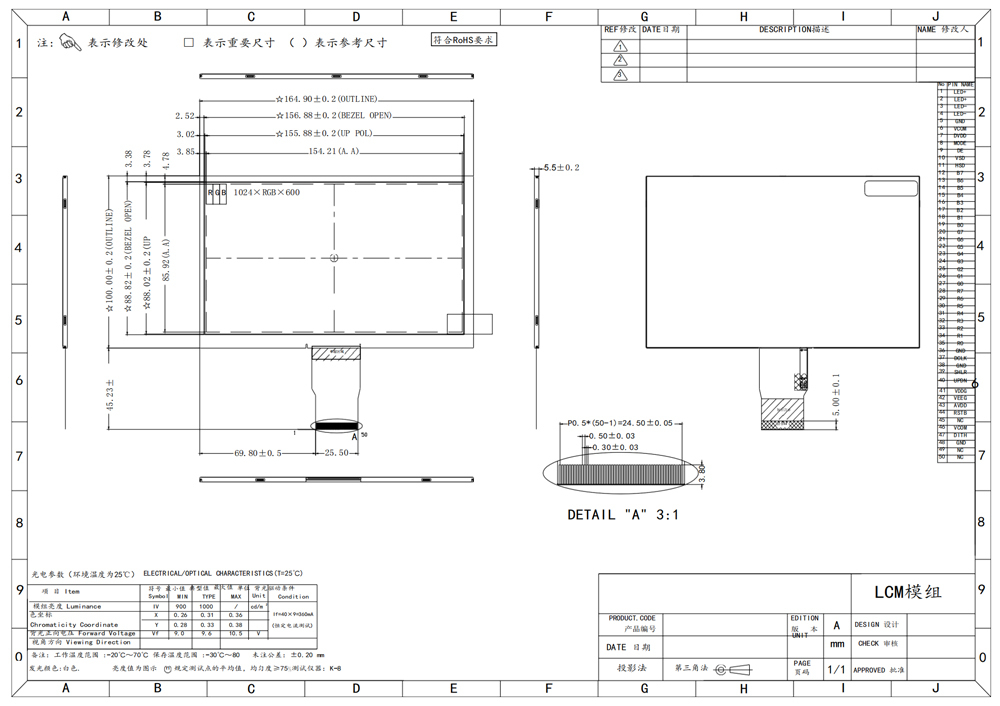

Mechanical compatibility is another important consideration. The active area is 154.21 × 85.92 mm, while the complete module size is 164.8 × 100 × 5.5 mm. Designers should leave sufficient internal clearance for the FPC, connector, cable routing, backlight driving components, and enclosure structure.
Thermal management should also be considered for high-brightness applications. A 1000-nit backlight can generate more heat than a conventional lower-brightness configuration. Equipment designers should therefore evaluate the enclosure's airflow, internal temperature, continuous operating conditions, and heat dissipation structure.
For touch-enabled products, the display can also be evaluated as part of a customized touch panel LCD solution, depending on project requirements.
Aptus Display provides more than standard TFT LCD modules. The company states that its technical team supports standard, semi-custom, and total custom LCD solutions, including connectors, ZIF/FPC configurations, touch panels, interconnect solutions, control boards, and system-integrated solutions.
For customers developing new equipment, this means the LCD can be considered as part of the complete display architecture rather than as an isolated panel.
Depending on project requirements, customization may include:
Aptus also provides technical support covering display integration, troubleshooting, project consultation, quality assurance, and after-sales support.
Aptus Display, operated by Shenzhen Aptus Technology Co., Ltd., is a professional LCD display manufacturer and display solution provider. The company offers TFT-LCD modules and customized display solutions for industrial, commercial, automotive, and other specialized applications.
Aptus's product portfolio covers TFT LCD modules, touch panel LCD modules, flight simulator display solutions, bar-type LCD displays, wide-temperature LCD displays, automotive display solutions, gaming LCD modules, LCD accessories, and other display technologies.
The company focuses on combining display engineering, customization capability, and manufacturing support to help OEMs, system integrators, distributors, and engineering teams select suitable display components for their products.
For projects requiring modifications to brightness, interface, touch integration, control boards, or mechanical configuration, customers can discuss their requirements directly with the Aptus engineering team.
Yes. The DBT070BXN50R100A is specifically positioned for industrial control panels, HMI systems, embedded industrial terminals, and automation equipment. Its 7-inch size, 1024×600 resolution, IPS viewing characteristics, and 1000-nit brightness make it suitable for many industrial interface applications.
This module uses a 50-pin RGB interface. Engineers should verify the RGB signal configuration, timing, connector arrangement, and host-controller compatibility before integration.
1000 cd/m² provides high brightness and can significantly improve visibility in bright environments. However, brightness alone does not guarantee direct-sunlight readability. Outdoor applications should also consider reflection, optical bonding, cover glass, anti-reflective treatment, thermal conditions, and enclosure design.
Aptus provides standard, semi-custom, and customized LCD solutions. Depending on project requirements, customization can include brightness, interface, FPC/connector configuration, touch panel integration, driver boards, and other display-related components.
For an accurate quotation and engineering assessment, customers should provide the required screen size, resolution, interface, brightness, target quantity, application, operating temperature, touch requirements, and any mechanical constraints. Aptus's contact form also asks customers to provide the product family, size, resolution, quantity, or application.
If you are developing an industrial HMI, automation controller, embedded terminal, monitoring system, or other equipment requiring a 7-inch 1024×600 high-brightness IPS TFT LCD, the DBT070BXN50R100A is a strong candidate for evaluation.
