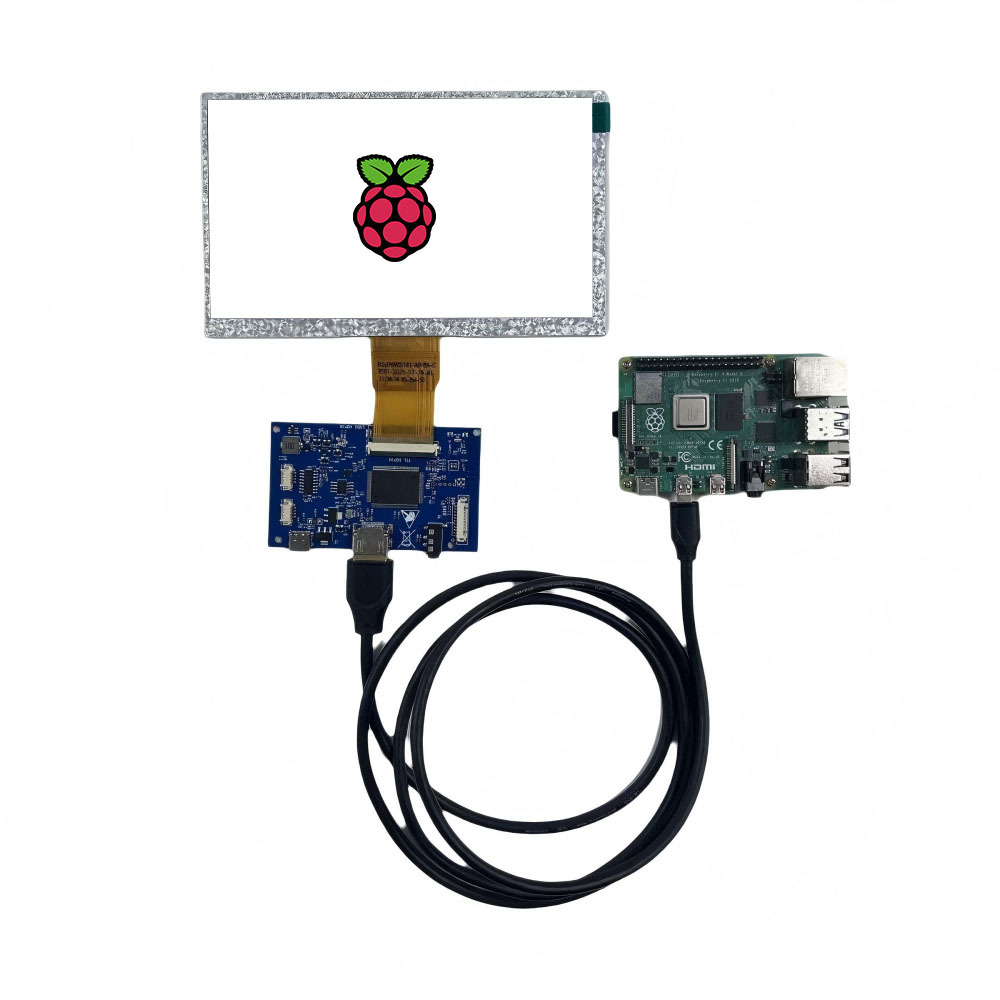

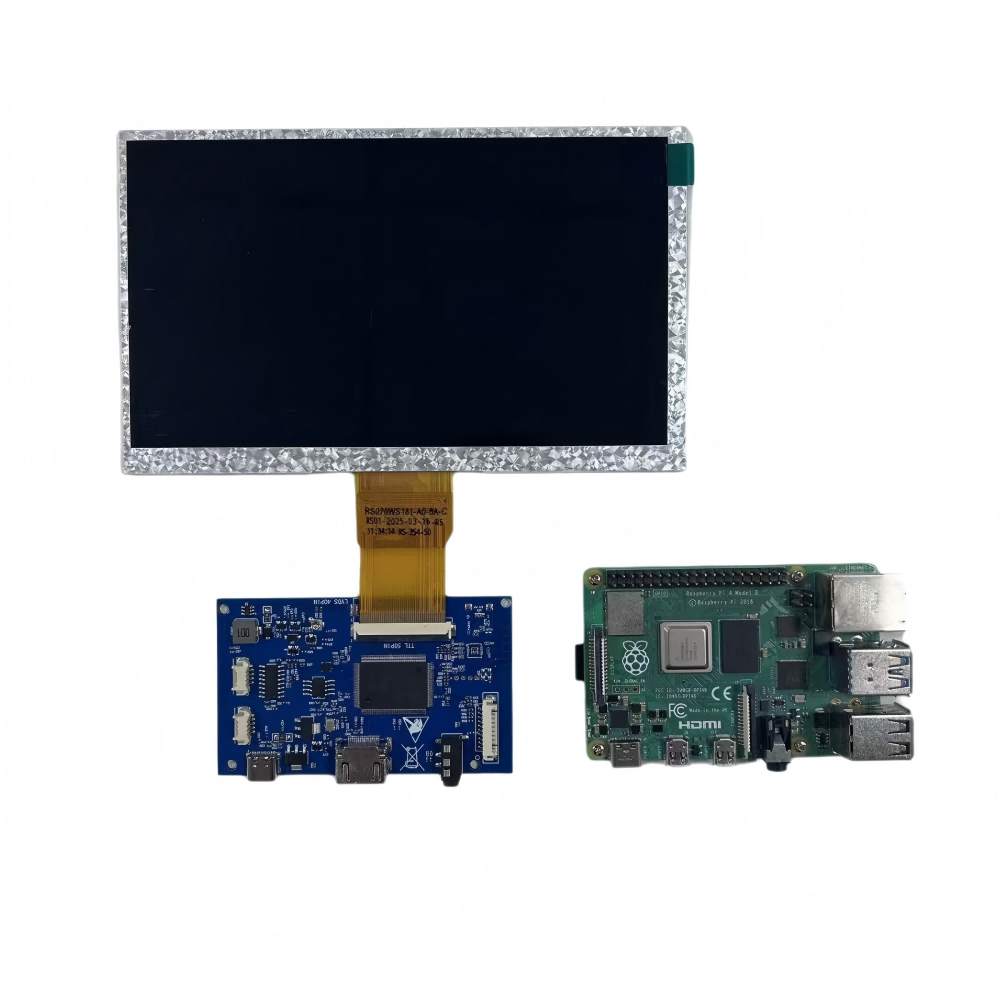

In the realm of embedded systems and industrial design, the quality of the visual interface often determines the success of the user experience. Our premium 7 inch HD-MI LCD for Raspberry Pi solution is meticulously engineered to provide a robust, high-definition visual gateway for your hardware projects. By combining the high-performance DBT070BAN50R050A IPS panel with the multi-functional PCB800812 driver board, we offer a "plug-and-play" kit that meets both commercial and industrial standards.
The cornerstone of this display solution is the 1024x600 IPS TFT LCD module. Unlike standard TN (Twisted Nematic) panels that suffer from color shifting and poor viewing angles, this IPS (In-Plane Switching) technology offers a full viewing angle of 85/85/85/85. Whether viewed from the side, top, or bottom, the information remains clear and the colors stay true.
With a luminance rating of 500 cd/m², this display is categorized as a high-brightness module. This makes it exceptionally suited for indoor environments with high ambient lighting, such as factories, retail kiosks, or medical clinics. The 800:1 contrast ratio ensures deep blacks and vibrant highlights, providing the professional look your project deserves.
For engineers and developers, the hardware specifications are the most critical factor. This kit is designed to be highly compatible and electrically stable.
| Parameter | Specification | Details |
| Screen Size | 7.0 Inch (Diagonal) | Compact yet readable |
| Active Area | 154.21(H) × 85.92(V) mm | - |
| Hardware Resolution | 1024 (RGB) × 600 | High-density pixels |
| Display Mode | IPS, Normally Black | Superior color accuracy |
| Brightness | 500 nits (Typical) | High-visibility |
| Contrast Ratio | 800:1 | Clear image separation |
| Interface | 50-pin TTL | Industry-standard FPC |
| Backlight | 27-lamp White LED | Long-life cycle |
| Colors | 16.7M (8-bit) | Smooth gradients |
The PCB800812 driver board solution is more than just a converter; it is a full-featured display controller designed for stability and flexibility.
HD-MI Input: Supports HD-MI 1.2 standard with high-quality gold-plated connectors for corrosion resistance.
Audio System: Features a built-in power amplifier. It can drive speakers (8Ω/2W or 4Ω/2W) and includes a 3.5mm headphone jack compatible with international standards.
Power Efficiency: Powered via a Micro USB 5V interface. It requires a current of >1.5A to ensure the backlight and audio system operate without interference.
Customizable OSD: Includes a 5-key interface for brightness, contrast, and color adjustment via an external button board.

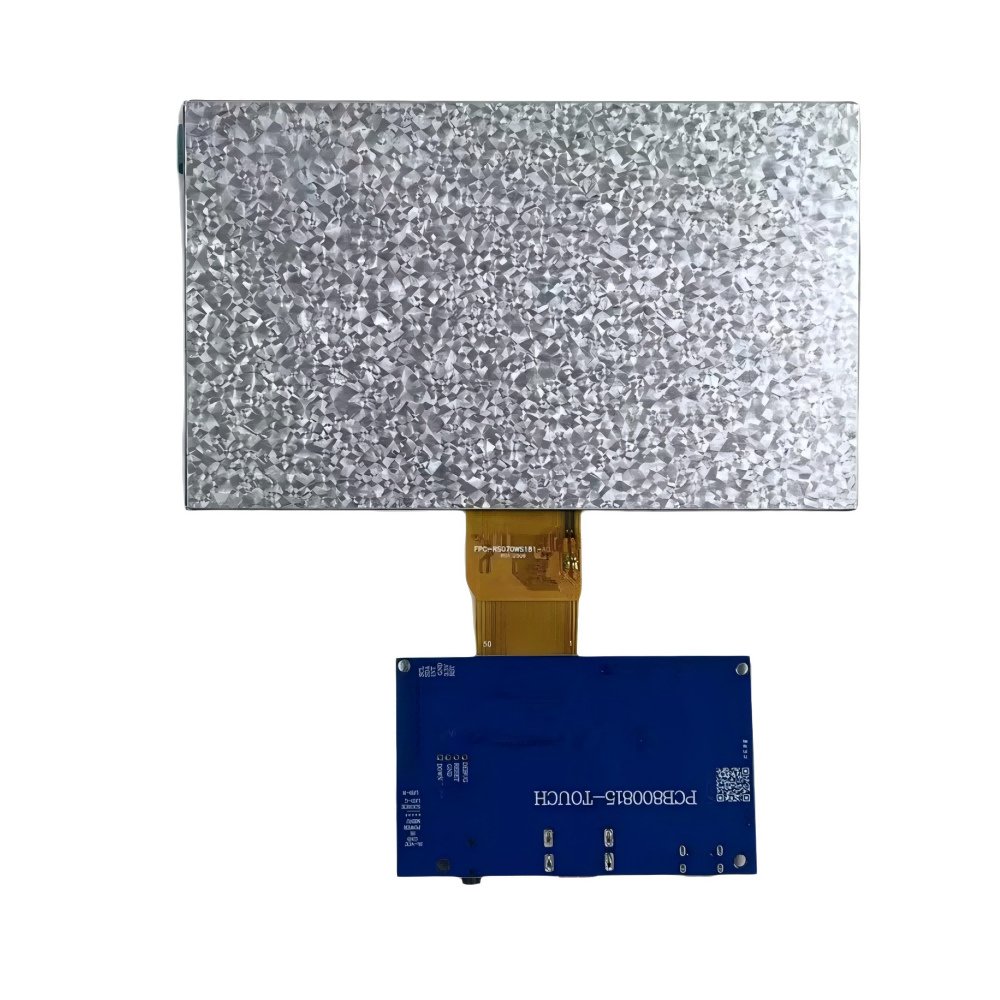

Dual-Sided FPC: The board uses a special dual-sided gold-plated 50-pin FPC connector, making the connection reliable and easy to install.

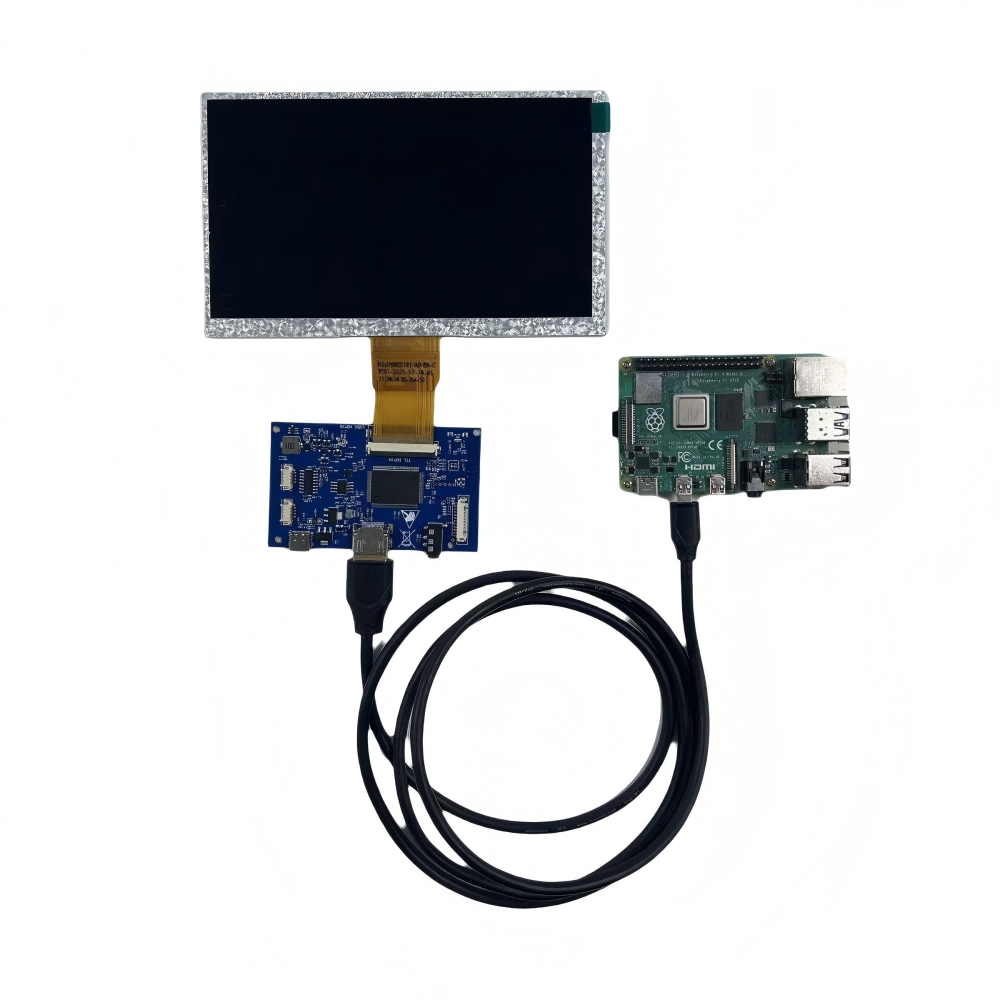

When building a product around the Raspberry Pi, connectivity is often a bottleneck. The PCB800812 simplifies this by providing a direct HD-MI-to-TTL conversion.
One of the unique features mentioned in the technical manual is the driver board’s specialized backlight circuit. It can output approximately 10V and up to 200mA, which is perfectly tuned for the 27-LED array in the DBT070BAN50R050A panel. This ensures that the screen does not flicker and maintains its 500-nit brightness throughout its lifespan.
The integration of a sound amplifier is a game-changer for IoT devices. Instead of sourcing a separate USB sound card or using the Pi’s limited analog output, the PCB800812 pulls audio directly from the HDMI stream, amplifying it for immediate use in interactive kiosks or gaming handhelds.
The combination of high brightness, IPS technology, and audio makes this 7 inch HD-MI LCD for Raspberry Pi versatile across multiple sectors:
In factory settings, screens are often viewed from awkward angles. The IPS technology ensures operators can see machine status clearly from any position. The 500-nit brightness is crucial for readability under bright industrial lighting.
The slim profile (3.5mm for the LCD) allows for flush-mounting into wall panels. The integrated audio provides audible feedback for doorbell notifications or voice assistants.
For the Raspberry Pi community, this kit represents the ultimate upgrade. Whether it’s a custom-built cyberdeck or a high-end arcade cabinet, the HDMI-to-TTL solution is the gold standard for quality.
To ensure your 1024x600 IPS TFT LCD module displays perfectly on the Raspberry Pi, we recommend the following configuration in your config.txt:
# Force HD-MI output even if no monitor is detected
hdmi_force_hotplug=1
# Use custom resolution (1024x600, 60Hz)
hdmi_group=2
hdmi_mode=87
hdmi_cvt=1024 600 60 6 0 0 0
# Enable Audio over HD-MI
dtparam=audio=on
This configuration ensures the Pi correctly identifies the unique resolution of the IPS panel and routes the audio signal to the PCB800812's amplifier.
A: The board requires a 5V DC input via the Micro USB port. To ensure the display and the audio amplifier work stably, we recommend a power supply that can deliver at least 1.5A to 2.0A.
A: This specific kit is a non-touch display solution focused on visual clarity and brightness. However, the PCB800812 driver board is compatible with various touch overlays if you choose to integrate a resistive or capacitive panel separately.
A: With 500 nits of brightness, the screen is highly readable in bright indoor environments and shaded outdoor areas. For direct sunlight exposure, it is significantly better than standard 250-nit or 300-nit screens.
A: Absolutely. Since it uses a standard HDMI interface, it acts as a secondary monitor for Windows, Mac, or Linux systems without requiring any special drivers.
A: Gold plating prevents oxidation, which is the leading cause of signal loss and "screen flicker" in industrial environments over time. It ensures a high-quality electrical connection for years.
If you are seeking a high-performance 7 inch HD-MI LCD for Raspberry Pi, our integrated solution featuring the DBT070BAN50R050A and PCB800812 is the professional choice. It bridges the gap between hobbyist components and industrial reliability, offering stunning IPS visuals, integrated audio, and a robust driver architecture.
Contact us today for pricing, samples, and customization support.
