High-Brightness Display with 50-Pin Interface for Embedded Systems
This 7-inch TFT LCD module is designed for industrial and embedded applications that require clear image performance, stable signal transmission, and flexible integration.
With a resolution of 1024×600 and a brightness of 550 cd/m², the display delivers sharp visuals and reliable readability across a wide range of indoor and semi-outdoor environments. The 50-pin RGB interface ensures compatibility with various embedded platforms and control systems.
This display module is suitable for:
Industrial control systems (HMI)
Smart home control panels
Point-of-sale (POS) systems
Test and measurement devices
Embedded graphical user interfaces
1024×600 resolution for clear and detailed image display
550 nits brightness for enhanced visibility
50-pin RGB interface for stable and flexible integration
Wide viewing angle for consistent image performance
LED backlight with long operational lifespan
Support for capacitive or resistive touch integration
Customization options including custom GG5 cover glass and interface adjustments
| Item | Specification |
|---|---|
| Model Number | DBT070VAN50R055A |
| Screen Size | 7.0 inch |
| Resolution | 1024 × 600 |
| Display Type | TFT LCD |
| Viewing Angle | 85/85/85/85 |
| Interface | RGB, 50-pin |
| Brightness | 550 cd/m² |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -40°C to +90°C |

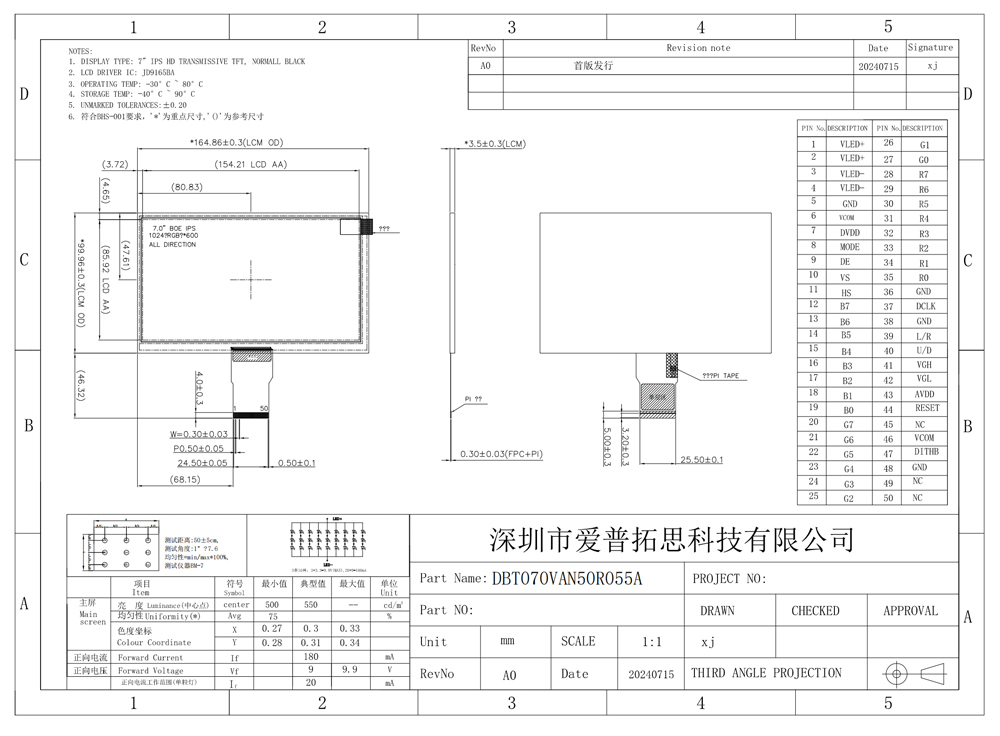

| Active Area | 154.21 × 85.92 mm |
| Outline Dimensions | 164.9 × 100 × 3.5 mm |
| Driver IC | HX8282 + HX8696 |
| Backlight | White LED |
This module is designed for easy integration into embedded systems and industrial devices. The RGB interface allows direct connection to MCU or controller boards, while the compact structure supports installation in space-constrained equipment.
Touch panel options and optical enhancements can be customized to meet specific project requirements.
We support flexible customization services:
Capacitive touch panel (PCAP) / resistive touch
Custom GG5 cover glass
Optical bonding
Brightness customization
FPC and connector customization
Driver board support (RGB / HDMI conversion solutions)
Q1: Is this display suitable for outdoor use?
It is suitable for indoor and semi-outdoor environments. For full outdoor use, higher brightness customization is recommended.
Q2: Can it be used with embedded systems?
Yes, the RGB interface is widely compatible with embedded platforms and control boards.
Q3: Do you support touch integration?
Yes, both capacitive and resistive touch panels are supported.
Q4: Can I customize the display?
Yes, we provide customization including touch, brightness, interface, and structure.
