The 7-inch 1024×600 TFT LCD module with a 40-pin LVDS interface is engineered for industrial control systems, embedded computing platforms, and professional display integration projects.
This resolution has become a mainstream standard for modern 7-inch industrial HMI designs, offering improved clarity over legacy 800×480 panels while maintaining balanced power consumption and system compatibility.
Designed with long-term availability and industrial durability in mind, this module supports equipment manufacturers seeking stable display performance across extended product life cycles.
When selecting a 7-inch display module, engineers often evaluate the trade-off between resolution, cost, and system resource requirements.
Compared with traditional 800×480 panels, 1024×600 provides:
Higher pixel density for sharper text
Improved graphical interface layout flexibility
Better readability of small data elements
Enhanced user interface aesthetics
For embedded Linux, RTOS, or microcontroller-based systems, this resolution offers a practical upgrade without significantly increasing GPU or processing requirements.
As industrial interfaces become more sophisticated, 1024×600 has become the preferred configuration for next-generation 7-inch control panels.
The 40-pin LVDS interface ensures stable high-speed signal transmission, particularly in electrically complex environments such as automation cabinets or heavy machinery systems.
Key advantages include:
Low electromagnetic interference (EMI)
High signal integrity
Reduced noise sensitivity
Compatibility with mainstream industrial controller boards
LVDS remains widely adopted in industrial electronics due to its robustness and long-term ecosystem support. For manufacturers upgrading existing LVDS-based platforms, integration can often be completed without redesigning the entire hardware architecture.
The module supports multiple brightness options depending on installation conditions:
Standard brightness for indoor industrial equipment
Enhanced brightness for factory environments
High-brightness solutions for semi-outdoor enclosures
Optional IPS technology provides:
Wide viewing angles
Stable color consistency
Reduced color distortion at oblique angles
This is especially beneficial for multi-operator control panels.
For enhanced durability, optional custom GG5 cover glass is available to improve impact resistance and surface hardness in demanding industrial applications.
Industrial equipment often operates continuously under variable temperature and humidity conditions.
This 7-inch TFT LCD module can be configured to support:
Extended operating temperature ranges
Long backlight lifespan
Mechanical reinforcement options
Optical bonding solutions for improved contrast and durability
These features make it suitable for:
CNC machine interfaces
PLC control systems
Energy management panels
Transportation information terminals
Smart automation equipment
Reliability and supply stability are critical in industrial applications, and this module is designed with those priorities in mind.
The following tables summarize the core optical, electrical, and mechanical specifications of this 7-inch 1024×600 LVDS TFT LCD module.
| Parameter | Specification |
|---|---|
| Display Size | 7.0 inch |
| Resolution | 1024 × 600 |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black / Transmissive |
| Panel Type | TFT LCD (IPS Optional) |
| Luminance | Configurable (Standard / High Brightness) |
| Contrast Ratio | Typical Industrial Grade |
| Viewing Direction | Wide Viewing Angle (IPS Optional) |
| Response Time | Industrial Standard |
| Parameter | Specification |
|---|---|
| Interface | 40-Pin LVDS |
| LVDS Configuration | Single Channel, 6/8-bit |
| Input Voltage | Standard Industrial Level |
| Backlight Type | LED |
| Backlight Driver | External Driver Board Compatible |
| Power Consumption | Depending on Brightness Configuration |

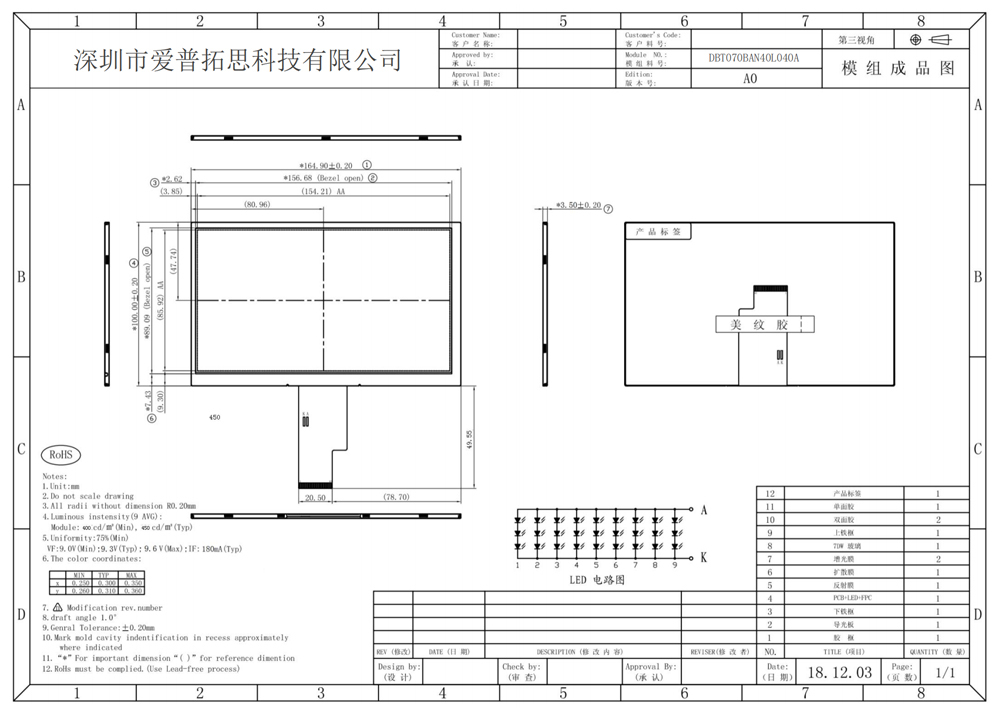

Detailed electrical drawings and dimensional diagrams are available in the full datasheet upon request.
Successful display integration involves more than panel selection. Signal compatibility, touch integration, and mechanical fitting are equally important.
Engineering support can include:
Controller board compatibility consultation
LVDS signal mapping assistance
Touch panel bonding support
Mechanical fitting recommendations
Optical optimization guidance
This reduces integration risks and shortens development cycles for OEM customers.
This module is widely integrated into:
Human-machine interface panels, control dashboards, and monitoring terminals.
Linux-based controllers, ARM-based systems, and industrial IoT gateways.
Yes. With appropriate industrial configuration, it supports long operating cycles required in automation environments.
Yes. Brightness levels, capacitive or resistive touch panels, and surface enhancements can be configured based on project requirements.
Industrial projects often require multi-year supply continuity. Long-term availability planning can be discussed during project evaluation.
The 7-inch 1024×600 40-pin LVDS TFT LCD module provides a stable, scalable, and integration-friendly display solution for industrial and embedded applications.
By combining reliable LVDS transmission, balanced resolution, optional IPS viewing angles, and industrial customization flexibility, this module supports equipment manufacturers developing long-life professional systems.
