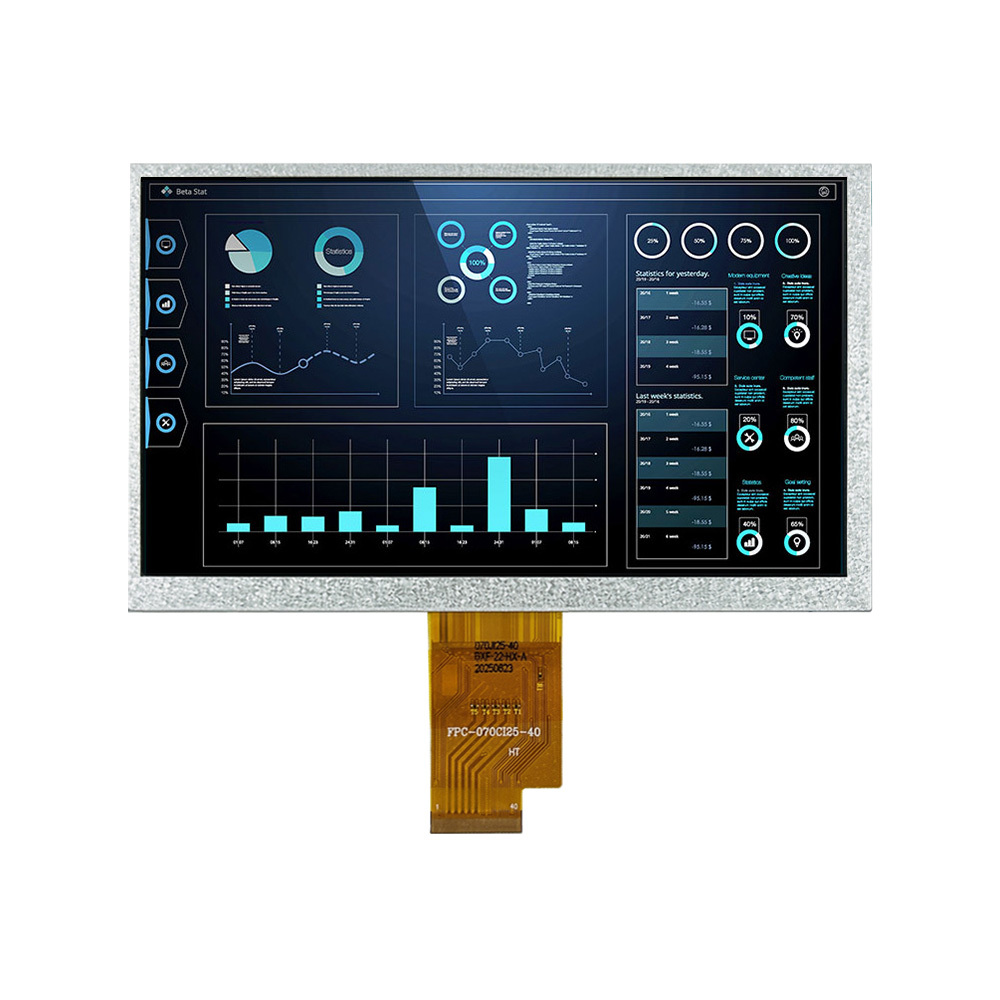

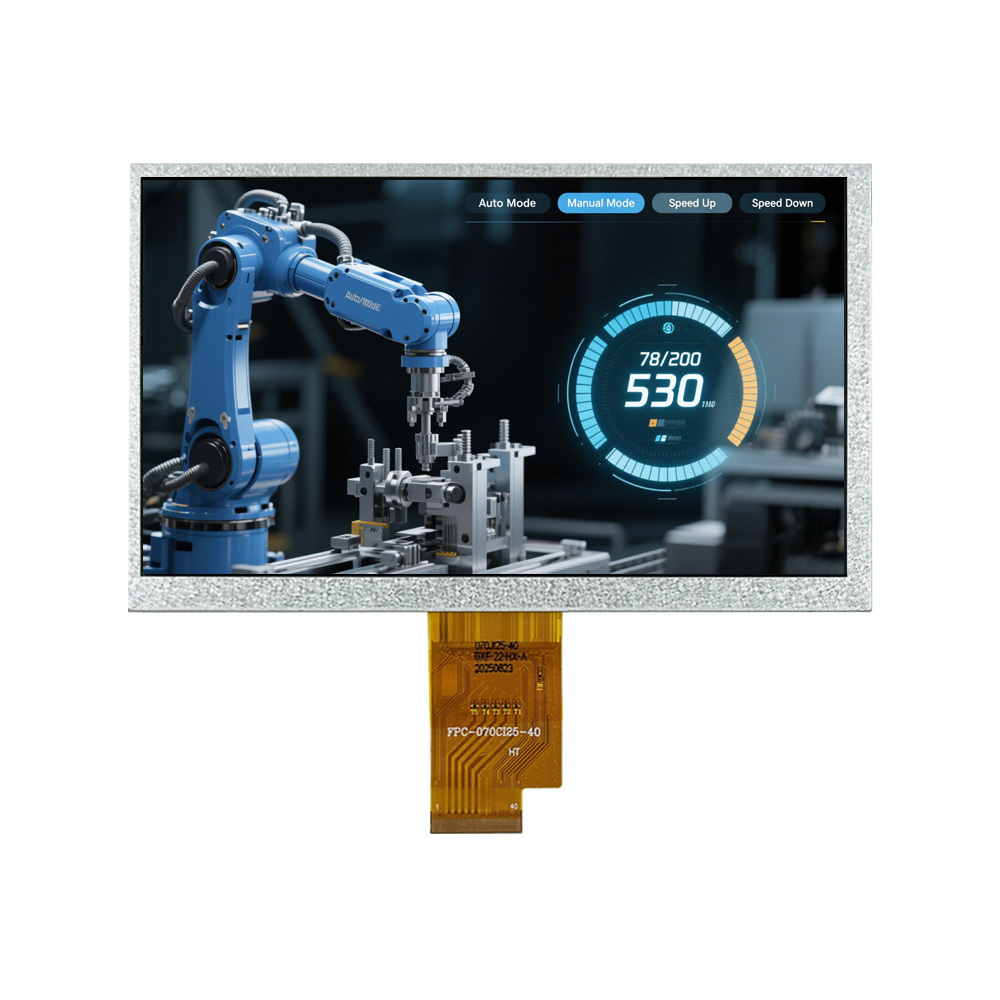

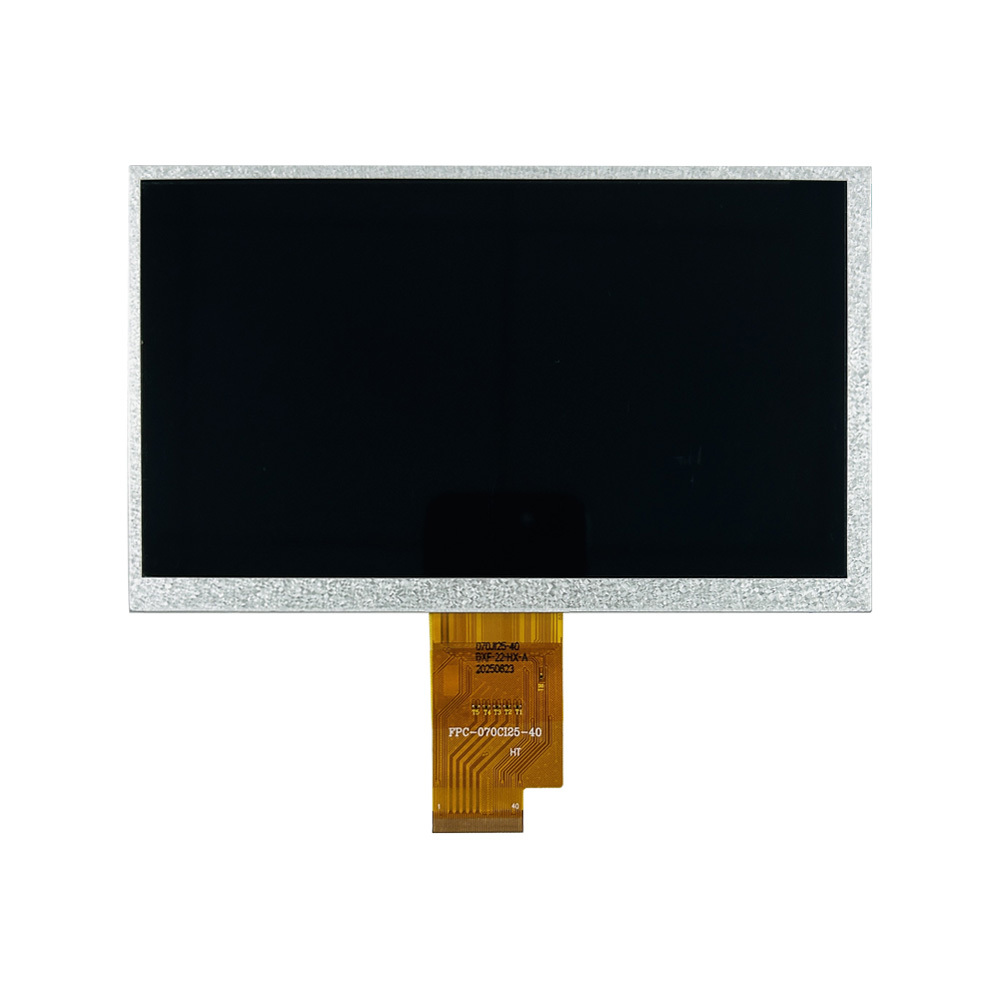

The DBT070BAN40L050A is a 7.0-inch color TFT-LCD module featuring a 1024×600 RGB resolution and 16.7 million display colors. Compared with conventional 800×480 7-inch LCD modules, the 1024×600 format provides additional horizontal and vertical pixels, giving engineers more space for control interfaces, dashboards, menus, graphs, status indicators, and other visual information.
The module uses a 40-pin LVDS interface, making it suitable for embedded computing platforms and industrial controller boards that support LVDS signal transmission. LVDS is widely used in professional electronics because it provides differential signaling and can help maintain signal integrity in electrically demanding system environments.
The display uses a normally black, transmissive TFT-LCD structure and provides a typical brightness of 500 cd/m² with an 800:1 typical contrast ratio. Its wide viewing direction is specified as 85/85/85/85, allowing users to view interface information from different positions around the equipment.
The 1024×600 resolution offers a useful balance between image detail, processing requirements, and display size. For industrial HMI applications, this resolution can accommodate more detailed graphical interfaces than traditional 800×480 panels.
It is particularly useful when a control system needs to display multiple parameters simultaneously, including numerical values, charts, alarms, operating modes, machine status, and navigation controls.
The module provides a typical luminance of 500 cd/m², which is higher than many standard consumer-oriented LCD panels. This helps improve readability in bright indoor environments and professional equipment where ambient illumination may vary.
For applications exposed to direct sunlight or extremely strong outdoor lighting, however, engineers should evaluate a higher-brightness configuration. Aptus Display can discuss alternative high-brightness LCD configurations based on project requirements.
The 40-pin LVDS interface provides a practical connection solution for industrial embedded systems. When selecting an LCD module, engineers should verify the LVDS channel configuration, signal mapping, timing parameters, power requirements, connector orientation, and controller-board compatibility before integration.
Aptus Display can provide technical information and integration support to help customers evaluate compatibility between the LCD module and their existing hardware.
The DBT070BAN40L050A is specified with an 85/85/85/85 viewing direction, supporting visibility from different viewing positions. This is valuable for industrial equipment where operators may not always stand directly in front of the display.
Wide viewing characteristics can improve the usability of HMIs, machine-control panels, monitoring equipment, and embedded terminals.

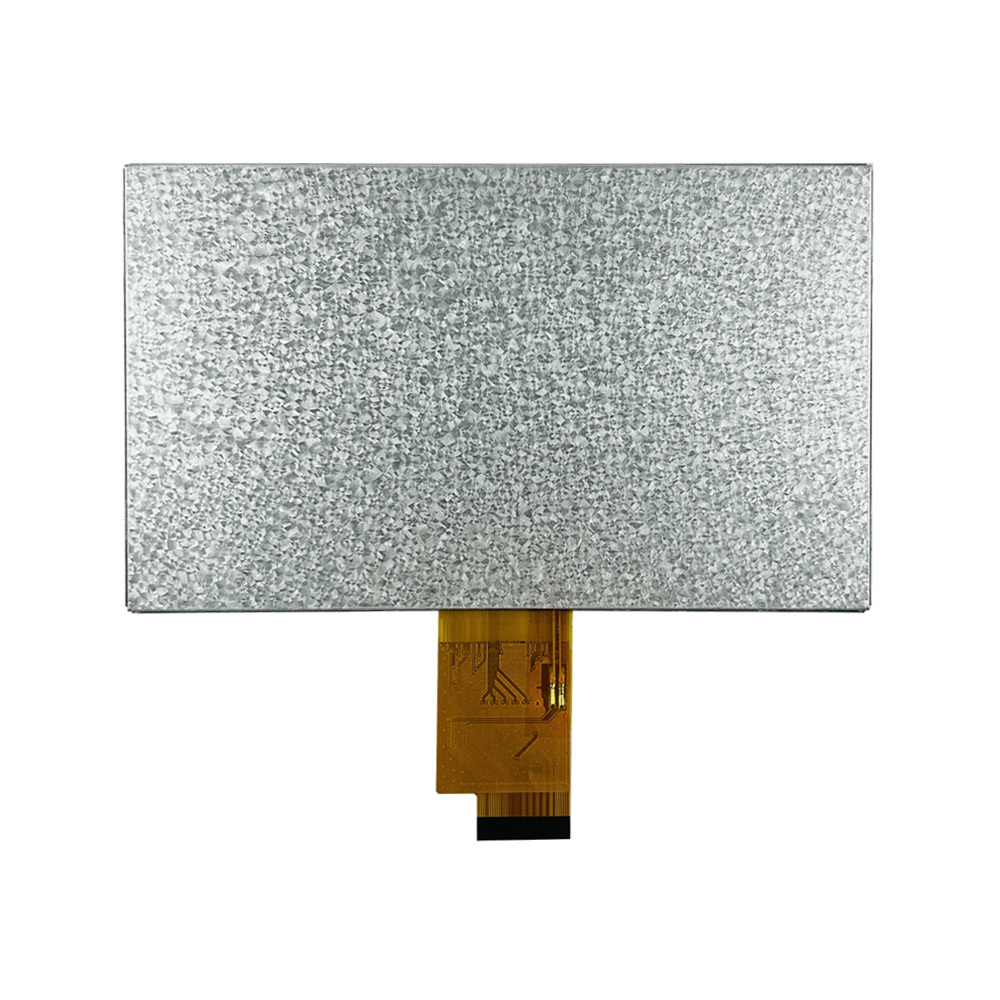

The module measures approximately 164.7 × 100 × 3.5 mm, providing a relatively slim form factor for equipment where internal installation space is limited.
Mechanical dimensions should always be checked against the customer's enclosure, mounting structure, cable routing, and heat-management design before mass production.
| Parameter | Specification |
|---|---|
| Product Model | DBT070BAN40L050A |
| Display Type | TFT-LCD |
| Display Size | 7.0 Inch |
| Resolution | 1024 × 600 RGB |
| Display Colors | 16.7M |
| Display Mode | Normally Black / Transmissive |
| Active Area | 154.2144 × 85.92 mm |
| Module Dimensions | 164.70 × 100.00 × 3.50 mm |
| Brightness | 500 cd/m² Typ. |
| Contrast Ratio | 800:1 Typ. |
| Viewing Direction | 85/85/85/85 |
| Interface | 40-Pin LVDS |
| Response Time | 25–40 ms |
| Backlight | 27 White LEDs |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Touch Compatibility | Capacitive or Resistive Touch Panel Optional |
| Application Type | Industrial, Embedded and Professional Equipment |
The specifications above are based on the current product information published by Aptus Display. Customers should request the latest datasheet for detailed electrical timing, pin assignment, power consumption, connector information, and mechanical drawings before final hardware design.
A 7-inch display is often selected when equipment designers need more usable interface space than a small 4.3-inch or 5-inch panel while maintaining a compact overall system footprint.
The 1024×600 resolution is particularly suitable for graphical HMIs because it provides enough pixels for detailed menus, icons, diagrams, data tables, and monitoring interfaces.
For OEM manufacturers, another advantage is the balance between display size and enclosure requirements. The 7-inch format can be integrated into control cabinets, portable instruments, embedded terminals, automation equipment, and other professional devices without requiring the large front-panel area associated with commercial displays.
The DBT070BAN40L050A also supports touch-panel integration. Depending on project requirements, customers can evaluate capacitive touch panels (CTP) or resistive touch panels (RTP) for interactive equipment. Aptus Display also offers customization and display integration services.
The display is suitable for human-machine interface applications where operators need to monitor and control machinery. Typical interfaces can include production data, machine status, alarms, operating parameters, and graphical controls.
Automation equipment often requires compact displays to provide real-time information locally. The 7-inch format can be integrated into automation controllers, inspection systems, production equipment, and machine-control platforms.
CNC machines and other manufacturing equipment can use embedded displays to show operating parameters, tool information, machine status, and control menus. The 1024×600 resolution provides sufficient interface space for detailed graphical information.
The 40-pin LVDS interface makes this module suitable for embedded platforms where an LVDS-compatible controller or SBC is available. Engineers can combine the LCD module with a suitable controller board to build a customized display terminal.
The compact size and slim profile make the module appropriate for portable professional equipment that requires a larger information area without using a full-size monitor.
Power management systems, energy monitoring equipment, charging infrastructure, and other smart equipment can use embedded LCD modules to display operating status, measurements, alerts, and system information.
Industrial IoT equipment frequently requires a local interface for commissioning, diagnostics, and status monitoring. A 7-inch 1024×600 LCD can provide an intuitive visual interface while maintaining a relatively compact system design.
Selecting an LCD module is only one part of an embedded display project. Engineers also need to consider the controller board, LVDS signal compatibility, touch interface, cable length, mechanical installation, front-glass protection, operating temperature, brightness, and enclosure design.
Aptus Display provides display customization and integration support for OEM and ODM projects. Depending on project requirements, available solutions can include:
Custom LCD display configurations
Capacitive touch panels
Resistive touch panels

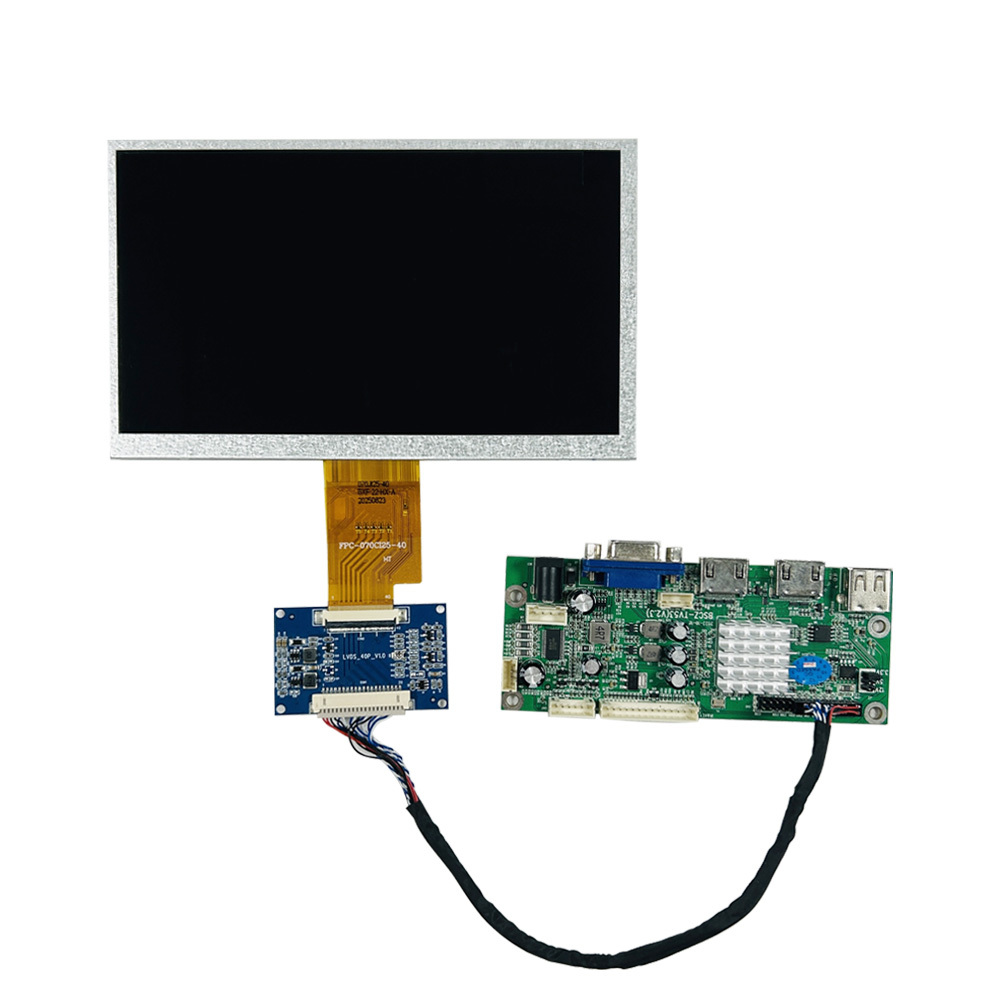

LCD driver and controller boards
LVDS cables and accessories
Touch panel bonding
Optical bonding solutions
Mechanical customization
Brightness optimization
Display interface consultation
OEM/ODM display development
For projects requiring a different brightness level, touch configuration, temperature range, interface, or mechanical structure, customers can contact Aptus Display for engineering evaluation.
Aptus Display specializes in LCD display modules and customized display solutions for professional applications. The company provides a broad portfolio covering TFT LCD modules, touch panel LCD solutions, wide-temperature displays, bar-type LCD displays, flight simulator displays, industrial display products, and related display accessories.
The company focuses on supporting customers beyond supplying a standard LCD panel. For OEM and system-integrator projects, technical factors such as interface compatibility, mechanical dimensions, touch integration, brightness, cable design, and long-term supply requirements can be evaluated together.
Aptus Display's product information also highlights customized LCD driver boards, CTP/RTP touch panels, cables, OEM development, technical integration support, and one-stop display solutions.
This makes Aptus Display a suitable partner for companies looking for a 7-inch LCD module supplier, industrial TFT LCD manufacturer, or customized embedded display solution.
For industrial display projects, reliability involves more than brightness and resolution. Engineers should evaluate the operating temperature range, storage temperature, backlight configuration, mechanical installation, signal stability, touch integration, and expected operating cycle.
The DBT070BAN40L050A is specified for an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C.
For equipment operating in more demanding environments, Aptus Display can evaluate wide-temperature and high-brightness alternatives. Customers should provide the expected ambient temperature, installation environment, operating hours, and brightness requirements so that the appropriate display configuration can be selected.
Yes. The 7-inch 1024×600 TFT LCD module is designed for professional and industrial applications, including industrial control systems and embedded equipment. Its 40-pin LVDS interface, 500 cd/m² brightness, wide viewing characteristics, and -20°C to +70°C operating temperature make it suitable for many industrial HMI designs.
The module uses a 40-pin LVDS interface. Engineers should confirm the specific LVDS signal configuration and pin assignment with the latest datasheet before connecting it to a controller board.
Yes. The product is described as touch-panel compatible, and Aptus Display can support capacitive or resistive touch-panel configurations depending on the project requirements.
500 cd/m² is suitable for many bright indoor and professional environments, but direct-sunlight applications normally require a higher-brightness configuration and optical optimization. Aptus Display offers higher-brightness LCD options, including 1500 cd/m² configurations in its product portfolio.
Yes. Depending on the project, customization can include brightness, touch panel, driver board, cable, bonding, mechanical integration, and other display-related requirements. Customers should provide the target application, required quantity, controller platform, enclosure dimensions, and environmental conditions for technical evaluation.
Yes. Customers can contact Aptus Display to request a sample or quotation. For engineering evaluation, it is recommended to provide the intended application, quantity, display interface, required brightness, touch requirements, and operating environment.
The DBT070BAN40L050A 7-inch 1024×600 40-pin LVDS industrial TFT LCD module is a practical display solution for OEM equipment, industrial HMIs, embedded systems, automation machinery, monitoring terminals, and professional electronics.
Its combination of 7-inch size, 1024×600 resolution, 500 cd/m² brightness, 16.7M colors, 40-pin LVDS interface, wide viewing characteristics, slim 3.5 mm module thickness, and -20°C to +70°C operating temperature makes it suitable for a wide range of embedded display projects.
