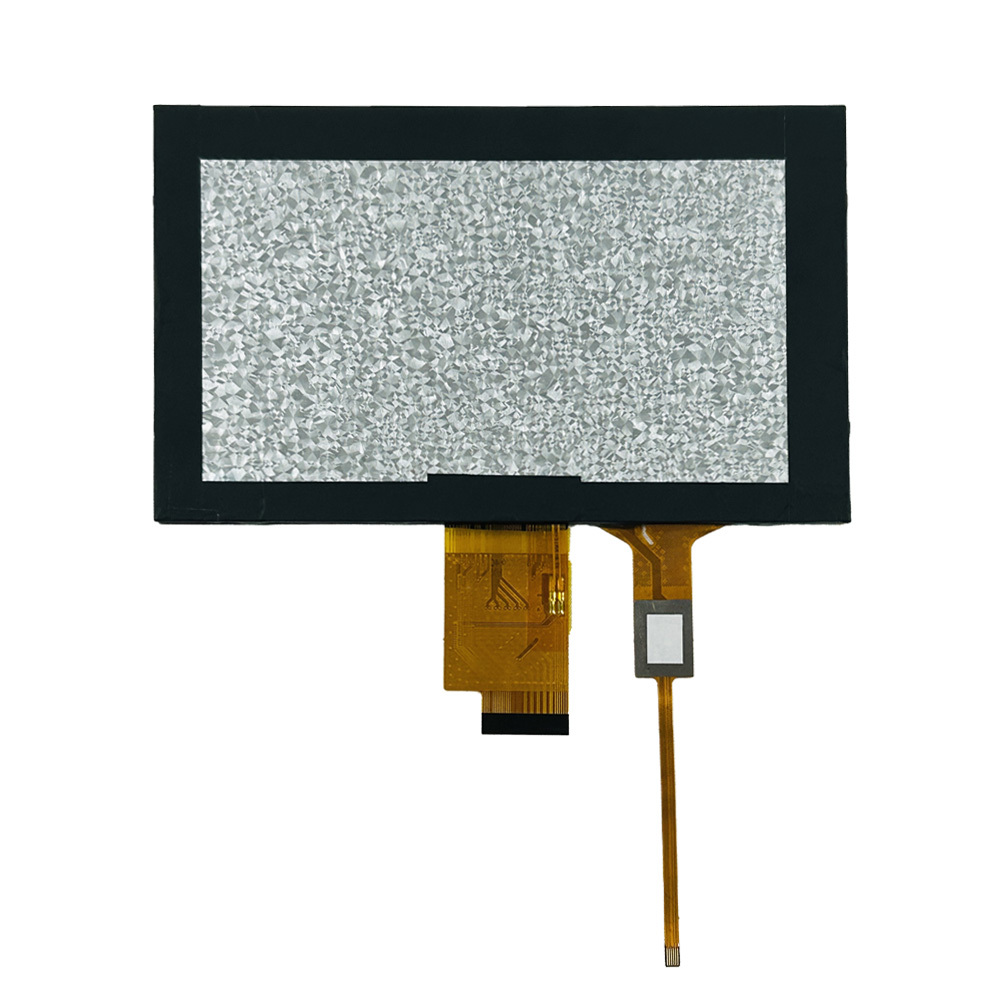

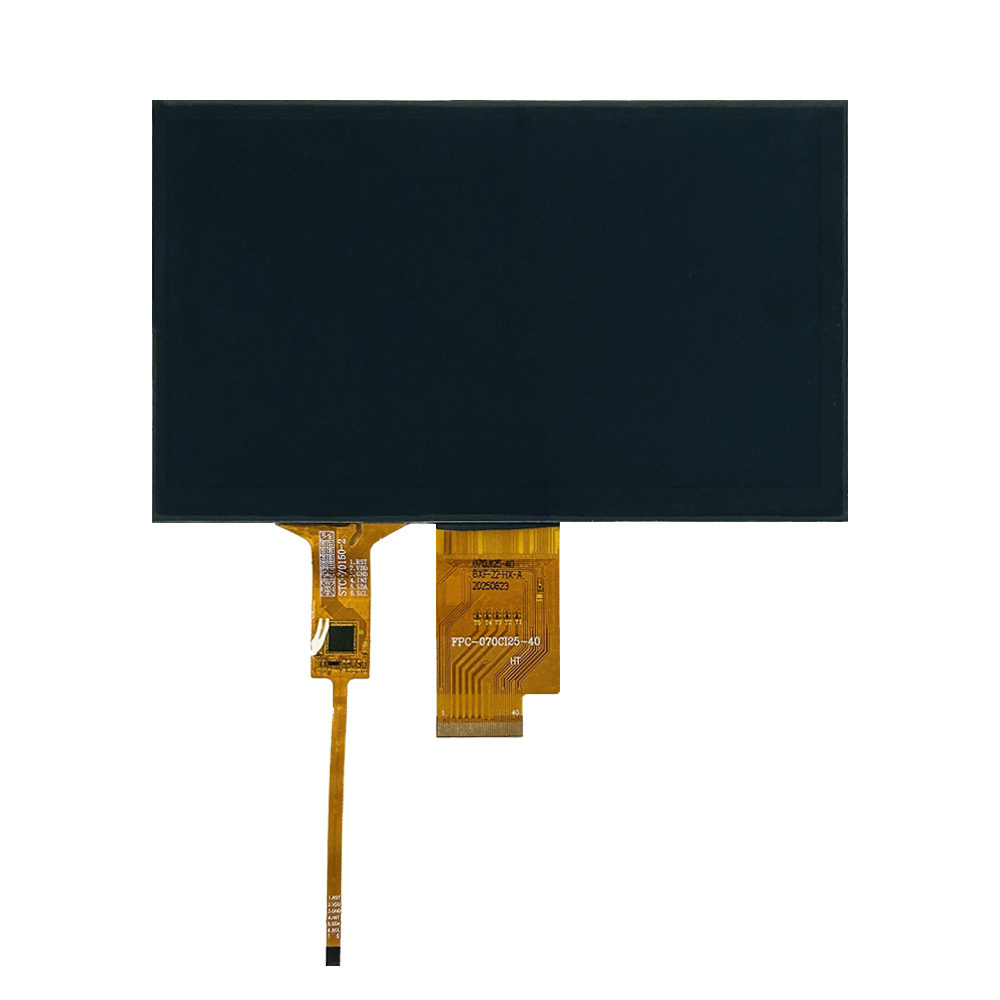

The DBT070BAC40L040A 7-inch 1024×600 LVDS CTP touch panel LCD module is a compact TFT LCD solution designed for embedded systems, industrial control interfaces, automotive-related displays, and other equipment requiring an integrated touch panel. With a 1024×600 resolution, 400 cd/m² brightness, 40-pin LVDS interface, 16.7 million colors, wide 85° viewing angles and a slim 3.5 mm module profile, it provides a practical balance between display quality, touch interaction, mechanical integration and system compatibility.
For engineers and procurement teams developing an HMI, control terminal, embedded device or equipment interface, this 7-inch LCD module offers a ready-to-integrate display platform while also allowing further customization according to project requirements.
The DBT070BAC40L040A combines a 7-inch TFT-LCD panel with a projected capacitive touch panel (CTP). The 1024×600 resolution provides more horizontal workspace than conventional 800×480 7-inch displays, making it suitable for graphical user interfaces that need additional space for menus, status information, controls and real-time data.
The display uses a 40-pin LVDS interface, a widely used interface architecture for embedded and professional display systems. The module provides a 154.21 × 85.92 mm active area within a compact overall size of 164.7 × 100 × 3.5 mm. This slim form factor can help designers integrate the display into space-constrained equipment and custom enclosures.

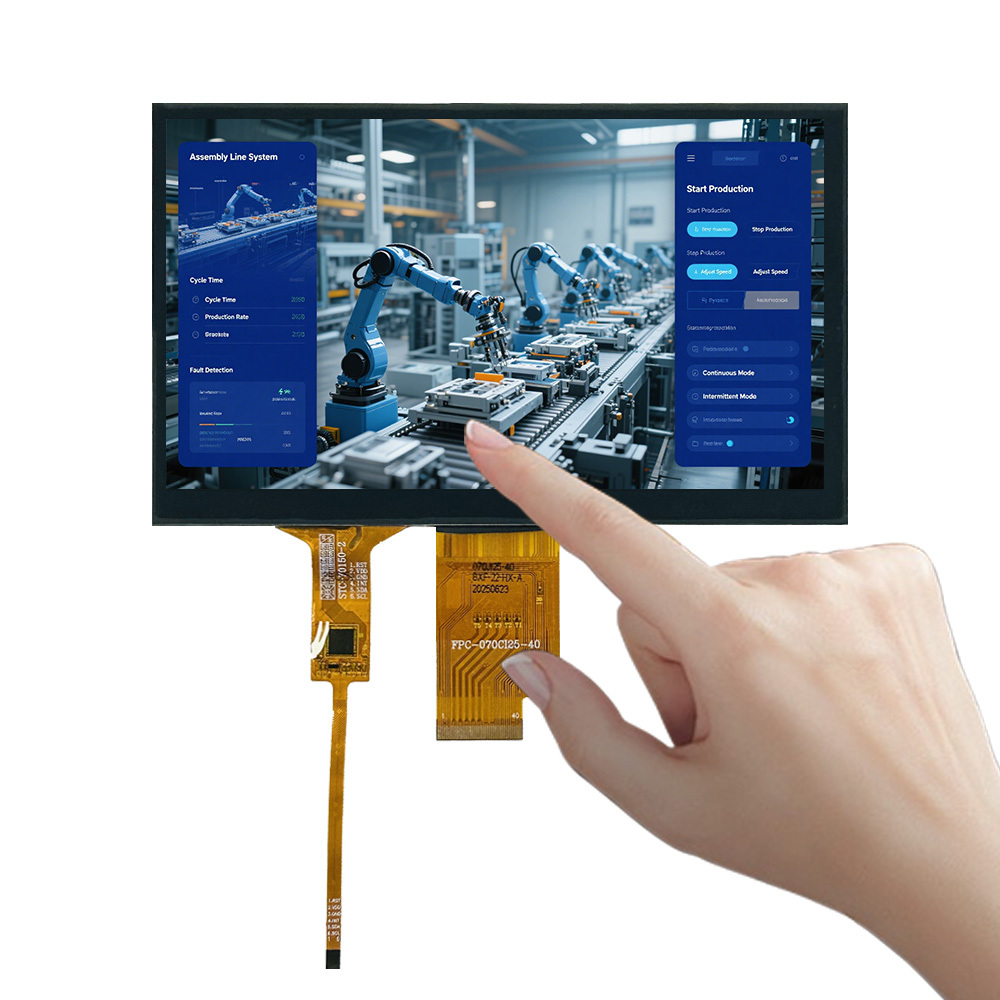

The integrated CTP touch panel allows users to interact directly with graphical interfaces rather than relying exclusively on physical buttons or switches. This makes the module especially useful for modern HMI designs where intuitive operation and a clean front-panel appearance are important.
The 1024×600 resolution provides a larger pixel canvas than standard 800×480 displays. It is suitable for interfaces containing multiple controls, status indicators, charts, menus and operating parameters.
For industrial equipment and embedded systems, the additional horizontal resolution can make interface layouts easier to organize while providing a more modern visual experience.
The module offers 400 cd/m² typical brightness, providing good visibility for indoor environments and controlled-light equipment applications. The brightness level is suitable for many machine interfaces, indoor control terminals, embedded equipment and professional electronic systems.
For applications exposed to direct sunlight or strong outdoor illumination, engineers should evaluate whether a higher-brightness LCD, optical bonding or additional optical treatment is required.
The capacitive touch panel provides a modern interactive interface and allows product designers to reduce dependence on physical buttons and switches.
CTP technology is particularly useful for:
The touch panel can also be considered as part of a customized front-panel solution when the project requires specific cover glass, surface treatment, dimensions or connector arrangements.
The 40-pin LVDS interface provides a practical connection architecture for compatible display controller boards and embedded systems. LVDS is commonly used in professional display applications because it supports stable high-speed transmission between the host system and LCD module.
Before mass production, system designers should verify the exact LVDS signal configuration, timing, connector definition, power requirements and controller-board compatibility.
The module provides a viewing angle of 85°/85°/85°/85°, with the specification based on CR ≥ 10. This wide viewing performance helps maintain usable image quality when operators view the display from different positions.
This characteristic is useful for equipment where the operator does not always face the screen directly.
The specified operating temperature range is -20°C to +70°C, while the storage temperature range is -30°C to +80°C.
This makes the module suitable for a variety of professional and embedded environments where temperature conditions may vary during operation.
| Item | Specification |
|---|---|
| Product Model | DBT070BAC40L040A |
| Display Type | TFT-LCD with CTP Touch Panel |
| Display Size | 7.0 Inch |
| Resolution | 1024 × 600 pixels |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Colors | 16.7 Million |
| Interface | 40-Pin LVDS |
| Brightness | 400 cd/m² |
| Contrast Ratio | 800:1 |
| Response Time | 25 ms Typical |
| Viewing Angle | 85° / 85° / 85° / 85° |
| Active Area | 154.21 × 85.92 mm |
| Module Dimensions | 164.7 × 100 × 3.5 mm |
| Touch Technology | CTP |
| Backlight | LED |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
The above specifications are based on the information currently published for the DBT070BAC40L040A on Aptus Display. Engineers should confirm the latest datasheet, mechanical drawing, electrical timing and interface definition with Aptus Display before finalizing a production design.
Selecting a display for an embedded product involves more than comparing screen size and resolution. Interface compatibility, mechanical dimensions, touch technology, brightness, operating temperature and long-term supply are equally important.
This 7-inch LCD module provides several advantages for professional product development.
Compact mechanical footprint:
At only 3.5 mm in module thickness, the display can be considered for equipment where installation depth is limited.
Integrated touch interaction:
The CTP touch panel enables interactive interfaces without requiring a separate external touch component.
Professional LVDS connectivity:
The 40-pin LVDS interface provides a practical option for compatible embedded display systems.
Good image quality:
1024×600 resolution, 16.7 million colors and an 800:1 contrast ratio provide a strong foundation for graphical HMI interfaces.
Temperature flexibility:
The -20°C to +70°C operating specification supports many indoor and professional equipment environments.
Customization potential:
Aptus Display provides LCD customization and integration support, including touch panels, connectors, cables and related display solutions. The company's touch-panel collection specifically highlights support for semi-custom and total-custom display development.

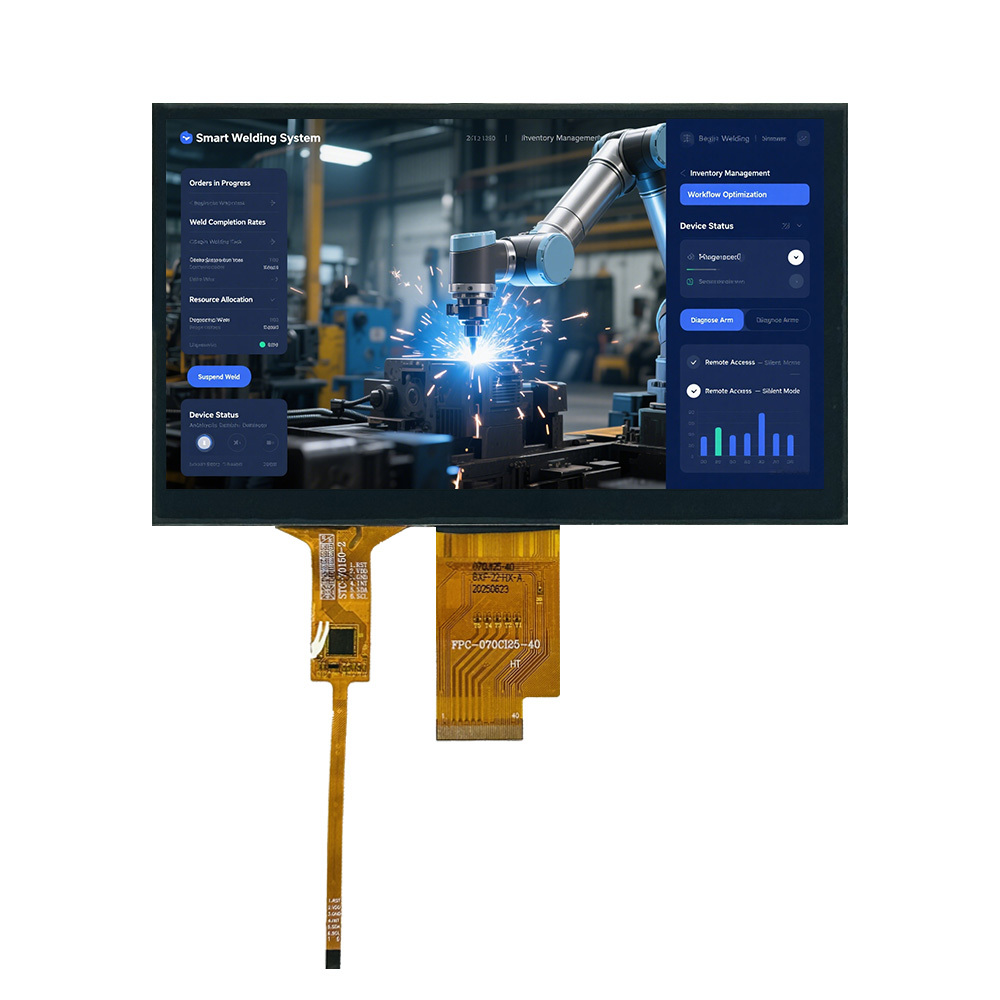

The 7-inch form factor is well suited to industrial equipment that requires a compact operator interface. The 1024×600 resolution provides enough workspace for machine status, operating parameters, alarms, menus and control buttons.
Potential applications include:
The integrated CTP touch panel can simplify the front-panel interface and provide a more intuitive user experience.
For embedded system developers, the module provides a compact display platform that can be integrated into a custom enclosure.
It can be considered for:
The 164.7 × 100 mm overall module size should be considered during mechanical design and enclosure development.
Aptus Display identifies automotive displays among the potential application categories for this model.
For automotive-related projects, however, engineers should evaluate additional requirements such as vibration, EMC, temperature, sunlight readability, qualification standards and system-level reliability before selecting a standard LCD module for production.
The combination of a 7-inch display, 1024×600 resolution and CTP touch panel makes this module appropriate for professional control terminals where a physical keyboard is not desirable.
It can be used to display operating instructions, system status, configuration menus, warnings and real-time information while allowing operators to interact directly with the interface.
When integrating the DBT070BAC40L040A into a new product, several engineering factors should be confirmed early in the design stage.

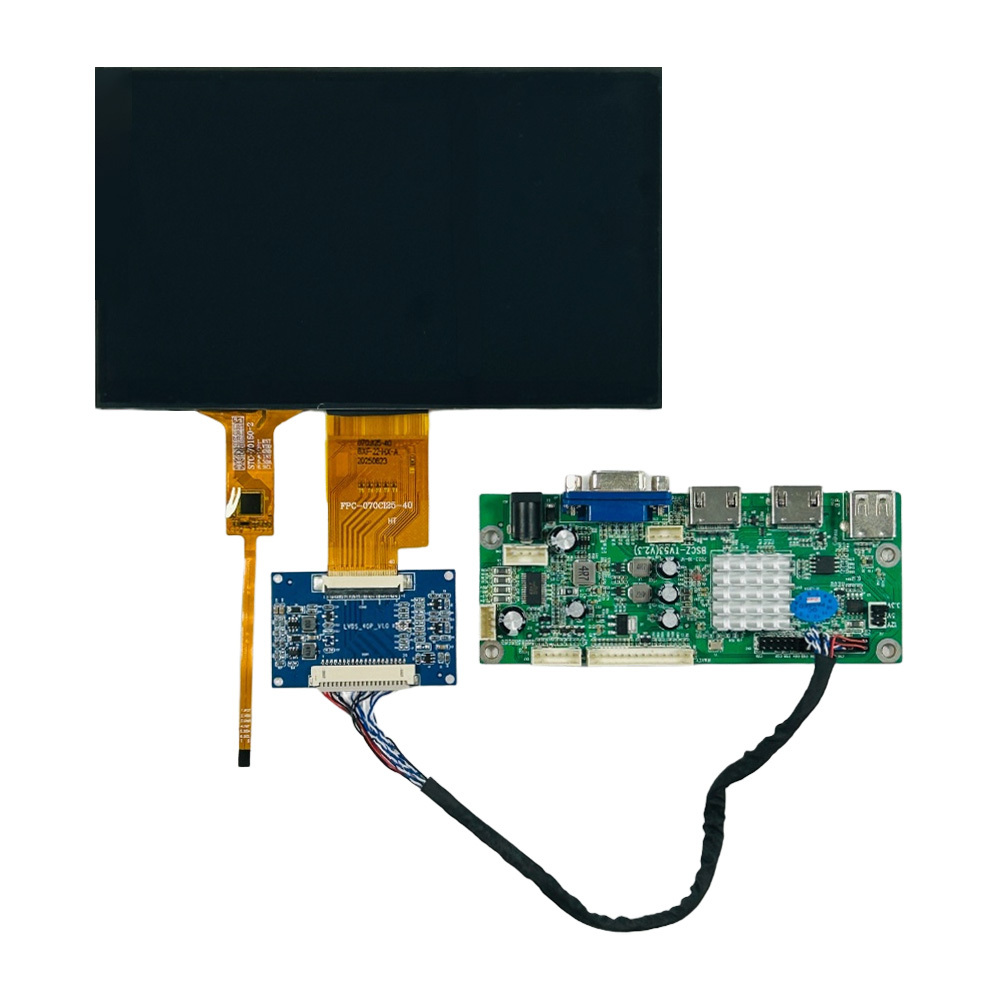

The host controller or driver board must support the module's LVDS configuration. Engineers should confirm the connector pinout, signal mapping, timing parameters and power requirements before PCB layout.
The module dimensions are 164.7 × 100 × 3.5 mm, while the active display area is 154.21 × 85.92 mm. Mechanical drawings should be reviewed before designing the front housing, mounting structure or bezel.
The CTP touch panel should be evaluated together with the host system, touch controller, cover structure and operating environment. If the product requires special cover glass, anti-glare treatment, optical bonding or customized touch specifications, these requirements should be discussed during the early development stage.
At 400 cd/m², this model is particularly suitable for indoor and controlled-light environments. Outdoor products exposed to strong sunlight may require a higher-brightness display solution and additional optical design.
Aptus Display positions itself as a professional LCD module manufacturer providing standard, semi-custom and customized display solutions. Its product portfolio includes TFT LCD modules, touch panel LCD modules, wide-temperature displays, flight simulator displays, bar-type displays and other display-related solutions.
For projects where an off-the-shelf LCD cannot completely satisfy the mechanical or electrical requirements, Aptus Display can work with customers on display customization. Potential customization and integration services include:
This approach can reduce the need for customers to coordinate multiple display-component suppliers and can simplify the transition from prototype development to production.
Aptus Display is a professional display solution provider focused on TFT LCD modules, touch panel displays, customized LCD solutions and related display technologies. The company states that it has more than 15 years of experience in LCD module development and supply.
Aptus Display works with customers on standard products as well as semi-custom and customized display projects. Its technical capabilities cover LCD modules, touch panels, connectors, interconnect solutions and control-board integration. The company's touch-panel LCD collection specifically emphasizes support for customized display development.
For B2B customers, this engineering-oriented approach can be valuable when display selection involves more than simply purchasing a standard LCD panel. Customers can discuss application requirements, mechanical constraints, interface requirements, quantity and customization needs with the Aptus Display team.
Yes. The DBT070BAC40L040A is a 7-inch TFT LCD module with 1024×600 resolution and an integrated CTP touch panel.
This model uses a 40-pin LVDS interface. System designers should confirm the exact pin definition and electrical timing with Aptus Display before connecting the module to a new controller board.
Yes. The product integrates a capacitive touch panel (CTP), making it suitable for interactive HMI and embedded applications.
The published specification lists 400 cd/m² brightness. This is suitable for many indoor and controlled-light applications. For direct outdoor sunlight applications, a higher-brightness solution should be evaluated.
The specified operating temperature range is -20°C to +70°C, with a storage temperature range of -30°C to +80°C.
Aptus Display provides standard, semi-custom and custom LCD solutions. Custom requirements may include touch panel configuration, connectors, FPC/cables, control boards and other integration requirements. Specific customization feasibility depends on the project requirements and should be confirmed with the engineering team.
If you are developing an industrial HMI, embedded control system, professional terminal or interactive equipment, the DBT070BAC40L040A can provide a compact 7-inch display platform with 1024×600 resolution, CTP touch functionality and 40-pin LVDS connectivity.
When contacting Aptus Display, we recommend providing your application, required quantity, target resolution, interface, touch requirements, operating temperature, brightness requirements and mechanical constraints. This information allows the engineering team to evaluate whether the standard DBT070BAC40L040A is suitable or whether a customized display solution would be more appropriate.
For the latest technical specifications, samples, pricing and customization options, contact the Aptus Display team directly. The current product page also provides a quotation/contact interface for project requirements.
