The 6.86-inch 480×1280 MIPI IPS TFT LCD module is a high-brightness display solution designed for embedded equipment, industrial interfaces, outdoor terminals, control systems, monitoring equipment, and other applications that require a narrow portrait-format display with strong readability. With a 480×1280 resolution, 4-lane MIPI interface, 40-pin connection, IPS panel technology, and 1000 cd/m² brightness, this LCD module combines compact mechanical dimensions with high visibility and flexible system integration. The model is DBT068BEN40M100A.
For engineers and purchasing teams looking for a 6.86-inch high-brightness MIPI LCD module, this display offers a practical combination of display resolution, optical performance, mechanical size, and interface compatibility. Its long 480×1280 format is particularly useful where conventional 16:9 displays cannot efficiently fit the available enclosure or user interface.
The following specifications are based on the current product information published by Aptus Display.
| Parameter | Specification |
|---|---|
| Product Model | DBT068BEN40M100A |
| Display Size | 6.86 inches |
| LCD Type | IPS TFT LCD |
| Resolution | 480 × 1280 pixels |
| Aspect Format | Long / Narrow Format |
| Display Mode | Normally Black |
| Interface | 4-Lane MIPI |
| Connector | 40-Pin |
| Brightness | 1000 cd/m² |
| Active Area | 60.02 × 160.59 mm |
| Module Dimensions | 66.60 × 181.00 × 7.15 mm |
| Viewing Technology | IPS, wide viewing angle |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Application Type | Embedded, Industrial, Outdoor, Monitoring |
| Customization | Available according to project requirements |

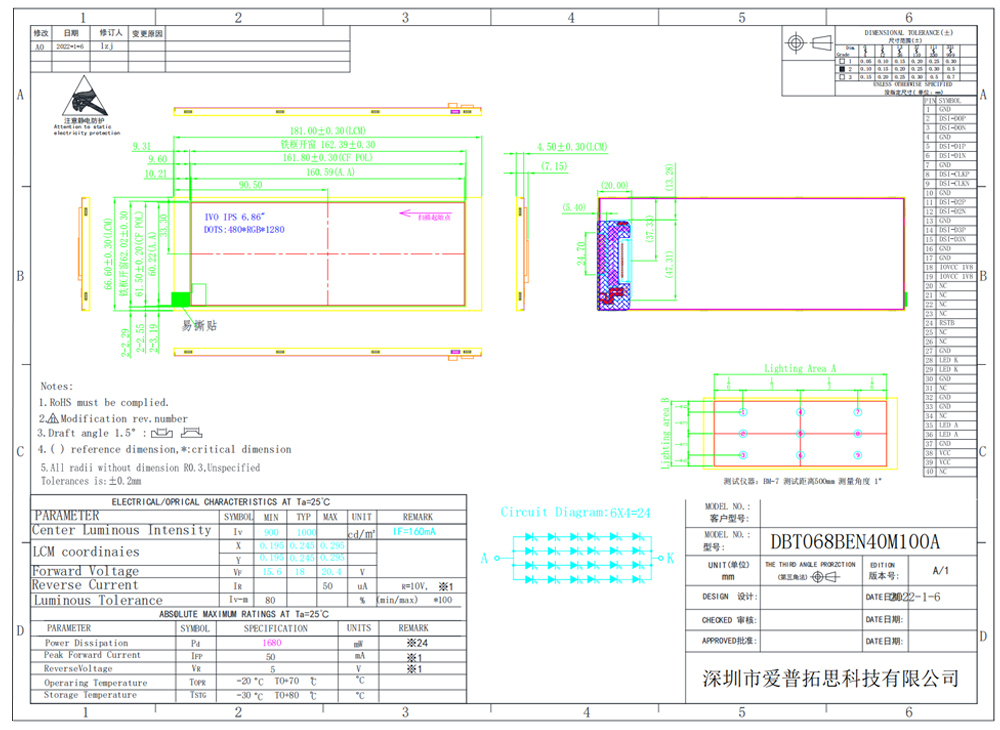

Note: For production projects, customers should confirm the latest mechanical drawing, electrical specifications, pin definition, optical parameters, driver requirements, and sample configuration with Aptus Display before final design-in.
Display size alone does not determine whether an LCD module is suitable for an embedded product. Engineers must also consider the available enclosure space, interface architecture, brightness, viewing requirements, resolution, operating temperature, and long-term supply requirements.
This 6.86-inch 480×1280 LCD module addresses these requirements with a compact, vertically oriented display format.
With a specified brightness of 1000 cd/m², this TFT LCD module is designed for applications where standard indoor brightness may not provide sufficient visibility.
Higher brightness can be particularly useful for equipment installed close to windows, semi-outdoor environments, brightly illuminated facilities, kiosks, control terminals, and other applications where ambient light can reduce perceived image contrast.
However, brightness should not be considered the only factor determining outdoor readability. System designers should also evaluate cover-glass reflection, optical bonding, surface treatment, enclosure design, ambient lighting, and viewing angle.
The IPS panel architecture is designed to maintain consistent image performance across different viewing directions. This is important for equipment where operators may not always look directly at the center of the screen.
For industrial control panels, monitoring equipment, instrumentation, kiosks, and embedded interfaces, a wide viewing experience can make information easier to read when the operator is standing or moving around the equipment.
The 480×1280 pixel resolution provides a distinctive portrait-oriented display format.
Instead of using a conventional wide-screen ratio, the long vertical format can be used to organize information into vertically stacked sections. This can be beneficial for:
The display format can also help product designers maximize usable screen area when the enclosure is narrow but relatively tall.
This module uses a 40-pin 4-lane MIPI interface, providing a high-speed digital display interface suitable for embedded hardware architectures.
MIPI interfaces are widely used in embedded display systems because they can provide high-speed data transmission while supporting compact board-level designs.
For engineers integrating this module, the display interface should be evaluated together with the selected processor, SoC, display controller, timing configuration, connector, FPC, power architecture, and software driver.
Aptus Display can also assist customers in evaluating interface and integration requirements for specific projects.
For a new product design, we recommend confirming:
This engineering validation should be completed before mass production.
The combination of a 6.86-inch form factor, 480×1280 resolution, IPS technology, 1000-nit brightness, and MIPI interface makes this display suitable for a variety of specialized embedded applications.
The module can be integrated into industrial equipment requiring a compact operator interface. Its long-format screen can display operating status, alarms, parameters, process information, or equipment menus within a narrow enclosure.
Typical applications include:
For industrial projects, the display can be combined with a touch panel, protective cover glass, custom FPC, or other mechanical components depending on the system architecture.
The 1000 cd/m² brightness makes this module suitable for applications where ambient illumination is significantly higher than a typical indoor environment.
Potential applications include:
For direct sunlight applications, system-level optical design remains important. A high-brightness LCD should ideally be evaluated together with the front cover, anti-reflective treatment, optical bonding, enclosure and thermal design.
The 480×1280 format provides enough vertical space to organize multiple information blocks. This makes the display suitable for specialized monitoring and instrumentation systems.
For example, a vertical interface could present:
System Status → Real-Time Data → Warnings → Controls → Diagnostic Information
This type of layout can be useful where the user needs to see multiple operating parameters without navigating through numerous screens.
The product page identifies medical devices and monitoring instruments among potential application areas.
For professional equipment projects, however, the final display configuration should be evaluated according to the requirements of the complete device. If the application requires touch input, protective glass, optical bonding, special cleanliness, extended temperature performance, or other project-specific requirements, these should be discussed with Aptus Display during the design stage.
A standard LCD module is often only one component of a finished display assembly. For OEM and ODM customers, Aptus Display can support project-specific integration requirements.
Depending on project needs, customization may include:
The product page also identifies Aptus Display's customization capabilities for brightness, interface, touch, and glass options.
This approach can reduce the engineering workload for customers who need a display assembly rather than an off-the-shelf LCD panel alone.
Aptus Display is a Shenzhen-based LCD display supplier specializing in TFT and IPS display solutions and display integration services. The company's product portfolio includes TFT LCD modules, touch panel LCD modules, wide-temperature displays, bar-type LCD displays, flight simulator display solutions, LCD accessories, and other specialized display products.
Aptus Display positions its capabilities around LCD display development, customization, manufacturing support, quality assurance, and global customer service.
For B2B customers, the key advantage is not simply obtaining an LCD panel. A successful display project requires the LCD, interface, mechanical structure, touch solution, optical performance, electronics, and software to work together.
Aptus Display can therefore support customers from initial product selection through engineering evaluation and customized display integration.
Aptus Display can provide technical assistance during display selection and integration, helping customers evaluate display size, resolution, interface, brightness, touch requirements, and mechanical considerations.
If the standard DBT068BEN40M100A does not completely match a customer's requirements, customized display configurations can be discussed based on the project.
For commercial and industrial projects, display consistency and supply stability are important. Aptus Display emphasizes manufacturing quality, product reliability, and project support as part of its LCD solution services.
Aptus Display serves international customers and provides technical and shipping support for overseas projects. The company lists its Shenzhen, China location and international contact information on its website.
Yes. The DBT068BEN40M100A is a 6.86-inch IPS TFT LCD module with 480×1280 resolution and a 40-pin 4-lane MIPI interface.
The specified brightness is 1000 cd/m², making it a high-brightness TFT LCD suitable for applications requiring improved visibility under strong ambient lighting.
The module measures approximately 66.60 × 181.00 × 7.15 mm, while the active display area is 60.02 × 160.59 mm.
It can be considered for outdoor and semi-outdoor applications because of its 1000 cd/m² brightness and specified operating temperature range of -20°C to +70°C.
For direct-sunlight applications, however, engineers should evaluate the complete optical system, including the cover glass, reflection, bonding method, enclosure and thermal management.
Yes. Aptus Display states that it provides customization options covering areas such as brightness, interface, touch, and glass, together with technical integration support.
If you are developing an industrial HMI, monitoring terminal, outdoor control system, embedded instrument, kiosk, or other specialized display product, this 6.86-inch 480×1280 MIPI IPS LCD module can be evaluated as a compact high-brightness display solution.
