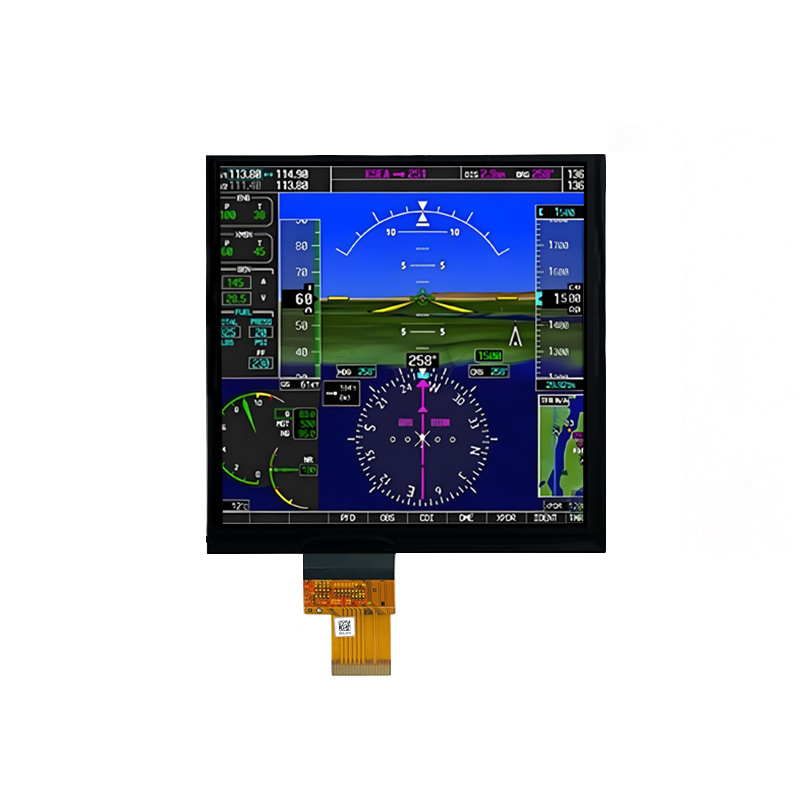

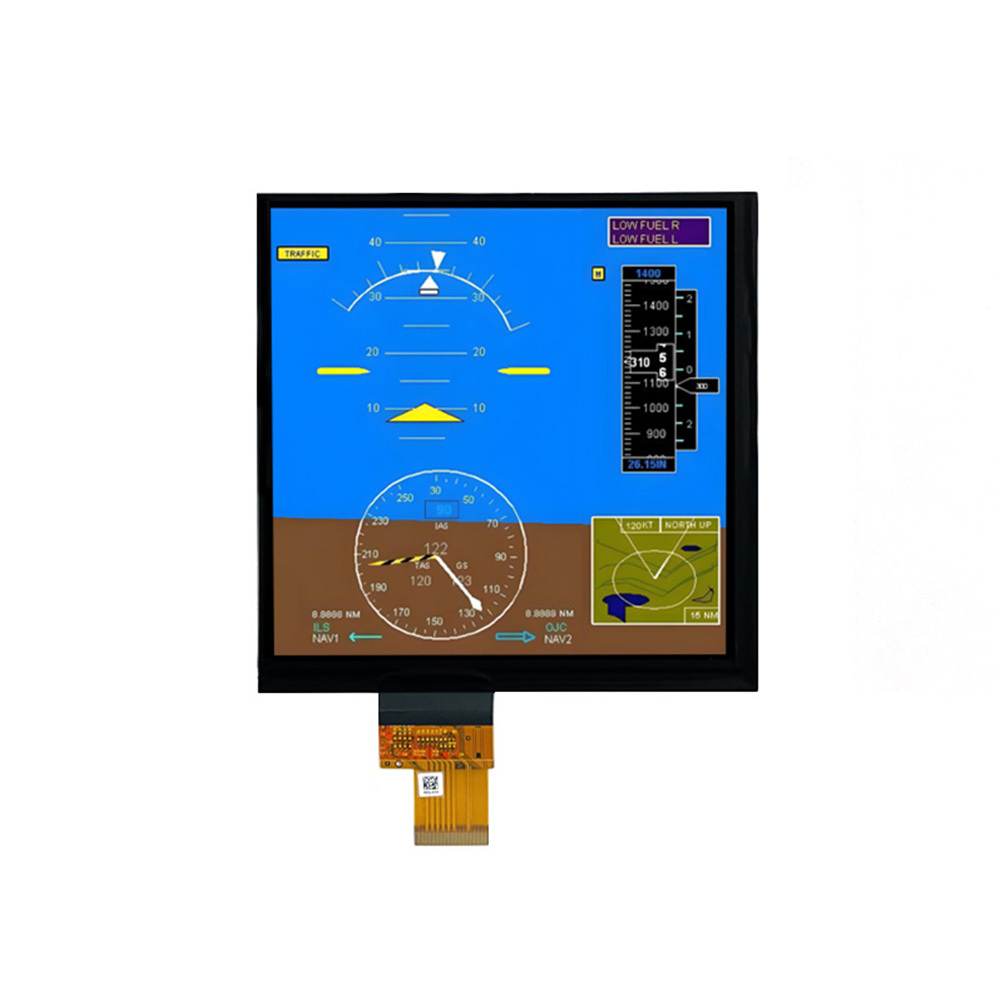

6.8-Inch 768×768 Square TFT LCD Module for Flight Simulator Systems

The 6.8-inch 768×768 square TFT LCD module is designed for flight simulator cockpit systems and advanced embedded display applications, where precise visualization, stable signal transmission, and efficient layout are essential.

With a 1:1 square aspect ratio, LVDS interface, and 500 cd/m² brightness, this display module delivers clear and consistent image performance for cockpit instruments, control panels, and industrial HMI systems. Its balanced form factor makes it especially suitable for applications where traditional rectangular displays are not ideal.

Designed for Flight Simulator Cockpit Applications

Modern flight simulation systems require displays that can accurately reproduce real cockpit interfaces. This module is optimized for such environments, making it suitable for:

• Flight simulator cockpit panels

• Glass cockpit displays (PFD / MFD)

• Digital instrument clusters

• Navigation and altitude indicators

• Engine monitoring interfaces

• Training and simulation systems

The 768×768 resolution provides sufficient detail for complex graphical elements, ensuring accurate rendering of flight data and system information.

Why Choose a 768×768 Square LCD?

1. Ideal for Cockpit Instrument Layouts

Aviation instruments are typically circular or square in design. A square LCD allows natural rendering without distortion or unused space.

2. Better Panel Integration

Compared with rectangular displays, square modules provide:

• Improved layout symmetry

• Easier multi-screen alignment

• Higher space utilization

This is particularly useful in modular cockpit systems.

3. Balanced Resolution for Data Visualization

The 768×768 resolution offers a good balance between:

• Detail clarity

• Processing efficiency

This makes it suitable for real-time embedded systems.

Key Features

• 768×768 resolution for detailed cockpit visualization

• LVDS interface for stable high-speed data transmission

• 500 nits brightness for clear readability

• IPS wide viewing angle for consistent image quality

• Square 1:1 aspect ratio for efficient UI layout

• Industrial-grade design for long-term operation

• Long backlight lifetime for continuous use

Technical Specifications

Integration in Flight Simulator Systems

This display module is engineered for easy integration into flight simulation hardware and embedded systems. The LVDS interface ensures reliable signal transmission with low noise, making it suitable for real-time graphical rendering.

It can be integrated into:

• Embedded control boards

• FPGA-based simulation platforms

• Industrial controller systems

• Custom cockpit hardware

The combination of resolution and interface allows smooth rendering of dynamic cockpit data, ensuring stable performance during long simulation sessions.

Display Performance in Simulator Environments

Stable Visual Output

The display maintains consistent brightness and contrast, ensuring readability of cockpit data during continuous operation.

Wide Viewing Angle

IPS technology ensures visibility from different angles, which is essential in multi-user training environments or instructor-assisted simulations.

Optimized Brightness

With 500 nits brightness, the display is suitable for indoor and controlled cockpit environments, balancing clarity and power efficiency.

Customization Options

To meet different project requirements, this module supports:

• Capacitive touch panel integration

• Custom GG5 cover glass

• Optical bonding for improved contrast

• Interface customization (LVDS / HDMI conversion)

• Brightness adjustment

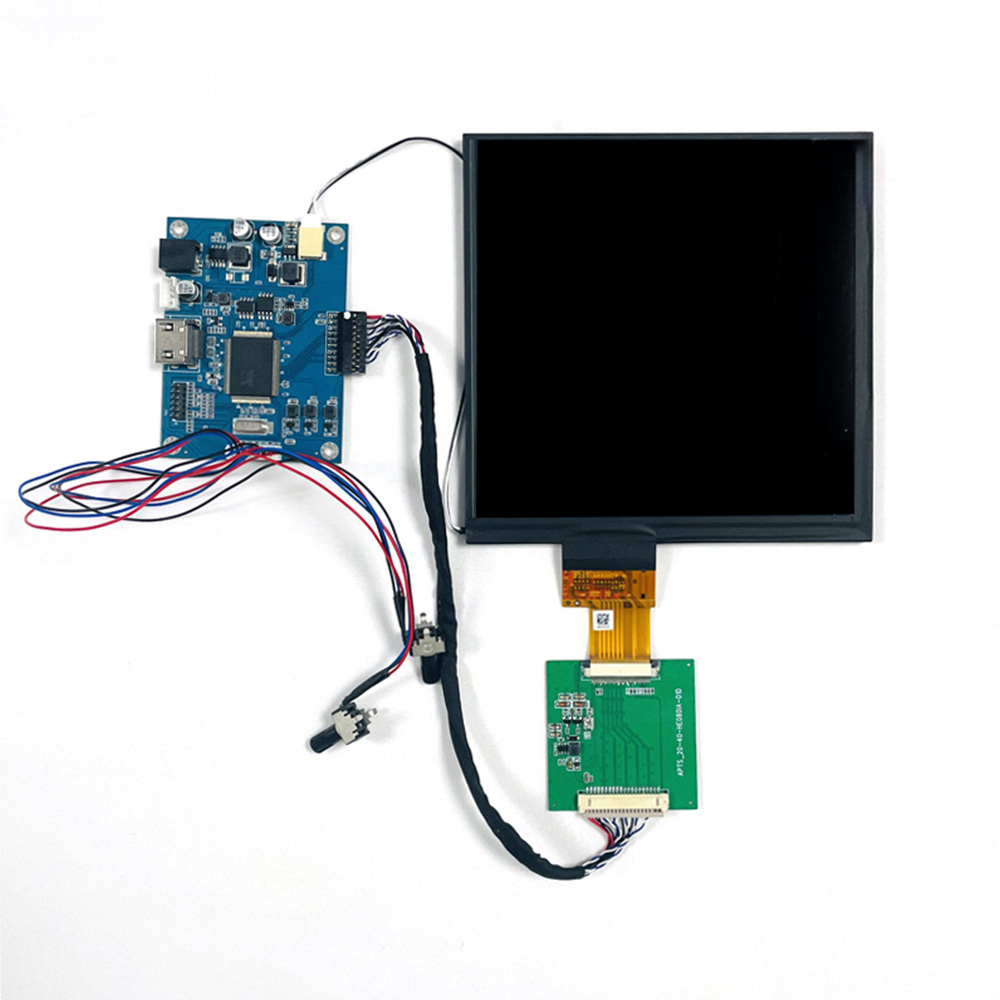

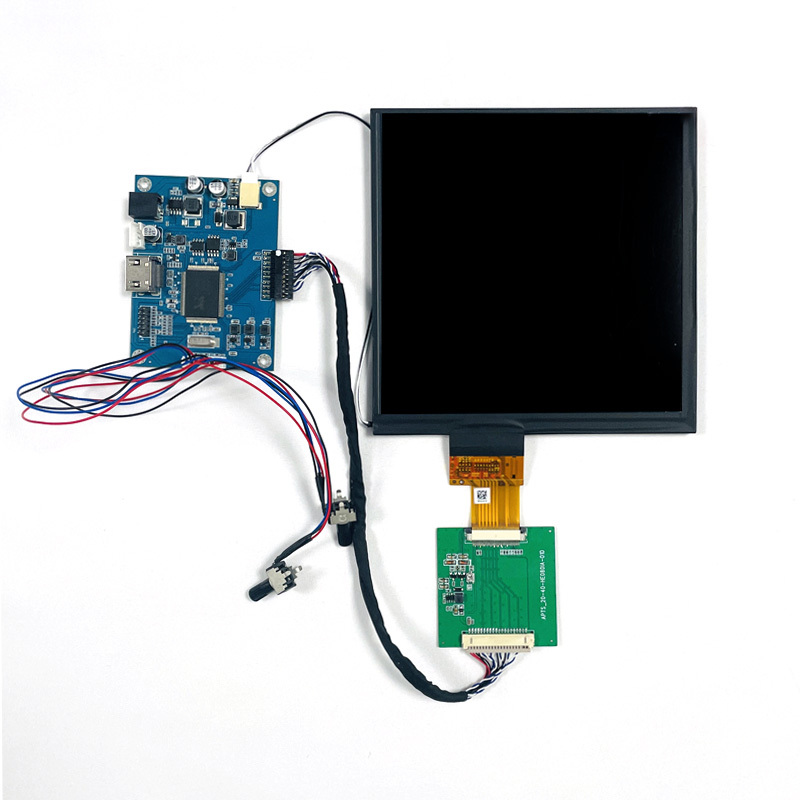

• Driver board support

These options allow system integrators to tailor the display for specific cockpit and industrial applications.

FAQ

Q1: Is this display suitable for flight simulator cockpits?
Yes, it is specifically designed for cockpit panels and aviation simulation systems.

Q2: Can it display real-time data smoothly?
Yes, the LVDS interface supports stable high-speed data transmission.

Q3: Is the square format beneficial?
Yes, it improves layout efficiency and matches cockpit instrument design.

Q4: Can it be customized?
Yes, customization options include touch integration and interface adjustments.

Contact Us for Flight Simulator LCD Solutions

If you are developing or upgrading a flight simulator system and are looking for a reliable LCD display module for avionics simulation or cockpit instrumentation, we welcome you to contact us.

Our team can assist with:

• Technical documentation review

• Sample evaluation

• Application suitability assessment

• Long-term project support
