►Size : 6.22 inch
►Resolution : 720 x 720 dots6.22-inch 720×720 square LCD module with high brightness and wide viewing angles. Ideal for flight simulator displays and industrial applications. Explore stable, high-performance display solutions from Aptus Display. Contact us for specs and pricing.

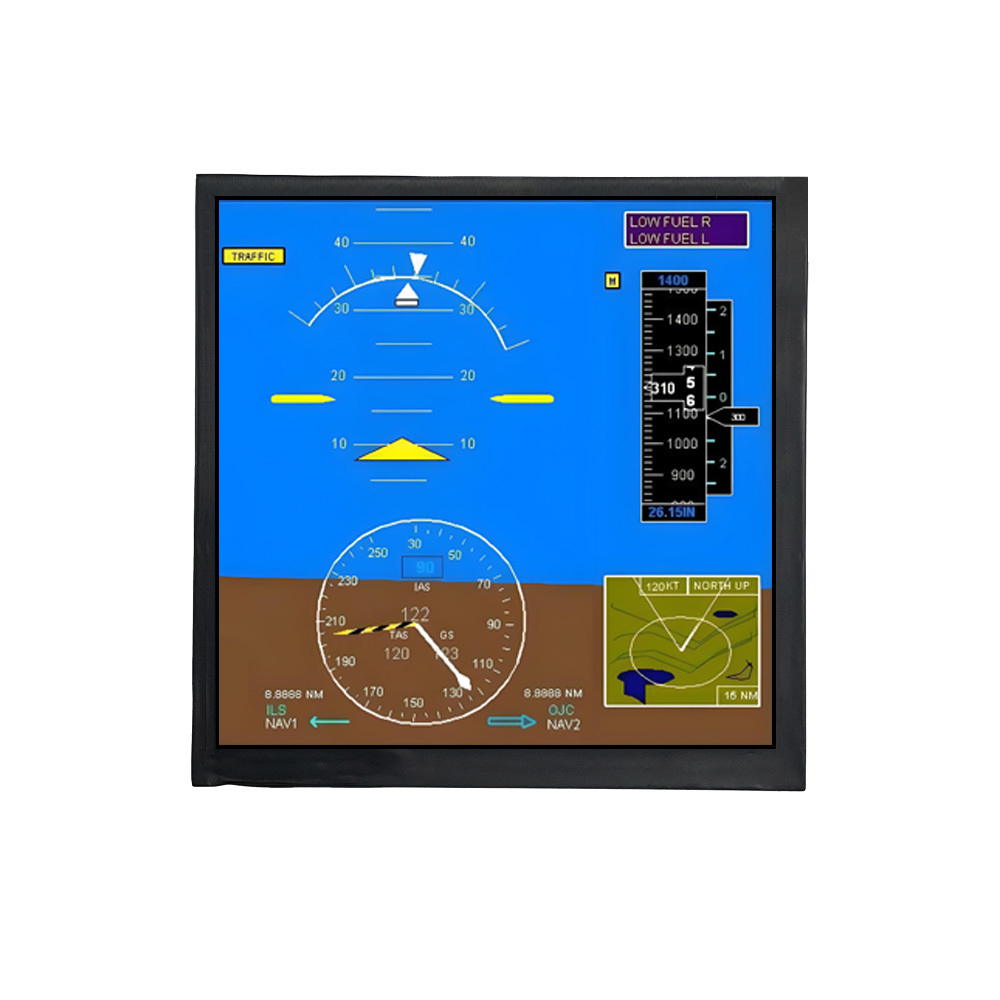

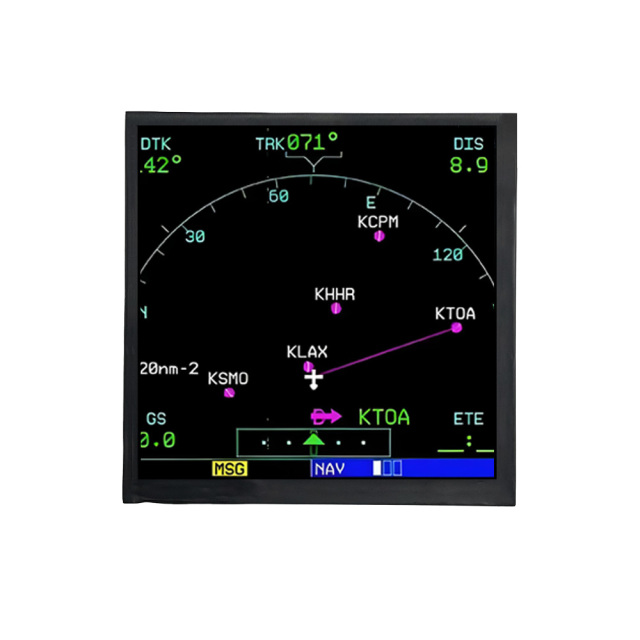

The 6.22-inch 720×720 square TFT LCD module is specifically engineered for flight simulator cockpit systems and aviation instrument displays, where precision visualization and stable performance are essential.
With a 1:1 square aspect ratio, LVDS 60-pin interface, and 500 cd/m² brightness, this display module enables accurate rendering of cockpit instruments, navigation data, and real-time simulation graphics. Its structure is optimized for integration into simulator dashboards, control panels, and embedded avionics systems.
Unlike conventional rectangular displays, this square LCD module provides better space utilization and more natural alignment for aviation instruments, significantly improving cockpit realism and usability.
Flight simulation environments require displays that deliver consistent performance under continuous operation. This module is designed to meet those requirements, making it ideal for:
Flight simulator cockpit panels
Glass cockpit displays (PFD / MFD)
Digital instrument clusters
Navigation and altitude indicators
Engine monitoring systems
UAV and mission control interfaces
The 720×720 resolution ensures sufficient detail for complex graphical elements, allowing accurate visualization of flight data and system parameters.
Many aircraft instruments are circular or square in layout. A square LCD allows developers to render these interfaces without distortion or unused space.
Flight simulators aim to replicate real cockpit environments. The square format enables accurate reproduction of avionics displays, improving immersion and training effectiveness.
In multi-display cockpit setups, square modules allow better alignment and modular arrangement, simplifying panel design and system integration.
This display module is designed to deliver reliable performance in simulator environments:
720×720 resolution for detailed instrument rendering
LVDS 60-pin interface for stable and high-speed signal transmission
500 nits brightness for clear visibility in cockpit environments
Wide viewing angle technology for consistent image quality
Normally Black display mode for improved contrast
Anti-glare surface treatment for reduced reflections
Industrial-grade design for long-term operation
| Item | Specification |
|---|---|

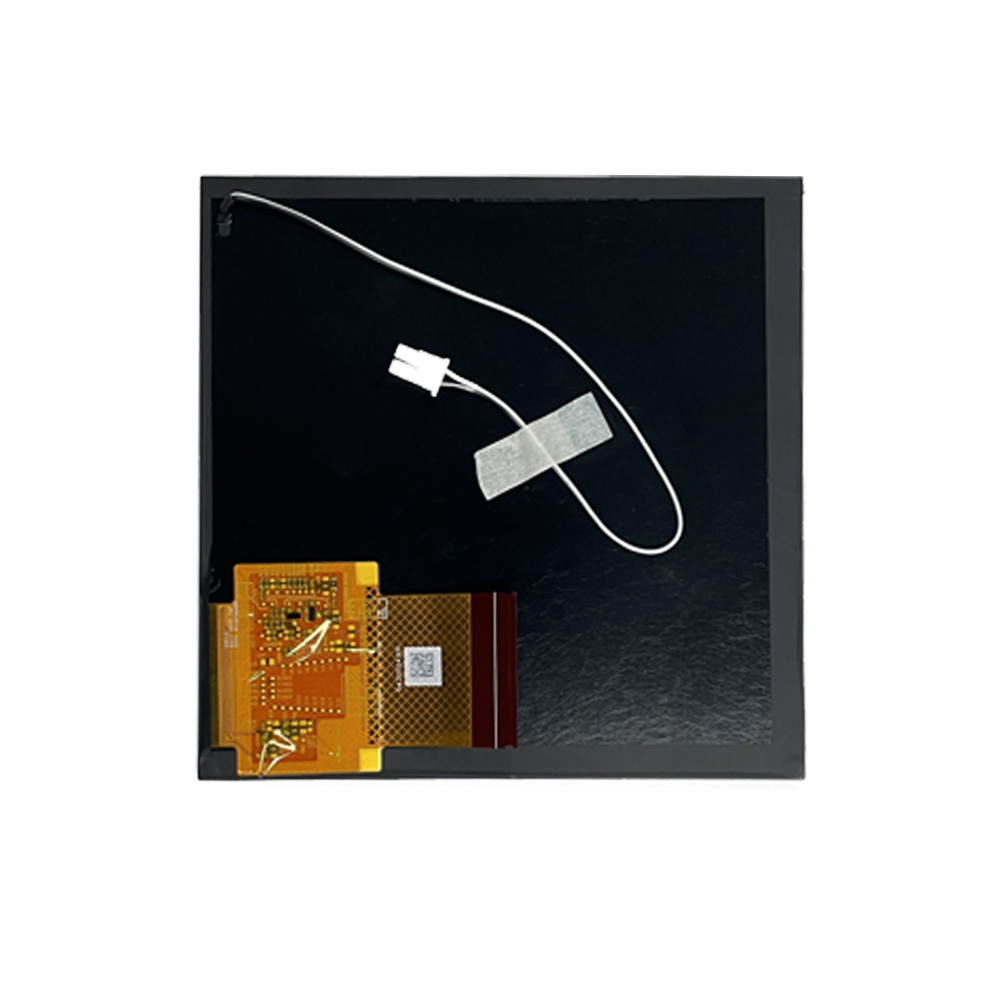

| Model Number | DBC062AEN60L050A |
| Screen Size | 6.22 inch |
| Resolution | 720 × 720 |
| Display Type | TFT LCD |
| Interface | LVDS, 60-pin |
| Brightness | 500 cd/m² |
| Active Area | 111.78 × 111.78 mm |
| Outline Dimensions | 126x126x7mm |
| Operating Temperature | -30°C to +85°C |
This LCD module is designed for seamless integration into simulator hardware and embedded platforms. The LVDS interface supports high-speed data transmission with low signal interference, making it suitable for real-time cockpit visualization.
It can be integrated into:
Embedded controller systems
FPGA-based simulator platforms
Industrial control boards
Custom cockpit panel hardware
The 60-pin LVDS interface ensures compatibility with standard display driver boards, simplifying system design and reducing development time.
The display maintains consistent brightness and color performance, ensuring reliable readability during long simulation sessions.
The panel ensures clear visibility from multiple viewing positions, which is important in training environments where multiple users interact with the system.
With 500 nits brightness, the display provides a balance between clarity and power efficiency, making it suitable for indoor cockpit environments.
To support different flight simulator projects, we provide:
Capacitive touch panel integration
Custom GG5 cover glass
Optical bonding for enhanced contrast
Interface customization (LVDS / HDMI conversion)
Brightness adjustment

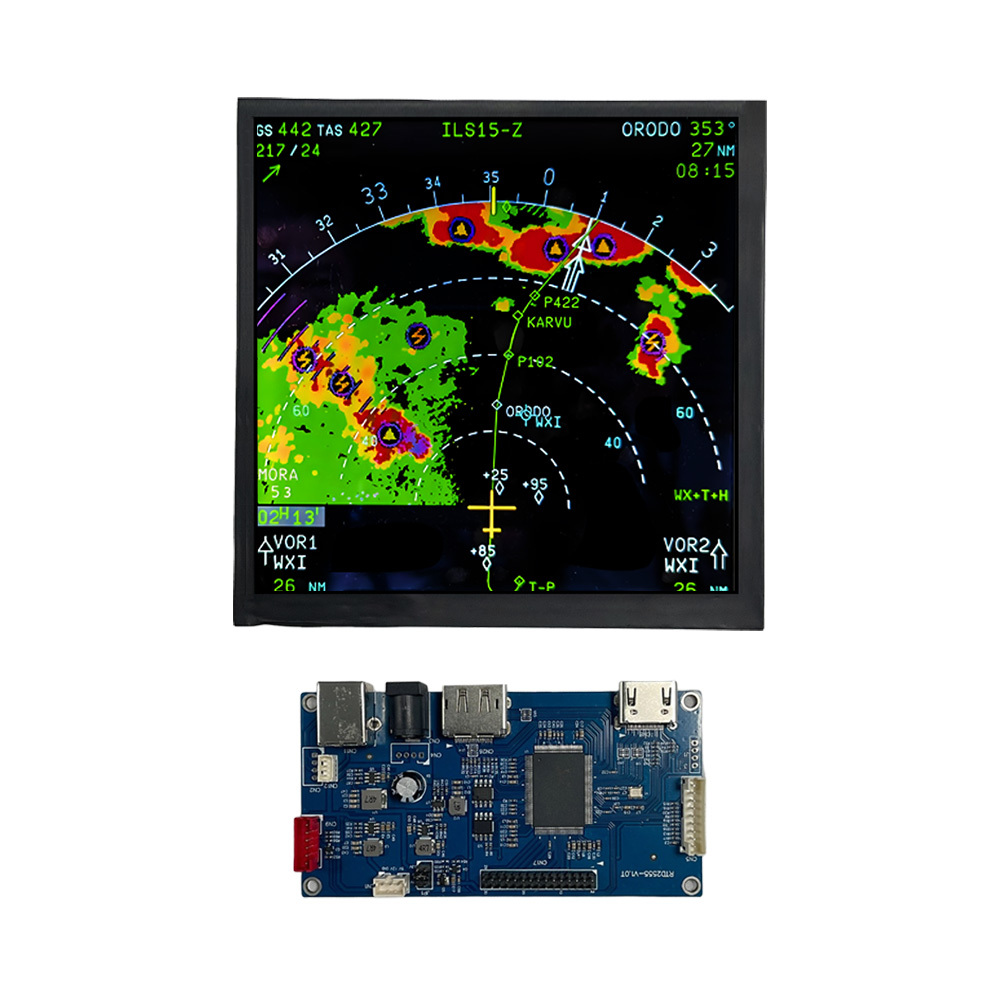

Driver board support
These options allow system integrators to adapt the display for specific cockpit designs and simulation requirements.
Q1: Is this display suitable for flight simulator cockpit panels?
Yes, it is specifically designed for cockpit displays and aviation simulation systems.
Q2: Can it display real-time flight data smoothly?
Yes, the LVDS interface supports stable high-speed data transmission for dynamic graphical content.
Q3: Is the square format beneficial for cockpit design?
Yes, it allows accurate rendering of aviation instruments and improves panel layout efficiency.
Q4: Can this module be customized?
Yes, customization options include touch integration, cover glass, and interface solutions.
If you are developing or upgrading a flight simulator system and are looking for a reliable LCD display module for avionics simulation or cockpit instrumentation, we welcome you to contact us.
Our team can assist with:
Technical documentation review
Sample evaluation
Application suitability assessment
Long-term project support
