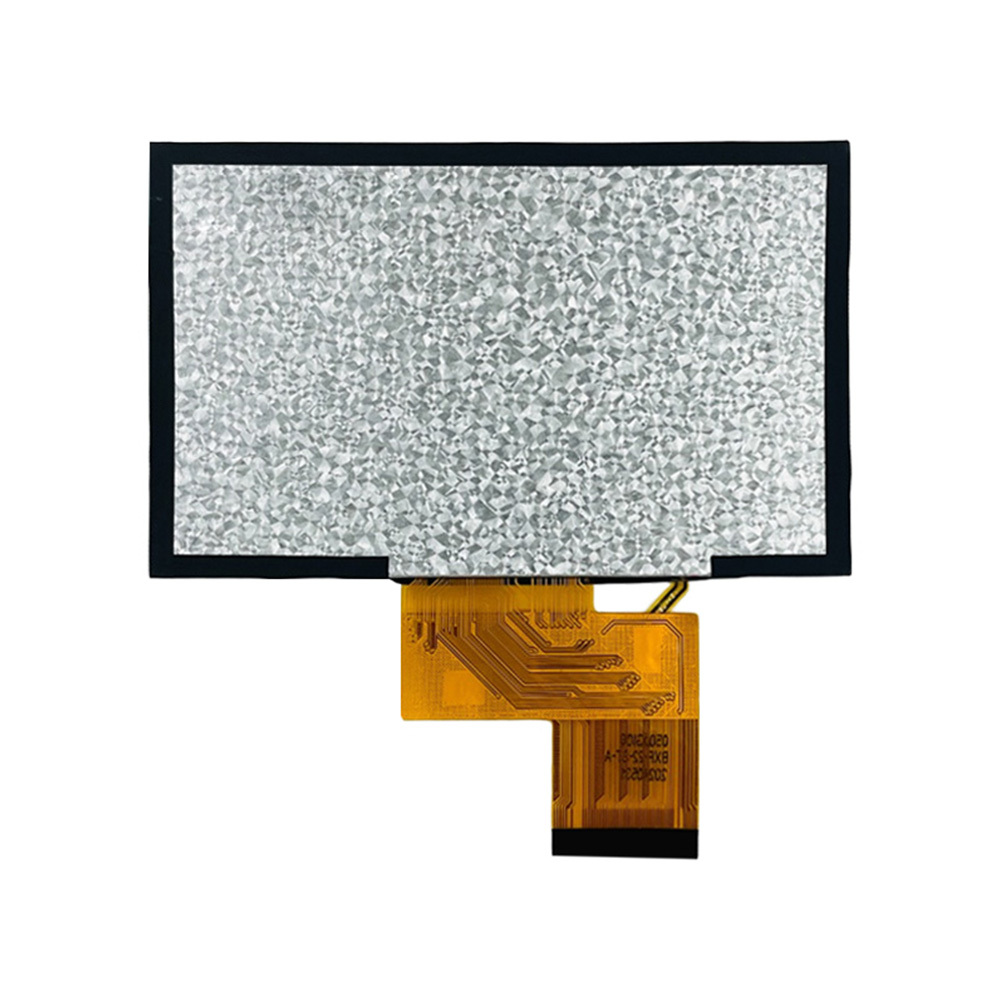

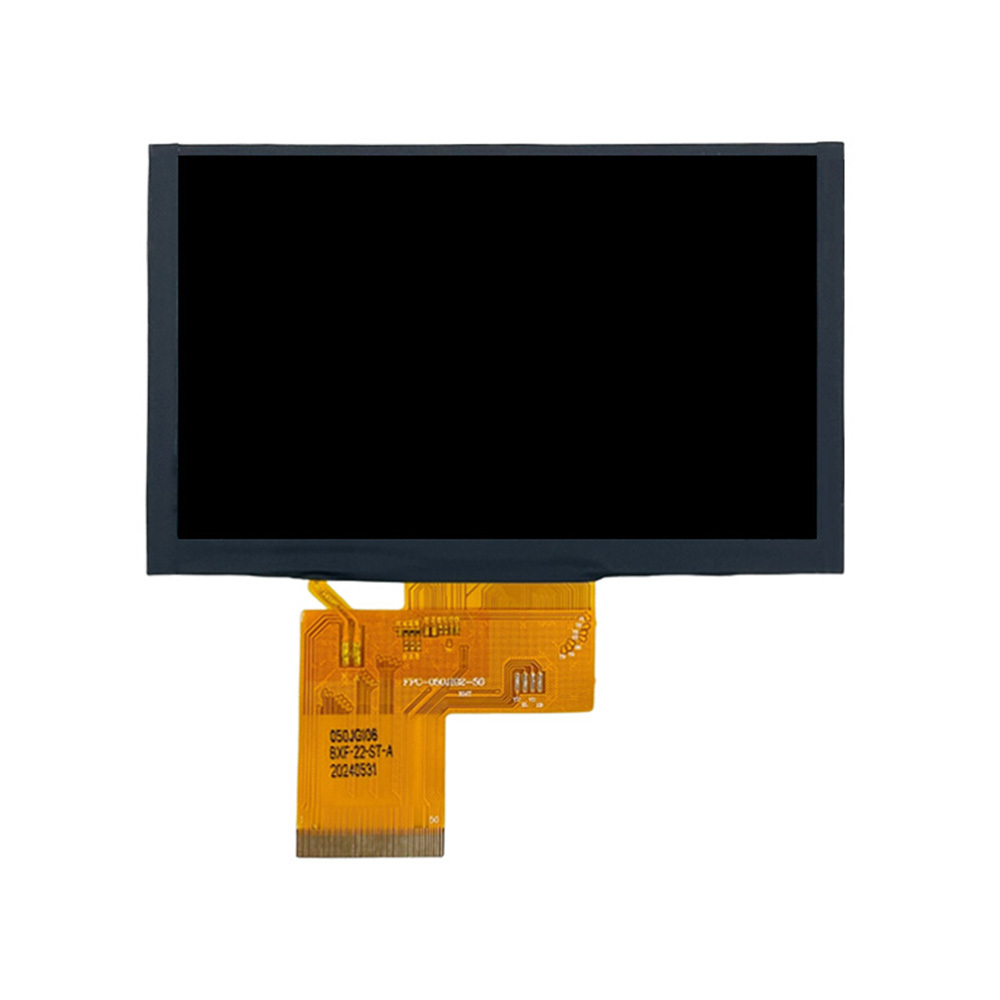

The 5-inch 800×480 50-Pin RGB 600 nit TFT LCD module is a professional industrial display designed for embedded control, machine interface, and industrial monitoring applications. Built for demanding environments, it combines reliable performance, functional clarity, and a rugged operating range. With a working temperature of -20°C to +70°C and a storage temperature of -30°C to +80°C, this module is capable of handling variations in ambient conditions while maintaining stable visual output.
This display module is engineered to meet the needs of engineers and system designers looking for consistent visibility, efficient integration, and dependable performance in industrial automation and embedded control equipment. It is not intended for vehicle, medical, or consumer electronics applications, but rather for precision display needs in professional and industrial settings.
| Specification | Details |
|---|---|
| Display Size | 5.0 inches |
| Resolution | 800 × 480 |
| Interface | 50-Pin RGB |
| Active Area | 108.0 × 64.8 mm |
| Pixel Pitch | 0.135 × 0.135 mm |
| Display Colors | 16.7M Colors (6bit + FRC) |
| Brightness | 600 nits (typical) |
| Contrast Ratio | 800:1 (typical) |
| Viewing Angle | 85° / 85° / 85° / 85° (L/R/U/D) |
| Response Time | 25 ms (typical) |
| Backlight | LED backlight |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Power Supply | Standard RGB panel voltage |
By placing this parameter table at the top, system integrators and engineers can quickly evaluate the module against project requirements for industrial embedded systems.
The 800×480 resolution provides a balance between visual clarity and processing efficiency. In industrial control panels and operator interfaces, this resolution is sufficient for:
Displaying status information and system messages
Rendering numerical data and alert indicators
Supporting simple menu structures and control graphics
This practical resolution also ensures the display is not overly taxing on embedded processors, keeping system costs and complexity down.
With 600 nits of brightness, this TFT LCD module delivers strong visibility even in industrial environments with bright ambient lighting, such as:
Factory production lines with overhead lighting
Control rooms with mixed lighting conditions
Embedded panels near windows or bright indoor zones
High brightness reduces glare and ensures operators can reliably read data and status indicators from different viewing positions.
The optical design supports wide viewing angles, maintaining consistent color and contrast whether viewed straight on or at off-angles. This is essential when machines are monitored by multiple operators or when screens are embedded in control cabinets.
The 50-Pin RGB interface simplifies signal integration with embedded systems and industrial controllers. Its advantages include:
Fast and reliable parallel data transmission
Compatibility with many industrial processor families
Strong signal integrity even in electrically noisy environments
Ease of wiring and layout during hardware design
This interface choice makes the module a robust option for engineers working with legacy systems and modern embedded hardware alike.
This 5-inch display module is particularly well suited for industrial embedded scenarios, including but not limited to:
Embedded panels installed on machines and equipment where operators interact with the control logic.
Screens used for displaying live system metrics, sensor readings, and status summaries in industrial environments.
Displays integrated into industrial equipment, PLC interfaces, and automation hardware that require continuity and stability.
Panels in production lines, warehousing systems, and industrial process controls where reliable visualization is paramount.
Unlike consumer displays, this module is built for functionality, durability, and integration ease.
To ensure a successful deployment of this LCD module in industrial applications, several integration factors should be considered:
Use firm and vibration-resistant fixtures to mount the panel securely in the machine chassis or control cabinet.
Regulated and filtered power sources ensure consistent luminance and prevent flicker or brightness fluctuations.
Proper shielding and grounding of the RGB signal lines mitigate noise in electrically crowded industrial environments.
Although the module tolerates broad temperature ranges, ensuring adequate airflow or heat dissipation around embedded enclosures contributes to long-term stability.
By addressing these integration details early, engineers can ensure reliable and long-lasting display performance.
Aptus Display applies strict quality control standards to every module:
Pixel uniformity and visual inspection
Electrical and signal integrity testing
Brightness and contrast verification
Environmental and thermal cycling validation
Long-term operational stress testing
These quality assurance steps ensure that the 5-inch 800×480 LCD module performs reliably over time in demanding industrial settings.
Aptus Display is a reputable provider of industrial LCD modules and embedded display solutions. Our focus is on delivering components that perform reliably under challenging conditions, with an emphasis on stability, integration compatibility, and long-term availability.
We support engineers, system integrators, and manufacturers with a comprehensive range of display products tailored to industrial, embedded, and professional applications. Our products are backed by strong technical support and customization capabilities.

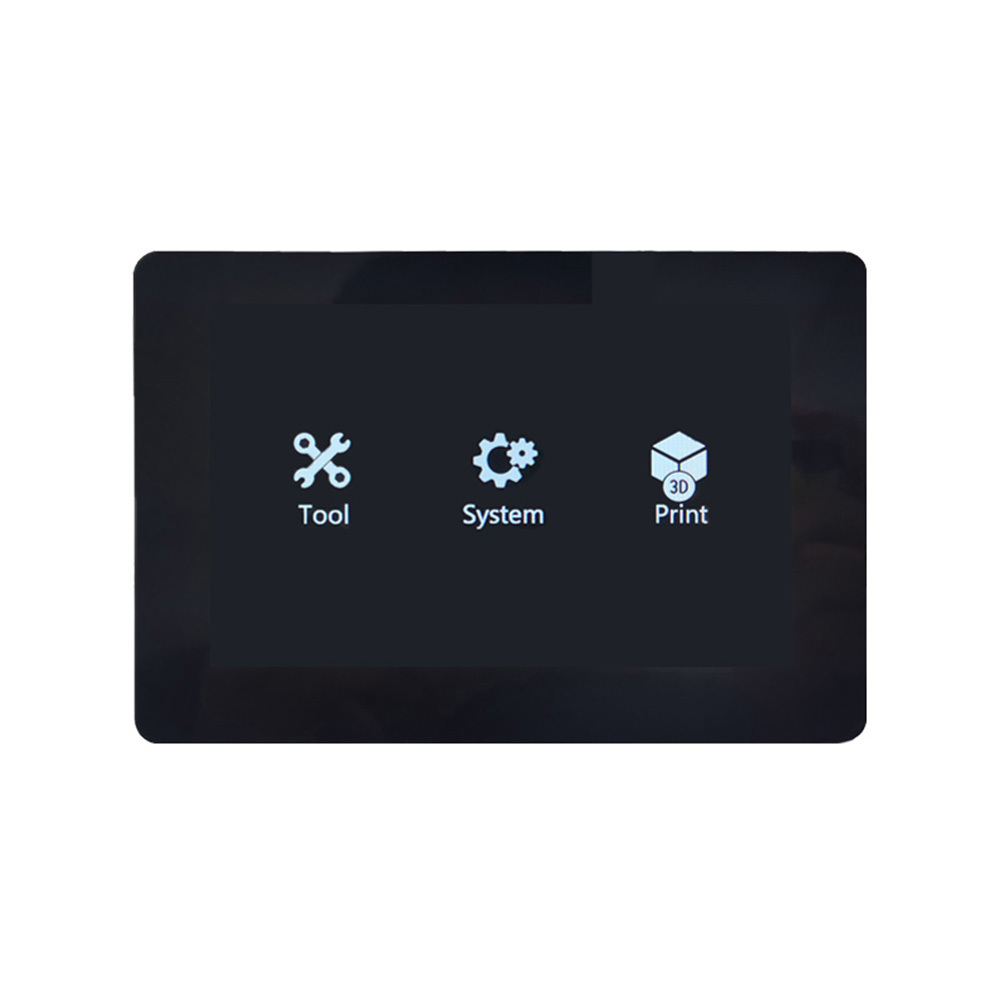

We offer tailored display options including brightness levels, interface adaptations, mechanical adjustments, and optional touch integration to meet specific project needs.
Our engineering team provides guidance on electrical integration, signal routing, mechanical design considerations, and display optimization.
From initial design collaboration to volume production, we work closely with customers to deliver displays that meet their technical and timeline requirements.
We help manage long-term product availability and support for industrial deployments to ensure continuity of supply.
For the 5-inch 800×480 50-Pin RGB 600 nit TFT LCD module — a reliable solution for industrial embedded displays — Aptus Display offers technical support, customization services, and dependable product supply.
Contact our sales and engineering team today to discuss your requirements, explore customization possibilities, and find the best display solution for your industrial application.
