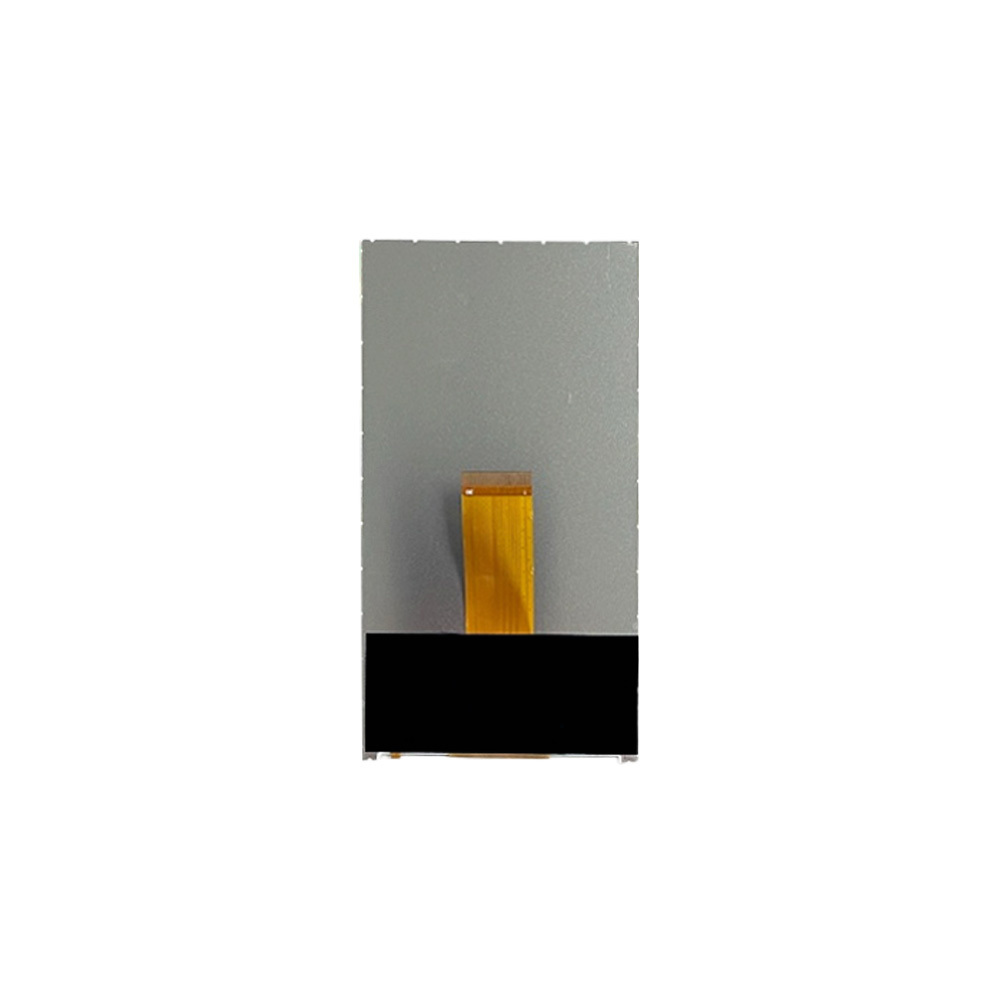

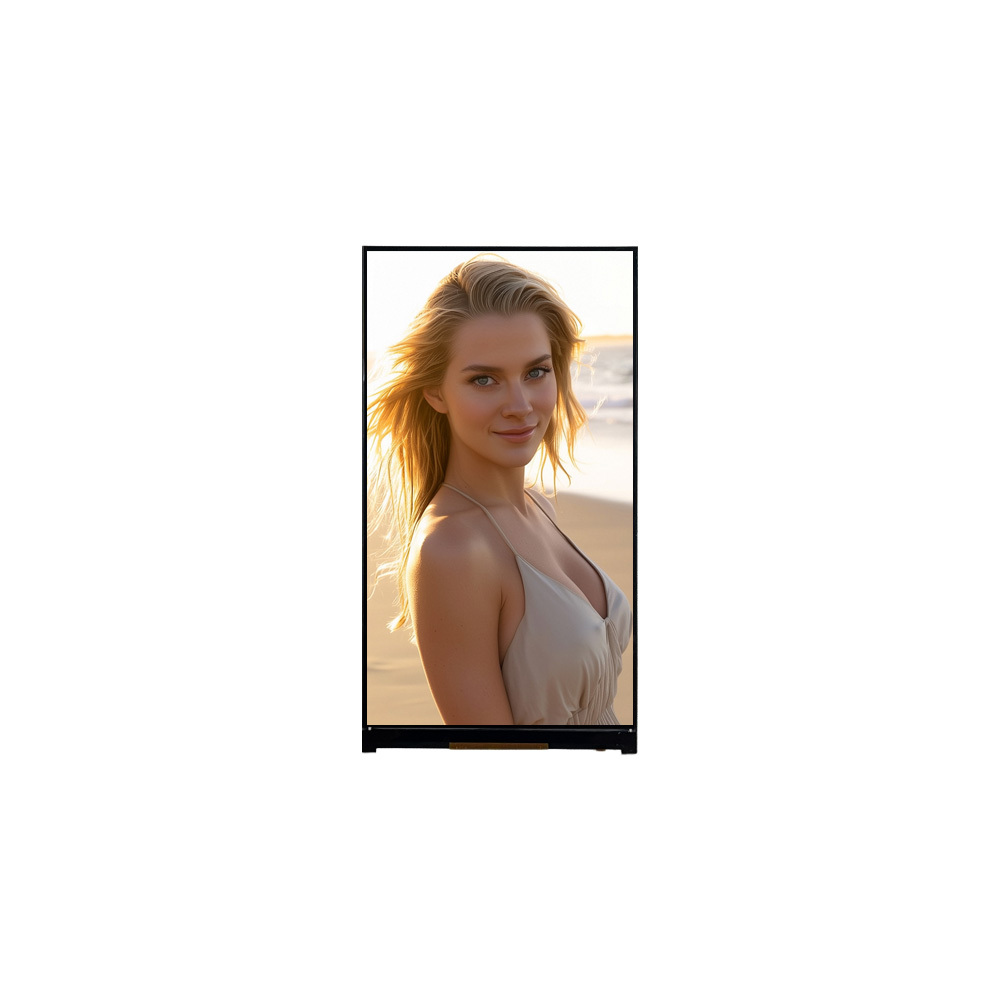

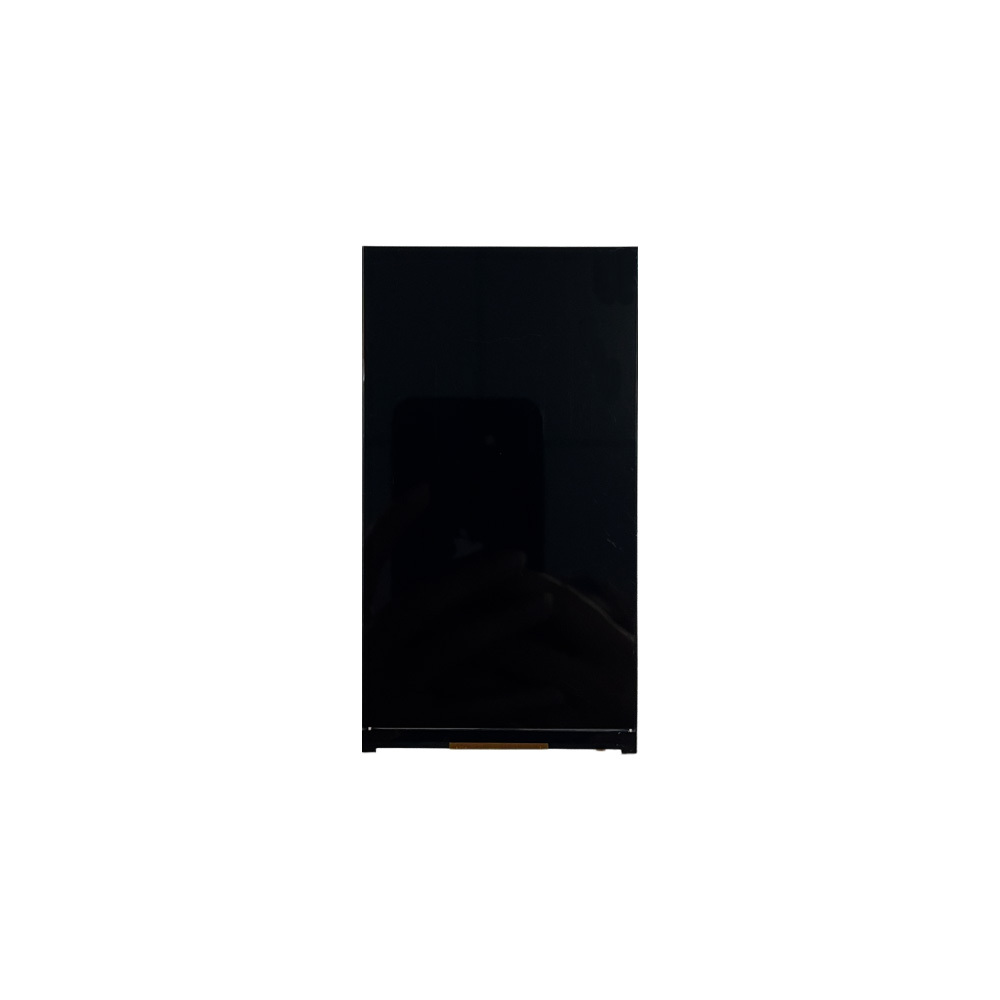

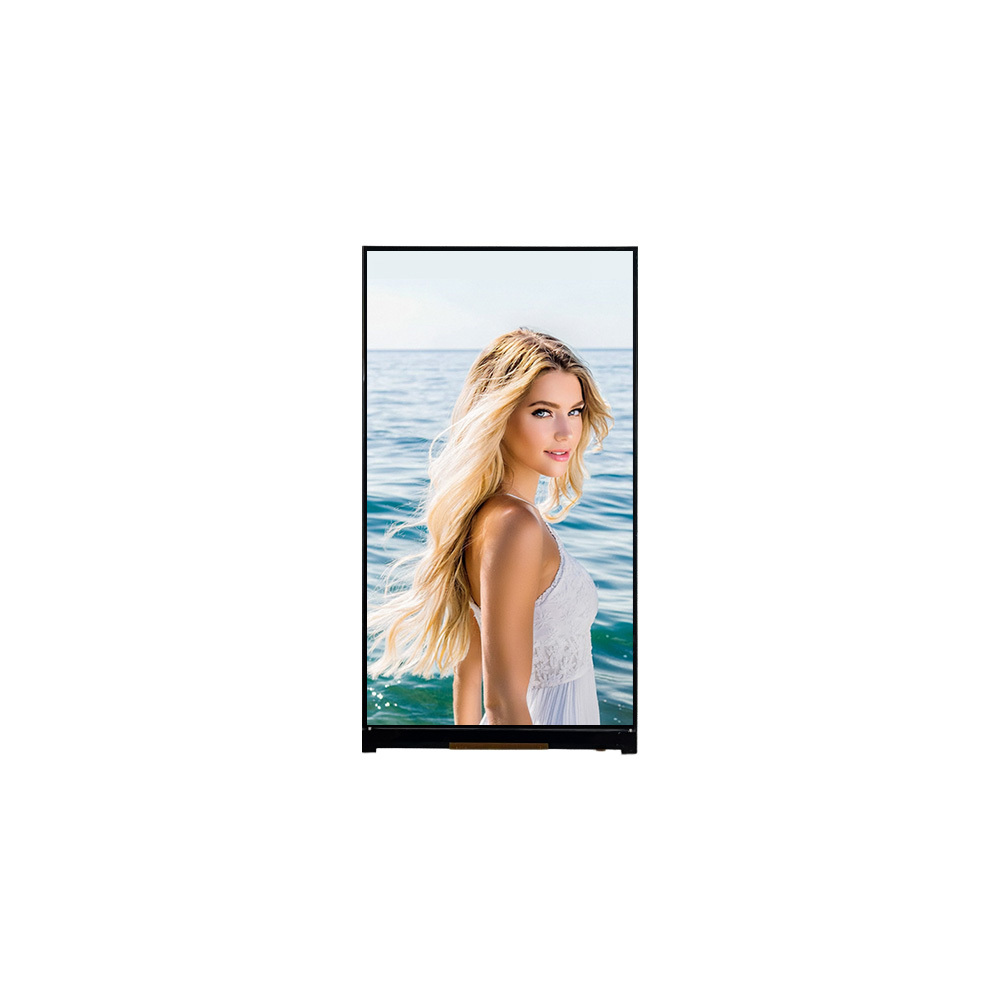

The 5-inch 480×854 In-Cell Touch Panel 30-PIN MIPI LCD Module is a compact, slim, and integrated display solution designed for embedded equipment, industrial HMI systems, smart control panels, IoT devices, instrumentation, and customized OEM/ODM products. Model DBT050CVC30M045A combines a 5-inch TFT LCD panel with integrated in-cell touch technology and a 30-pin MIPI interface in an approximately 64.70 × 118.70 × 2.22 mm module. The display provides 480 × 854 resolution, a portrait-oriented viewing format, 450 cd/m² brightness, and an operating temperature range of -20°C to +70°C.
The key advantage of an in-cell touch LCD is that the touch sensing function is integrated into the display structure rather than relying on a separate touch layer. This helps reduce the overall module thickness and can simplify mechanical integration. With a module thickness of approximately 2.22 mm, this 5-inch display is particularly suitable for compact products where available installation space is limited.
The MIPI interface also makes this module suitable for embedded platforms that support MIPI display output, including applications requiring a compact high-speed digital display interface.
The 5-inch diagonal format provides a useful balance between viewing area and compact mechanical dimensions.
Compared with larger 7-inch or 10.1-inch displays, a 5-inch LCD can be easier to integrate into handheld equipment, compact control terminals, smart devices, instrumentation, and embedded products.
The module dimensions are approximately 64.70 × 118.70 × 2.22 mm, while the active display area is approximately 61.78 × 109.91 mm. These dimensions should be considered when designing the enclosure, mounting bracket, FPC routing, and front-panel structure.
The display provides 480 × 854 pixels in a portrait-oriented format.
This resolution is suitable for graphical user interfaces that require menus, icons, numerical values, status information, operating instructions, and touch controls.
For compact embedded products, 480×854 can provide a practical balance between image information, processor requirements, display size, and system cost.
One of the most important characteristics of this module is its in-cell touch panel.
Traditional touch LCD modules may use an additional touch layer placed above the LCD panel. In-cell technology integrates the touch sensing function into the display structure, which can reduce the overall thickness of the module.
For product designers, this can provide several benefits:
The integrated approach is particularly useful for products where both display performance and mechanical thickness are important.
The module uses a 30-pin MIPI interface according to Aptus Display's product catalogue and model specification. MIPI is widely used in embedded display systems because it provides a compact digital interface with relatively low connector and PCB routing requirements compared with some traditional parallel interfaces.
Engineers should confirm the exact MIPI lane configuration, timing parameters, voltage requirements, pin assignment, initialization sequence, and host-controller compatibility with Aptus before final PCB design.
The product catalogue specifies 450 cd/m² brightness, making this configuration suitable for many indoor and controlled-light embedded applications.
For applications exposed to direct sunlight, brightness should be evaluated together with optical bonding, anti-reflection treatment, cover glass, ambient light conditions, and system thermal design. A 450 cd/m² display should not automatically be classified as a sunlight-readable outdoor display.
The module is specified for an operating temperature range of -20°C to +70°C. This makes it suitable for a broader range of equipment environments than displays designed exclusively for normal room-temperature applications.
For applications requiring operation below -20°C or above +70°C, customers should request a wide-temperature display solution specifically designed for the required environment.
| Parameter | Specification |
|---|---|
| Product Name | 5 Inch 480×854 In-Cell Touch Panel MIPI LCD Module |
| Model Number | DBT050CVC30M045A |
| Display Size | 5.0 inch |
| Resolution | 480 × 854 pixels |
| Display Type | TFT LCD |
| Touch Technology | In-Cell Touch |
| Interface | MIPI |
| Interface Pins | 30 PIN |
| Brightness | 450 cd/m² |
| Active Area | 61.78 × 109.91 mm |
| Module Dimensions | 64.70 × 118.70 × 2.22 mm |
| Viewing Angle | 80° / 80° / 80° / 80° |
| Display Orientation | Portrait |
| Backlight | White LED |
| Display Mode | Transmissive |
| Operating Temperature | -20°C to +70°C |
| Compliance | RoHS |
| Touch Integration | In-cell |
| Customization | Touch, cover glass, FPC/pin-out, driver board |
| Typical Applications | HMI, industrial equipment, smart controls, IoT, embedded systems |
The above table consolidates the model and core parameters shown in Aptus Display's product page and TFT LCD catalogue. Because the product page currently contains inconsistent brightness/interface information in different sections, customers should request the latest engineering datasheet before mass production.
For compact embedded products, display thickness can directly influence the mechanical structure of the final product.
A conventional LCD plus separate touch panel may require additional layers, adhesive, mechanical clearance, and assembly processes. An in-cell touch LCD module integrates the touch function into the display architecture, allowing the overall module to remain relatively thin.
For the DBT050CVC30M045A, the module thickness is approximately 2.22 mm.
This can be particularly beneficial for:
Another important advantage is integration. Instead of designing the LCD and touch panel as completely independent components, product engineers can work with a more integrated display assembly.
The 5-inch 480×854 touch LCD is suitable for compact human-machine interface applications where users need to monitor information and control equipment through a graphical interface.
Potential applications include:
The portrait format can be used for vertically arranged menus, parameter lists, status information, and touch buttons.
The compact display format makes this module suitable for smart home control interfaces.
Manufacturers can use the display for:
The integrated touch panel allows the same hardware interface to support multiple functions through software.
IoT products often require a small display to provide users with local status information while keeping the overall device compact.
The 5-inch module can display:
The MIPI interface can also be useful when the host processor is based on an embedded platform designed for MIPI display connectivity.
Portable measurement and testing equipment can benefit from a slim touch display.
Potential applications include:
The 2.22 mm module thickness can help engineers maintain a slimmer product enclosure.
The display can also be integrated into customized commercial equipment requiring an interactive user interface.
Examples include compact terminals, access-control equipment, information interfaces, smart service equipment, and other specialized OEM products.
Final suitability should always be evaluated according to brightness, environmental conditions, touch requirements, mechanical structure, and system interface compatibility.
Before integrating this 5-inch MIPI LCD into a new hardware platform, engineers should verify several technical factors.
Confirm that the host processor or display controller supports the required MIPI interface.
The engineering team should verify:
The 30-pin designation alone does not guarantee electrical compatibility between two MIPI LCD modules.
The module dimensions are approximately 64.70 × 118.70 × 2.22 mm, with an active area of 61.78 × 109.91 mm.
Engineers should also reserve sufficient space for the FPC bending radius and connector position.
The standard catalogue specification is 450 cd/m².
For indoor equipment, this brightness may provide an appropriate balance between readability and power consumption.
For outdoor applications, however, engineers should evaluate:
If the application requires high outdoor readability, Aptus can evaluate higher-brightness alternatives.
Aptus Display provides both standard LCD modules and customized display solutions. Its touch-panel LCD portfolio includes different sizes, resolutions, interfaces, touch technologies, and brightness configurations.
For the 5-inch 480×854 platform, customization can be discussed according to the project requirements.
Potential customization services include:
For OEM and ODM projects, customers should provide the intended enclosure dimensions, host processor, display interface, brightness requirement, operating temperature, touch requirements, expected annual quantity, and target application.
This information allows the engineering team to determine whether the standard module can be used directly or whether a semi-custom or fully customized LCD solution would provide better integration.
Shenzhen Aptus Technology Co., Ltd. is an LCD display manufacturer and supplier providing TFT LCD modules, touch panel LCD modules, customized display solutions, wide-temperature displays, flight simulator displays, LCD accessories, and related display integration services.
Aptus Display's product portfolio covers a broad range of LCD sizes and interface technologies, including RGB, LVDS, MIPI and other display configurations. Its touch-panel LCD category includes compact displays designed for embedded, industrial, commercial, and customized applications.
For customers developing new equipment, Aptus supports standard product selection as well as OEM/ODM customization. The company states that its technical services include hardware integration support, driver design, reference layouts, FPC and mechanical customization, environmental testing, sampling, and volume production support.
This engineering-oriented approach allows customers to evaluate a standard LCD module during the prototype stage and then discuss customized configurations when moving toward production.
Choosing an LCD supplier for an OEM project requires more than comparing unit prices. Long-term supply consistency, engineering support, customization capability, communication efficiency, and product quality are also important.
Aptus Display provides:
Standard and customized LCD modules
Customers can select existing modules or discuss modifications based on project requirements.
Touch-panel integration
Aptus supports in-cell and capacitive touch solutions for different embedded applications.
Engineering support
Technical assistance is available for hardware integration, driver design, reference layouts, and display configuration.
Flexible production support
The company supports sample orders as well as scalable production for qualified projects.
Global customer support
Aptus serves customers requiring display modules for different international markets and OEM applications.
The DBT050CVC30M045A provides a 480×854 pixel resolution in a portrait-oriented 5-inch display format.
This model uses in-cell touch technology, meaning the touch sensing function is integrated into the LCD structure rather than being implemented as a completely separate touch layer.
The product model is specified with a 30-pin MIPI interface in Aptus Display's TFT LCD catalogue. Customers should confirm the detailed MIPI configuration and pin definition before integration.
The published module dimensions are approximately 64.70 × 118.70 × 2.22 mm, making it suitable for compact equipment requiring a slim display architecture.
The Aptus Display TFT LCD catalogue lists the standard DBT050CVC30M045A configuration at 450 cd/m².
Because another section of the current product page contains a different brightness figure, customers should confirm the latest datasheet before placing a production order.
The published operating temperature is -20°C to +70°C.
The 450 cd/m² version can be evaluated for bright indoor or controlled outdoor environments, but it should not automatically be considered a sunlight-readable display. Direct-sunlight applications may require higher brightness, optical bonding, anti-reflection treatment, and appropriate thermal design.
Yes. Aptus provides customization options including touch solutions, cover glass, mechanical layouts, FPC pin-outs, and driver-board solutions.
Aptus states that it supports sample orders and scalable volume production. Customers can contact the company to confirm sample availability, lead time, MOQ, and production requirements.
If you are developing an embedded product that requires a 5-inch 480×854 In-Cell Touch LCD with a 30-pin MIPI interface, Aptus Display can help evaluate the standard DBT050CVC30M045A or recommend a customized display configuration.
