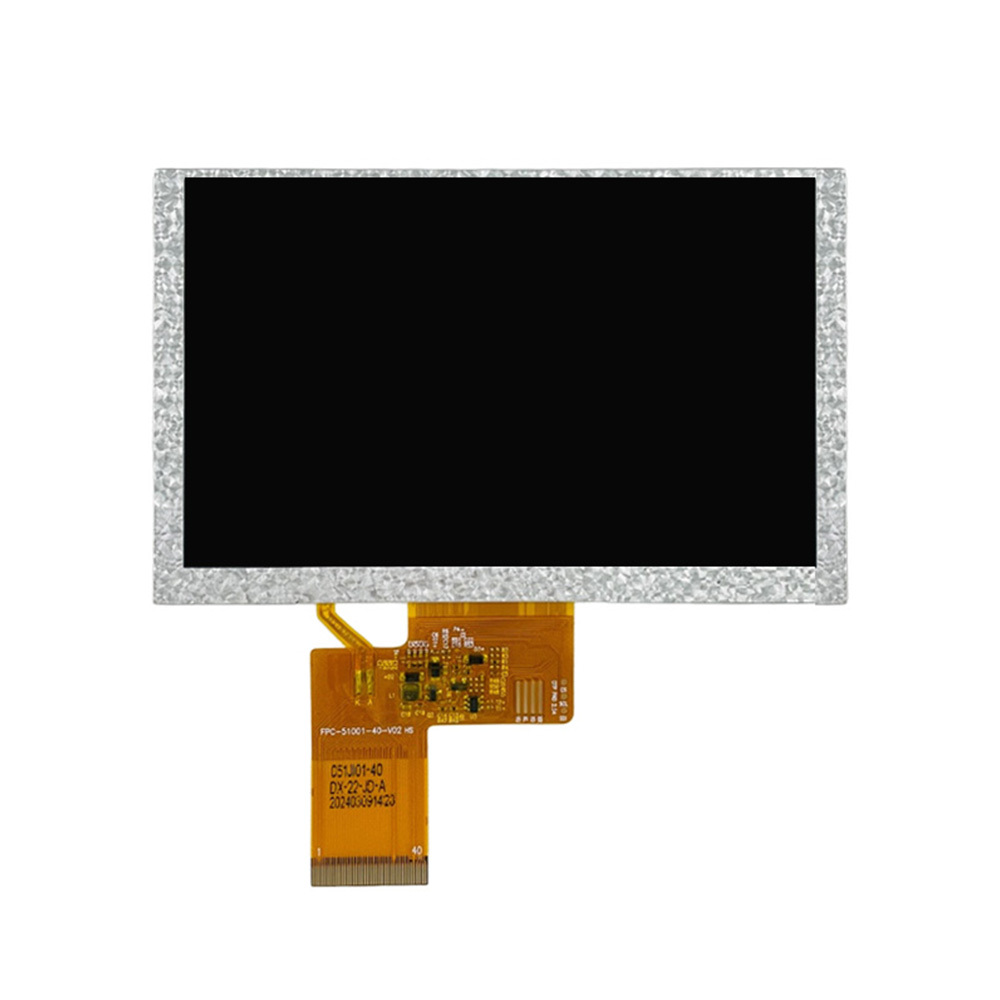

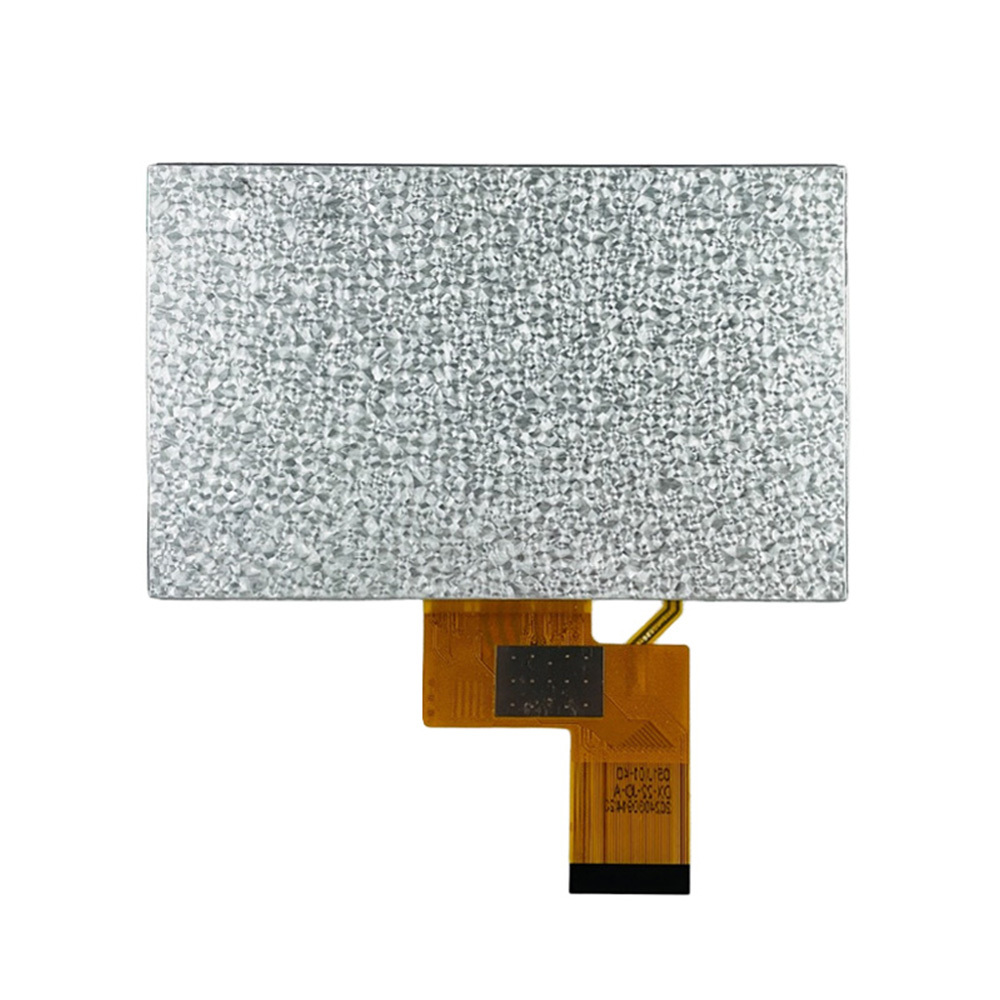

The 5-inch 1024×600 40-Pin RGB TFT LCD module is engineered for industrial embedded and control applications, delivering high brightness, reliable performance, and stable operation. With a working temperature range of -20°C to +70°C and storage temperature range of -30°C to +80°C, this module is suitable for indoor industrial environments such as factory automation, machine monitoring, and operator control panels.
Designed specifically for industrial embedded systems, the 800 nit high-brightness TFT display ensures clear visual feedback, accurate color representation, and consistent operation. The 40-Pin RGB interface provides straightforward integration with industrial controllers and embedded platforms, guaranteeing reliable and stable signal transmission.
| Specification | Details |
|---|---|
| Display Size | 5 inches |
| Resolution | 1024 × 600 |
| Interface | 40-Pin RGB |
| Active Area | 110.4 × 63.6 mm |
| Pixel Pitch | 0.1078 × 0.106 mm |
| Display Colors | 16.7M Colors (8-bit) |
| Brightness | 800 nits |
| Contrast Ratio | 800:1 (typical) |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Response Time | 25 ms (typical) |
| Backlight | High brightness LED |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Power Supply | Standard RGB panel voltage |
Presenting technical specifications first helps engineers and integrators quickly determine if this module fits their industrial embedded application needs.
This 5-inch module provides 1024×600 resolution, delivering functional clarity for industrial operator interfaces and embedded dashboards:
High readability for machine control panels and industrial dashboards
Efficient display of system indicators, status messages, and real-time data
Optimal pixel density for embedded controllers, ensuring smooth performance
Designed to maintain consistent visibility and reliability in industrial settings
The combination of high brightness, RGB interface stability, and industrial operating range ensures dependable operation across factory floors and embedded control systems.
The 40-Pin RGB interface enables:
High-speed, stable signal transmission for industrial embedded applications
Reduced electromagnetic interference (EMI) in electrically noisy environments
Simplified integration compared to legacy parallel interfaces
Compatibility with a wide range of industrial controllers and embedded processors
This ensures consistent image quality and reliable operation in professional industrial systems.
With 800 nits of LED backlight, this module delivers:
Clear visibility in industrial indoor environments with strong lighting
High contrast for easy interpretation of operational and machine data
Wide viewing angles to accommodate multiple operators or monitoring stations
Stable brightness for continuous operation in industrial applications
These properties ensure that operators can quickly and accurately interact with embedded systems.
The module’s -20°C to +70°C operating range ensures:
Reliable operation in cold or warm indoor industrial environments
Continuous performance during long-term operation
Stability and durability for professional embedded operator interfaces
The -30°C to +80°C storage range also ensures safe handling and transport before installation.
The 5-inch 1024×600 RGB TFT module is ideal for industrial embedded applications, excluding automotive, medical, and consumer electronics:
HMI Panels: Operator interfaces for machinery monitoring and control
Industrial Monitoring Systems: Visual feedback for production lines and embedded equipment
Embedded Equipment Displays: Integrated screens for industrial machines and controllers
Operator Dashboards: Industrial dashboards for factory automation systems
These applications leverage the module’s high brightness, stable RGB interface, and industrial operating range for dependable performance.
To ensure optimal performance:
Securely mount the module within enclosures to prevent vibration or mechanical stress.
Use regulated and filtered power to maintain consistent backlight and RGB signal performance.
Proper RGB cabling and grounding are essential to prevent interference in electrically active industrial environments.
Adequate airflow ensures stable performance and long-term backlight operation.
Aptus Display enforces rigorous industrial-grade quality control:
Pixel uniformity and visual inspection
Electrical interface and RGB signal testing
Brightness and contrast verification
Environmental testing across operating and storage temperatures
Long-term operational reliability assessments
These processes ensure durable and reliable performance for industrial embedded applications.
Aptus Display is a leading provider of industrial LCD modules and embedded display solutions. We focus on stable operation, integration readiness, and reliable performance for industrial and commercial embedded applications.
Our portfolio includes industrial-grade panels suitable for operator interfaces, embedded machine dashboards, and professional industrial displays, with long-term availability and technical support.
Tailored brightness adjustments, interface modifications, mechanical design adaptations, and optional touch integration.
Engineering guidance for RGB integration, signal optimization, power management, and display performance.
Custom solutions from design concept to production, aligned with project specifications and timelines.
Stable product availability and lifecycle management for long-term industrial deployment.
For the 5-inch 1024×600 40-Pin RGB 800 nit TFT LCD module, Aptus Display provides technical support, customization, and reliable supply for industrial embedded applications.
Contact our sales and engineering team today to discuss your requirements, explore customization options, and select the optimal industrial display solution.
