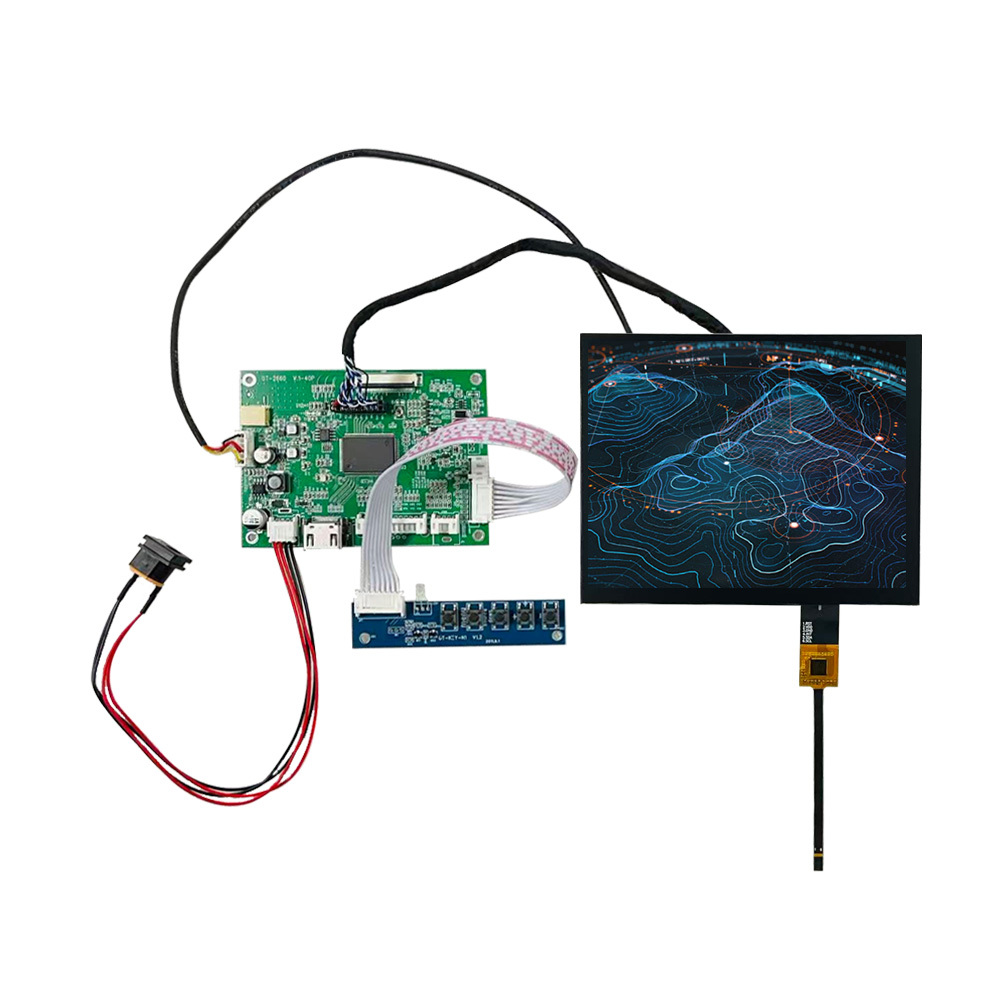

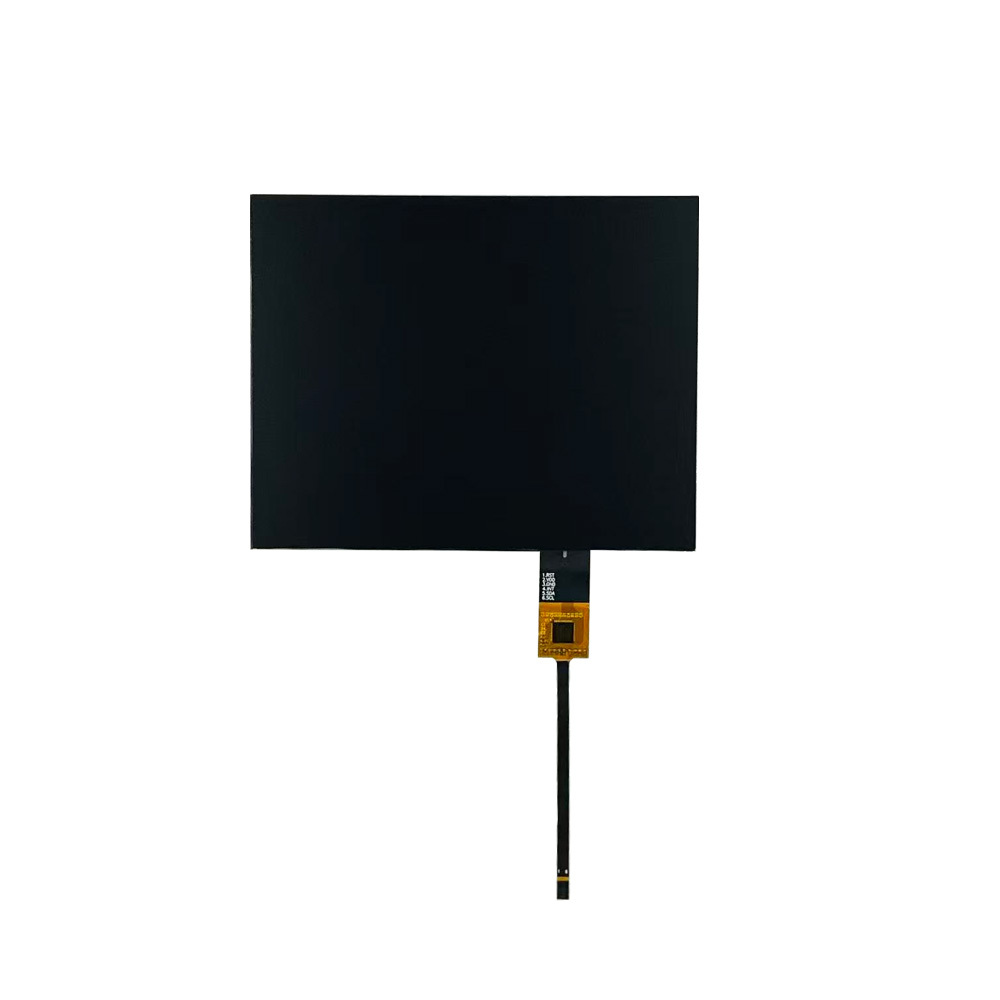

The 5.7-inch 640×480 Wide Temperature LVDS 20-Pin 400 nits CTP Touch LCD Module is a compact industrial display solution designed for equipment that requires reliable visual output, touch interaction, LVDS connectivity, and stable operation across a wide temperature range. Model DBT057BVC20L040A combines a 5.7-inch IPS TFT LCD, 640×480 VGA resolution, 20-pin LVDS interface, 400 cd/m² brightness, projected capacitive touch panel, and an operating temperature range of -30°C to +80°C. Its compact 126.5 × 100 × 7.3 mm module size makes it suitable for industrial control panels, embedded HMI systems, laboratory instruments, automation equipment, diagnostic devices, and professional monitoring terminals.
Industrial equipment often needs a display that can operate reliably for long periods while remaining easy for operators to read and interact with. Unlike consumer-oriented displays, industrial LCD modules need to be evaluated not only by screen size and resolution but also by interface compatibility, temperature performance, mechanical dimensions, brightness, viewing angle, touch functionality, and long-term integration requirements.
The DBT057BVC20L040A is designed around these requirements. Its 5.7-inch form factor provides a practical balance between available front-panel space and information visibility. The 640×480 VGA resolution is particularly suitable for industrial interfaces that display numerical data, machine status, menus, measurement results, graphs, control buttons, and diagnostic information.
The display uses an IPS TFT panel with wide viewing performance. This is useful in industrial equipment because operators may view the display from different positions rather than always looking directly at the center of the panel.
The integrated projected capacitive touch panel (CTP) allows manufacturers to replace or reduce physical buttons and switches with a graphical user interface. This can simplify the front-panel design and allow software-based control functions to be updated without redesigning the complete mechanical interface.
Another major characteristic is the -30°C to +80°C operating temperature range. This wide-temperature capability makes the module appropriate for equipment exposed to cold environments, elevated operating temperatures, thermal fluctuations, or installations where environmental control is limited.
The 5.7-inch size is suitable for compact equipment where a larger commercial display would consume excessive enclosure space. The module provides enough screen area for control interfaces while maintaining a relatively compact mechanical footprint.
The published module dimensions are 126.5 × 100 × 7.3 mm, including the CTP configuration. Engineers can therefore evaluate the module during the early mechanical design stage and determine whether it can fit into an existing enclosure or new front-panel structure.
The 640×480 resolution is a practical choice for many industrial control and instrumentation applications.
It can clearly present:
Equipment status information
Numerical measurements
Control parameters
Warning messages
Graphs and simple waveforms
Menu interfaces
Machine operating conditions
Diagnostic information
Touch buttons and icons
For industrial equipment that does not require high-definition multimedia content, VGA resolution can provide an effective combination of image clarity, processing requirements, and system compatibility.
The IPS TFT configuration supports stable image presentation across different viewing directions. The product page specifies an 80°/80°/80°/80° viewing angle, making the display suitable for fixed-mounted equipment where operators may observe the screen from different positions.
For control cabinets, laboratory equipment, automation terminals, and production-line systems, wide viewing performance can improve usability without requiring the operator to stand directly in front of the display.
The module provides a typical brightness of 400 cd/m². This level is suitable for many indoor industrial environments, including workshops, laboratories, control rooms, equipment rooms, and production facilities.
When designing an outdoor or direct-sunlight application, engineers should evaluate the complete optical environment rather than selecting a display based only on brightness. Factors such as cover glass reflection, optical bonding, ambient light, viewing angle, and backlight performance can all influence readability.
Aptus Display can also evaluate higher-brightness configurations when a project requires improved visibility under stronger ambient illumination.
One of the most important characteristics of this product is its -30°C to +80°C operating temperature range, with a published storage temperature range of -30°C to +85°C.
This makes the module particularly relevant to equipment that may experience cold starts, elevated enclosure temperatures, or significant environmental temperature changes.
Typical examples include industrial automation equipment, outdoor-adjacent machinery, instrumentation, professional control terminals, and equipment installed in environments where HVAC conditions cannot always be guaranteed.

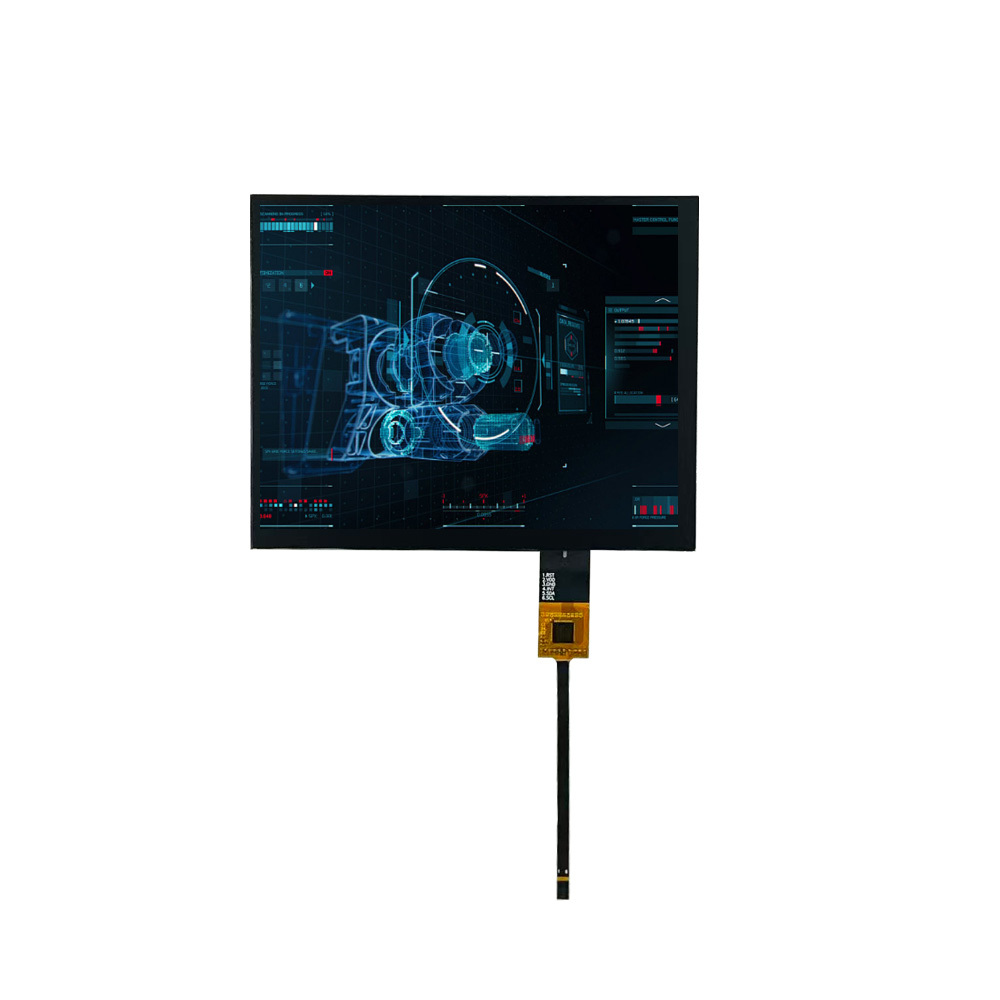

The integrated CTP touch panel provides a modern interactive interface for industrial equipment.
Operators can use touch controls to:
Change machine parameters
Select operating modes
Enter numerical values
Navigate menus
Confirm alarms
Monitor equipment status
Start or stop functions
Access diagnostic information
The product page identifies the touch technology as Projected Capacitive (CTP) and indicates optional I²C/USB touch interface configurations. For a specific project, the final touch controller, interface, firmware, cover glass, and electrical characteristics should be confirmed with Aptus Display.

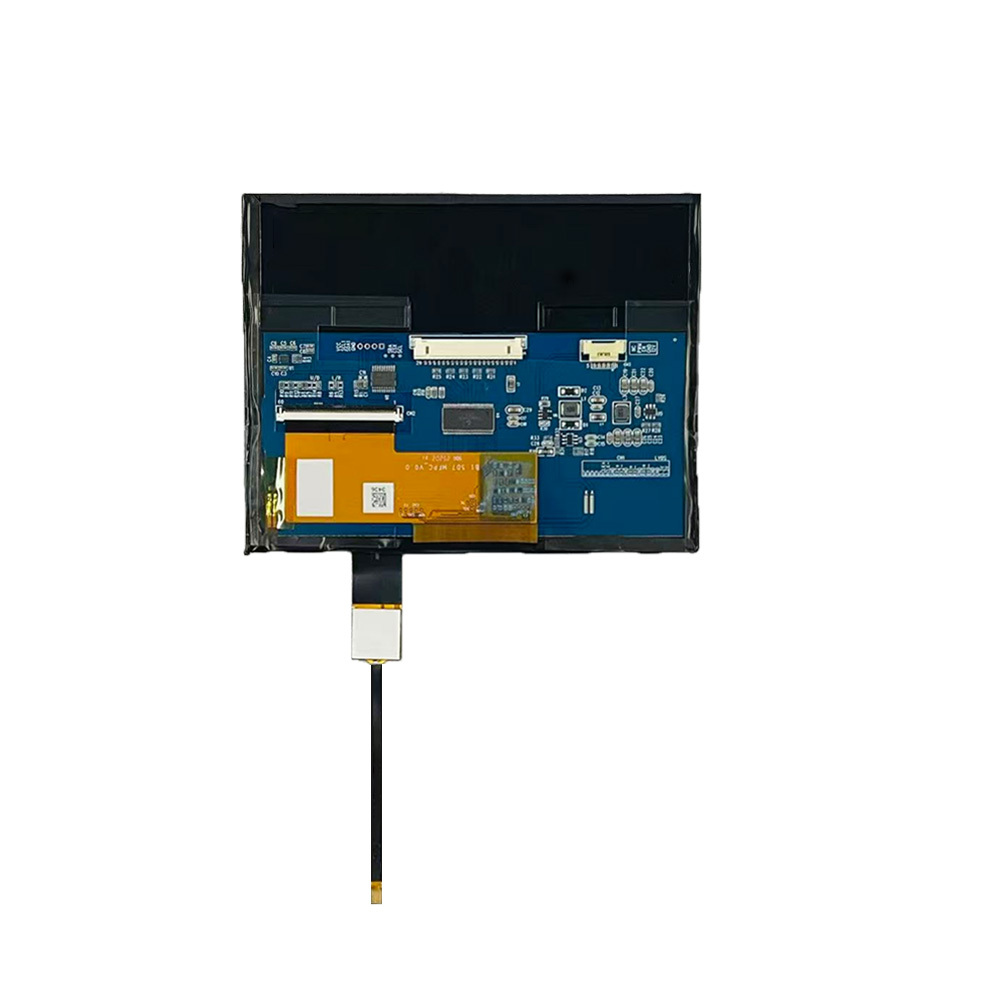

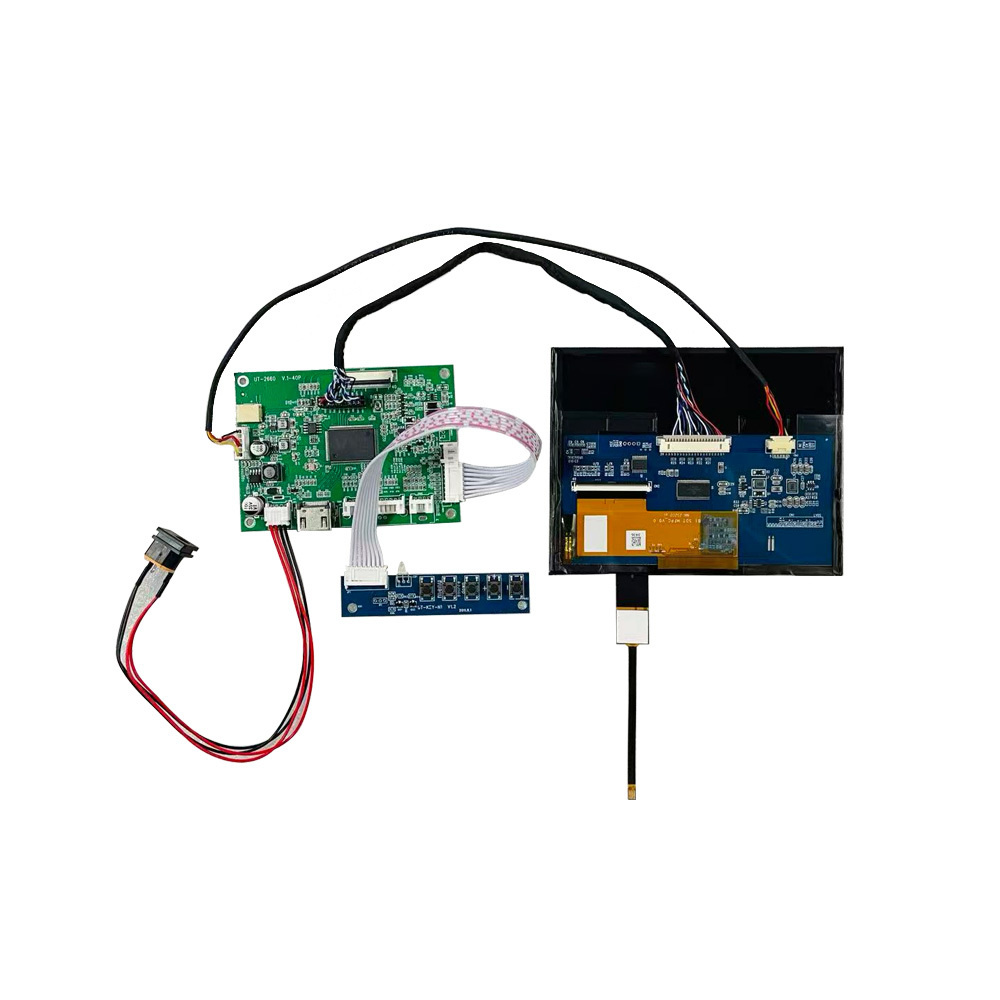

The 20-pin LVDS interface provides a digital connection between the LCD module and a compatible host system.
LVDS is widely used in industrial and embedded display systems because it provides a practical method of transmitting display data while supporting system architectures where signal integrity and electromagnetic compatibility are important considerations.
Before integration, engineers should verify the host controller's LVDS configuration, signal mapping, timing requirements, supply voltage, connector definition, and initialization parameters.
| Parameter | Specification |
|---|---|
| Model Number | DBT057BVC20L040A |
| Display Size | 5.7 inch |
| Resolution | 640 × 480 pixels |
| Resolution Type | VGA |
| Panel Type | IPS TFT |
| Display Mode | Transmissive |
| Color Depth | 16.7M colors |
| Active Area | 115.2 × 86.4 mm |
| Module Dimensions | 126.5 × 100 × 7.3 mm |
| Viewing Angle | 80° / 80° / 80° / 80° |
| Brightness | 400 cd/m² typical |
| Display Interface | LVDS |
| Connector | 20-pin LVDS |
| Touch Technology | Projected Capacitive Touch Panel (CTP) |
| Touch Interface | I²C / USB options |
| Backlight | LED |
| Logic Supply | 3.3V |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -30°C to +85°C |
| Pixel Arrangement | RGB Vertical Stripe |
| Application Positioning | Industrial / Embedded / Professional Equipment |
The specifications are based on the information published on the Aptus Display product page. For production integration, customers should confirm the latest datasheet, mechanical drawing, pin assignment, timing specification, touch controller configuration, and electrical characteristics with Aptus Display.
Automation systems require displays that can provide real-time machine information and allow operators to change parameters quickly. The DBT057BVC20L040A can be integrated into automation controllers, machine interfaces, production equipment, and automated processing systems.
The VGA resolution is sufficient for many industrial HMI layouts, while the CTP enables direct interaction with software menus.
The combination of a 5.7-inch display and capacitive touch panel makes this module suitable for compact HMI applications.
An equipment manufacturer can design a customized graphical interface containing machine status, alarms, process parameters, operating modes, and maintenance information.
The wide temperature range provides additional flexibility when the HMI is installed inside machinery or cabinets with varying internal temperatures.
Laboratory analyzers and testing equipment often require compact displays for presenting measurement results, operating menus, system status, and diagnostic information.
The IPS panel provides wide viewing performance, while the CTP allows operators to interact directly with the instrument.
The 640×480 resolution can effectively display numerical measurements, charts, status indicators, and configuration menus.
Potential applications include professional meters, monitoring instruments, test equipment, inspection systems, and specialized measurement devices.
Professional diagnostic systems often need a display that can show detailed test results and provide a straightforward interface for technicians.
The integrated CTP allows manufacturers to build software-driven menus and diagnostic workflows into the equipment without relying exclusively on physical controls.
Compact industrial terminals may have limited front-panel space. The 5.7-inch format allows manufacturers to provide a functional graphical interface without using a larger LCD.
The 126.5 × 100 mm module footprint can be evaluated for integration into customized equipment housings and control panels.
The module can also be considered for embedded systems where a processor or controller needs to output graphical information through LVDS.
Applications may include equipment monitoring, system controllers, automation dashboards, embedded instrumentation, and professional electronic devices.
Selecting an industrial touch LCD module involves more than matching screen size and resolution.
For the DBT057BVC20L040A, the first consideration should be LVDS compatibility. The host system must support the required LVDS configuration and electrical characteristics.
Mechanical integration is another important consideration. Engineers should verify the 126.5 × 100 × 7.3 mm overall dimensions, active display area, FPC routing, mounting structure, touch panel position, and enclosure tolerances before finalizing the product design.
Thermal design should also be considered. Although the display is specified for -30°C to +80°C operation, the actual temperature surrounding the LCD module should be evaluated under the final enclosure conditions. Heat generated by processors, backlight systems, power components, and other electronics can affect the internal temperature.
For touch applications, the complete touch stack should also be evaluated. Cover glass thickness, surface treatment, bonding method, touch controller, firmware, grounding, electromagnetic interference, and enclosure design can all influence touch performance.
For demanding industrial projects, Aptus Display can work with customers on touch sensitivity tuning, optical bonding, cover glass, brightness enhancement, interface modifications, and mechanical customization.
Different industrial products often require different display configurations. A standard LCD module may be a good starting point, but the final product may require modifications to meet mechanical, optical, electrical, or environmental requirements.
Aptus Display provides customization and engineering support covering areas such as:
Capacitive touch panel integration
Custom cover glass
Optical bonding
Brightness enhancement
Touch sensitivity optimization
Interface modification
Mechanical customization
FPC and connector customization
Engineering documentation
Prototype development
OEM/ODM support
Mass-production support
For customers developing a new industrial product, it is recommended to provide the display size, resolution, interface, required brightness, touch requirements, operating temperature, mechanical restrictions, estimated annual quantity, and application environment at the beginning of the project.
This information enables the display supplier to evaluate the most suitable configuration and identify potential integration issues before tooling and mass production.
Aptus Display, operated by Shenzhen Aptus Technology, provides TFT LCD modules, touch panel LCD solutions, wide-temperature displays, and customized display solutions for professional and embedded applications.
The company's product portfolio covers different display sizes, interfaces, brightness levels, touch technologies, and application requirements. Aptus also maintains dedicated product categories for Wide Temperature LCD Display and Touch Panel LCD Module, reflecting its focus on application-specific display solutions.
For OEM and ODM customers, Aptus Display supports the development process from display selection and engineering evaluation through sample development and production integration.
The company can also support customized solutions involving optical bonding, touch panel configuration, cover glass, brightness optimization, mechanical requirements, and interface modifications.
The DBT057BVC20L040A is particularly attractive when an industrial project requires several functions in one compact module:
Compact size: The 5.7-inch format is suitable for space-constrained industrial equipment.
Touch interaction: Integrated CTP enables a modern graphical user interface.
Wide temperature: -30°C to +80°C operation supports demanding environmental conditions.
LVDS connectivity: The 20-pin LVDS interface is suitable for compatible embedded and industrial controllers.
IPS viewing performance: Wide viewing angles support operation from different viewing positions.
Industrial brightness: 400 cd/m² provides practical visibility for many indoor industrial environments.
Customization: Aptus can evaluate touch, optical, mechanical, interface, and brightness requirements for OEM/ODM projects.
The DBT057BVC20L040A has a 640×480 pixel VGA resolution. This resolution is suitable for industrial HMIs, instrumentation, machine control interfaces, monitoring terminals, and other professional applications.
The module uses a 20-pin LVDS interface. Engineers should verify the exact pin assignment, timing parameters, electrical specifications, and host-controller compatibility before integration.
The published operating temperature range is -30°C to +80°C, while the storage temperature range is -30°C to +85°C. This makes the module suitable for a variety of industrial environments with significant temperature variation.
Yes. The DBT057BVC20L040A integrates a projected capacitive touch panel (CTP). The published information also indicates I²C/USB touch interface options, subject to project configuration.
The 400 cd/m² version is primarily appropriate for indoor and moderate ambient-light environments. Direct sunlight applications may require higher brightness and additional optical measures such as anti-reflective treatment or optical bonding. Aptus Display can evaluate a higher-brightness solution based on the application environment.
Yes. Aptus Display offers customization options including optical bonding, higher brightness, customized cover glass, touch sensitivity tuning, interface modification, and mechanical adjustments.
The published overall dimensions are 126.5 × 100 × 7.3 mm, while the active display area is 115.2 × 86.4 mm. Engineers should use the latest mechanical drawing for final enclosure design.
Typical applications include industrial control terminals, automation equipment, HMI systems, laboratory analyzers, diagnostic devices, inspection equipment, metering equipment, embedded monitoring systems, and professional instrumentation.
If you are developing an industrial HMI, automation controller, laboratory instrument, measurement device, diagnostic system, or embedded control terminal, the 5.7-inch 640×480 Wide Temperature LVDS 20-Pin CTP Touch LCD Module can provide a practical combination of compact size, touch interaction, LVDS connectivity, wide viewing performance, and extended temperature operation.
When requesting a quotation or sample, it is recommended to provide:
Required LCD size
Resolution
LVDS interface requirements
Touch panel requirements
Brightness requirement
Operating and storage temperature
Mechanical dimensions
Cover glass requirements
Estimated order quantity
Target application
Aptus Display can then evaluate the standard DBT057BVC20L040A configuration or recommend a customized LCD solution for the project.
The DBT057BVC20L040A 5.7-inch 640×480 Wide Temperature LVDS 20-Pin 400 nits CTP Touch LCD Module is designed for professional equipment that requires reliable visual information and direct touch interaction in a compact form factor.
Its combination of 640×480 VGA resolution, IPS TFT technology, 400 cd/m² brightness, 20-pin LVDS interface, projected capacitive touch, and -30°C to +80°C operating temperature makes it well suited to industrial HMIs, automation equipment, instrumentation, laboratory devices, diagnostic equipment, and embedded control systems.
For projects requiring different brightness, touch structure, cover glass, optical bonding, mechanical dimensions, or interface configurations, Aptus Display can evaluate customized solutions based on the final product requirements.
