The DBT057BVN20L050A is a reliable 5.7-inch VGA TFT LCD module engineered for industrial and instrumentation applications, featuring 640×480 resolution, LVDS 20PIN interface, 500 cd/m² brightness, and wide temperature operation from –30°C to +80°C (storage –30°C to +85°C). This display delivers consistent clarity, thermal stability, and signal integrity for embedded systems that must function reliably in variable or uncontrolled industrial settings.
Industrial controllers, monitoring terminals, and precision equipment demand displays that resist environmental stress while providing accurate visual data for operators and processes. The DBT057BVN20L050A meets these requirements with its IPS TFT panel for uniform viewing, long-life LED backlight for 24/7 duty, and LVDS interface for robust, low-interference transmission over extended distances or in EMI-heavy environments.
Aptus develops this module with a focus on long-term industrial deployment, offering structural durability, consistent optical performance, and compatibility with common embedded controllers. Its compact form factor and wide-temperature capability make it suitable for integration into production dashboards, laboratory analyzers, metering devices, and automated test setups where downtime is not an option.
| Parameter | Specification |
|---|---|
| Model Name | DBT057BVN20L050A |
| Display Size | 5.7 inch (diagonal) |
| Resolution | 640 × 480 (VGA) |
| Active Area | 115.2 × 86.4 mm |

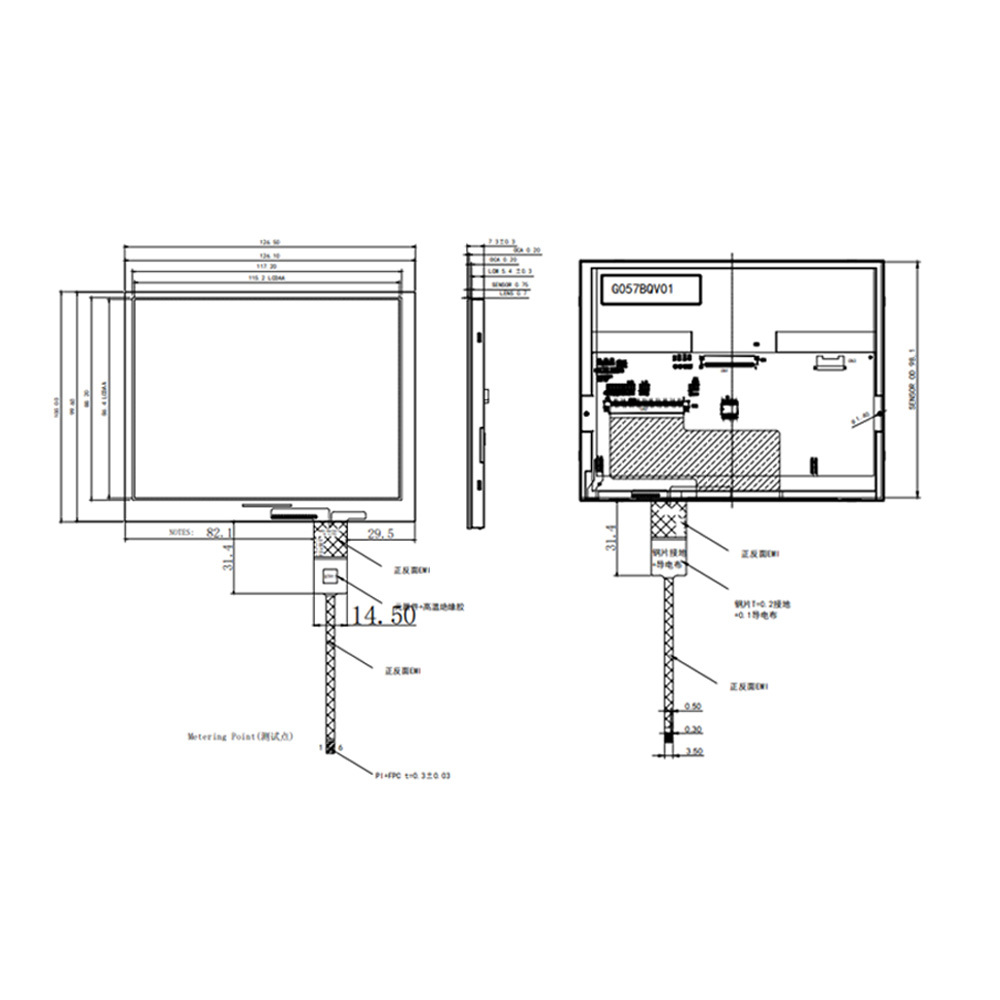

| Outline Dimensions | 126.5 × 100 × 7.6 mm |
| Panel Type | IPS TFT, Normally Black, Transmissive |
| Display Colors | 16.7M |
| Brightness (Typ.) | 500 cd/m² |
| Viewing Angle (L/R/U/D) | 80° / 80° / 80° / 80° |
| Interface | LVDS 20PIN |
| Backlight | LED, 50,000 hours typical lifetime |
| Power Supply | 3.3V logic |
| Operating Temperature | –30°C ~ +80°C |
| Storage Temperature | –30°C ~ +85°C |
Optimized for industrial instrumentation, automation, and embedded monitoring where environmental stability and data accuracy are paramount:
These applications benefit from the module's thermal resilience, noise-resistant LVDS signaling, wide viewing consistency, and compact integration for reliable, long-term industrial use.
Aptus specializes in industrial-grade TFT LCD modules for automation, instrumentation, and embedded markets, with proven supply to European and U.S. customers. Each unit undergoes optical uniformity checks, full temperature cycling, vibration testing, and ESD evaluation to guarantee performance in demanding conditions.
While this is a non-touch model, we offer extensive customization: capacitive/resistive touch, optical bonding, brightness upgrades, cover glass, interface changes, mechanical modifications, EMI optimization, and long-term supply commitments. Engineering support covers integration advice, thermal design, and documentation throughout prototyping to production.
Contact us for quotes, engineering samples, customization options, or wholesale arrangements!
Operating: –30°C to +80°C; Storage: –30°C to +85°C – suitable for industrial setups with temperature extremes or poor ventilation.
It provides stable, low-EMI transmission over longer distances, ideal for noisy factories or equipment with extended cabling.
500 cd/m² typical – offers good clarity in standard factory/lab lighting and resists washout from overhead sources.
Full wide angles (80° all directions) via IPS technology – ensures consistent image quality for operators at different angles.
Yes – touch overlay, higher brightness, cover glass, interface tweaks, mechanical changes, and more are available for project needs.
Small batches to wholesale; standard items ship 7-10 days, customs 4-6 weeks. Contact for current details.
APTUS Technology specializes in high-quality industrial TFT LCD screens, serving automation, instrumentation, and embedded device markets. With strong experience supplying the European and U.S. industrial sectors, we focus on developing robust display modules with stable performance and long-term availability.
Every product undergoes strict optical testing, temperature cycling, vibration assessments, and ESD protection evaluations. Our wide-temperature series, including this 5.7 inch 640×480 LCD, is designed to ensure performance stability throughout the product’s operating life.
APTUS provides comprehensive customization and engineering support to help customers integrate displays smoothly into their products. Although this model is a non-touch version, we offer optional customization services such as capacitive touch, resistive touch, optical bonding, high-brightness enhancement, customized cover glass, and interface modification.
Additional services include mechanical adjustments, brightness optimization, EMI handling support, and long-term supply management. Full documentation and engineering consultation are available throughout development, testing, and mass production.
If you are designing industrial equipment or upgrading an existing system, the 5.7 inch 640×480 wide-temperature TFT LCD module offers the reliability and stability required for long-term operation. For more information, technical guidance, or sample requests, you are welcome to contact APTUS.
Our team is ready to support your engineering needs and help you integrate the ideal display solution into your application.
