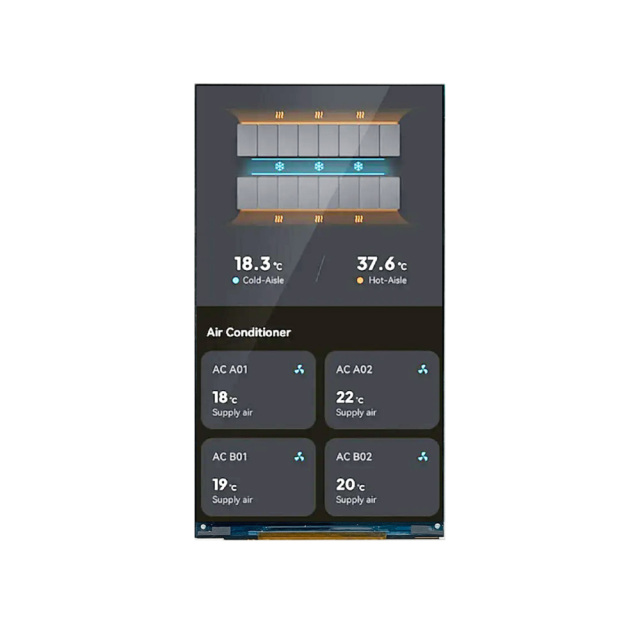

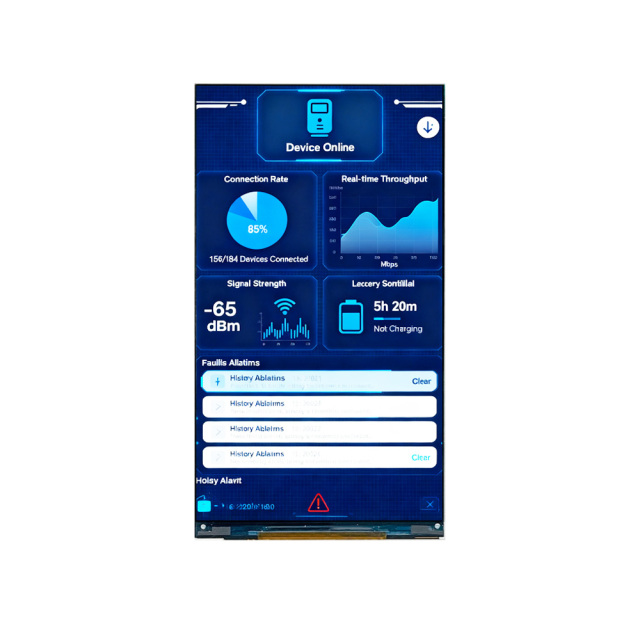

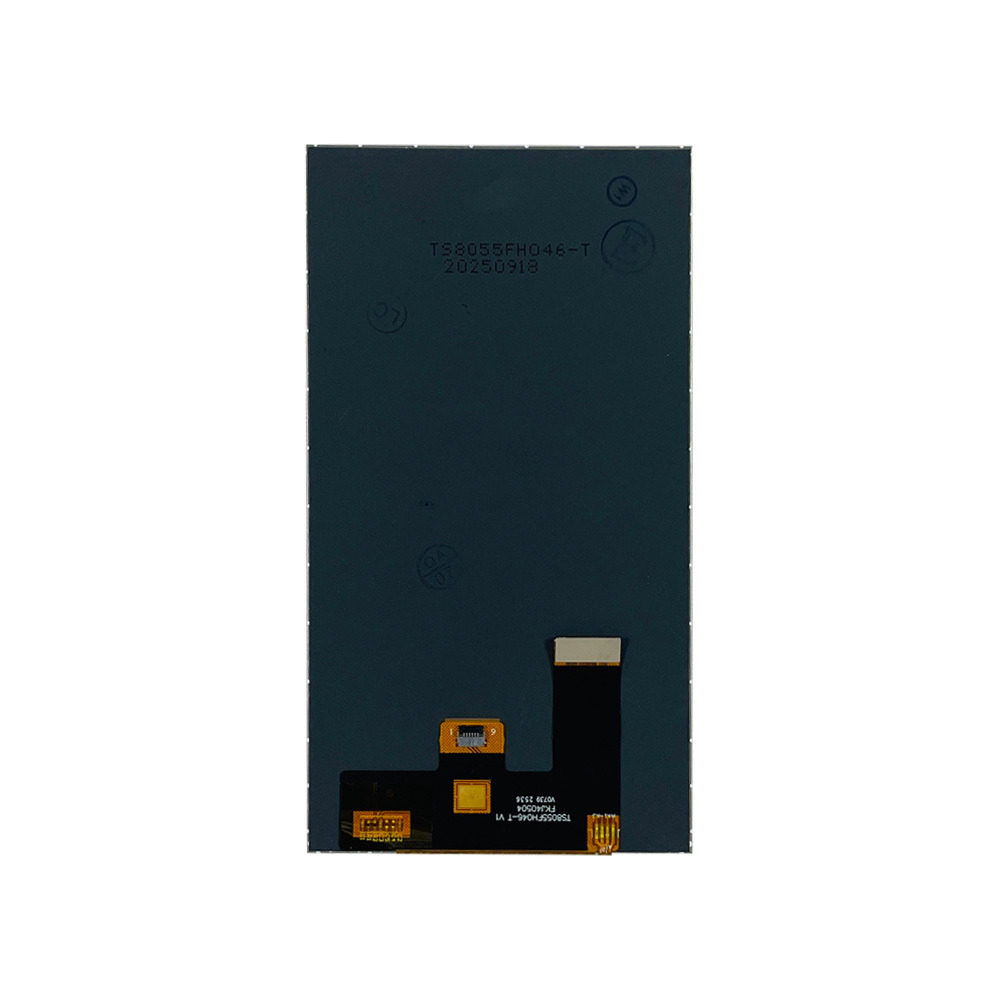

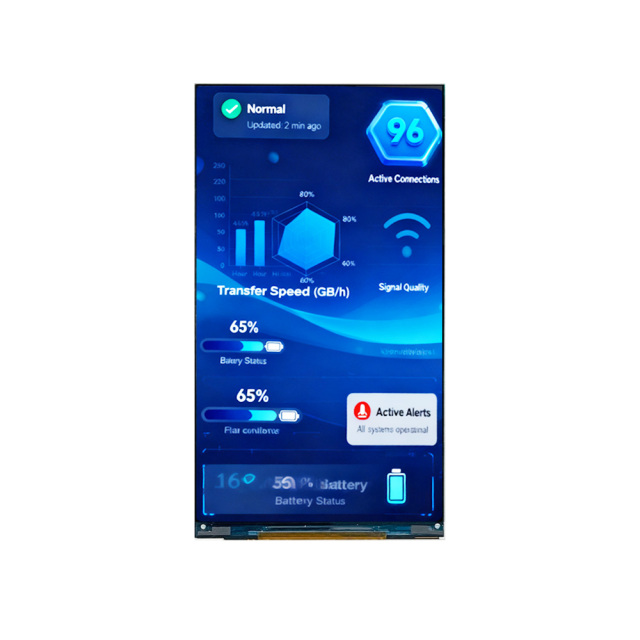

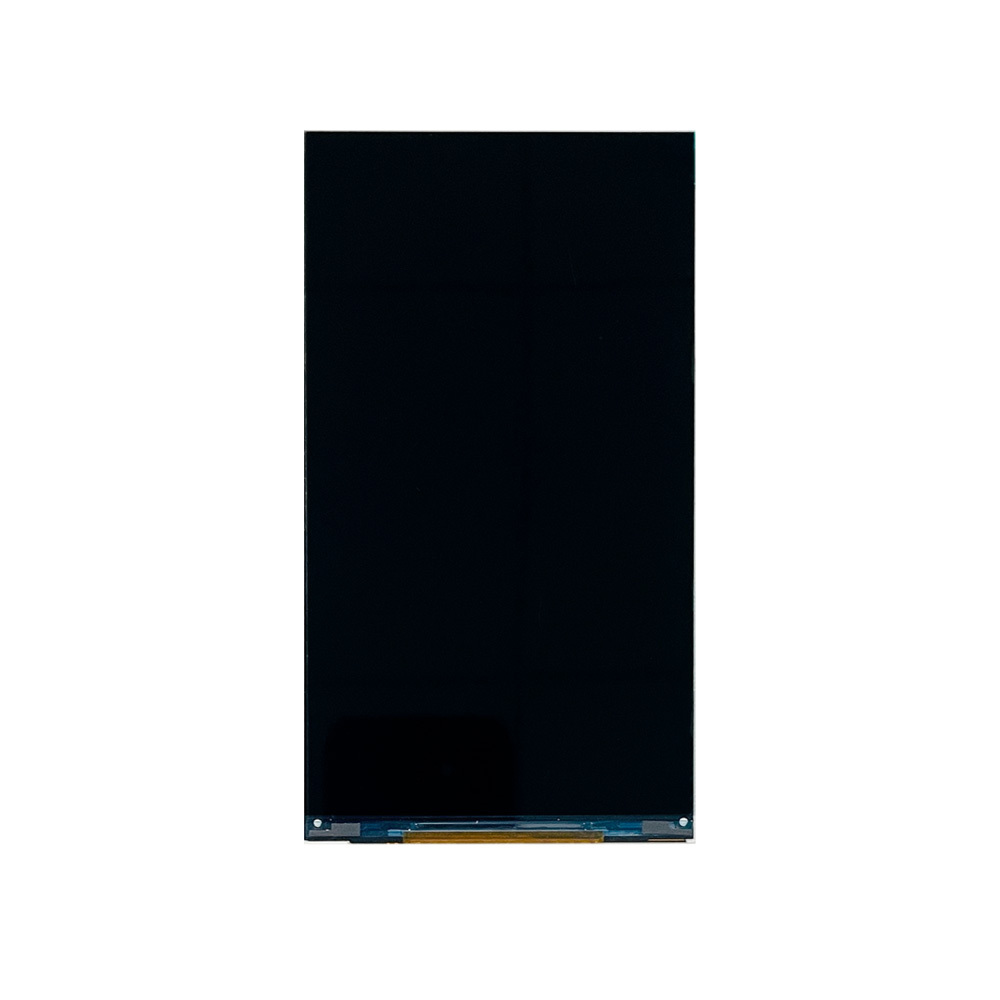

The DBT055IHC40M100A 5.5-inch 1920×1080 LCD module from Aptus Display offers a perfect combination of clarity, brightness, and durability for industrial and commercial display applications. This high-definition TFT panel is engineered with an advanced a-Si TFT structure and MIPI 4-lane interface, ensuring fast response, vivid color performance, and stable reliability under diverse working conditions.
Designed for long-term use in professional environments, the module delivers precise color accuracy and strong backlight uniformity, making it ideal for control systems, instrumentation, digital signage, and other specialized visual solutions that require high luminance and consistent performance.
| Parameter | Specification |
|---|---|
| Model Name | DBT055IHC40M100A |
| Display Size | 5.5 inch |
| Resolution | 1920 (RGB) × 1080 |
| Display Mode | TFT / Normally Black / Transmissive |
| Display Area (AA) | 68.04 (H) × 120.96 (V) mm |
| Interface Type | MIPI 4-Lane |
| Driver IC | ST7105S |
| Viewing Angle | 80° (U/D/L/R, CR≥10) |
| Contrast Ratio | 1000:1 (Typ.) |
| Brightness (LCM+CTP) | 1000 cd/m² (Typ.) |
| Response Time (Tr+Tf) | 35 ms (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Color Gamut (NTSC) | 70% (Typ.) |
| Backlight Type | LED, 15 pcs (5S3P) |
| Backlight Voltage | 28–32.5 V |
| Backlight Current | 60 mA (Typ.) |
| Luminance Uniformity | ≥80% |
| Power Supply (AVDD) | 5V (Typ.) |
| Power Supply (AVEE) | -5V (Typ.) |
| IOVCC | 1.8V |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Touch Type | G+FF Capacitive (5-point) |
| Surface Treatment | AR + AF Coating, 1% Reflection |
| Glass Hardness | ≥7H |
Full HD Resolution (1920×1080): Provides ultra-clear image quality and precise visual representation for high-detail interfaces.
High Brightness (1000 nits): Ensures readability under strong ambient light, ideal for industrial control and commercial display systems.
Wide Viewing Angles: IPS technology allows visibility from any direction without color distortion.
Strong Durability: Equipped with 0.7 mm Panda glass and AR+AF surface coating for scratch resistance and reduced glare.
Fast MIPI Interface: The 4-lane MIPI connection delivers smooth image transmission and stable signal output.
Reliable Backlight System: LED array design (5S3P) ensures uniform luminance and long operating lifetime.
Wide Temperature Range: Designed to operate reliably between -20°C and +70°C, suitable for harsh industrial environments.
Enhanced Touch Performance: Integrated 5-point capacitive touch (CTP) with anti-fingerprint coating for responsive, clear interaction.
Every component of this LCD module has been selected to guarantee long-term operational stability and color uniformity, even during continuous use in demanding settings.
The 5.5-inch 1920×1080 LCD module is developed for industrial and commercial systems that demand precise visual feedback and reliable long-term operation. Typical application areas include:
Industrial Control Panels: Providing accurate real-time visualization in factory automation and equipment management.
Measurement and Testing Devices: High-resolution data display for laboratory instruments and calibration tools.
Smart Terminals and Embedded Systems: Compact, high-performance display integration for professional equipment.
POS and Self-Service Kiosks: Clear and bright display suitable for interactive touch operations.
Digital Signage and Advertising Displays: Delivers strong visibility in public or semi-outdoor environments.
Monitoring Systems: Stable performance for control rooms or industrial supervision setups.
This module is not intended for automotive, medical, or consumer electronics applications, but optimized for industrial reliability and commercial integration.
The DBT055IHC40M100A module undergoes rigorous testing to meet international quality standards. It is engineered to resist thermal shock, static discharge, and long-hour operation degradation. With its 1000-nit luminance and high uniformity, it ensures clear and stable performance over time.
Reliability tests include:
High temperature operation (70°C for 96 hours)
Low temperature operation (-20°C for 96 hours)
High humidity storage (60°C, 90% RH for 72 hours)
Thermal shock (-10°C to +60°C for 10 cycles)
ESD protection (±12KV air, ±8KV contact)
These ensure the display maintains optimal function and optical integrity in all operating environments.
Aptus Display is a professional manufacturer and solution provider of LCD display modules based in Shenzhen, China. With over a decade of experience, we specialize in TFT, monochrome, and custom LCD solutions for global clients across Europe and North America.
Our production follows strict ISO quality standards, ensuring every module meets international performance requirements. Aptus Display not only supplies standard models but also provides customized display services to match your specific mechanical and electrical designs.
We focus on delivering reliable quality, competitive pricing, and fast lead times — making us a trusted partner for industrial display projects.
Aptus Display provides comprehensive services to support your project from concept to production:
Custom LCD Module Design – Tailor display size, resolution, interface, and brightness to your exact needs.
Touch Panel Integration – Options for capacitive or resistive touch, including optical bonding and glass coating.
Engineering Support – Expert advice on interface compatibility, backlight control, and display optimization.
Prototype and Mass Production – From initial samples to full-scale manufacturing with stable quality control.
Logistics and After-Sales – Fast international delivery and technical support for long-term customer satisfaction.
Each solution is designed to provide reliable performance, high contrast, and outstanding optical clarity for professional-grade applications.
High Manufacturing Standards: All products undergo multiple stages of inspection and reliability testing.
Strong R&D Capability: Professional engineers provide technical customization and OEM/ODM support.
Global Market Focus: Trusted supplier to clients across Europe and the United States.
Flexible Production: Adaptable solutions for both low-volume prototypes and mass production.
Customer-Oriented Service: Quick responses, transparent communication, and full technical support throughout your project.
Looking for a dependable LCD display supplier for your next project? Aptus Technology delivers professional solutions, competitive pricing, and global service.
Contact us today to request samples, quotations, or technical consultation for the 5.5 inch 1920*1080 LCD module.
