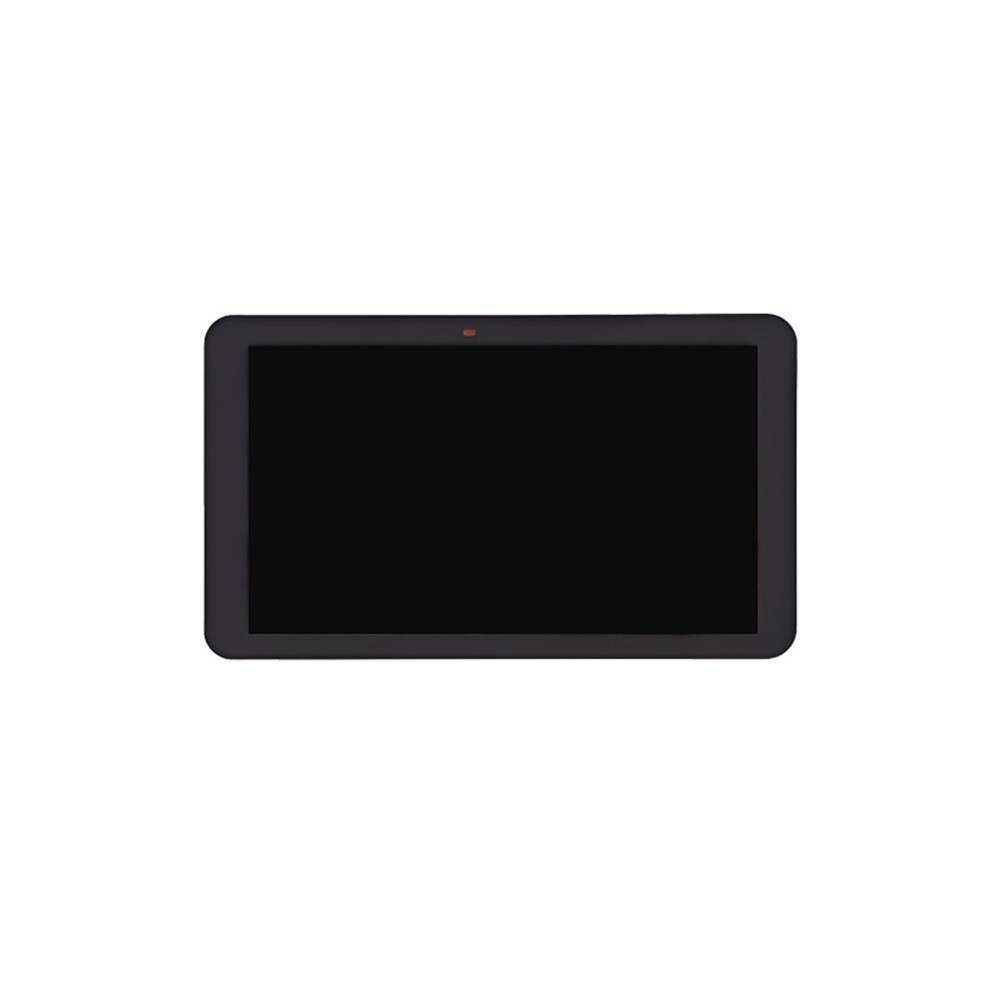

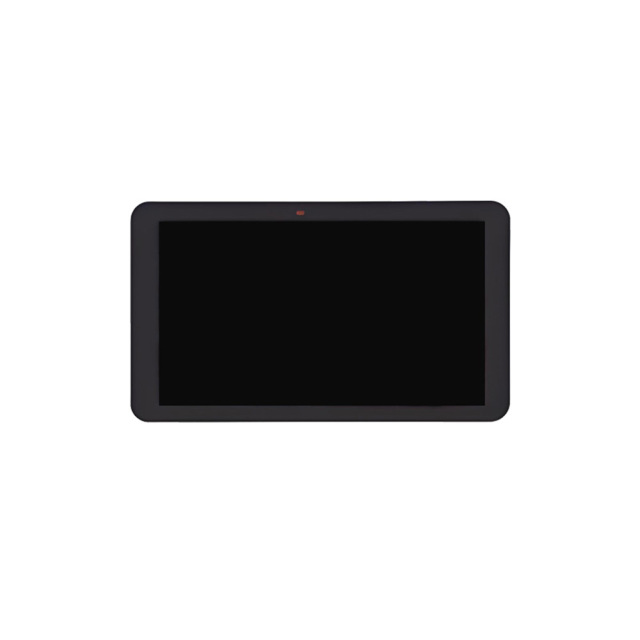

The 5.5-inch 1080×1920 MIPI Interface IPS TFT LCD Module is a compact Full HD display solution designed for embedded systems, industrial HMI equipment, handheld terminals, smart control interfaces, and other professional applications that require high-resolution imaging in a space-efficient form factor. Model DBT055BHC40M040A combines a 1080×1920 pixel resolution, IPS wide viewing angle technology, 40-pin MIPI interface, approximately 400 cd/m² brightness, and a slim 3.01 mm module profile. Optional capacitive touch panel integration and other customization services make it suitable for OEM and ODM display projects.
When a project requires a small display but still needs sharp graphics, readable text, stable colors, and flexible system integration, a 5.5-inch Full HD TFT LCD module can provide a practical balance between visual performance and mechanical size.
The DBT055BHC40M040A uses an IPS TFT LCD architecture with a portrait-oriented 1080×1920 resolution. The display provides a relatively high pixel density for a 5.5-inch form factor, making it suitable for interfaces containing detailed graphics, menus, control parameters, icons, charts, and other information-rich content.
Its 40-pin MIPI interface provides a high-speed digital connection for compatible embedded processors and display platforms. MIPI is widely used in compact embedded electronics because it can support high-resolution image transmission while helping system designers maintain a compact hardware architecture.
The module has an active area of 68.04 × 120.96 mm and an overall size of approximately 79.74 × 164.54 × 3.01 mm, making it suitable for products where internal space is limited. The operating temperature range of -20°C to +70°C also gives designers greater flexibility when developing equipment for professional environments.
The 1080×1920 resolution provides detailed image reproduction on a compact 5.5-inch panel. It is particularly useful for portrait-oriented interfaces, technical dashboards, equipment control screens, handheld instruments, and embedded devices where displaying detailed information is important.
High resolution can also improve the appearance of small fonts, icons, graphical controls, and product-specific user interfaces.
IPS technology helps maintain consistent image quality when the display is viewed from different directions. The product page specifies an all-direction viewing angle, making the module suitable for equipment where users may not always interact with the display directly from the front.
This characteristic is especially valuable for control panels, HMI interfaces, instrumentation, and shared-use equipment.
The module uses a 40-pin MIPI interface, providing a high-speed digital display interface for compatible host systems.
For engineers, interface compatibility should be confirmed at the beginning of a project, including MIPI lane configuration, voltage requirements, FPC pin assignment, timing parameters, initialization commands, and driver compatibility. Aptus Display can provide technical support and customization according to project requirements.
With a specified brightness of approximately 400 cd/m², this display is positioned for indoor and moderate ambient-light applications. It provides a useful balance between visibility, power consumption, and compact backlight design.
For applications exposed to direct sunlight or very strong outdoor illumination, a higher-brightness display should be considered. Aptus Display also offers other high-brightness LCD solutions for projects requiring stronger sunlight readability.
The module thickness is approximately 3.01 mm, helping product designers develop compact equipment without allocating excessive internal space to the display assembly.
This makes the module suitable for embedded devices, handheld terminals, compact control interfaces, and other products where enclosure dimensions are important.
A capacitive touch panel can be customized for applications that require direct user interaction. Touch integration can be designed according to the mechanical and functional requirements of the final product, including cover glass, touch structure, FPC, and related components.
| Parameter | Specification |
|---|---|
| Product Model | DBT055BHC40M040A |
| Display Type | TFT LCD Module |
| Display Size | 5.5 inch |
| Resolution | 1080 × 1920 pixels |
| Display Orientation | Portrait / customizable integration |
| Display Technology | IPS TFT |
| Display Mode | Transmissive, Normally Black |
| Color Depth | 16.7 million colors |
| Active Area | 68.04 × 120.96 mm |
| Module Dimensions | 79.74 × 164.54 × 3.01 mm |
| Interface | 40-pin MIPI |
| MIPI Configuration | 4-lane high-speed interface |
| Driver IC | HX8399 |
| Brightness | 400 cd/m² |
| Viewing Angle | All-direction / wide viewing angle |
| Backlight | LED |
| Number of LEDs | 14 |
| Touch Panel | Optional capacitive touch panel |
| Operating Temperature | -20°C to +70°C |
| Compliance | RoHS |
| Customization | Touch, cover glass, PIN-out, driver board and related options |
The specifications above are based on the product information currently published by Aptus Display. Final electrical characteristics, pin definitions, mechanical drawings, optical parameters, and interface timing should be confirmed against the project-specific datasheet before mass production.
The compact size and Full HD resolution make this LCD module suitable for industrial human-machine interfaces where operators need to monitor parameters, configure equipment, or interact with graphical control software.
Potential applications include compact control terminals, embedded controllers, automation interfaces, instrumentation panels, and equipment monitoring systems.
The 5.5-inch form factor can be integrated into portable professional equipment. The high resolution allows designers to display detailed menus, measurement data, status information, icons, and graphical interfaces without requiring a larger display.
For embedded electronics based on processors or computing platforms supporting MIPI display output, this module can serve as the visual interface between the system and the end user.
It can be considered for embedded Linux systems, customized control platforms, smart devices, and specialized electronic equipment.
The optional capacitive touch panel makes the module suitable for interactive interfaces. Instead of relying entirely on physical buttons, product designers can implement graphical menus, touch controls, virtual keyboards, status indicators, and customized user interfaces.
The 1080×1920 resolution provides sufficient detail for displaying graphs, numerical information, system status, warnings, and other technical content on a compact panel.
The wide viewing angle can also improve usability when multiple operators need to observe the display from different positions.

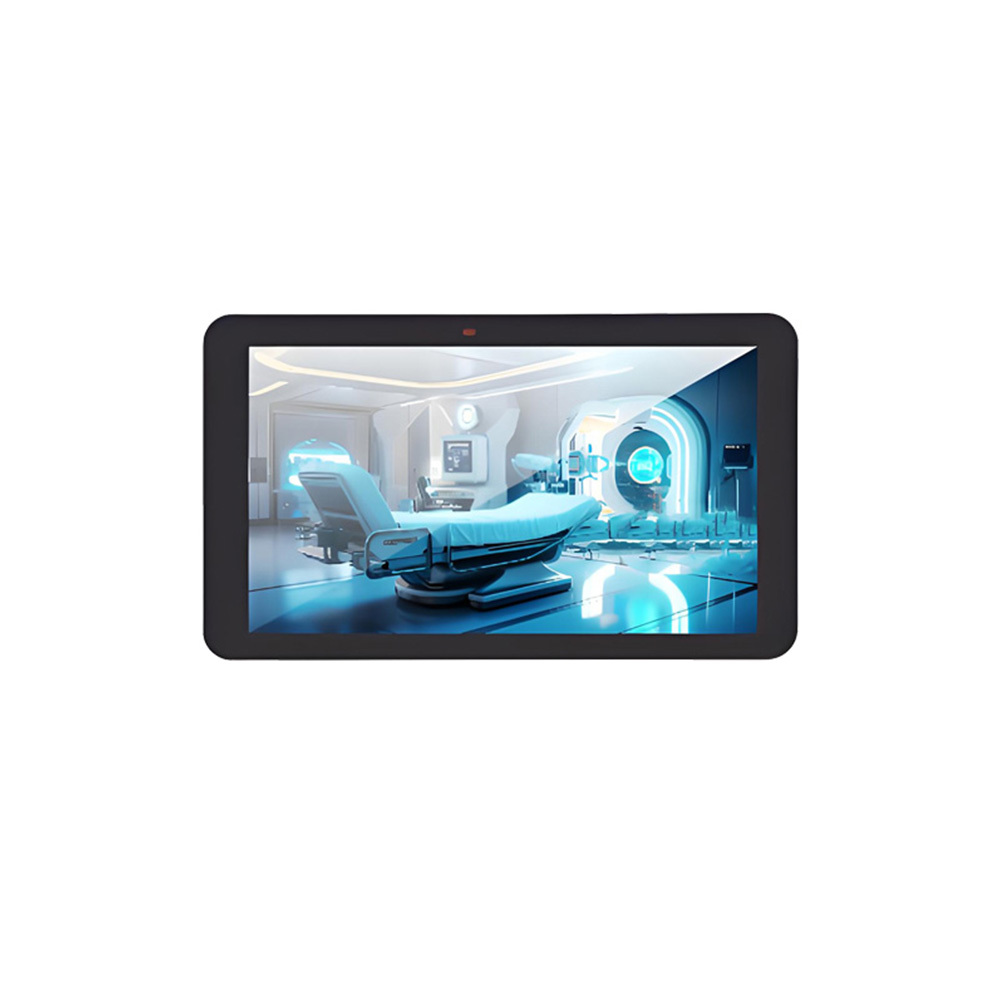

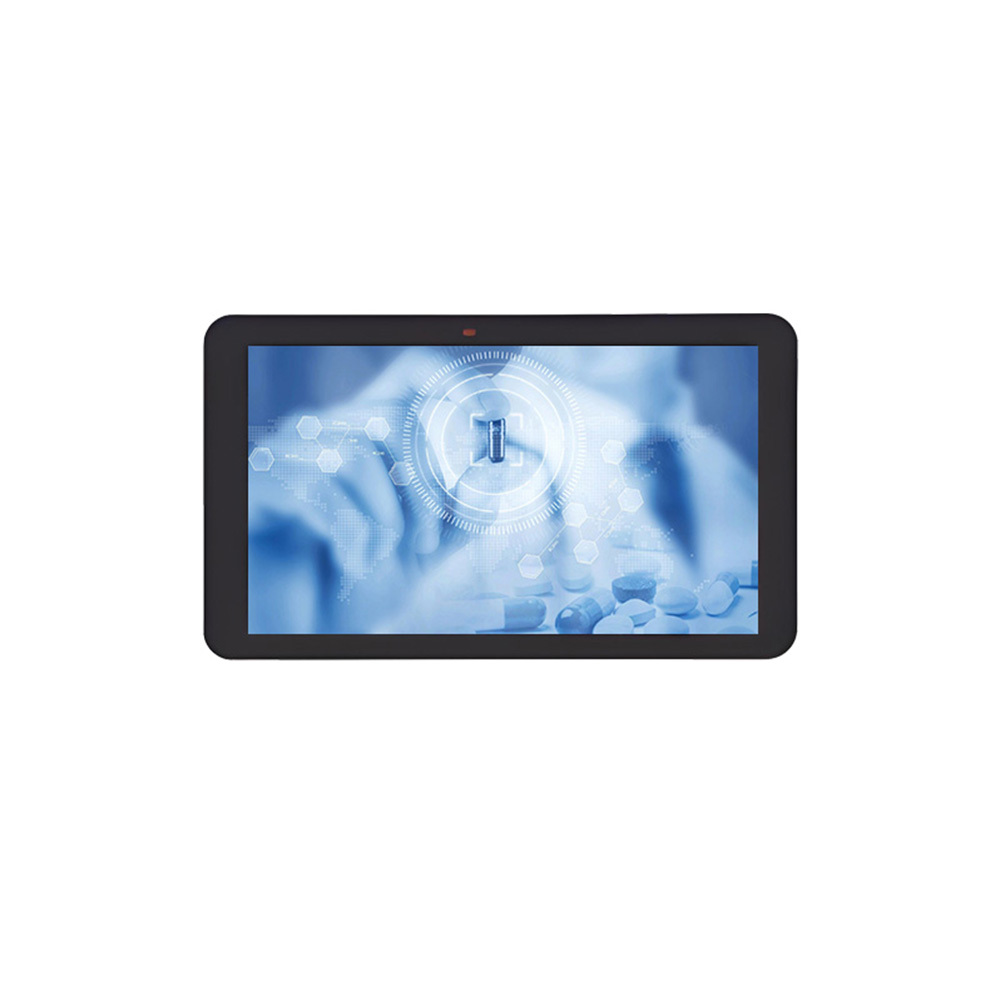

The original product page identifies medical monitoring and diagnostic equipment among possible applications. For any medical product, however, the display module must be evaluated as part of the complete system and against the applicable regulatory and reliability requirements of the target market.
Aptus Display, operated by Shenzhen Aptus Technology Co., Ltd., provides LCD module manufacturing, customization, and display integration services. The company positions itself as an LCD module supplier with experience in MIPI-interface displays, touch integration, and customized display solutions.
For OEM and ODM customers, display development often involves more than selecting an LCD panel. Mechanical dimensions, FPC configuration, touch panel structure, cover glass, driver electronics, backlight requirements, and system compatibility may all need to be considered.
Aptus Display provides customization options covering areas such as:
LCD module customization
Capacitive touch panel integration
Cover glass customization
FPC and PIN-out customization
Driver board support
Technical integration assistance
Prototype and sample support
OEM and ODM development
Environmental and reliability testing support
This integrated approach can help customers reduce the complexity of sourcing different display components from multiple suppliers.
Before integrating the DBT055BHC40M040A into a new product, engineers should verify several factors.
First, confirm that the host processor or SoC supports the required MIPI interface configuration and that the electrical levels are compatible.
Second, the mechanical drawing should be checked against the enclosure, including active area position, module outline, thickness, FPC routing, connector position, and mounting method.
Third, the optical environment should be evaluated. The standard brightness of approximately 400 cd/m² is appropriate for many indoor and moderate-light environments, while outdoor products exposed to direct sunlight may require a higher-brightness solution.
Finally, if touch functionality is required, the touch panel, cover glass, controller, firmware, bonding structure, and mechanical stack-up should be evaluated together rather than treated as independent components.
Yes. The module provides a 1080×1920 pixel resolution, delivering Full HD-class image detail in a compact 5.5-inch format.
The DBT055BHC40M040A uses a 40-pin MIPI interface, with the published specification identifying a 4-lane high-speed MIPI configuration.
Yes. A capacitive touch panel can be offered as an optional and customizable configuration. Touch structure, cover glass, and related components can be discussed according to the requirements of the final product.
The standard version has approximately 400 cd/m² brightness, so it is better suited to indoor and moderate ambient-light environments. For direct-sunlight applications, Aptus Display can evaluate higher-brightness LCD alternatives according to the required viewing conditions.
Yes. Aptus Display lists customization options including cover glass, PIN-out, touch integration, and driver board solutions. OEM and ODM development support is also available.
The published operating temperature range is -20°C to +70°C. For projects with more demanding environmental conditions, customers should discuss the required temperature range and reliability requirements with Aptus Display before product selection.
If you are looking for a 5.5-inch 1080×1920 MIPI LCD module for an industrial HMI, embedded system, handheld terminal, instrumentation product, or customized touch interface, the DBT055BHC40M040A can be evaluated as a compact Full HD display solution.
For OEM and ODM projects, please provide the required display size, resolution, interface, brightness, touch requirements, operating temperature, estimated quantity, and application. Aptus Display can then evaluate the appropriate LCD module configuration and customization requirements.
The 5.5-inch 1080×1920 MIPI Interface IPS TFT LCD Module DBT055BHC40M040A combines a compact 5.5-inch form factor with Full HD resolution, IPS wide viewing angles, 40-pin MIPI connectivity, approximately 400 cd/m² brightness, and a slim 3.01 mm profile. These characteristics make it a practical choice for compact professional display applications where visual detail, integration flexibility, and reliable operation are important.
With optional capacitive touch integration and OEM/ODM customization support, the module can be adapted to different mechanical and system requirements. For engineers and procurement teams developing specialized equipment, working directly with an experienced LCD module supplier can also simplify display selection, customization, sampling, and production integration.
