The 5.5 inch 1080×1920 CTP LCD module delivers Full HD resolution, wide viewing angles, and high brightness up to 1000 cd/m². Designed by Aptus Display, this reliable TFT touch display is ideal for industrial, automotive, and smart device applications, with customizable options for OEM projects.

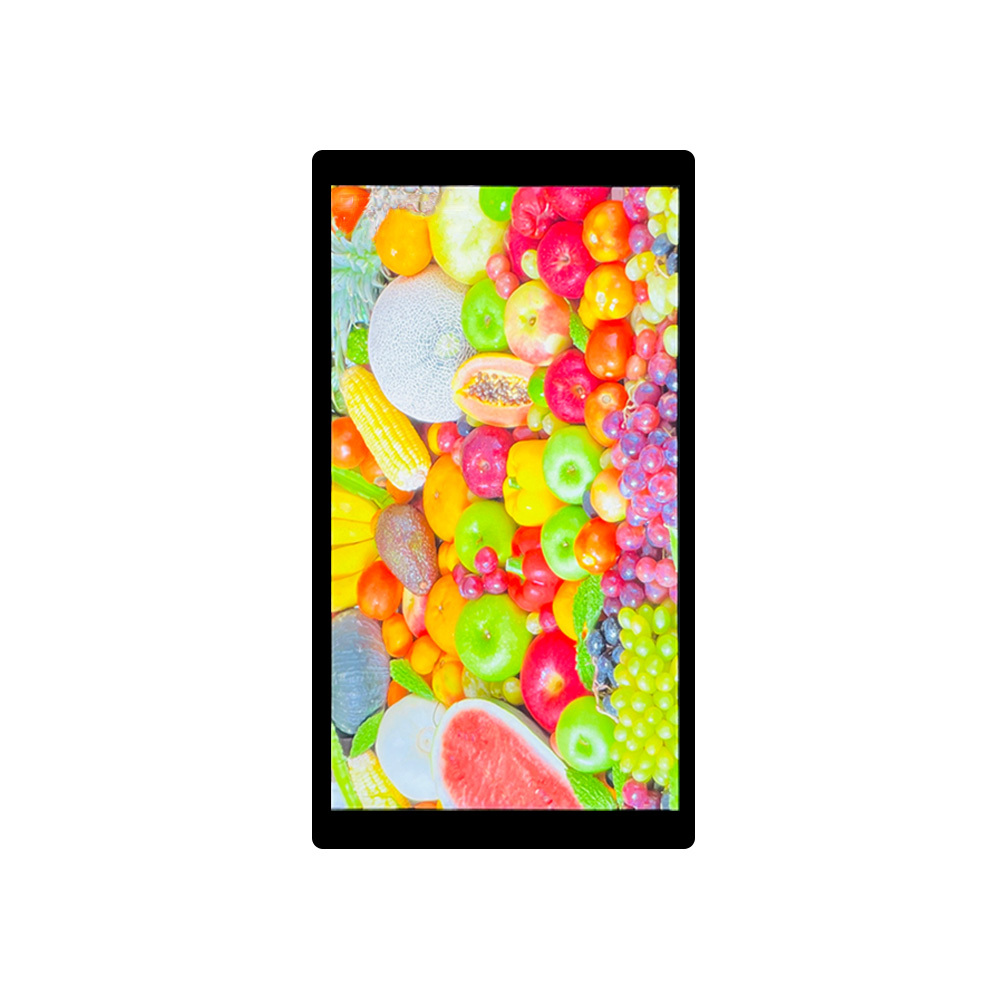

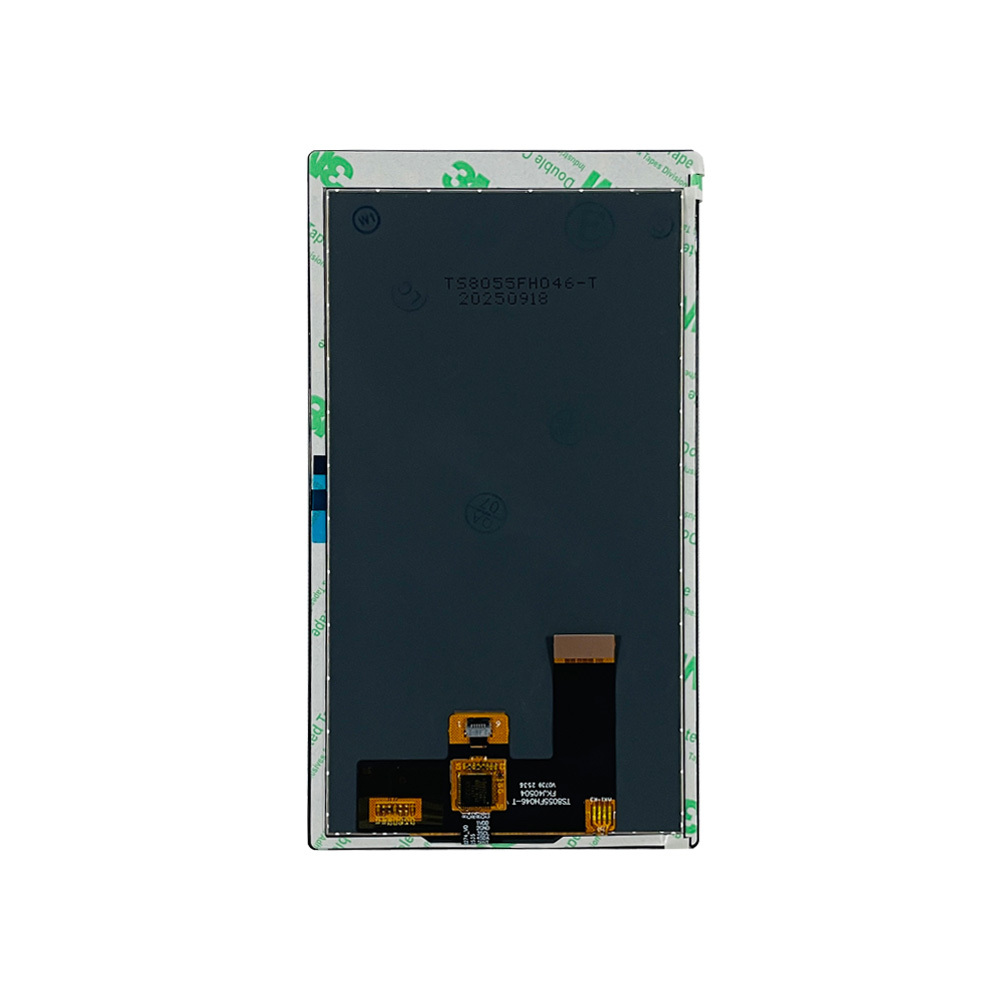

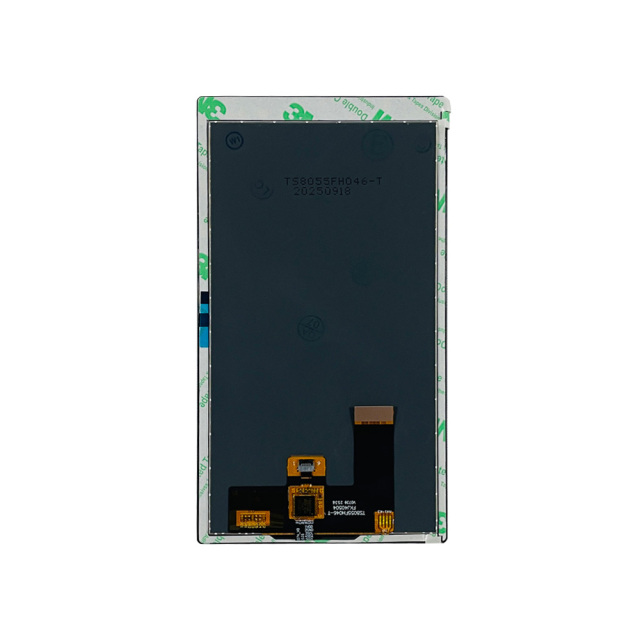

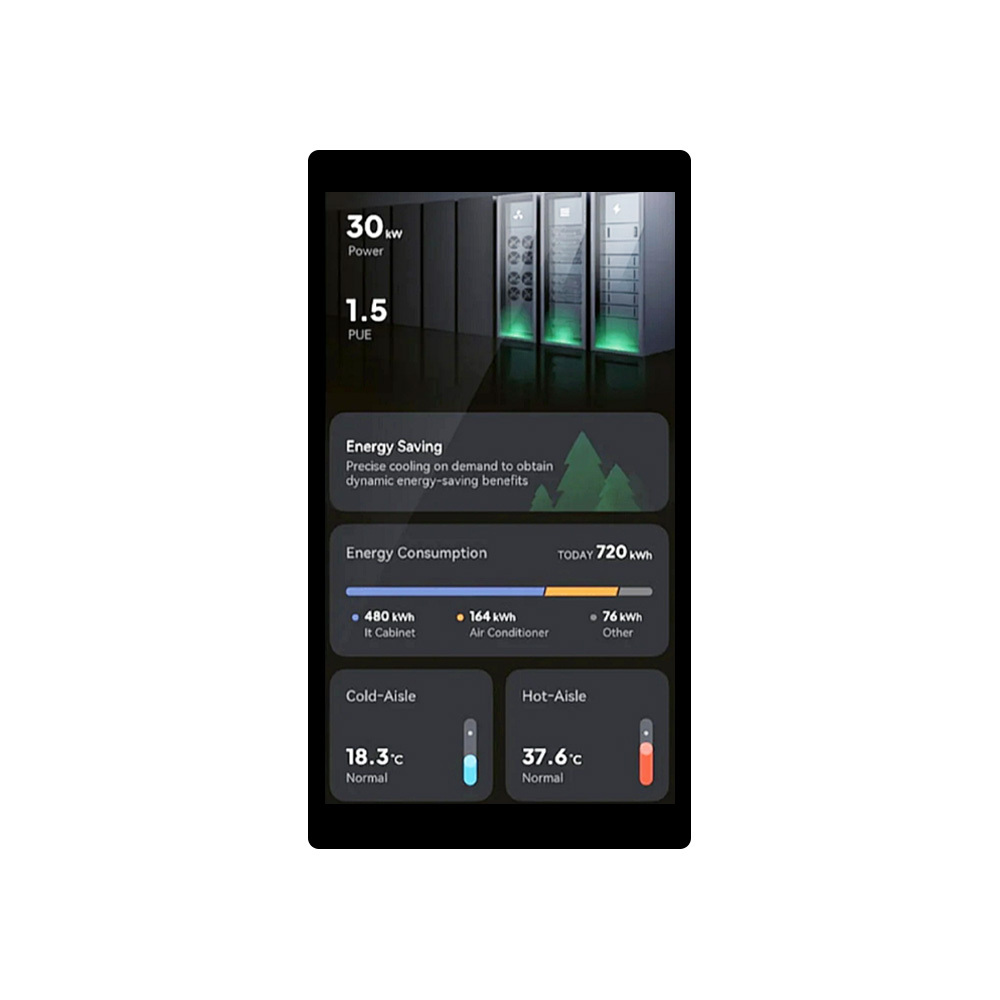

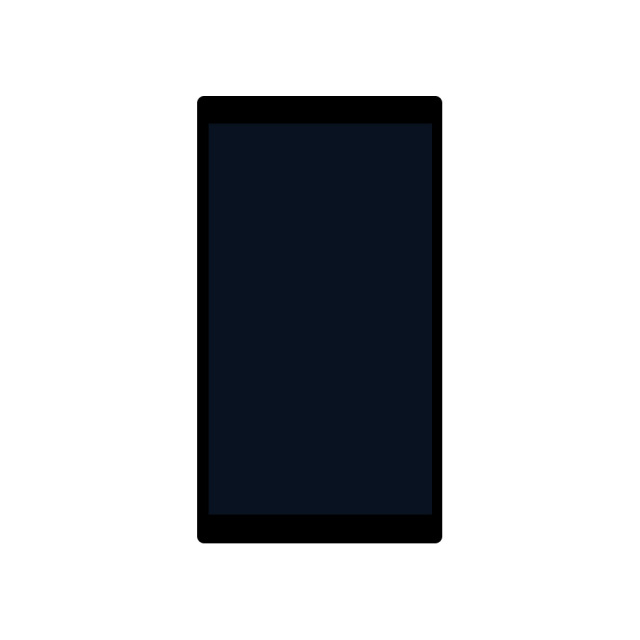

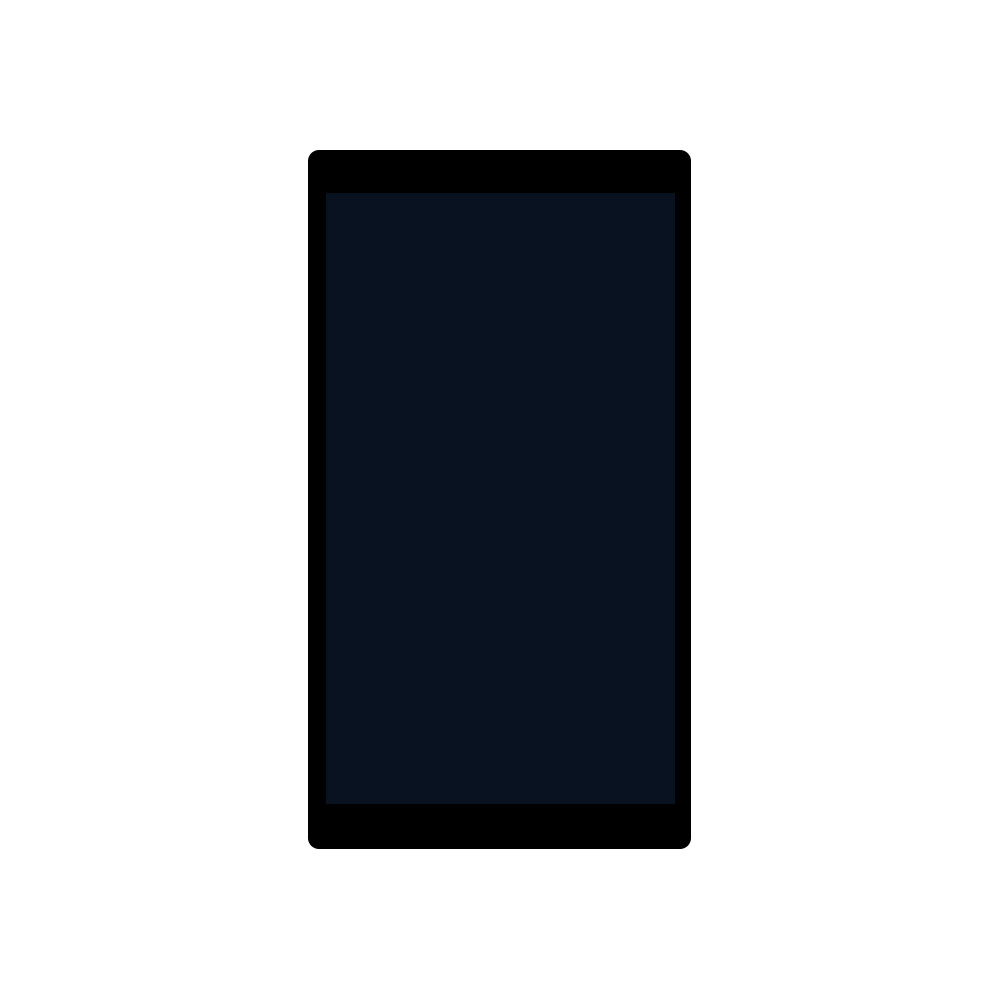

The 5.5-inch 1080×1920 40PIN MIPI 1000 nits CTP Touch LCD Module (Model No. DBT055IHC40M100A) is a high-definition, high-brightness touch display designed for industrial, smart device, and embedded applications. It combines a Full HD resolution panel, high brightness up to 1000 cd/m², and a capacitive touch panel (CTP) for responsive interaction — all powered via a 40-pin MIPI interface for fast, efficient data transmission.
This module is ideal for handheld terminals, industrial control panels, smart automation interfaces, and automotive or outdoor devices requiring excellent visibility even under bright lighting conditions.
The 1080×1920 (Full HD) resolution delivers:
Sharp text and detailed graphics
Balanced portrait orientation for modern UIs
Better pixel density than standard 5-inch and 7-inch displays
This resolution enhances user experience in GUIs, dashboards, and information terminals.
With a typical brightness of 1000 cd/m², the display provides:
Excellent visibility under strong indoor and semi-outdoor lighting
High contrast for clear UI elements
Reliable performance in factory floors and bright environments
This ultra-high brightness is a standout advantage for displays exposed to direct ambient light.
The 40-pin MIPI DSI interface offers:
High-speed data transmission
Low power consumption
Compatibility with modern embedded processors
Efficient signal wiring in compact devices
MIPI is widely used in ARM-based and Linux/Android platforms for high-resolution displays.

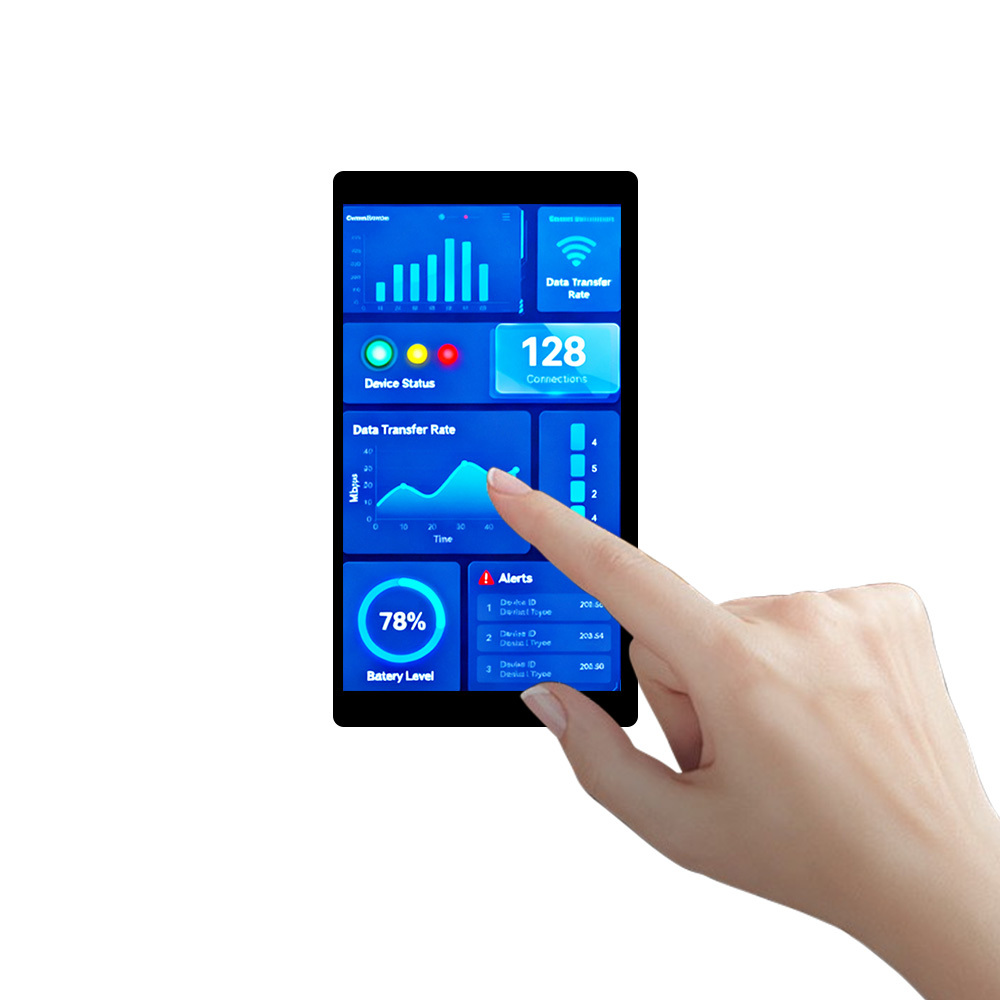

This module integrates a capacitive touch panel with:
G+G structure (0.7 mm Panda glass)
Multi-touch support
AR (Anti-Reflection) + AF (Anti-Fingerprint) surface treatment
The result is smooth, responsive touch control and strong durability.
| Parameter | Specification |
|---|---|
| Display Size | 5.5 inch |
| Resolution | 1080 × 1920 (FHD) |
| Active Area | 68.04 × 120.96 mm |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 80°/80°/80°/80° (L/R/U/D) |
| Display Mode | Normally Black |
| Colors | 16.7 M |
| Parameter | Specification |
|---|---|
| Interface | 40-pin MIPI (4-lane) |
| Driver IC | ST7105S |
| Touch Driver | GT911 |
| Power Supply | 5 V (AVDD), −5 V (AVEE), 1.8 V (IOVCC) |
| Backlight | White LED (15 LEDs) |
| Touch | Capacitive 5-point |
| Parameter | Specification |
|---|---|
| Module Size | 77.9 × 140 × 2.91 mm |
| Operating Temperature | −20°C ~ +70°C |
| Storage Temperature | −30°C ~ +80°C |
Detailed datasheet, pin assignments, and mechanical drawings are available upon request.
Ideal for rugged handheld terminals, inspection units, and service devices.
Used in HMIs and factory automation interfaces requiring high visibility.
Supports embedded products, smart gateways, and touchscreen control panels.
Integrating a high-performance display often involves hardware and software alignment. Our engineering support includes:
MIPI interface compatibility and signal mapping
Touch driver integration and calibration
Pin-out and connector guidance
Mechanical fitting consultation
Optical performance tuning
This helps reduce development risks and accelerates OEM/product deployment.
This module uses a 40-pin MIPI interface with 4 data lanes, enabling high-speed display data transfer for Full HD video and UI rendering.
Yes. The display achieves up to 1000 cd/m² brightness, ensuring excellent readability even in bright ambient conditions.
Yes. It integrates a capacitive touch panel with multi-touch support, AR+AF surface treatment, and responsive touch control.
The module is rated for industrial operation from −20°C to +70°C, with storage capability to −30°C to +80°C.
The 5.5-inch 1080×1920 40PIN MIPI 1000 nits CTP Touch LCD Module combines industry-leading brightness, Full HD clarity, and integrated touch responsiveness to deliver a high-performance display solution for embedded, industrial, and smart device applications.
With wide viewing angles, efficient MIPI interface support, and robust hardware design, it’s a versatile choice for OEMs and system integrators.
