►Size : 5.1inch
►Resolution : 480x480 dots
►View Direction : IPS
►Interface : RGB

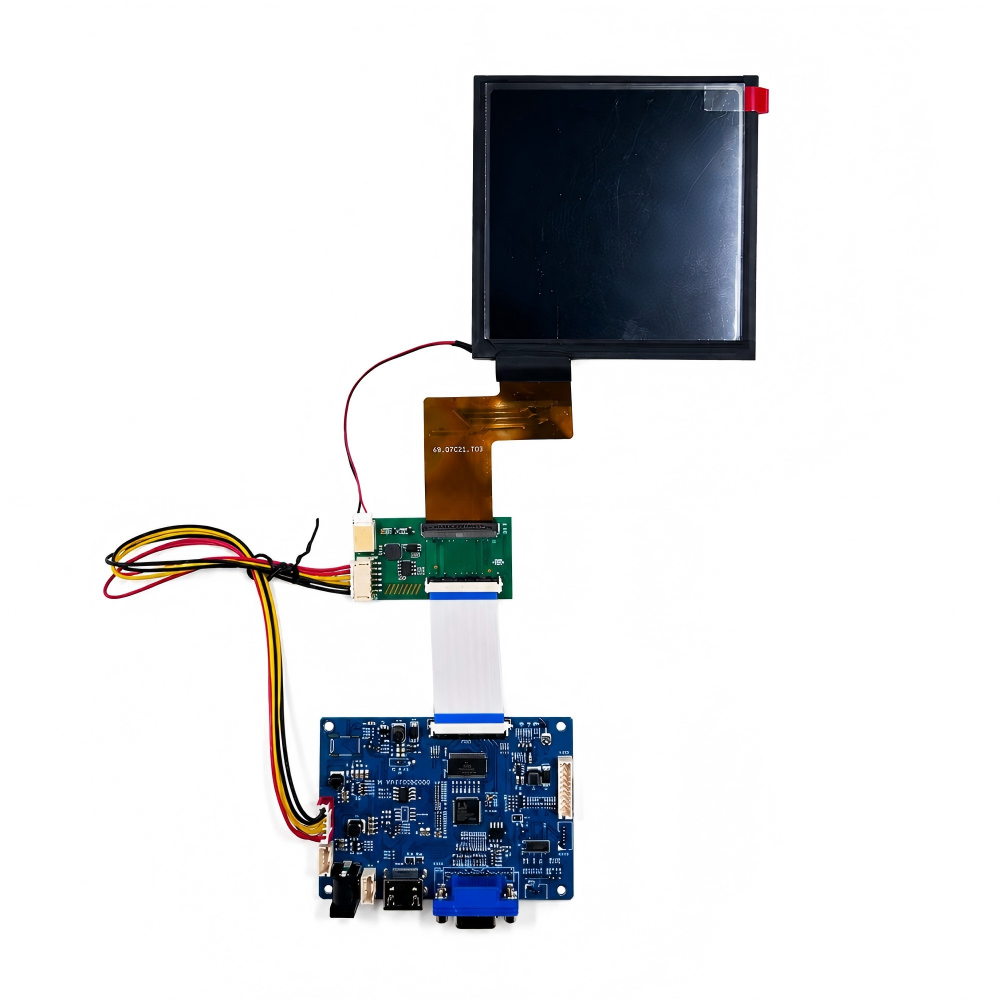

►Control-Board : Available
►Brightness (cd/m²): 500

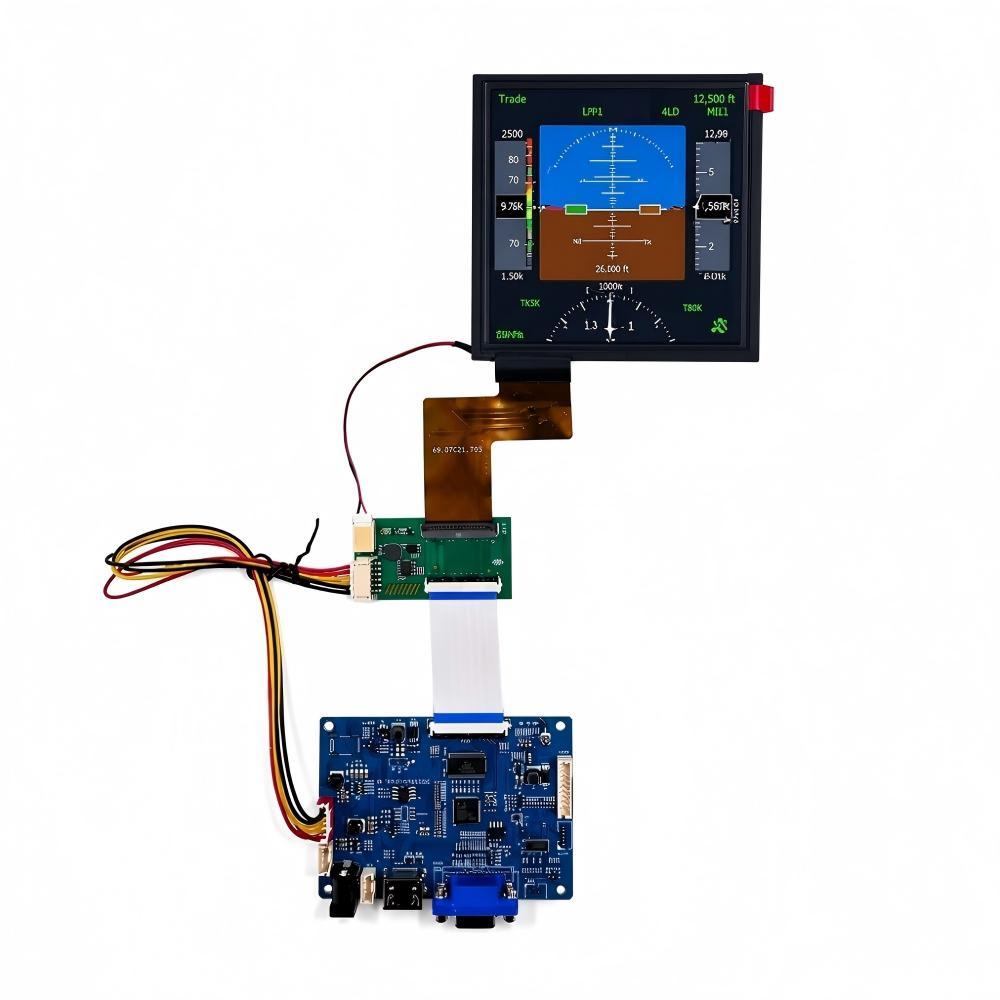

Discover our 5.1-inch 480×480 square LCD display—ideal for flight simulators, control panels, and embedded systems. High brightness, wide viewing angles, and compact design. Contact Aptus Display for specifications and pricing.

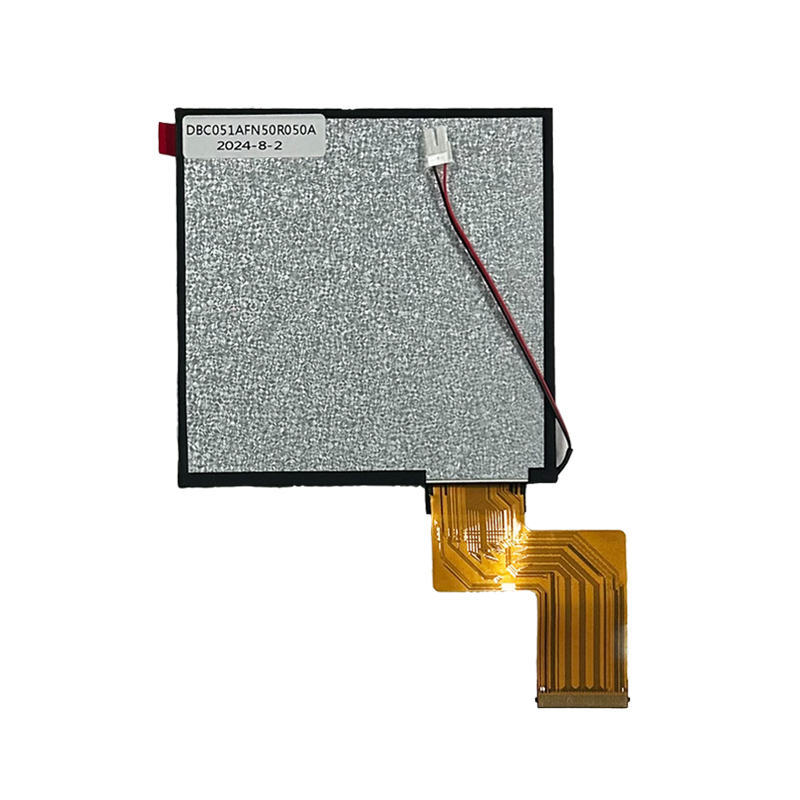

The 5.1-inch 480×480 square LCD module is designed for industrial control, embedded computing, and compact display applications. Its square format allows unique layout designs for specialized HMIs, control panels, and portable devices where standard rectangular panels may not fit.
Engineered for stable performance, high durability, and easy integration, this module is ideal for OEMs and system integrators seeking a reliable, space-efficient display solution for industrial or embedded projects.
The 5.1-inch square display provides:
Unique layout options for industrial HMIs
Compact design for embedded or portable equipment
Clear text and graphical interface in a small footprint
This form factor is ideal for devices that require balanced width and height, such as control panels, laboratory instruments, and smart terminals.
The module features a standard RGB interface, offering:
Stable signal transmission
Compatibility with embedded controllers and industrial boards
Low EMI sensitivity for clean signal output
This ensures predictable performance for embedded and industrial systems.
Resolution: 480×480 pixels for sharp square graphics
Standard brightness: 350 cd/m²
High-brightness option: 500 cd/m² for bright industrial environments
Optional IPS panels for wider viewing angles and improved color consistency
These features ensure readability under varying lighting conditions and multiple viewing angles.
The module is built for industrial environments:
Operating temperature range: -20°C to +70°C
Storage temperature: -30°C to +80°C
Optional GG5 cover glass for surface durability
Long-life LED backlight for extended use
It is suitable for applications in:
Automation and control panels
Embedded industrial devices
Laboratory instruments
Smart terminals
| Parameter | Specification |
|---|---|
| Display Size | 5.1 inch |
| Resolution | 480 × 480 |
| Pixel Arrangement | RGB Stripe |
| Panel Type | TFT LCD (IPS optional) |
| Brightness | 350 cd/m² Standard / 500 cd/m² High Brightness Optional |
| Contrast Ratio | 450:1 Typical |
| Viewing Angle | 70°/70°/50°/50° (L/R/U/D) |
| Parameter | Specification |
|---|---|
| Interface | RGB Standard |
| Input Voltage | 3.3V / 5V Typical |
| Backlight | White LED |
| Power Consumption | 1.5W Typical |
| Parameter | Specification |
|---|---|
| Outline Size | 95 × 95 × 7.8 mm |
| Active Area | 87.36 × 87.36 mm |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Surface Protection | Optional GG5 Cover Glass |
Detailed datasheet is available upon request.
Compact square HMIs for specialized machinery and factory monitoring.
Portable embedded devices, ARM-based controllers, and IoT gateways.
Energy monitoring kiosks, access control devices, and compact information terminals.
Portable diagnostic and measurement equipment.
Engineering support ensures smooth integration:
Controller board compatibility consultation
Signal mapping and interface guidance
Touch panel bonding assistance (if touch is required)
Mechanical fitting consultation
Optical performance optimization
This helps reduce development risk and accelerates OEM project timelines.
Yes. It is designed to support long operating cycles in industrial and embedded applications.
Yes. Standard and high-brightness options are available to meet indoor, factory, or semi-outdoor requirements.
Yes. Capacitive and resistive touch panels are supported, and optional optical bonding or GG5 cover glass can enhance durability.
Industrial automation panels, embedded devices, portable smart terminals, and laboratory instruments.
The 5.1-inch 480×480 square LCD module offers a compact, reliable, and integration-friendly display solution for industrial and embedded applications.
Its square form factor, RGB interface, configurable brightness, and industrial-grade durability make it ideal for OEMs and embedded system developers.
