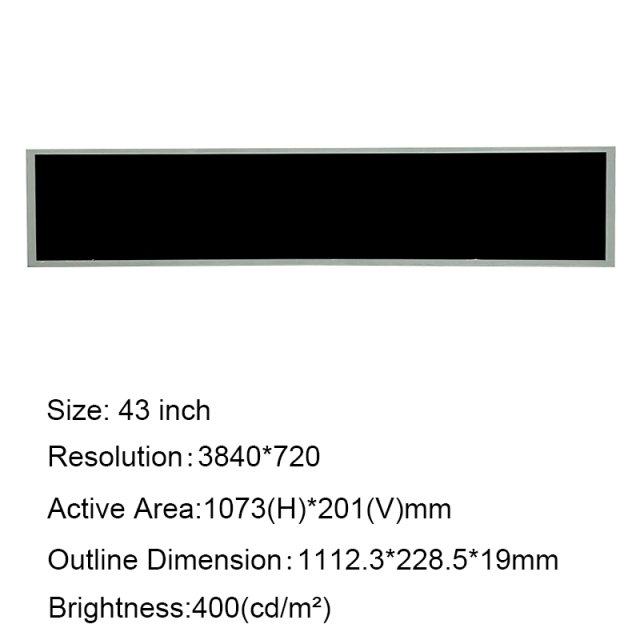

►Size : 43 inch
►Resolution : 3840*720 dots
►View Direction : IPS
►Interface : V-by-one
►Control-Board : Yes
►Brightness (cd/m²): 400
The 43-inch 3840×720 V-by-One Bar LCD Display is an ultra-wide TFT LCD solution designed for applications that require a long horizontal viewing area, high image detail, reliable operation, and flexible system integration. Featuring a 3840×720 resolution, IPS viewing technology, 400 cd/m² brightness, 178° viewing angle, 1200:1 contrast ratio, LED backlight, and a V-by-One interface, this bar-type LCD is well suited for industrial equipment, retail signage, digital shelf displays, transportation information systems, and other space-constrained commercial or industrial applications. Aptus also supports customization of brightness, pin definition, cover glass, touch panel, and driver board according to project requirements.
Traditional 16:9 LCD displays are not always suitable for systems that require a wide horizontal information area. Retail shelf-edge displays, digital signage systems, transportation information panels, industrial monitoring equipment, and other specialized devices may require a long and narrow display instead of a conventional rectangular screen.
The 43-inch 3840×720 V-by-One Bar LCD Display addresses this requirement with an ultra-wide 16:3 aspect ratio. Its 3840×720 resolution provides a wide canvas for displaying product information, advertisements, dashboards, menus, status information, or multiple content elements within one continuous visual area.
The display uses IPS technology to provide wide viewing performance, while the 178° viewing angle allows content to remain visible from different positions. The 400 cd/m² brightness is suitable for many indoor commercial and industrial environments, while the LED backlight provides uniform illumination across the display area. The product specification also lists a 1200:1 contrast ratio for vivid image reproduction.
The standard model is DBC430LZN51V040A, with a V-by-One interface and a control board included. This makes it a practical starting point for customers developing custom display systems that require high-resolution video transmission over a specialized wide-format display architecture.
With 3840×720 pixels, the display provides a large horizontal workspace while maintaining a relatively short vertical profile. This format is particularly useful when system designers need to maximize horizontal information without installing a conventional 16:9 or 16:10 monitor.
The wide resolution can be used for displaying multiple information zones, panoramic advertising content, product information, operational dashboards, or horizontally arranged UI elements.
The 43-inch size provides a substantial viewing area while maintaining the characteristic elongated structure of a bar LCD. This allows equipment manufacturers and system integrators to design displays around the available physical space rather than being restricted to standard monitor dimensions.
For retail and commercial environments, the format can be integrated into long shelves, display cabinets, promotional structures, and specialized digital signage installations.

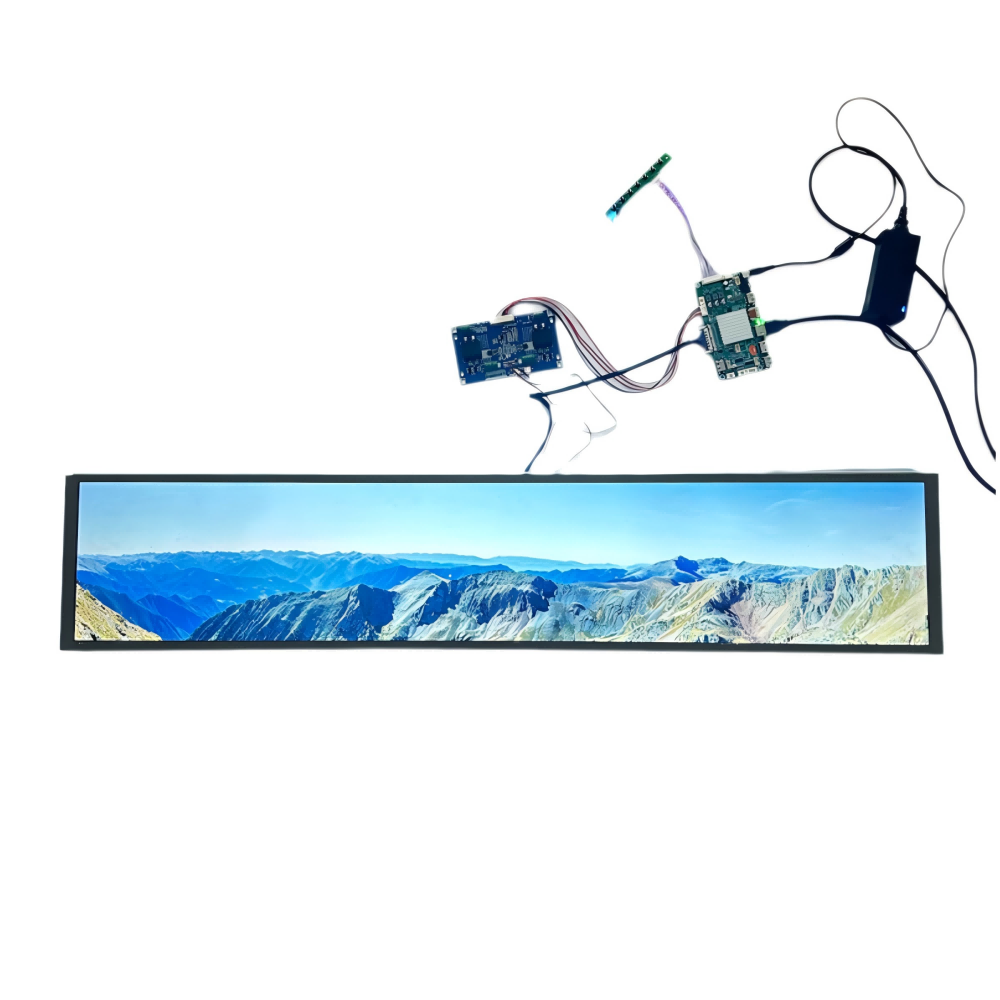

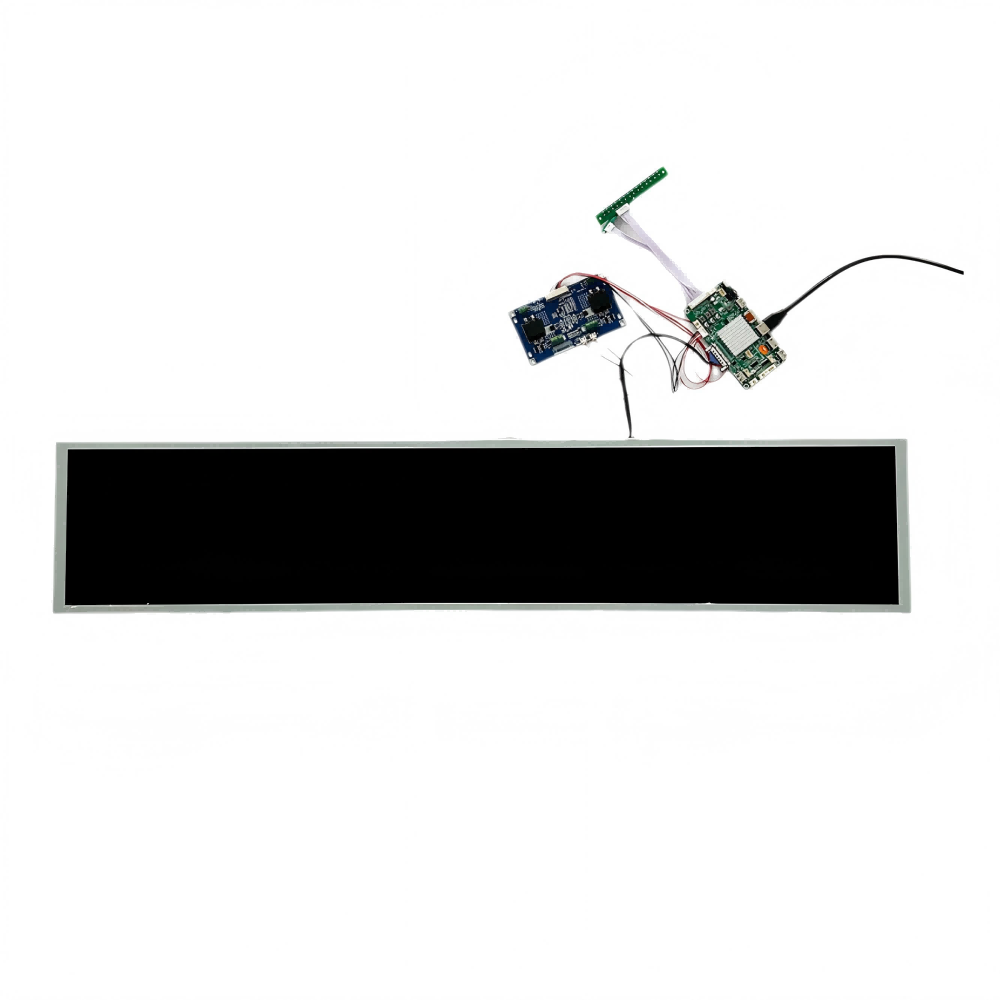

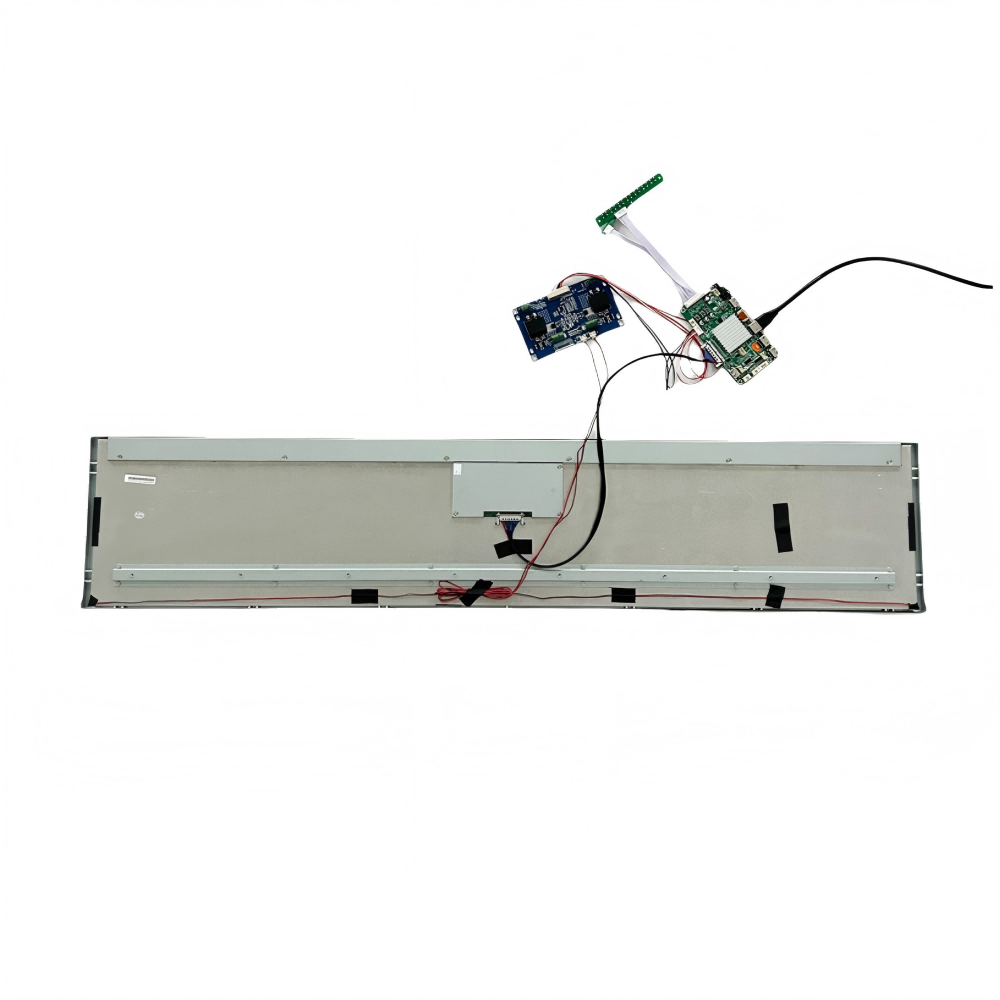

The display uses a V-by-One interface, making it suitable for systems designed around high-speed digital video transmission. A matching control board is available with the standard product configuration, helping simplify system integration.
For engineering teams, interface compatibility should be confirmed at the project design stage, including signal configuration, cable requirements, controller compatibility, timing parameters, and connector pin definition.
IPS technology provides wide viewing performance and supports consistent visual presentation when users observe the display from different horizontal or vertical positions.
The product specification lists a viewing angle of up to 178°, which is beneficial for public-facing displays where viewers may approach the screen from different directions.
The standard brightness is 400 cd/m², making this model suitable for many indoor commercial, retail, and industrial environments.
For applications exposed to stronger ambient lighting, Aptus can discuss higher-brightness configurations. Brightness is one of the customizable parameters listed for this product family.
A 1200:1 contrast ratio helps the display produce distinct differences between darker and brighter image areas. This is useful for advertising content, graphical interfaces, dashboards, and other applications where image clarity is important.
The display incorporates an LED backlight designed to provide uniform illumination. LED backlighting also supports the slim and efficient architecture commonly required by specialized LCD modules.
Aptus specifies an MTBF of more than 50,000 hours for this bar display and describes the product as an industrial-grade design focused on reliability, stability, and low power consumption. The product page also describes an all-metal construction intended to improve resistance to radiation, magnetic fields, and electrical interference.
Actual system reliability will depend on operating temperature, installation conditions, power supply design, ventilation, mechanical integration, and usage environment.
| Parameter | Specification |
|---|---|
| Product Type | Bar-Type TFT LCD Display |
| Model Number | DBC430LZN51V040A |
| Screen Size | 43 Inch |
| Resolution | 3840 × 720 pixels |
| Display Technology | TFT LCD |
| Viewing Technology | IPS |
| Viewing Angle | 178° |
| Interface | V-by-One |
| Control Board | Yes |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Form Factor | Ultra-Wide / Bar Type |
| Reliability | MTBF > 50,000 hours |
| Construction | Industrial-oriented metal construction |
| Customization | Brightness, PIN definition, cover glass, touch panel, driver board, etc. |
| Typical Applications | Industrial, retail, digital signage and specialized display systems |
The above specifications are based on the information published for model DBC430LZN51V040A on the Aptus Display product page. Custom specifications should be confirmed with Aptus engineering before mass production.
A conventional monitor is designed around standardized consumer aspect ratios. However, specialized equipment often has completely different spatial requirements.
A bar LCD allows manufacturers to use a wide horizontal area without unnecessarily increasing the vertical height of the equipment. This can be especially valuable for retail shelves, advertising structures, industrial machines, transportation information systems, and other installations where vertical space is limited.
The 3840×720 resolution also enables designers to create a wide digital canvas. Instead of dividing the physical space into several smaller displays, a single ultra-wide LCD can present information as one continuous visual interface.
For system integrators, this can reduce mechanical complexity and provide a more consistent visual experience.
The 43-inch bar LCD format can be considered for large retail shelving systems and digital merchandising installations. A long horizontal screen can display product categories, promotions, pricing information, product images, brand content, or advertising across an extended shelf area.
For retail applications requiring a smaller form factor, Aptus also offers a broader bar LCD product family covering different sizes, resolutions, interfaces, and brightness levels.
Ultra-wide digital signage can create a different visual presentation from standard portrait or landscape displays. The 3840×720 resolution provides enough horizontal pixel space for panoramic advertisements, product presentations, promotional banners, and information panels.
The 43-inch physical size also provides a strong viewing area for locations where a long horizontal display is preferred.
The industrial-oriented design makes this display suitable for specialized machinery and equipment requiring a wide user interface.
Manufacturers can use the screen to present machine status, operating parameters, production information, graphical dashboards, alarms, or other horizontally organized data.
When integrating the display into an industrial machine, engineers should evaluate enclosure design, thermal management, power supply, EMC requirements, operating environment, and mechanical mounting.
The ultra-wide format can be useful for specialized transportation displays where information needs to be presented horizontally. Potential applications include information panels, passenger communication systems, wayfinding displays, and other customized transportation equipment.
Final suitability should be evaluated according to the environmental and regulatory requirements of the specific transportation project.
The display can also be integrated into customized commercial display equipment where a conventional 16:9 screen cannot efficiently utilize the available installation space.
The ultra-wide format provides system designers with greater flexibility in creating custom visual interfaces and advertising structures.
Not every project can use an off-the-shelf LCD module. Mechanical dimensions, interface requirements, brightness, touch functionality, cable routing, and controller compatibility may vary significantly between projects.
Aptus supports customization for this product family. According to the product specification, customization can include brightness, PIN definition, cover glass, touch panel, and driver board.
For OEM and ODM projects, customers can provide the required screen size, resolution, interface, brightness, touch requirements, mechanical constraints, operating environment, and estimated quantity. Aptus can then evaluate the technical feasibility and recommend an appropriate display configuration.
This approach is especially useful for equipment manufacturers that need a display matched to a custom enclosure rather than adapting the entire product around a standard monitor.
Before selecting the 43-inch V-by-One bar LCD, engineers should confirm several important parameters.
First, the host system must be compatible with the required V-by-One signal architecture and controller board. Signal timing, connector definition, cable length, and power requirements should be verified before hardware development.
Second, the mechanical structure should provide adequate support for the large-format LCD module. The mounting method should avoid excessive mechanical stress on the panel.
Third, thermal management should be considered during system integration. Although the display is designed for reliable operation, the final enclosure should provide appropriate heat dissipation and prevent excessive temperature accumulation.
Fourth, brightness should be selected according to the actual ambient lighting environment. The standard 400 cd/m² configuration is appropriate for many indoor environments, while higher brightness may be considered for demanding lighting conditions.
Finally, if touch functionality is required, the touch panel, cover glass, controller, optical structure, and mechanical integration should be evaluated as one complete solution rather than as separate components.
Aptus Display, operated by Shenzhen Aptus Technology Co., Ltd., focuses on professional LCD display solutions and customized display integration. The company's product portfolio includes TFT LCD modules, bar-type LCD displays, touch panel LCD modules, flight simulator displays, wide-temperature displays, LCD accessories, and other specialized display solutions.
Aptus provides display customization services for customers developing industrial, commercial, retail, transportation, and other specialized equipment. Its capabilities include display configuration, controller boards, touch panel integration, and other customized display components.
The company emphasizes customization, display technology, technical support, global customer service, and long-term product reliability.
For B2B buyers, OEM manufacturers, distributors, and system integrators, working directly with a display manufacturer can simplify communication between the LCD specification, controller, touch panel, mechanical structure, and final application.
Display customization: Resolution, brightness, interface, touch panel, cover glass, driver board, and other parameters can be evaluated according to project requirements.
Engineering support: Aptus can work with customers to evaluate display specifications and integration requirements before production.
Wide product portfolio: The Aptus bar display family includes multiple sizes, resolutions, interfaces, and brightness configurations, providing alternatives when a single standard panel does not fit the project.
Application-oriented solutions: Rather than supplying only an LCD panel, Aptus can support customers developing complete display configurations around their application requirements.
Global B2B support: Aptus works with customers requiring customized LCD solutions for international industrial and commercial projects.
A 43-inch bar LCD display is an ultra-wide LCD designed with a long horizontal aspect ratio instead of the conventional 16:9 format. This makes it suitable for applications requiring a wide visual area with limited vertical space.
The DBC430LZN51V040A has a 3840×720 pixel resolution, providing a wide horizontal digital canvas for signage, dashboards, product information, and specialized interfaces.
Yes. The standard model uses a V-by-One interface and is listed with a control board. System engineers should confirm the exact controller and signal configuration for their host system before integration.
The standard product specification lists 400 cd/m² brightness, so it is primarily appropriate for many indoor commercial and industrial environments. Outdoor applications should be evaluated according to ambient light, temperature, enclosure design, waterproofing, sunlight readability, and required brightness. Higher-brightness customization may be discussed with Aptus.
Yes. Aptus states that parameters such as brightness, PIN definition, cover glass, touch panel, and driver board can be customized. Customization should be confirmed based on project quantity, technical requirements, and production feasibility.
Potential applications include digital shelf displays, ultra-wide digital signage, retail advertising, industrial equipment interfaces, transportation information displays, commercial display systems, and other specialized equipment requiring a wide horizontal screen.
If you are looking for a 43-inch 3840×720 bar LCD display for a commercial, retail, industrial, or customized equipment project, Aptus can help evaluate your display requirements.
