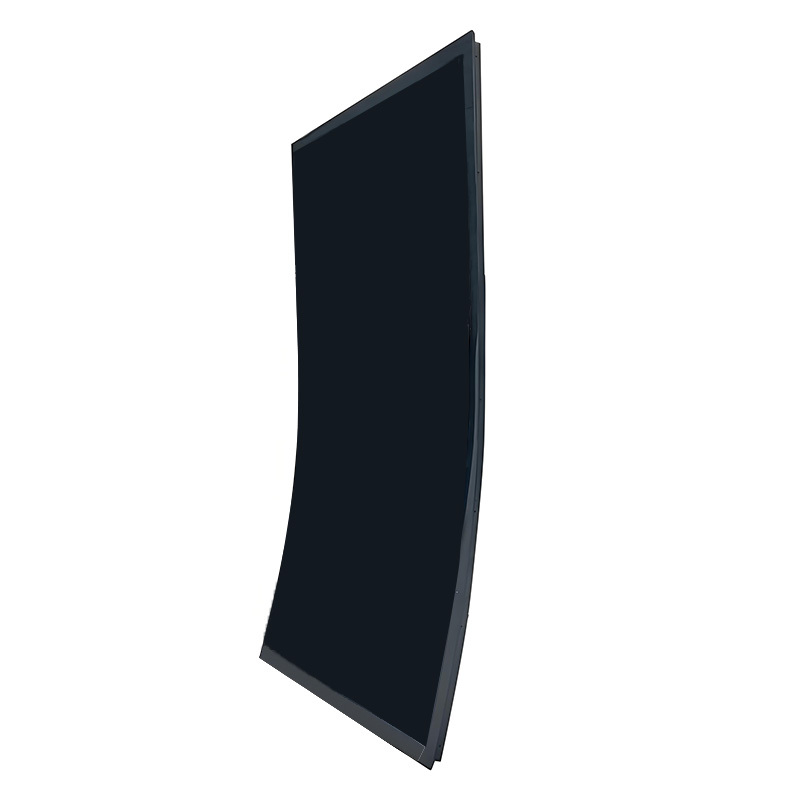

The 43-inch 3840×2160 QFHD Curved LCD Module from Aptus Display is a large-format TFT LCD open-cell solution designed for professional visual applications that require high resolution, strong contrast, wide viewing performance, and an immersive curved screen design. It is suitable for digital signage, professional media systems, industrial monitoring, smart display equipment, and customized OEM display projects.
Large-format display systems increasingly require more than just a high pixel count. System designers need a display module that combines detailed image reproduction, sufficient brightness, high contrast, fast response, reliable interface connectivity, and a form factor that enhances the viewing experience.
Aptus Display's DBT430DZN51V030A 43-inch curved LCD module addresses these requirements with a native 3840×2160 QFHD resolution and a large 43-inch-class display area. With 8.29 million pixels, the panel can reproduce highly detailed graphics, fine text, product information, video content, dashboards, and visual interfaces.
The curved form factor provides an immersive viewing experience and can be particularly useful where the display is positioned relatively close to the viewer or incorporated into a purpose-built enclosure. Combined with a 5000:1 typical contrast ratio, the module is designed to deliver strong image depth with clear differentiation between darker and brighter content.
The module uses a 30-pin LVDS interface, making it suitable for display systems designed around compatible LVDS timing and controller electronics. For OEM and system-integration projects, Aptus Display can also discuss the appropriate driver board, cable, mechanical integration, brightness, touch panel, and cover-glass configuration according to project requirements.
The 3840×2160 resolution provides detailed 4K-class image reproduction on a large 43-inch display. This makes the module suitable for applications where operators or viewers need to read detailed information, view high-definition video, or display multiple visual elements simultaneously.
For professional signage, monitoring systems, and media applications, the additional pixel density can help improve the presentation of small text, charts, graphics, product imagery, and video content.
The module provides 500 cd/m² brightness, offering a higher luminance level than many conventional indoor consumer display panels. This can provide better visibility in professional indoor environments with moderate ambient lighting.
Actual system-level readability depends on enclosure design, ambient illumination, front glass, optical treatment, viewing distance, and other integration factors. For applications requiring substantially higher outdoor readability, Aptus Display can evaluate alternative high-brightness LCD configurations.
A typical 5000:1 contrast ratio helps create a stronger distinction between dark and bright portions of an image. This is beneficial for video playback, digital signage, professional graphics, monitoring interfaces, and other applications where image depth is important.
With a typical response time of 6.5 ms, the panel is suitable for applications involving dynamic graphics and video content. Faster pixel response can help reduce visible motion blur compared with slower display technologies, although the final performance of a complete display system also depends on the controller, source signal, and system configuration.
The curved panel design creates a more immersive visual presentation than a conventional flat panel. It can be useful for customized commercial displays, professional visualization systems, gaming-related equipment, simulation systems, and other installations where a curved visual surface is part of the product design.
The 30-pin LVDS interface provides a practical connection option for compatible display controller systems. Before integration, engineers should confirm LVDS signal configuration, pin definition, timing parameters, power requirements, cable length, and controller compatibility.
Aptus Display can assist OEM customers in evaluating the complete display architecture rather than selecting the LCD panel in isolation.
| Parameter | Specification |
|---|---|
| Product Model | DBT430DZN51V030A |
| Display Size | 43 inch |
| Display Type | Curved TFT LCD |
| Resolution | 3840 × 2160 pixels |
| Resolution Class | QFHD / 4K |
| Active Area | 941.184 × 529.416 mm |
| Interface | 30-pin LVDS |
| Brightness | 500 cd/m² |
| Viewing Direction | 89 / 89 / 89 / 89 |
| Contrast Ratio | 5000:1 |
| Response Time | 6.5 ms |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Backlight | LED |
| Application Type | Professional / OEM Display Integration |
The specifications above are based on the product information published by Aptus Display. For production projects, customers should confirm the latest datasheet, mechanical drawing, electrical specifications, interface timing, and sample configuration with Aptus Display before finalizing system design.
A 43-inch display offers a useful balance between visual impact and integration flexibility. Compared with smaller panels, it provides substantially more screen area for displaying dashboards, advertising content, menus, product information, video, or monitoring interfaces.
The curved structure adds another design option for OEM manufacturers. Instead of treating the display simply as a rectangular flat panel, system designers can incorporate the curvature into a dedicated enclosure or visual platform.
The combination of 43-inch size, 3840×2160 resolution, 500 nits brightness, 5000:1 contrast, and 6.5 ms response time makes this LCD module particularly relevant to professional display equipment where visual quality and large-screen presentation are important.
For manufacturers, another advantage is the open-cell/module approach. Instead of purchasing a finished monitor, an OEM can integrate the LCD module with its own mechanical enclosure, controller, power architecture, front glass, touch panel, operating system, and industrial design.

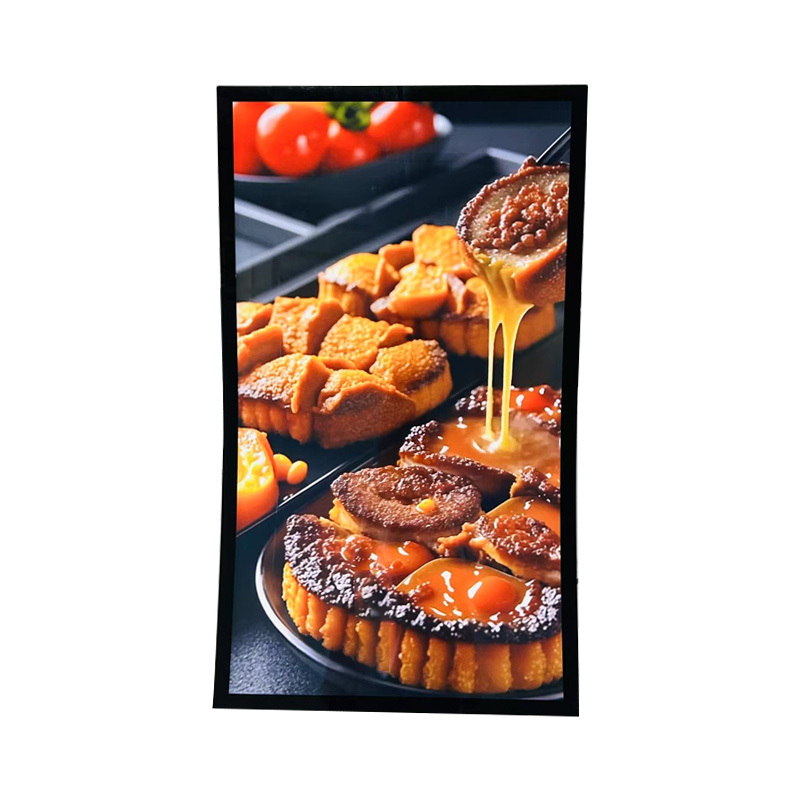

The 43-inch QFHD curved LCD module can be integrated into digital signage systems for retail environments, exhibitions, entertainment venues, hospitality locations, information displays, and promotional installations.
The 3840×2160 resolution allows high-definition advertising graphics, promotional videos, product information, and interactive content to be presented with fine detail.
Professional media equipment can benefit from the combination of a large display area and high native resolution. Potential applications include studio monitoring, professional video presentation, content preview systems, media production equipment, and customized visualization platforms.
The 5000:1 contrast ratio and 6.5 ms response time provide a strong foundation for displaying high-quality video and dynamic content.
Large-format LCD modules can be used in industrial monitoring systems where operators need to view dashboards, production information, equipment status, process graphics, or multiple data elements on a single screen.
For industrial integration, the final system should be designed according to the actual environmental conditions, including temperature, vibration, enclosure ventilation, dust protection, and operating hours.
In smart manufacturing environments, a large QFHD display can serve as a visualization interface for production lines, equipment monitoring, production statistics, and manufacturing dashboards.
The large screen area makes it possible to present multiple data panels without requiring several small displays.
The curved design can also be considered for simulation and immersive visualization systems. A curved panel can help create a more enveloping field of view, making it relevant to selected simulator, gaming, training, and visualization projects.
Aptus Display can work with customers to evaluate whether this panel or a different curved LCD configuration is better suited to the mechanical and electronic requirements of a specific simulator.
The module is particularly suitable for OEM and ODM projects where the customer needs more control over the final product. The LCD module can be evaluated together with a compatible driver board, cable, enclosure, touch panel, protective glass, and other components.
Before ordering a 43-inch LVDS LCD module for production, engineers should verify more than the screen size and resolution.
First, confirm that the host controller supports the panel's 3840×2160 resolution and 30-pin LVDS interface. Signal timing, lane configuration, pin assignment, power sequencing, and connector orientation should be checked against the latest technical documentation.
Second, the mechanical structure should account for the curved geometry of the panel. Mounting pressure should be carefully controlled because improper mechanical stress can damage an LCD module or create optical defects.
Third, thermal management should be considered during enclosure development. Operating temperature is specified as 0°C to +50°C, while storage temperature is -20°C to +60°C. The actual system design should prevent the panel and associated electronics from exceeding their specified environmental limits.
Finally, optical performance should be evaluated in the actual installation environment. Ambient lighting, viewing distance, front cover glass, anti-reflective treatment, and enclosure design can all influence perceived image quality.
Aptus Display provides customized display solutions for OEMs, system integrators, and professional equipment manufacturers. Depending on project requirements, customization can include:
LCD module selection
Brightness optimization
Capacitive touch panel integration
Resistive touch panel integration
Cover glass
Driver board
LVDS cable and connector configuration
Mechanical enclosure
Display integration
Customized display solutions
Technical engineering support
For projects with special requirements, customers are encouraged to provide the target application, operating environment, quantity, host system, preferred interface, and mechanical constraints. This allows the Aptus engineering team to recommend a more suitable display configuration.
Aptus Display, operated by Shenzhen Aptus Technology Co., Ltd., specializes in professional LCD display modules and customized display solutions. The company provides TFT LCD modules, touch panels, high-brightness displays, curved LCD solutions, display accessories, and customized integration services.
Aptus Display has more than a decade of experience in the LCD display industry and works with OEMs, system integrators, distributors, and professional equipment manufacturers. Its product portfolio covers applications including TFT LCD modules, flight simulator displays, gaming display solutions, touch panel LCD modules, bar-type LCD displays, wide-temperature displays, and other specialized display products.
The company emphasizes engineering support, product customization, quality assurance, global logistics, and after-sales service. This approach allows customers to work with one display partner from initial product selection through prototype development and production integration.
For a project requiring a 43-inch curved 4K LCD module, Aptus Display can help evaluate not only the LCD panel itself but also the supporting electronics and mechanical integration needed to create a complete display solution.
The DBT430DZN51V030A provides a native 3840×2160 QFHD resolution, giving the display more than 8 million pixels for detailed image reproduction.
This model uses a 30-pin LVDS interface. Customers should verify the exact signal configuration, pin definition, timing, and controller compatibility before integration.

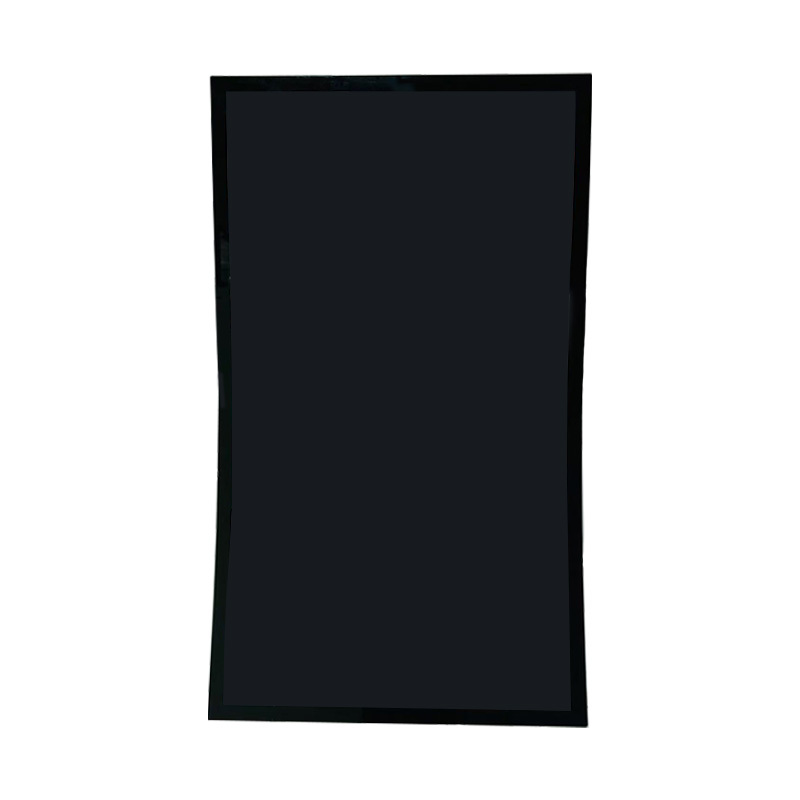

It is a curved TFT LCD module. The curved structure is designed for applications where a more immersive viewing experience or customized curved enclosure is required.
The specified brightness is 500 cd/m². This makes the module suitable for many professional indoor display applications. For outdoor or direct-sunlight applications, a higher-brightness solution may be more appropriate.
Yes. Aptus Display provides customized display solutions that can include brightness, touch panel, driver board, cover glass, cables, and other integration requirements. The exact customization options depend on the project and production quantity.
Typical applications include digital signage, professional media displays, industrial monitoring, smart-factory visualization, simulation systems, customized commercial displays, and OEM equipment.
For an accurate recommendation, provide the required screen size, resolution, quantity, application, host interface, brightness requirement, operating temperature, touch-panel requirement, mechanical dimensions, and target delivery schedule.
If you are sourcing a 43-inch 3840×2160 curved LCD module for a professional display, digital signage system, monitoring platform, simulator, or OEM product, Aptus Display can help evaluate the appropriate display configuration.
