Square Display Solution for Industrial and Embedded Systems

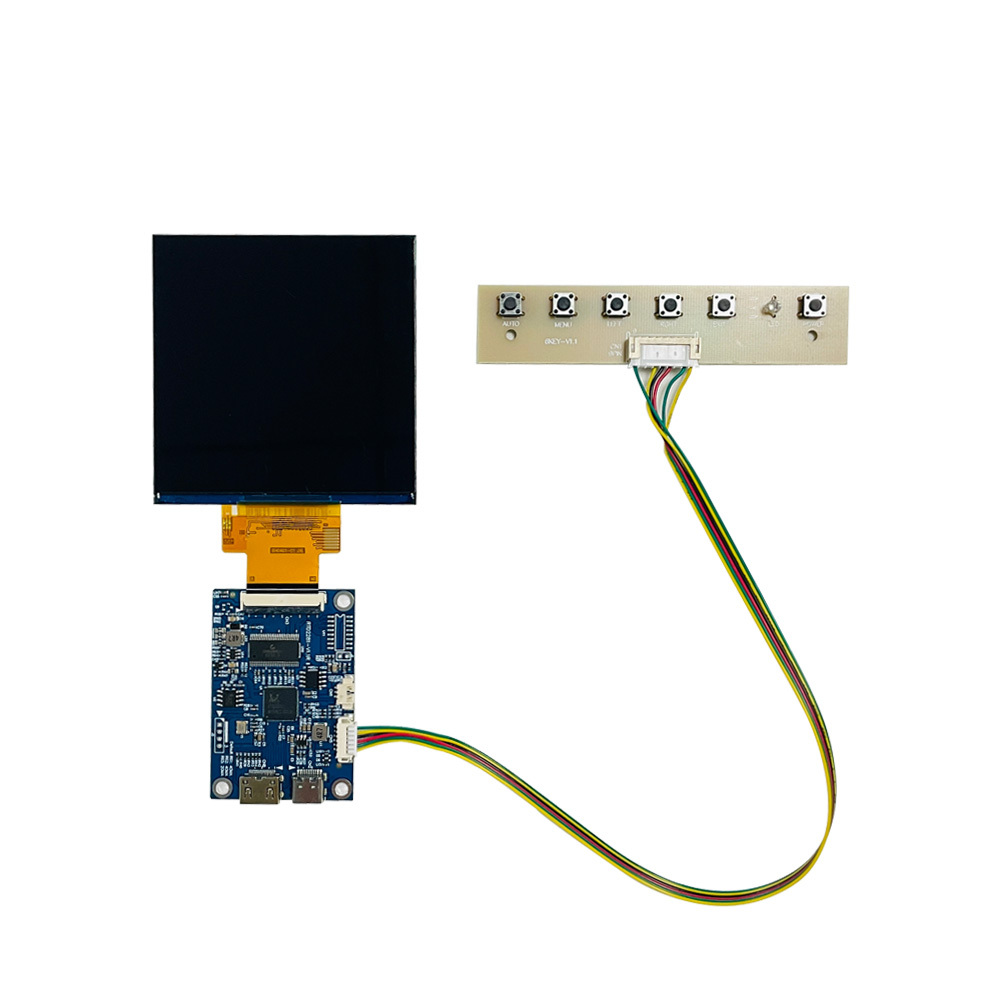

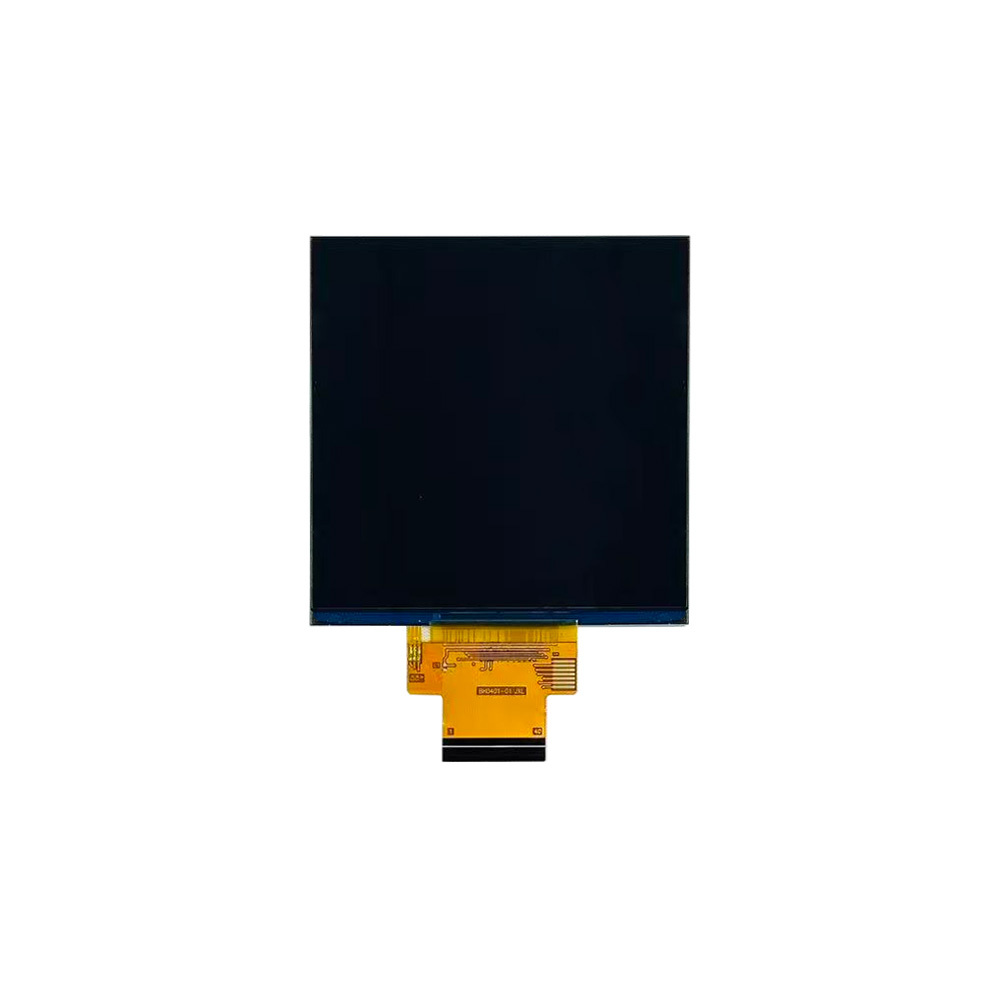

This 4-inch 480×480 TFT LCD module is designed for industrial control systems and embedded display applications, where stable performance, clear visibility, and flexible integration are essential.
With a square aspect ratio (1:1) and RGB 40-pin interface, the module supports a wide range of embedded platforms and control systems. The display delivers consistent visual performance with 450 cd/m² brightness, ensuring readability in indoor and semi-industrial environments.
The IPS panel technology provides full viewing angles, allowing clear visibility from multiple directions, which is critical for operator interfaces and control panels.
This LCD module is suitable for:
Attitude Indicator (AI)
Horizontal Situation Indicator (HSI)
Vertical Speed Indicator (VSI)
Engine Indicating and Crew Alerting System (EICAS)
Flight Mode Annunciator (FMA)
The square format allows efficient use of screen space, making it ideal for both graphical interfaces and data visualization systems.
Square LCD modules are increasingly used in industrial and embedded systems due to their flexibility and efficiency.

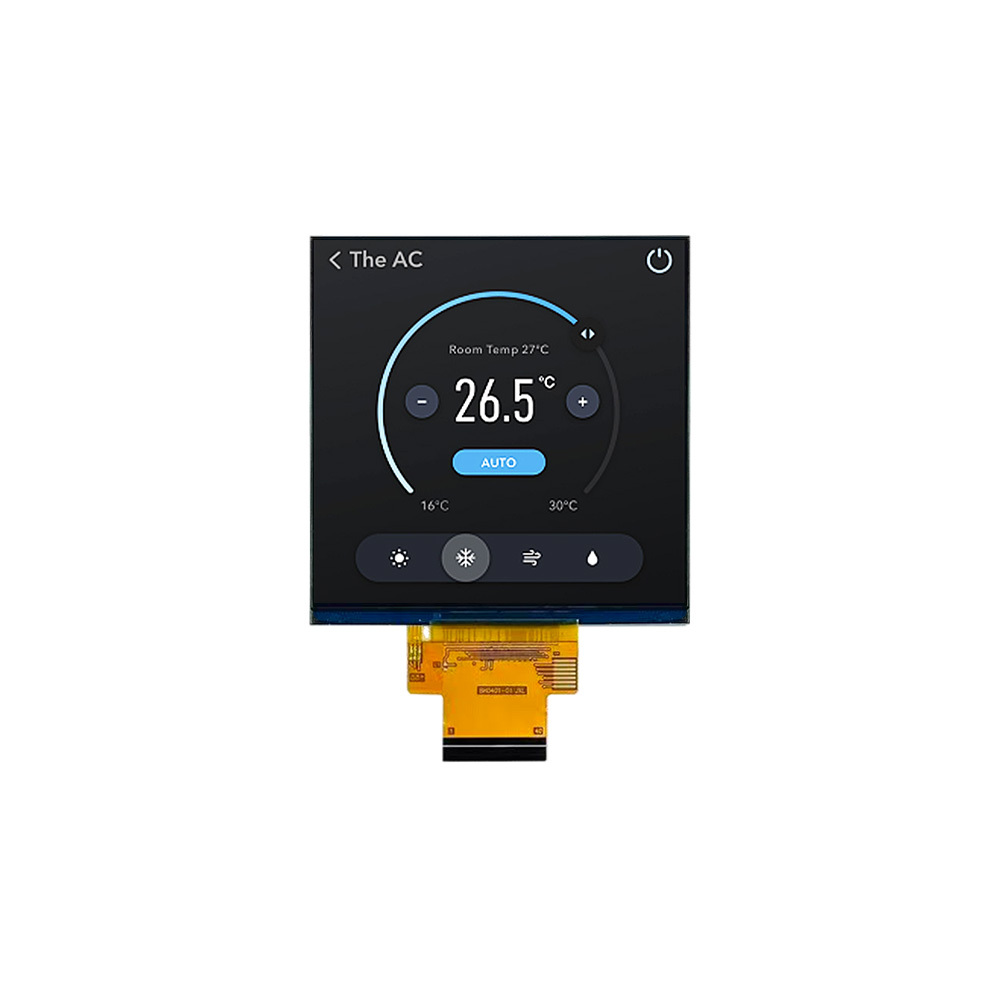

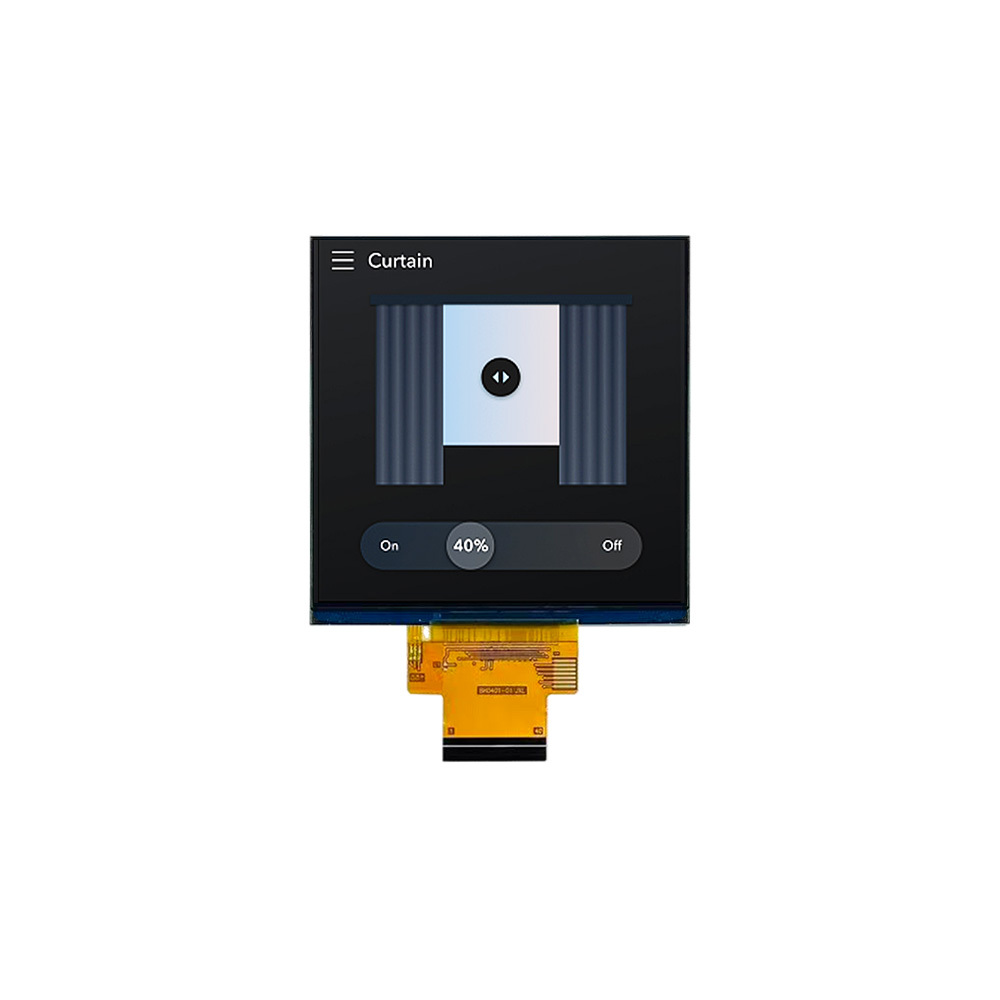

A square resolution allows developers to design interfaces without unused margins, especially for dashboards and control panels.
Compared to rectangular displays, square modules provide better space utilization in compact devices and panel-mounted systems.
The 480×480 resolution supports both graphical UI and data display, enabling a single screen to serve multiple functions within a system.
480×480 resolution for clear graphical and data display
40-pin RGB interface for stable signal transmission
450 nits brightness for enhanced visibility
IPS full viewing angle (80/80/80/80)
Normally Black display mode for improved contrast
Compact square form factor for flexible integration
Industrial-grade design for reliable long-term operation
| Item | Specification |
|---|---|
| Model Number | DBT040HFN40R045A |
| Screen Size | 4.0 inch |
| Resolution | 480 × 480 |
| Display Type | TFT LCD (IPS) |
| Interface | RGB, 40-pin |
| Brightness | 450 cd/m² |
| Viewing Angle | 80/80/80/80 |
| Operating Temperature | -20°C to +70°C |
| Outline Dimensions | 74.66*76.54*2.06mm |
This module is designed for seamless integration into embedded systems and industrial devices. The RGB interface enables high-speed data transmission, ensuring smooth rendering of graphical interfaces and system data.
It can be integrated into:
MCU-based control systems
Embedded Linux platforms
FPGA-based systems
Industrial automation controllers
The 40-pin connector ensures compatibility with standard embedded hardware interfaces, simplifying system development and reducing integration time.
The IPS panel ensures that the display maintains consistent brightness and color accuracy across different viewing angles, which is important in control environments.
With 450 nits brightness, the display provides clear visibility in indoor and semi-bright environments without excessive power consumption.
The module is designed to operate within industrial temperature ranges, ensuring stable performance in demanding environments.
To meet different project requirements, we offer:
Capacitive touch panel integration
Custom GG5 cover glass
Optical bonding for improved clarity
Brightness adjustment options
FPC and connector customization
Interface adaptation solutions
Q1: Is this display suitable for industrial control systems?
Yes, it is designed for HMI and embedded industrial applications requiring stable and clear display performance.
Q2: Can it be integrated into embedded systems?
Yes, the RGB interface allows easy integration with various embedded platforms.
Q3: Is the brightness sufficient for industrial environments?
Yes, 450 nits brightness is suitable for indoor and semi-industrial applications.
Q4: Can the display be customized?
Yes, customization options include touch panel, cover glass, and interface adjustments.
If you are developing or upgrading a flight simulator system and are looking for a reliable LCD display module for avionics simulation or cockpit instrumentation, we welcome you to contact us.
Our team can assist with:
Technical documentation review
Sample evaluation
Application suitability assessment
Long-term project support
