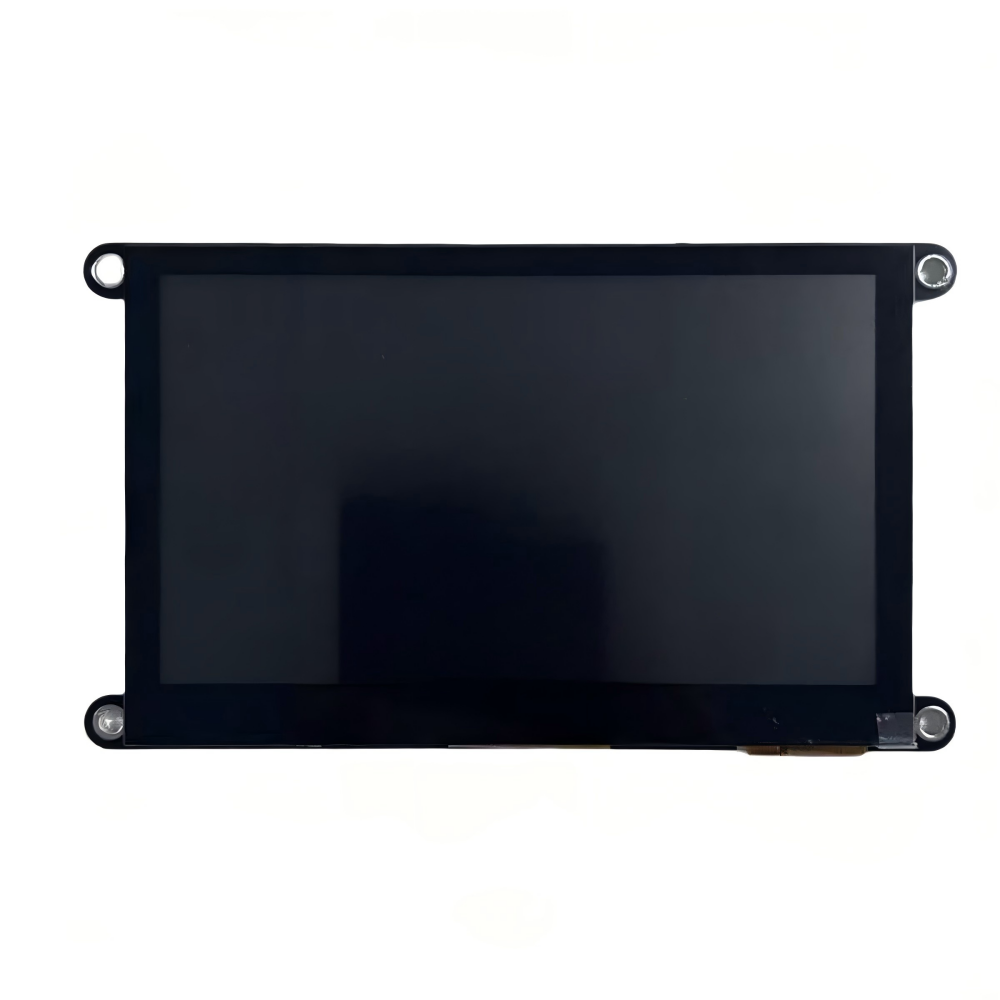

4.3 Inch ESP32-S3 LCD Touch Panel Development Board – All-in-One HMI Solution for IoT and Embedded Projects

The 4.3 inch ESP32-S3 LCD touch screen is a complete, ready-to-use development solution that integrates a high-performance ESP32-S3-WROOM-1 dual-core microcontroller with a vibrant TFT display, touch interface, and essential peripherals. Designed for makers, engineers, educators, and IoT enthusiasts, this module eliminates the hassle of wiring separate LCD drivers, touch controllers, and power management circuits. Simply power it up, and you’re ready to develop rich graphical user interfaces (GUIs), wireless-connected devices, and interactive embedded applications.

Whether you’re building a smart home control panel, an industrial monitoring HMI, a portable data logger, or an educational demo device, this ESP32-S3 4.3" touch display module delivers everything in one compact board. It supports multiple development environments including Arduino IDE, ESP-IDF, MicroPython, and GUI tools like LVGL or Guition, making it accessible for beginners and powerful enough for advanced projects.

Key Features and Benefits

• Vivid 4.3-Inch IPS TFT Display: Enjoy sharp 480×272 resolution with 16-bit RGB and 65K colors for rich, vibrant visuals. The IPS viewing angle ensures excellent visibility from almost any direction, perfect for control panels and handheld devices.
• Touch Options for Every Need: Available in resistive touch (models ESP32-4827S043N / ESP32-4827S043R) or capacitive touch (ESP32-4827S043C). Capacitive versions support smooth multi-touch interaction, while resistive is cost-effective and works with styluses.
• Powerful ESP32-S3 Core: Dual-core Xtensa LX7 processor running at up to 240 MHz, with 512KB SRAM, 384KB ROM, 8MB PSRAM, and 4MB Flash. Integrated 2.4GHz Wi-Fi and B-tooth (including BLE) enable seamless wireless connectivity for IoT applications.
• Rich Peripherals: TF (microSD) card slot for data logging or media storage, up to 10 user-accessible GPIO pins, Type-C programming interface, battery charging/discharging circuit with overcharge/over-discharge protection, speaker interface, BOOT and RESET buttons, and extended IO headers.
• Easy Development: Factory pre-loaded sample program – just plug in and see it run. Supports one-click downloading. Comprehensive Arduino libraries and example codes accelerate your secondary development.
• Reliable Power and Build: Operates at 5V with ~260mA power consumption. Military-grade process standards ensure long-term stable operation in temperatures from -20°C to 70°C (operating) and -30°C to 80°C (storage).
• Compact and Ready: Module size 120×70.2 mm, effective display area 95.04×53.86 mm, weight ~130g. Includes backlight control and touch screen control circuits built-in.

This all-in-one design transforms the traditional ESP32 + separate LCD setup into a plug-and-play HMI solution, saving development time and reducing potential points of failure.

Technical Specifications

Here is a detailed parameter table for quick reference:

Why Choose This 4.3 Inch ESP32 Touch Screen Module?

In the competitive world of ESP32 display boards, this APTuS module stands out due to its balanced combination of performance, ease of use, and expandability. Unlike bare ESP32 modules that require additional driver boards and complex wiring, this integrated solution includes the LCD, backlight, touch controller, and power management on a single PCB.

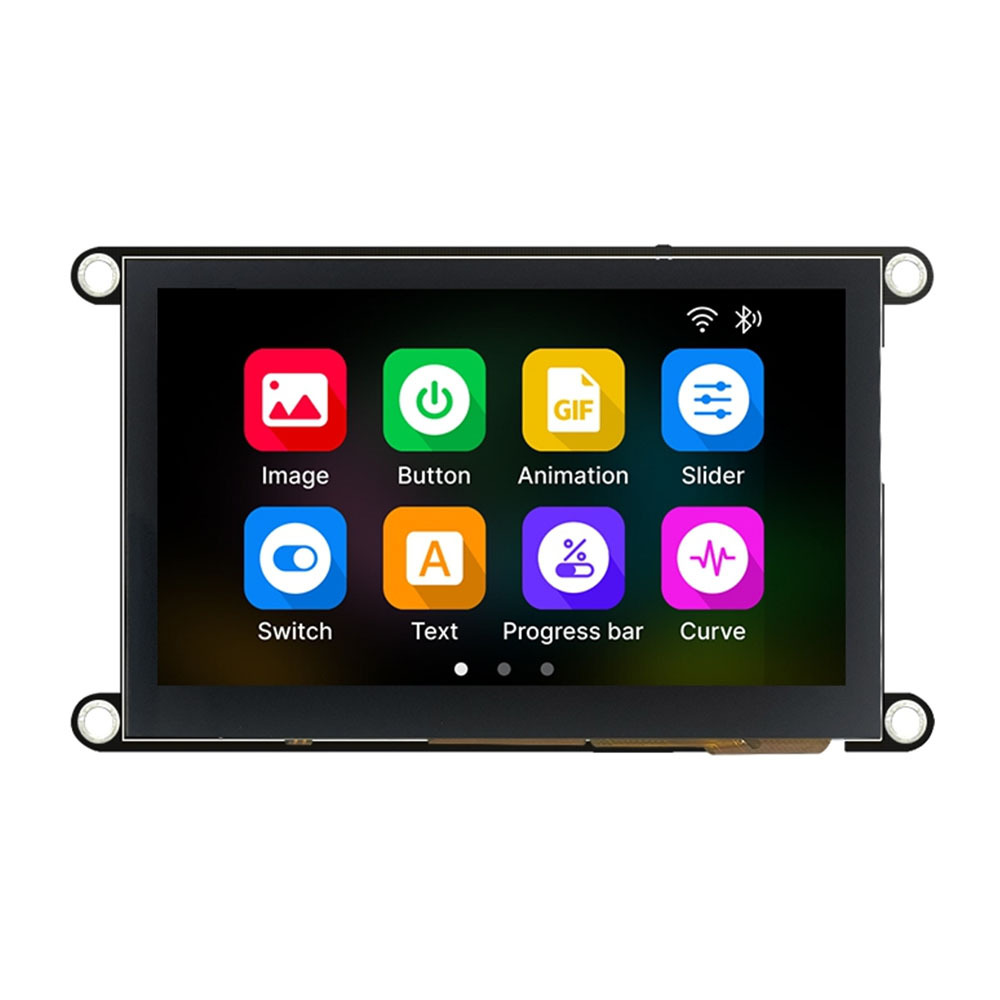

The support for popular frameworks like LVGL (Light and Versatile Graphics Library) allows developers to create modern, responsive UIs with animations, sliders, charts, buttons, and more – all running smoothly thanks to the ESP32-S3’s PSRAM and processing power. Wireless capabilities open doors to cloud integration (MQTT, HTTP, etc.), remote monitoring, and mesh networking.

The built-in lithium battery charging circuit with protection makes it suitable for portable or battery-powered projects, while the TF card slot expands storage for images, logs, or configuration files. With up to 10 freely usable IO pins, you can connect sensors, actuators, relays, or other peripherals without running out of resources.

Application Scenarios

This versatile ESP32-S3 4.3" LCD touch screen excels in numerous real-world applications:

1. Smart Home and Building Automation: Create wall-mounted control panels for lighting, HVAC, security systems, or multimedia. Touch interface + WiFi/BLE enables intuitive control and integration with Home Assistant, MQTT brokers, or custom apps.
2. Industrial HMI and Monitoring: Use as a compact human-machine interface for machinery status, data visualization, parameter setting, or alarm displays in factories, workshops, or automation equipment. The IPS wide viewing angle and stable operation across temperature ranges make it reliable for industrial environments.
3. IoT Dashboards and Data Loggers: Display real-time sensor data (temperature, humidity, air quality, etc.) from connected devices. Log data to TF card or upload to cloud platforms. Great for environmental monitoring stations or agricultural sensors.
4. Portable Devices and Handhelds: Build battery-powered gadgets like portable testers, diagnostic tools, GPS navigators with custom maps, or music players with visualizers.
5. Education and Prototyping: Perfect for STEM education, university projects, or maker workshops. Students can quickly prototype interactive projects involving graphics, touch input, wireless communication, and embedded programming.
6. Retail and Kiosks: Information kiosks, product configurators, or ordering systems in stores benefit from the vibrant display and responsive touch.
7. Custom GUI Projects: Developers using SquareLine Studio, LVGL, or Guition can rapidly design and deploy beautiful interfaces for any embedded UI need.

The combination of wireless connectivity, rich I/O, and a ready GUI-capable display makes this board a true “solution” rather than just a component.

Getting Started and Development Tips

Out of the box, the board comes with a sample program pre-installed – connect power via Type-C or the battery interface and explore the demo immediately. For custom development:

• Arduino IDE: Install ESP32 board support and use provided libraries for display, touch, and WiFi.
• ESP-IDF: For maximum performance and low-level control.
• MicroPython: Quick scripting for rapid testing.
• LVGL/Guition: Drag-and-drop or code-based GUI design with smooth animations.

Extended IO headers and the TF slot allow easy addition of modules like cameras, sensors, or audio. One-click download simplifies firmware updates during iteration.

Product Size and Physical Design

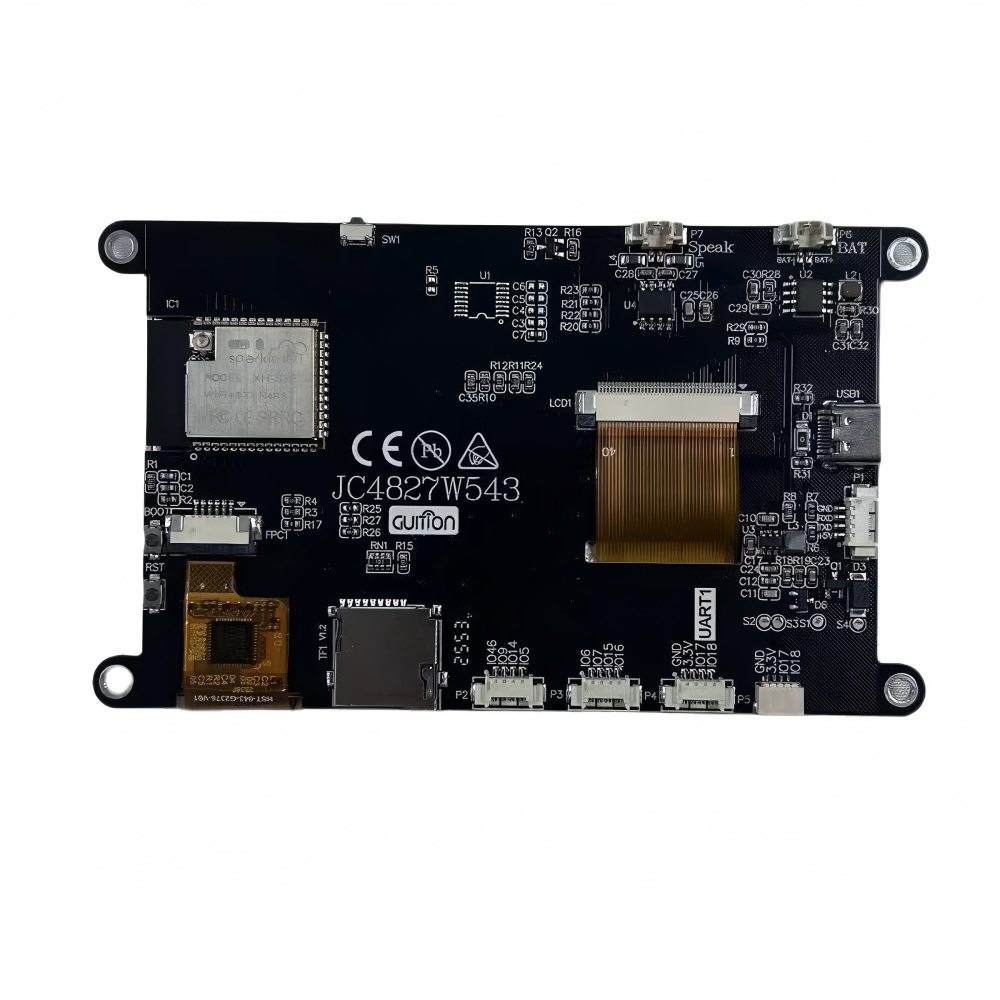

The module features a sleek black PCB with clearly labeled interfaces: ESP32-S3 module, TF card slot, extended IO pins, battery switch, speaker connector, Type-C port, and mounting holes. The display sits neatly above the control circuitry. Overall dimensions (120 × 70.2 mm) fit well in standard enclosures or custom 3D-printed cases. Mounting holes on the PCB facilitate secure installation in final products.

Frequently Asked Questions (FAQ)

Q1: What touch type should I choose – resistive or capacitive? Resistive touch (models ending in N/R) is more affordable and works with gloves or styluses, suitable for industrial or outdoor use. Capacitive touch (model C) offers smoother, multi-point gestures like modern smartphones and is ideal for consumer or HMI applications.

Q2: Does it support LVGL? Yes, the powerful ESP32-S3 with PSRAM runs LVGL smoothly. Many community examples and official libraries are available for quick GUI development.

Q3: Can I power it with a lithium battery? Absolutely. The onboard charging/discharging circuit with protection supports direct connection to Li-ion/LiPo batteries, making it great for portable projects.

Q4: How many GPIO pins are available for external use? Up to 10 IOs can be used separately by customers, in addition to dedicated interfaces like TF card and display control.

Q5: What development environments are supported? Arduino IDE, ESP-IDF, MicroPython, and GUI tools like Guition. Sample codes and libraries are provided for rapid development.

Q6: Is the display readable in bright light? The IPS TFT with backlight provides good visibility. For direct sunlight applications, consider adding a higher-brightness backlight or anti-glare overlay if needed.

Q7: Does it have speaker support? Yes, there is a dedicated speaker interface for audio output in your projects.

Q8: What is the difference between the SKUs? They mainly differ in touch technology (resistive vs capacitive). All share the same core ESP32-S3 performance, display specs, and features.

Q9: Can I expand storage? Yes, the TF card slot supports microSD cards for additional storage of images, data logs, or firmware.

Q10: Is programming easy for beginners? Very. With factory sample, one-click download, and extensive Arduino examples, even newcomers can get impressive results quickly.

Conclusion: Elevate Your Next Project with This ESP32 Touch Display Solution

The 4.3 inch ESP32-S3 LCD touch screen development board is more than just a display – it’s a comprehensive embedded solution that combines computing power, wireless connectivity, rich visuals, and user interaction in one reliable package. Its support for popular ecosystems, expandability, and out-of-the-box readiness make it an excellent choice for prototyping, product development, education, and deployment in IoT, smart home, industrial, and creative applications.

Ready to bring your ideas to life? Whether you need a responsive HMI, a wireless dashboard, or an interactive gadget, this module provides the hardware foundation to succeed. Explore the full range of accessories, download resources, and start building today.
