The 4.3-inch 480×800 RGB interface touch panel TFT LCD module is a compact interactive display designed for embedded equipment, industrial HMIs, smart home control panels, instrumentation, and customized OEM/ODM products. Model DBT043BVC51R020A combines a 480×800 TFT LCD, IPS wide-view display technology, capacitive touch panel (CTP), and a 51-pin RGB interface in a slim 70.6 × 122.1 × 3.35 mm module. With 200 cd/m² brightness and an operating temperature range of -20°C to +70°C, it provides a practical display solution for compact indoor and controlled-environment embedded applications.
The 480×800 resolution provides a portrait-oriented display format with enough pixel density for graphical menus, icons, status information, parameter settings, and touch-based user interfaces. The IPS panel supports viewing from different directions, while the integrated capacitive touch panel enables intuitive interaction without requiring separate physical buttons.
For OEM and ODM customers, Aptus Display also provides customization options including cover glass, touch-panel configuration, FPC pin-out, mechanical design, and driver-board solutions. This makes the module suitable not only for prototype development but also for customized equipment and production projects.
The display provides a 480×800-pixel resolution, offering a portrait-oriented graphical interface in a compact 4.3-inch form factor. This resolution is well suited to embedded applications that need to display text, icons, menus, numerical data, status indicators, and touch controls without requiring a larger display.
For engineers designing compact equipment, the 480×800 configuration provides a useful balance between visual information, system resources, and physical size.
The module uses an IPS TFT LCD panel with an all-direction viewing characteristic. This helps maintain consistent visual presentation when users view the display from different positions.
This is particularly useful in equipment where the operator is not always directly in front of the panel, such as control equipment, instrumentation, automation systems, and interactive terminals.
The module integrates a capacitive touch panel (CTP), allowing users to interact directly with the graphical interface.
A CTP interface can help manufacturers replace conventional mechanical buttons with software-defined controls. Depending on the application, the same display can provide different menus, settings, operating modes, and status pages through software.
For customized products, the touch-panel configuration can be discussed with Aptus according to the enclosure, cover glass, touch requirements, and user interface design.
The 51-pin RGB interface provides a parallel RGB connection between the TFT LCD module and the host system.
When integrating the module into an embedded product, engineers should verify the RGB timing, electrical specifications, pin definition, power requirements, FPC configuration, and controller compatibility before starting PCB design.
Aptus Display can also support customized pin-out and driver-board requirements for OEM/ODM projects.
With a module thickness of only 3.35 mm, this LCD module can help product designers maintain a compact enclosure.

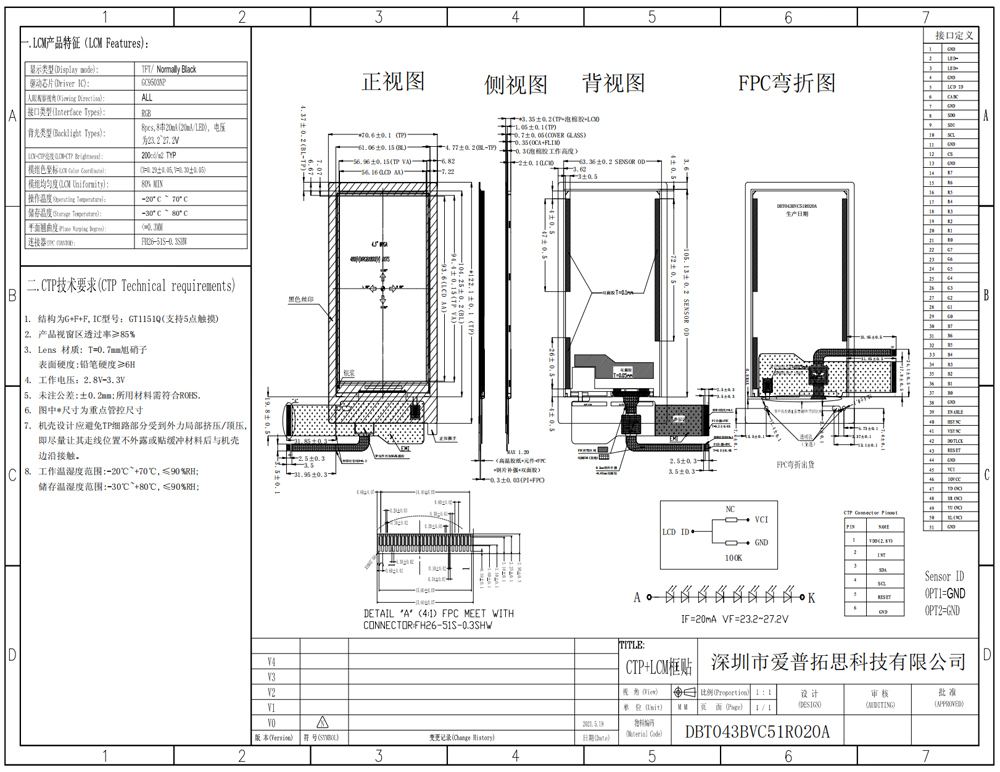

The overall module dimensions are 70.6 × 122.1 × 3.35 mm, while the active display area is 56.16 × 93.60 mm. These dimensions should be considered during mechanical design, mounting structure development, and enclosure tooling.
The published operating temperature range is -20°C to +70°C, providing flexibility for embedded equipment operating across changing ambient conditions.
The storage temperature range is specified as -30°C to +80°C. For applications requiring operation outside the standard range, customers should discuss alternative wide-temperature LCD solutions with Aptus Display.
| Parameter | Specification |
|---|---|
| Product Name | 4.3 Inch 480×800 RGB Interface Touch Panel TFT LCD Module |
| Model | DBT043BVC51R020A |
| Display Size | 4.3 inch |
| Resolution | 480 × 800 pixels |
| Display Technology | TFT LCD |
| Panel Type | IPS |
| Viewing Direction | All-direction / wide viewing |
| Touch Technology | Capacitive Touch Panel (CTP) |
| Interface | RGB |
| Interface Pins | 51 PIN |
| Display Colors | 16.7 million colors |
| Driver IC | GC9305NP |
| Brightness | 200 cd/m² typical |
| Active Area | 56.16 × 93.60 mm |
| Module Size | 70.6 × 122.1 × 3.35 mm |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Compliance | RoHS |
| Customization | Cover glass, touch panel, pin-out, driver board |
| Typical Orientation | Portrait |
The specifications are based on the current product information published by Aptus Display. Engineers should request the latest datasheet and mechanical drawing before final PCB and enclosure design because detailed electrical timing and interface parameters should be confirmed for the specific production configuration.
Selecting an embedded display requires more than comparing screen size and resolution. Engineers need to consider the display interface, touch technology, mechanical dimensions, brightness, operating temperature, viewing characteristics, and long-term supply requirements.
This 4.3-inch LCD module integrates the display and touch panel into a compact solution, helping simplify the front-panel architecture of an embedded product.
The 480×800 resolution provides a vertically oriented interface suitable for menus, data, controls, and graphical content. The IPS panel improves viewing flexibility, while the CTP touch panel provides a modern interactive interface.
The 51-pin RGB interface is another important consideration for embedded system designers. It allows the display to be integrated with compatible processors and display controllers using a parallel RGB architecture.
For mechanical integration, the 3.35 mm module thickness is beneficial for compact product designs. Meanwhile, the -20°C to +70°C operating temperature range allows the module to be considered for a wider range of embedded environments than a standard consumer-only display.
The 4.3-inch touch LCD is suitable for compact human-machine interfaces (HMI) where operators need to monitor equipment and interact with control functions.
Potential applications include:
Machine control interfaces
Automation equipment
Embedded controllers
Equipment status displays
Parameter-setting panels
Compact industrial instruments
Monitoring equipment
The 480×800 portrait format provides sufficient space for menus, buttons, numerical values, icons, and status information.
Compact measurement and testing equipment often requires a display that can provide clear numerical information while occupying limited front-panel space.
This 4.3-inch module can be used for interfaces showing measurement values, operating modes, configuration settings, warnings, and system status.
The CTP allows engineers to replace multiple physical buttons with a configurable graphical interface.
The module is also appropriate for smart home and home automation interfaces.
A compact touch display can be used to control:
Lighting
HVAC
Security systems
Smart appliances
Energy management
Home automation functions
The IPS viewing characteristics are useful when the panel is mounted in locations where users may approach it from different angles.
The display can be integrated into customized commercial equipment requiring a compact user interface.
Potential applications include self-service terminals, access-control equipment, compact payment-related interfaces, information terminals, and other embedded systems.
The final suitability depends on brightness, environmental conditions, touch requirements, mechanical installation, and system interface compatibility.
One of the strongest use cases for this module is custom OEM/ODM development.
Manufacturers can start with the standard 4.3-inch platform and then discuss modifications such as cover glass, CTP configuration, FPC pin-out, mechanical layout, and driver-board integration.
This approach can reduce the engineering workload associated with developing a completely new display assembly from the beginning.
Before selecting this 4.3-inch RGB touch LCD for a new project, several factors should be verified.
Because the module uses a 51-pin RGB interface, the host processor or controller must support the appropriate RGB output and timing configuration.
The engineering team should verify the RGB format, clock, synchronization signals, voltage levels, and pin assignment before PCB development.
The module outline is 70.6 × 122.1 × 3.35 mm. Engineers should allow sufficient clearance for the FPC, connector, mounting structure, touch panel, cover glass, and enclosure.
The standard brightness is 200 cd/m². This is generally more appropriate for controlled indoor environments than direct sunlight applications.
If the display will be used in bright outdoor environments, a higher-brightness display should be considered. Aptus offers other 4.3-inch configurations, including higher-brightness CTP modules.
The CTP configuration should be evaluated according to the cover-glass thickness, touch area, operating environment, user interaction method, and mechanical structure.
For specialized projects, Aptus can discuss customized touch-panel configurations.
Aptus Display provides customization support for customers who need a display adapted to a specific product design.
Available customization options listed for this product include:
Custom cover glass
CTP or other touch-panel configurations
FPC pin-out customization
Mechanical layout adjustment
Driver-board integration
Display interface adaptation
Project-specific display configurations
For an OEM project, customers should provide the target display size, resolution, interface, mechanical dimensions, touch requirements, brightness requirements, operating temperature, and estimated quantity.
This information allows the engineering team to determine whether the standard module can be used directly or whether a customized display solution would provide better integration.
Shenzhen Aptus Technology Co., Ltd. is an LCD display manufacturer and supplier providing TFT LCD modules, touch panel LCD modules, wide-temperature displays, flight simulator display solutions, LCD accessories, and customized display solutions.
Aptus supports both standard display products and customized OEM/ODM projects. Its product portfolio includes different display sizes, resolutions, interfaces, brightness levels, and touch technologies, allowing customers to select a display according to their system architecture rather than relying on a single fixed display specification.
For this 4.3-inch 480×800 RGB touch LCD, Aptus provides technical support related to product integration, customization, driver configuration, and display selection. The company also states that its services include sample and volume production support, RoHS compliance, and reliability testing.
For engineering teams, distributors, equipment manufacturers, and system integrators, this combination of standard products and customization capability can simplify the transition from prototype evaluation to production.
The resolution is 480 × 800 pixels. The portrait-oriented format is suitable for graphical user interfaces, embedded controls, menus, instrumentation, and compact interactive equipment.
Yes. The product integrates a capacitive touch panel (CTP), allowing users to interact directly with graphical controls and menus.
The module uses a 51-pin RGB interface. Host-controller compatibility, RGB timing, electrical specifications, and pin definitions should be confirmed before system integration.
Yes. The product specification identifies the viewing direction as IPS with all-direction viewing characteristics, making it suitable for applications where users may view the display from different positions.
The typical brightness is 200 cd/m². This configuration is better suited to indoor or controlled-light environments. For high ambient-light or outdoor applications, Aptus can provide alternative higher-brightness display configurations.
The operating temperature is -20°C to +70°C, while the published storage temperature range is -30°C to +80°C.
Yes. Aptus lists customization options including cover glass, touch panel type, FPC pin-out, mechanical layout, and driver-board solutions.
The standard 200 cd/m² version is not the first choice for direct sunlight applications. Outdoor projects generally require higher brightness and may also require optical bonding, anti-reflection treatment, thermal management, and outdoor-rated touch solutions. Aptus offers higher-brightness 4.3-inch CTP modules for applications requiring greater sunlight readability.
If your project requires a 4.3-inch 480×800 TFT LCD with IPS viewing, capacitive touch, and a 51-pin RGB interface, contact Aptus Display for product availability, samples, datasheets, mechanical drawings, and customization support.
