Product Details: S Series UV LED Light Source - UVA-S64V03

Unleash Precision Curing with the S Series UV Light Source

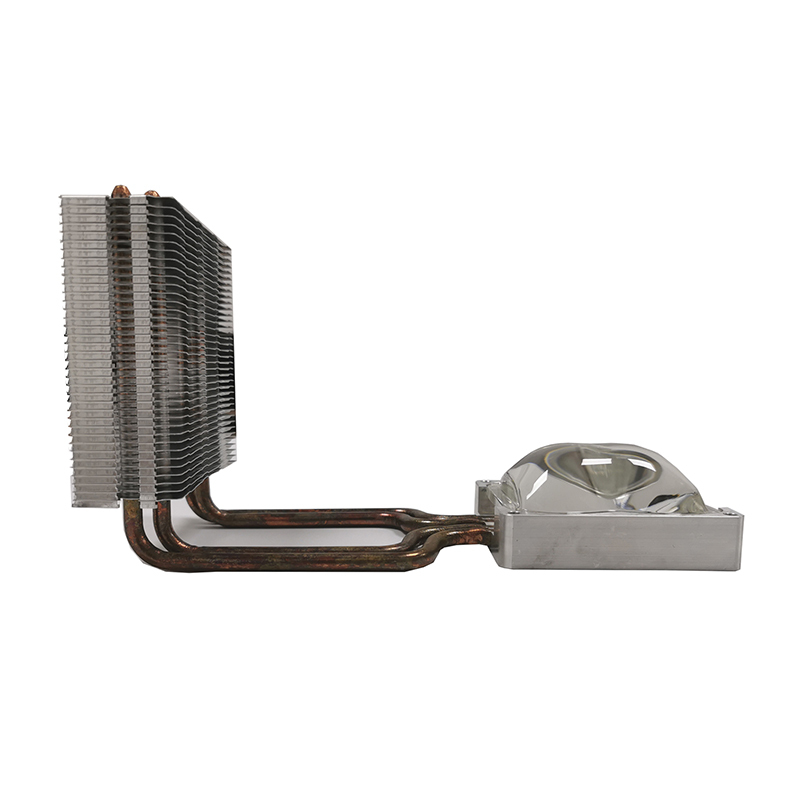

Meet the UVA-S64V03, a powerful UV light source from Aptus International Co., Ltd., designed for the precise curing of 3D printer photo-curing components.   With its advanced parallel light technology, this light source ensures high contrast and reduced diffuse reflection, making it ideal for high-precision 3D printing applications.

Key Features:
- Optimized for 3D Printing: Tailored for the curing of 3D printer components, the UVA-S64V03 provides the ideal light intensity for photo-curing.

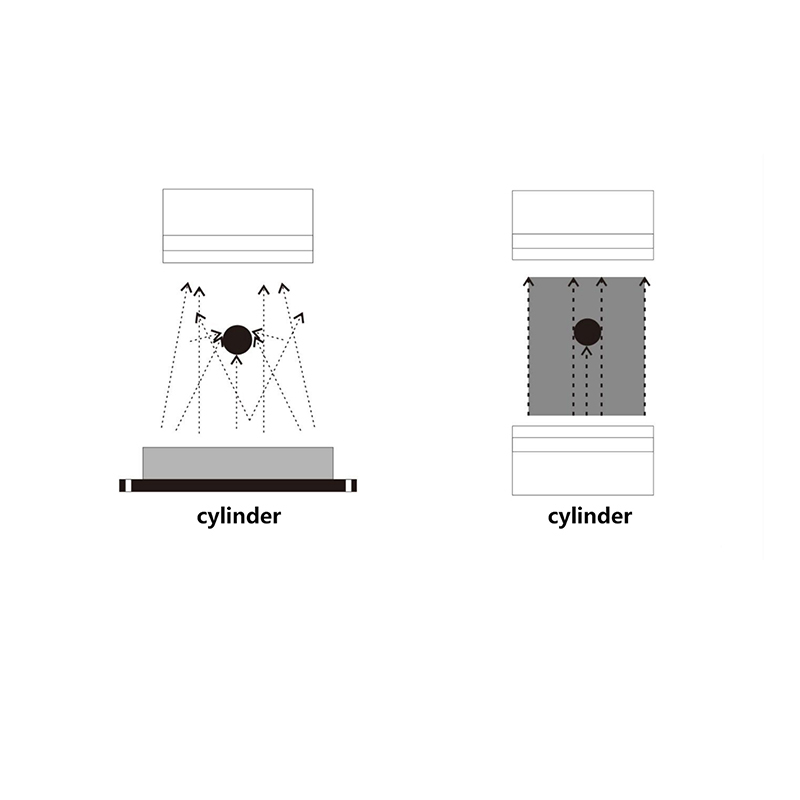

- Parallel Light Technology: Enhances image boundary recognition and delivers a very high contrast at the edge, crucial for detailed 3D printing.
- High-Intensity Output: Offers light intensity of >100mW/cm², ensuring efficient and effective curing.
- Even Light Distribution: With an evenness of ≥85%, the light source provides uniform curing across the surface.

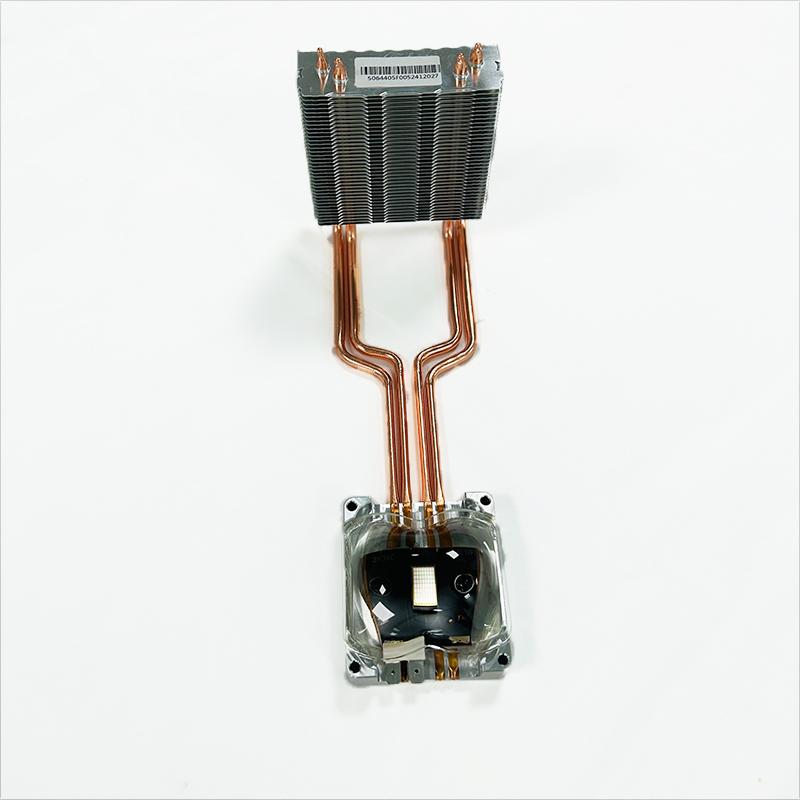

- LED Array: Features an 8x8 matrix of LEDs, arranged in 16 series and 4 parallel, for a powerful and consistent light source.

Technical Specifications:
- Input Voltage: 53-56V
- Input Current: 3.2-3.8A (recommended 3.5A)
- Light Intensity: >100mW/cm² (measured with Linshang LS125 UV radiometer probe UVALED-X3)

Structural and Installation Details:

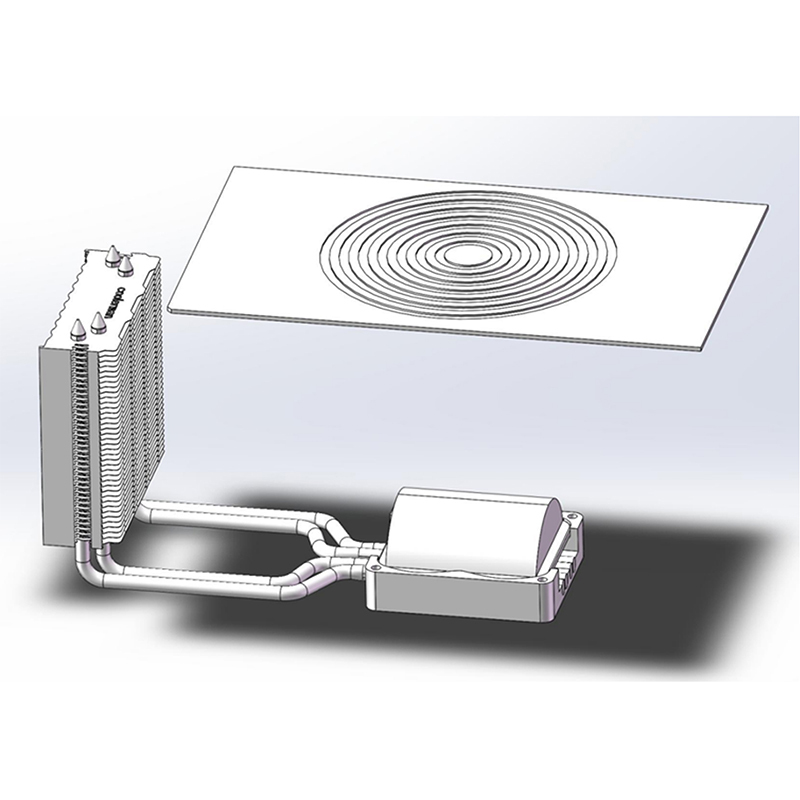

- Fresnel Lens: Designed for ideal parallel light, with detailed dimensional drawings for precise installation.
- Distance Recommendations: The recommended distance between the Fresnel lens and the heat sink base is 131-133mm.
- Horizontal Positioning: Aligns the center of the Fresnel lens with the center of the LED lamp, ensuring optimal light distribution.
- Distance to LCD: The optimal distance between the Fresnel lens and the LCD is within 0-6mm.

Temperature Management:
- Thermistor: Equipped with an induction NTC thermistor for precise temperature measurement and control within the working temperature range of -55℃ to +125℃.
