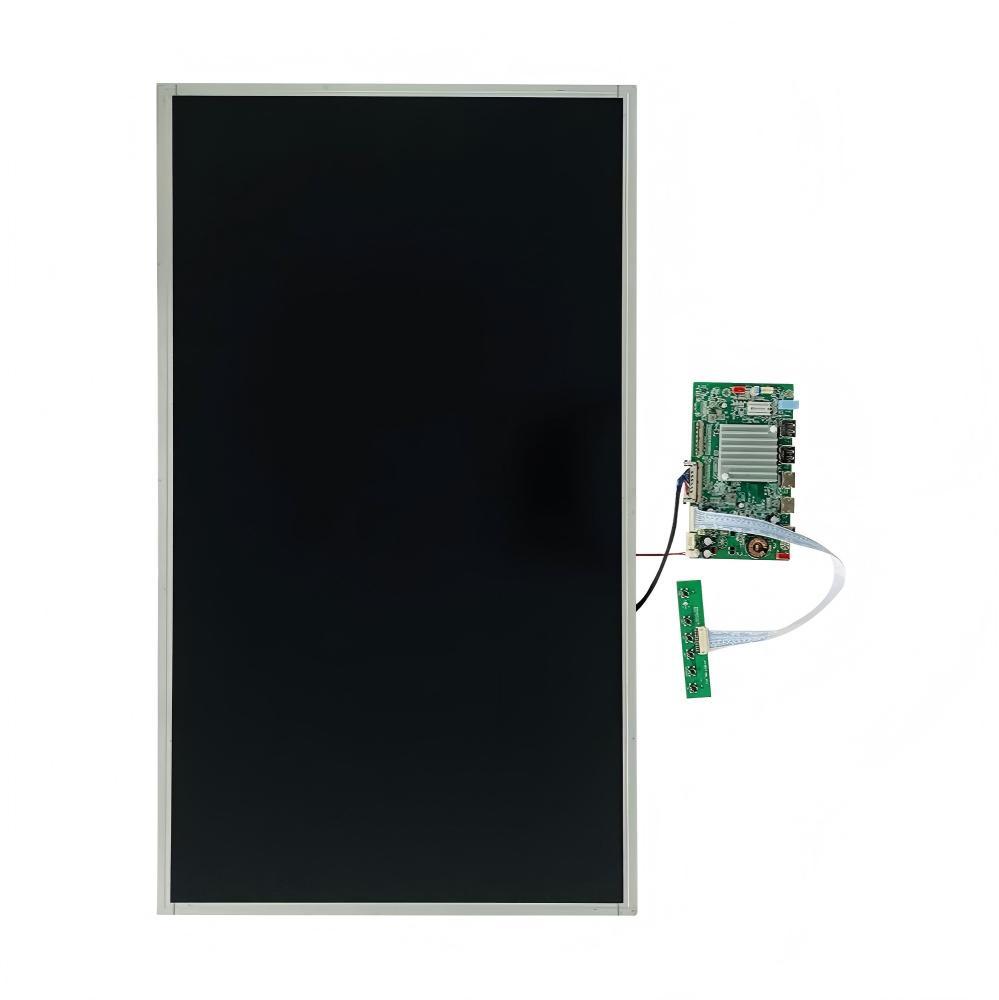

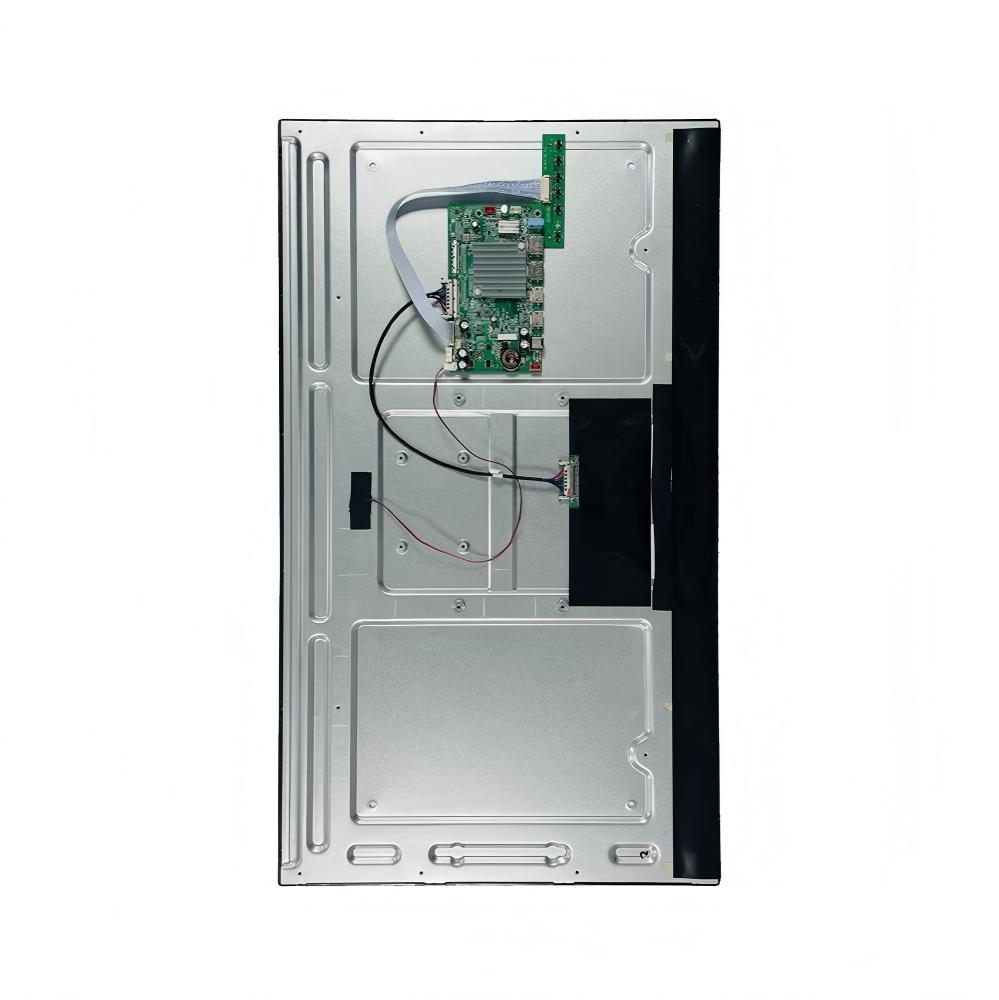

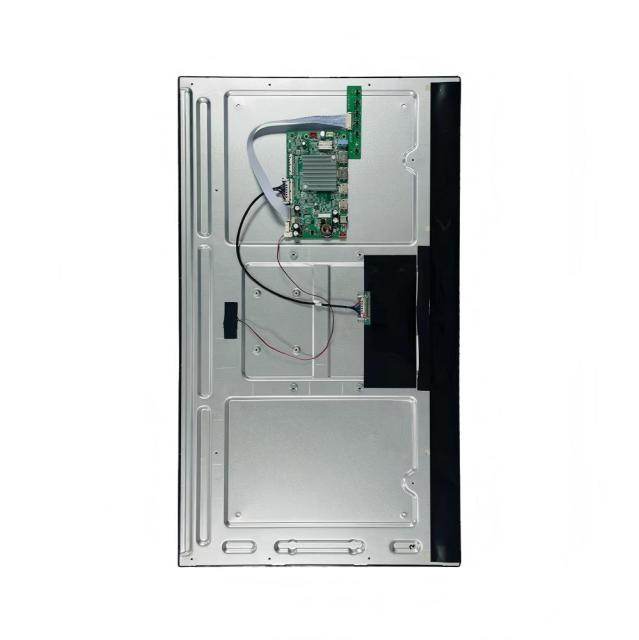

32 inch 3840x2160 UHD 4K High Resolution 51PIN eDP Gaming TFT-LCD Module
No.DBT320DZN51E050B
►Size:32 inch
►Resolution:3840×2160 dots
►Active Area:697.305x392.234 mm
►Outline Dimensional:725.2x422.70x14.4 mm
►View Direction:All directions
►Interface:51PIN eDP
►Brightness:600cd/m²
Upgrade to 4K precision with the DBT320DZN51E050B 32-inch UHD LCD module. Featuring 3840x2160 resolution, 1.07 billion colors, and 500cd/m² brightness. The professional-grade 8-lane eDP panel for high-fidelity gaming monitors and immersive simulators.
In the realm of competitive gaming and professional-grade simulation, detail is the absolute currency of performance. The DBT320DZN51E050B is a cutting-edge 32-inch (31.5" diagonal) UHD 4K TFT-LCD module engineered to deliver the pixel density and color accuracy required for the most demanding digital environments.
With a native 3840 x 2160 resolution, this module packs over 8 million pixels into a desktop-friendly 32-inch form factor, providing a surgical level of clarity that allows gamers to see distant targets, intricate textures, and complex flight instruments with zero compromise.
The 4K UHD Advantage for Gaming
Moving from standard 1080p or 1440p to the 4K resolution of the DBT320DZN51E050B transforms the gaming experience. The ultra-fine 0.12125 mm pixel pitch ensures that jagged edges (aliasing) are virtually eliminated, even without heavy anti-aliasing software.
Tactical Awareness: In battle royale or tactical shooters, the high resolution allows for better visibility of enemies at long distances.
Immersive Simulation: For flight or racing simulators, the UHD density makes small text on digital cockpits and dashboard gauges perfectly legible.
Expansive Workspace: Beyond gaming, the 4K canvas provides four times the workspace of Full HD, ideal for streamers who need to monitor chats and broadcasting software simultaneously.
10-Bit Color Depth: Cinematic Realism
The DBT320DZN51E050B isn't just about sharp lines; it’s about vibrant, lifelike color. Supporting 1.07 billion colors (10-bit via 8-bit + FRC) , this module covers 70% of the NTSC color gamut.
Smooth Gradients: 10-bit technology eliminates the "banding" effect common in 8-bit screens, ensuring that sunsets and shadows in AAA titles look smooth and natural.
Professional Uniformity: With a white luminance of 500 cd/m²and excellent 9-point uniformity , the screen delivers a consistent visual experience across the entire 697.3 mm x 392.2 mm active area.
High-Bandwidth 8-Lane eDP Interface
To handle the massive data requirements of a 4K 60Hz signal with minimal latency, the DBT320DZN51E050B utilizes an advanced 8-lane eDP (embedded DisplayPort) interface. This high-speed link ensures that every frame is delivered with instantaneous precision, reducing input lag—a critical factor for competitive esports athletes.
Detailed Technical Specifications
Feature
Specification
Unit / Detail
Model Name
DBT320DZN51E050B
Pro Gaming Grade
Screen Diagonal
31.5 inches (32" class)
Native Resolution
3840 × 2160 (UHD)
4K Cinematic Detail
Active Area
697.3056 (H) x 392.2344 (V)
Physical Size
725.20 (H) x 422.70 (V)
Slim Bezel Ready
Brightness (Typ.)
500 cd/m²
High-Visibility Output
Contrast Ratio
1500 : 1
Deep Black Performance
Display Colors
1.07 Billion (10-bit)
8-bit + FRC Technology
Response Time
14 ms (Typ. On/Off)
Interface
8 Lane eDP
High-Speed Data Link
Surface Treatment
Anti-Glare, 3H, Haze 25%
Reflection Shield
Backlight Life
30,000 Hours
Long-Term Reliability
Operating Temp
0°C to +50°C
*Note: Specifications are typical values measured at 25°C. Technical details are subject to the official datasheet version 1.0.
Engineered for High-Intensity Gaming Reliability
The DBT320DZN51E050B is built to withstand the rigors of long-term gaming operation.
Normally Black Mode: This transmissive display mode ensures deep, ink-like blacks, which are essential for maintaining contrast in dark gaming environments.
Anti-Glare Protection: The screen features a 3H hard coating and 25% Haze anti-glare treatment, which diffuses ambient light and prevents distracting reflections from windows or desk lamps.
Robust Reliability: The module is tested for thermal shock (-10°C to +55°C) and vibration (1.5G), ensuring it remains stable even in high-performance gaming PC builds with significant internal heat.
Ideal Application Scenarios
Professional Esports Training: Providing the 4K resolution needed to practice pixel-perfect aim.
High-End Arcade Terminals: Transforming traditional kiosks into modern 4K gaming experiences.
Sim-Racing & Flight Sim Cockpits: The 32-inch size is perfect for triple-monitor panoramic setups, providing an immersive 12K field of view.
Luxury Gaming Laptops/AIOs: The slim 725.2 mm x 422.7 mm physical profile allows for sleek, modern industrial designs.
Frequently Asked Questions
Q: Does the DBT320DZN51E050B support 10-bit color? A: Yes. It supports 1.07 billion colors via 8-bit + FRC, providing smooth color transitions for high-end gaming and creative work.
Q: What type of interface is required for this 4K module?A: This module uses a high-speed 8-lane eDP interface, which is the industry standard for high-bandwidth 4K data transmission.
Q: Is the screen protected against reflections?A: Yes, it features an anti-glare surface treatment with 25% haze and a 3H hard coating to minimize environmental glare.
Q: Can this be used for 24/7 gaming setups?A: The backlight is rated for 30,000 hours of life, making it highly durable for both personal and commercial gaming applications.
Ready to Integrate the DBT320DZN51E050B Into Your Next Product?
The DBT320DZN51E050B 32" UHD 4K LCD Module represents the ultimate balance of resolution, color depth, and professional reliability. Whether you are building elite gaming monitors or specialized simulation hardware, this module provides the visual foundation your users demand.
