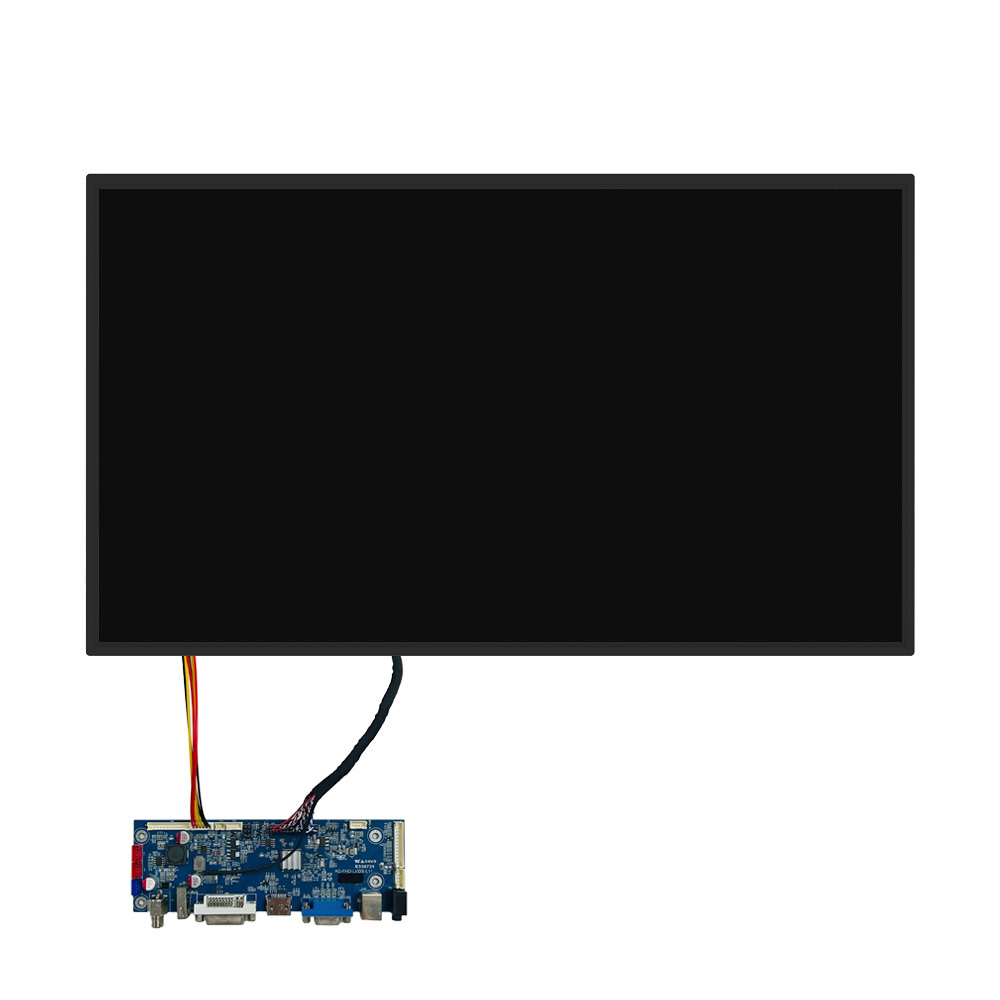

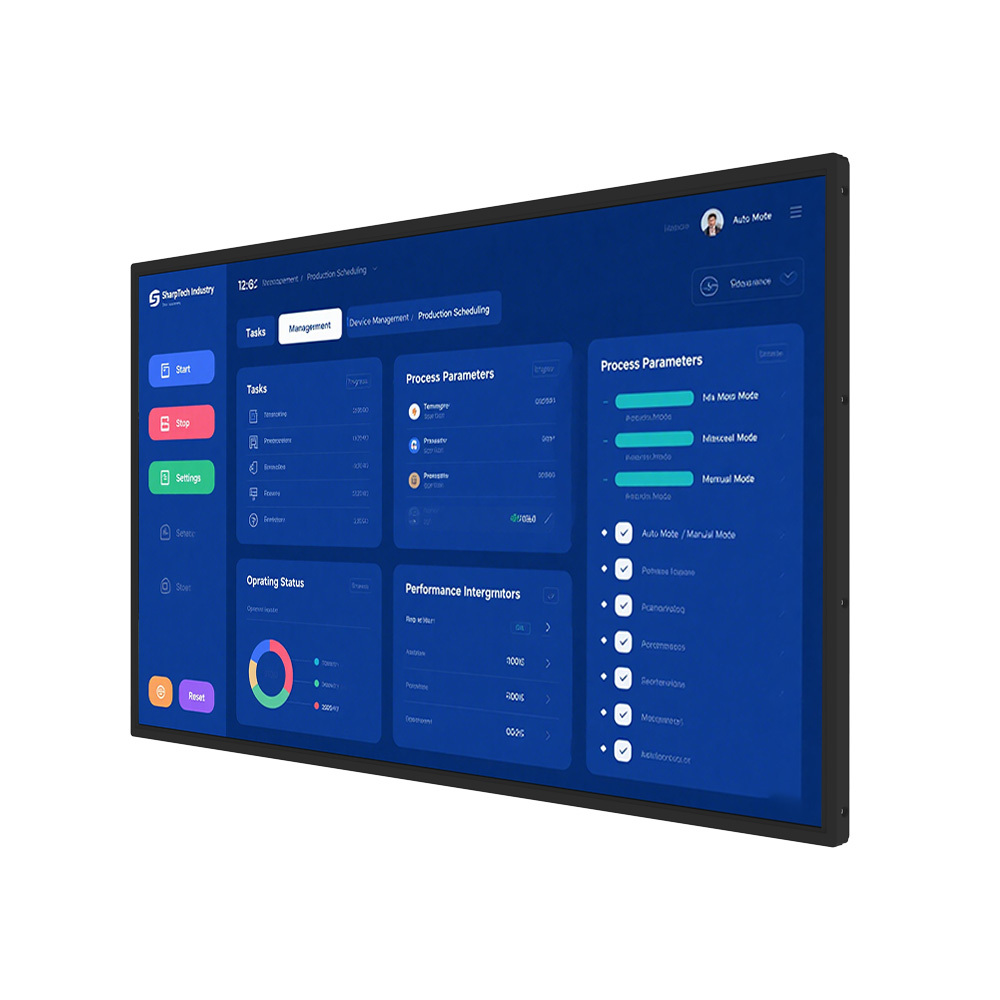

High‑performance display modules are essential components in automotive systems and industrial control applications that demand clarity, reliability, and seamless integration. The 32‑inch 1920×1080 Full HD LCD module with 51‑pin LVDS interface from Aptus Display delivers vivid visuals, robust electrical performance, and dependable operation for embedded systems used in vehicles, automation panels, and human‑machine interfaces.
With its large display size and full HD resolution, this module enhances monitoring, visualization, and control functions without compromising system stability or integration flexibility.
Large‑format LCD modules like the 32‑inch FHD display are increasingly important in environments where operators must see more information at a glance — whether in automotive control centers or industrial operator workstations. This module combines:
Full HD clarity (1920×1080)
Wide viewing angles for enhanced readability
Stable 51‑pin LVDS interface for reliable data transmission
Robust design for demanding embedded environments
These features make the display suitable for applications where both size and precision matter — including vehicle dashboards, equipment control panels, and production monitoring systems.
The Low‑Voltage Differential Signaling (LVDS) interface is widely recognized for delivering stable, noise‑resistant communication in embedded and automotive systems. It supports high‑speed transmission of video data with minimal electromagnetic interference (EMI), making it ideal for applications that demand consistent performance in electrically noisy environments.
Key benefits of the LVDS interface include:
Stable signal transmission over longer cable lengths
Low noise operation in embedded systems
Compatibility with automotive and industrial controllers
Simplified integration without expensive signal converters
This makes the 32‑inch FHD LCD module highly suitable for large‑format display integration in dashboards, control terminals, and visualization systems.
This 32‑inch FHD LCD module can be deployed in a variety of embedded and automotive scenarios:
Large vehicle dashboards and driver information systems
In‑vehicle display panels for monitoring parameters
Rear‑seat entertainment and passenger information terminals
Embedded interfaces in commercial fleets
HMI panels for production lines
Operator stations in factory automation
Visual feedback displays in manufacturing monitoring systems
Embedded system control screens
These application scenarios benefit from the module’s high resolution, large screen size, and LVDS‑based stable interface.
The following table details the key specifications of the 32‑inch Full HD LCD module:
| Specification | Details |
|---|---|
| Panel Size | 32 inches |
| Resolution | 1920 × 1080 (Full HD) |
| Interface | 51‑pin LVDS |
| Active Area | 698.4 × 392.85 mm |
| Pixel Pitch | 0.36375 mm |
| Display Colors | 16.7M (8‑bit) |
| Brightness | 350–450 nits (typical) |
| Contrast Ratio | 1000:1 – 1200:1 |
| Response Time | 25 ms (typical) |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Power Supply | Standard LVDS voltage |
| Operating Temperature | 0°C to 50°C (typical embedded range) |
| Storage Temperature | -20°C to 60°C |
| Backlight | LED Backlight |
The 32‑inch 1920×1080 LCD module integrates several design considerations that make it suitable for complex systems:
1. Large Display Area with Clear Resolution
The Full HD resolution across a large 32‑inch active area ensures information is presented clearly and in detail, minimizing operator fatigue.
2. Stable LVDS Communciation
Using a 51‑pin LVDS connector ensures robust data transmission while minimizing signal degradation or EMI — essential for embedded control screens and automotive interfaces.
3. Wide Viewing Angles
High readability from multiple viewing positions makes this display suitable for multi‑operator environments, control rooms, and vehicle dashboards.
4. LED Backlight System
A reliable LED backlight ensures consistent brightness and color uniformity across the screen, supporting long‑term operation and visual consistency.
To deliver long‑term stability, the display module is designed to operate reliably under standard embedded and automotive temperature conditions.
Environmental Factors Include:
Operating Temperature Range suitable for dashboard and embedded panels
Design for vibration tolerance in mobile environments
Stable electrical performance under power fluctuations
Temperature stability for consistent backlight performance
These design elements ensure the module performs dependably over extended periods without visual degradation or unexpected failures.
When incorporating the 32‑inch LVDS LCD module into vehicle systems or industrial applications, consider the following:

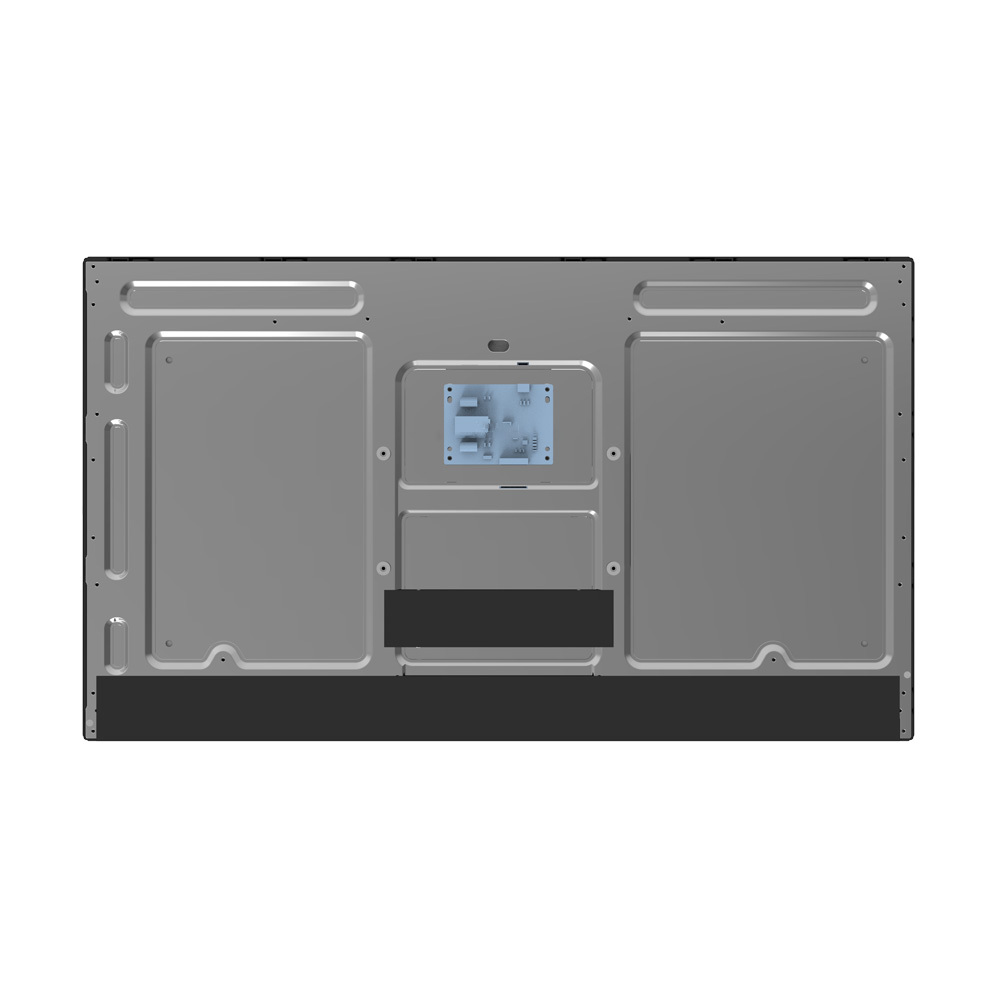

Ensure that the panel’s mechanical dimensions and mounting bracket locations match your enclosure. The flat panel design can be adapted to flush‑mount or recessed installations.
Use shielded LVDS cabling to preserve signal quality over longer transmissions, especially in EMI‑rich environments.
Appropriate power regulation ensures stable backlight and panel performance, particularly in vehicles or industrial racks where voltage fluctuations may occur.
Projective Capacitive (PCAP) or resistive touch overlays can be added for interactive control interfaces, enhancing the human‑machine interaction experience.
Aptus Display is a leading provider of high‑performance LCD modules and display solutions tailored for automotive and embedded markets. With deep expertise in display technologies and system integration, Aptus Display delivers reliable visualization solutions for:
Vehicle control systems and automotive dashboards
Industrial automation and embedded control panels
Custom display requirements for OEM and ODM partners
We focus on long‑term product quality, interface stability, and robust support to ensure your visual system operates reliably from prototype through production.
Aptus Display offers a comprehensive suite of services to support your display integration:
Custom Display Solutions
We provide tailored designs including brightness enhancement, interface adaptations, touch screen integration, and mechanical customization.
Technical Support & Integration Guidance
Our engineering team assists with electrical interface integration, mechanical design considerations, and performance optimization.
Reliable Supply Chain Management
Ensuring predictable component availability for long‑term projects.
OEM/ODM Collaboration
From specification definition to volume production, we support your project every step of the way.
Whether you are refining your embedded screens or building a vehicle control system, we deliver display solutions that fit your technical and timeline requirements.
For reliable, high‑resolution 32‑inch FHD LCD modules with LVDS interface suitable for automotive and industrial embedded applications, Aptus Display is ready to assist.
