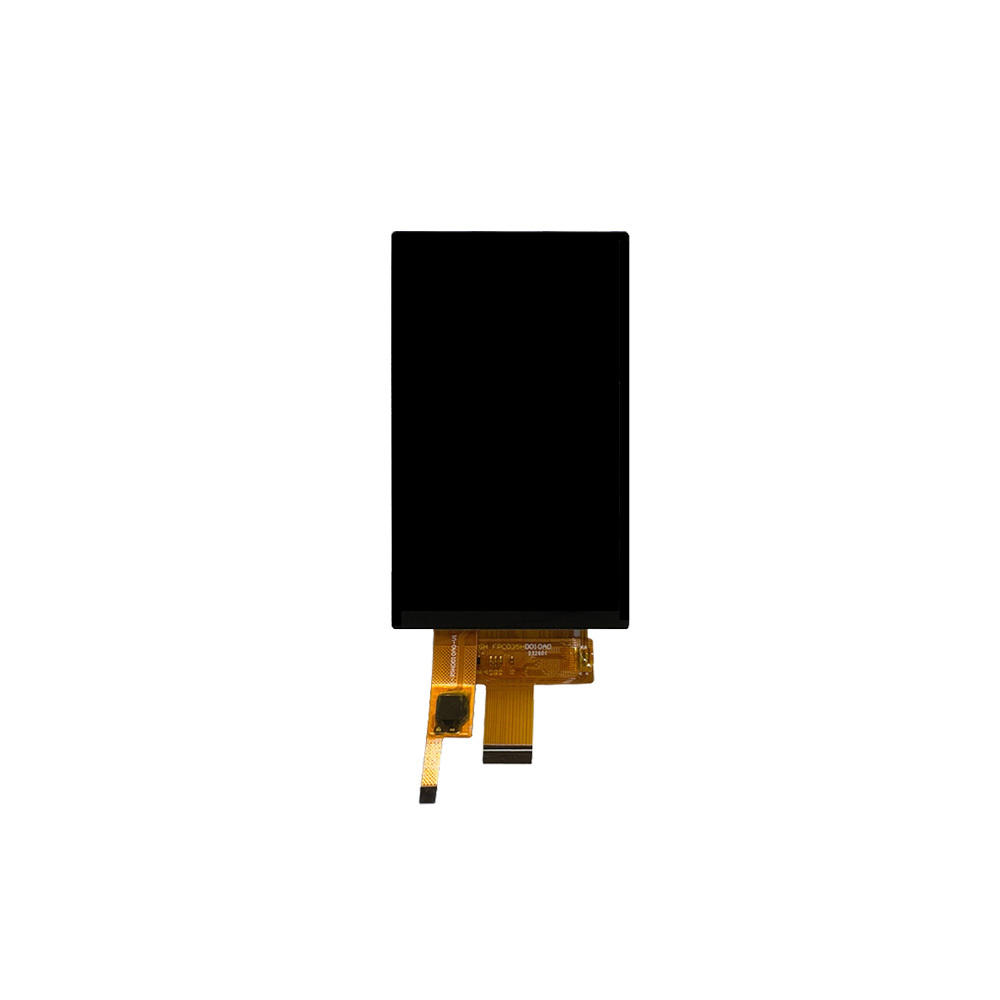

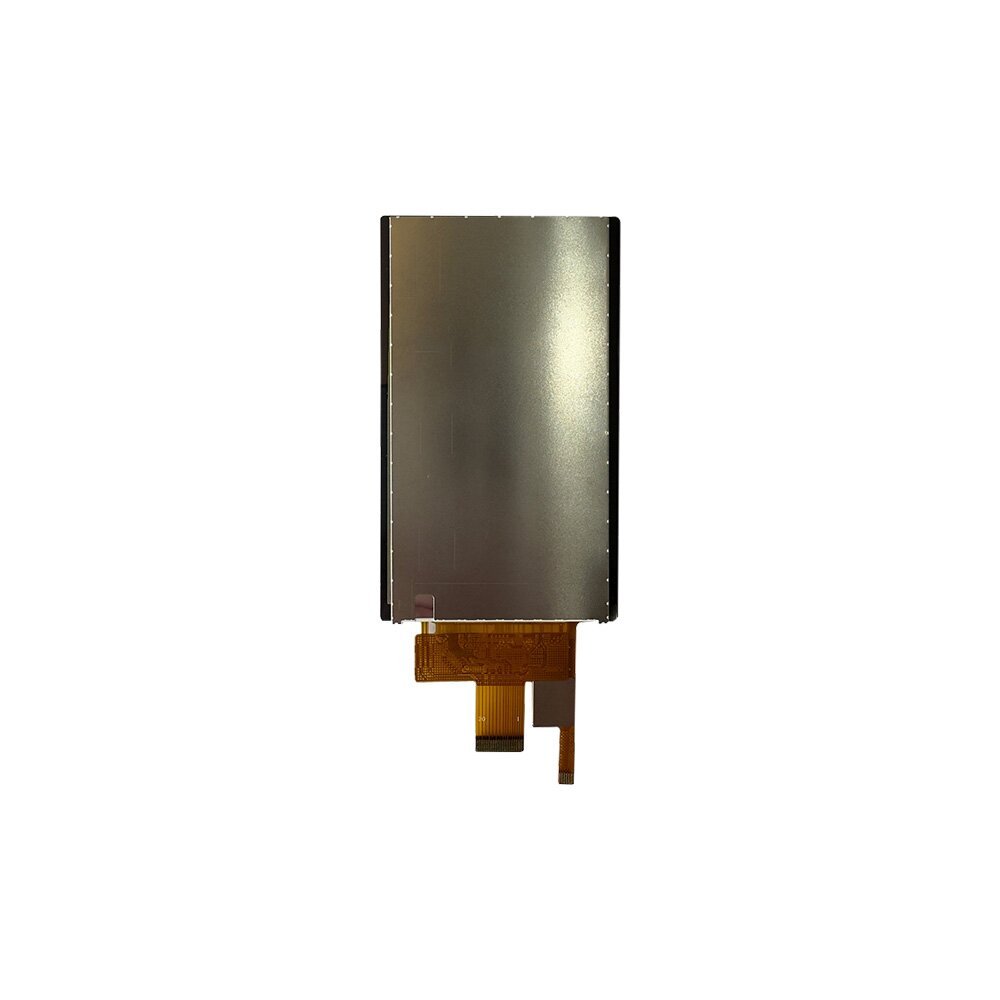

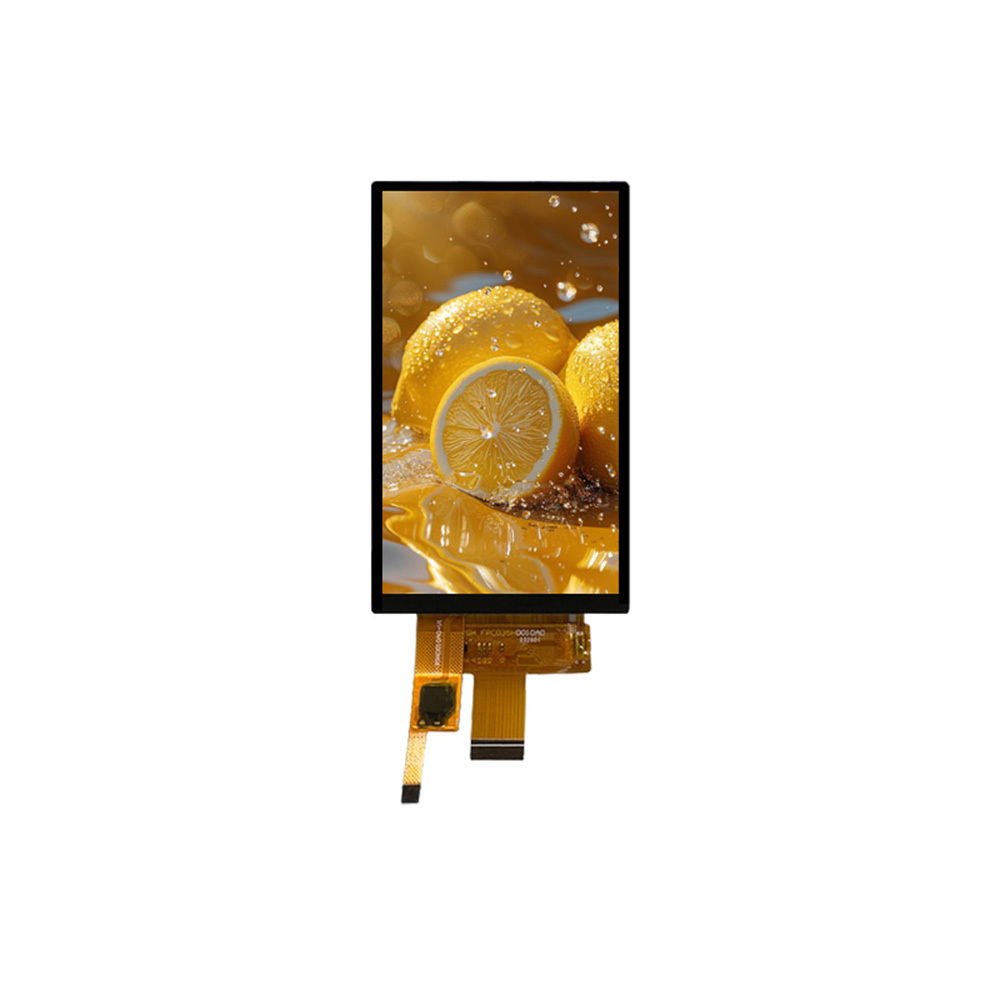

The 3.5 inch 720×1280 MIPI IPS Touch Panel TFT LCD Module is a compact, high-resolution display solution designed for embedded systems that require clear visual performance, responsive touch interaction, and efficient integration within space-constrained equipment. Model DBT035GEC20M043A combines a 3.5-inch 720×1280 TFT LCD, IPS wide-view technology, an integrated in-cell capacitive touch panel, and a 20-pin MIPI interface in a compact module measuring approximately 51.32 × 87.01 × 3.37 mm.
With its portrait-oriented 720×1280 resolution, compact mechanical design, MIPI DSI interface, integrated capacitive touch panel, and operating temperature range of -20°C to +70°C, this LCD module is well suited to industrial control interfaces, diagnostic instruments, smart home control panels, IoT equipment, handheld embedded systems, and customized OEM/ODM products.
Modern embedded equipment increasingly requires a graphical user interface that combines compact dimensions with high visual clarity. Designers of industrial controllers, handheld instruments, smart control terminals, and IoT equipment often need to fit a touch-enabled display into a limited enclosure without compromising usability.
The 3.5-inch 720×1280 MIPI IPS Touch Panel TFT LCD Module addresses this requirement by combining the display, touch functionality, and interface technology into a compact module.
The display provides a 720×1280 pixel resolution, which is significantly higher than many conventional small-format embedded LCDs. The portrait-oriented format is particularly useful for interfaces that organize information vertically, including menus, measurement values, system parameters, status indicators, and touch controls.
The module uses an IPS TFT LCD, providing a wide viewing-angle experience. Aptus specifies the panel as having a full viewing angle, helping maintain image clarity and color consistency when the operator views the display from different positions.
The integrated in-cell capacitive touch panel is another important feature. By integrating the touch function into the display structure, the module can maintain a compact profile while providing a modern touch-based user interface.
The module has an overall dimension of approximately 51.32 × 87.01 × 3.37 mm, making it suitable for compact equipment where PCB space and enclosure thickness are important design considerations.
The relatively thin 3.37 mm module profile can be advantageous for handheld products and compact embedded control equipment.
A resolution of 720×1280 pixels provides a high pixel density for a display in the 3.5-inch class.
This allows designers to create interfaces with sharper text, more detailed icons, higher-quality graphics, and more information within a relatively small physical display area.
For embedded applications, the higher resolution can be useful when the interface needs to display detailed measurements, graphical dashboards, equipment status, menus, or image-based content.
The IPS panel is designed for consistent visual performance across different viewing positions. Aptus describes the display as offering a full viewing angle.
This characteristic is valuable for industrial control interfaces and equipment where operators may not always view the display directly from the center.
The module incorporates an in-cell capacitive touch panel (CTP).
Capacitive touch allows users to interact directly with graphical interface elements, reducing the need for physical buttons and switches. The in-cell structure also supports a compact display construction, which is useful when product designers need to control the overall thickness of the device.
Potential user interactions include menu selection, parameter adjustment, system configuration, status monitoring, and touch-based control.
The module uses a 20-pin MIPI interface, with the detailed specification identifying the display interface as MIPI DSI, 1 lane.
MIPI DSI is commonly considered for compact embedded products because it can provide high-speed display data transmission using a relatively compact physical connection.
For high-resolution small displays such as 720×1280 modules, the MIPI interface can help engineers balance display bandwidth, PCB space, and system integration requirements.
At approximately 3.37 mm in thickness, the module can be considered for equipment where the display needs to fit into a slim enclosure.
The combination of a compact outline and integrated touch panel makes the module particularly relevant to handheld and embedded products.
The specified operating temperature range is -20°C to +70°C.
This range provides additional flexibility for equipment used in environments where temperature conditions vary during operation.
For applications with more demanding temperature requirements, customers can discuss alternative wide-temperature LCD configurations with Aptus Display.
| Parameter | Specification |
|---|---|
| Product Model | DBT035GEC20M043A |
| Display Size | 3.5 inch |
| Display Type | TFT LCD |
| Display Technology | IPS |
| Resolution | 720 × 1280 pixels |
| Color Depth | 262K colors |
| Touch Panel | Capacitive Touch Panel |
| Touch Structure | In-Cell |
| Display Interface | MIPI DSI |
| MIPI Configuration | 1 Lane |
| Interface Connector | 20 Pin |
| Active Area | 43.20 × 78.72 mm |
| Module Dimensions | 51.32 × 87.01 × 3.37 mm |
| Backlight | White LED |
| Viewing Angle | IPS Full Viewing Angle |
| Brightness | 430 cd/m² listed on product overview* |
| Operating Temperature | -20°C to +70°C |
| Compliance | RoHS |
| Customization | Cover glass, touch tuning, FPC pin-out, driver board |
| Application | Industrial, embedded, IoT, smart control and OEM/ODM |
* Specification note: Aptus Display's current product page lists 430 cd/m² in the main product specification, while the detailed technical table states 300 cd/m² typical. The final production brightness should therefore be confirmed with Aptus Display before engineering approval or publication.
The choice of a small LCD module should not be based solely on display size. Engineers typically need to evaluate resolution, interface bandwidth, touch technology, mechanical dimensions, viewing angle, brightness, operating temperature, and host-platform compatibility together.
This 3.5-inch module combines several important functions in a single compact solution:
720×1280 resolution + IPS display + in-cell CTP + MIPI DSI + compact mechanical design
This combination makes the module particularly attractive for embedded systems that require a smartphone-like graphical interface but need a display designed around industrial or OEM product integration requirements.
The high resolution provides more interface space without increasing the physical diagonal size. The IPS technology supports wide viewing conditions, while the integrated capacitive touch panel enables direct user interaction.
The MIPI DSI interface is also well suited to compact embedded architectures. Aptus Display's technical content identifies MIPI DSI as a useful option for applications where high-speed data transmission, reduced signal-line requirements, and PCB space efficiency are important.
Industrial equipment increasingly uses graphical touch interfaces to replace traditional combinations of buttons, indicators, and segmented displays.
The 3.5-inch 720×1280 LCD can be used for machine settings, system status, alarms, operating parameters, configuration menus, and maintenance interfaces.
Its compact size allows manufacturers to add a modern touch interface without significantly increasing the size of the control enclosure.
Portable diagnostic equipment often requires a display that can present numerical measurements, graphical information, system status, and configuration options.
The high 720×1280 resolution is useful when detailed information needs to be displayed on a small screen.
The IPS viewing characteristics can also benefit equipment operated from different viewing positions.
Smart-home interfaces need to combine visual clarity, compact dimensions, and intuitive touch interaction.
This module can be considered for smart control panels, home automation interfaces, environmental control equipment, security interfaces, and other embedded smart-home devices.
Aptus has previously identified this 3.5-inch 720×1280 module as a suitable starting point for compact smart-home interfaces, particularly where high resolution and capacitive touch are required.
IoT devices may need a local graphical interface for displaying sensor data, connectivity status, configuration parameters, alerts, and device controls.
A small MIPI touch LCD can provide this functionality without requiring a large display area.
Potential applications include smart monitoring devices, connected controllers, environmental monitoring equipment, and customized IoT terminals.
Handheld equipment requires careful control of size, weight, power consumption, and display usability.
The compact 3.5-inch form factor and thin 3.37 mm module profile make this display worth evaluating for handheld controllers, portable instruments, compact terminals, and other embedded products.
OEM and ODM projects often require a display that matches a specific enclosure, PCB, interface, and user-interface design.
Aptus Display supports customized display solutions, allowing the LCD and touch configuration to be evaluated against the customer's mechanical and electrical requirements.
Before integrating this module into a final product, engineers should evaluate several factors.
Mechanical compatibility should include the active area, module outline, thickness, FPC routing, display orientation, and enclosure opening.
MIPI compatibility should be confirmed with the target processor or application platform. Although MIPI DSI is widely used in embedded systems, the host platform must support the appropriate lane configuration, timing, initialization sequence, and electrical characteristics.
Touch integration should also be considered at the system level. The touch controller, communication method, FPC arrangement, cover structure, and touch tuning may affect the final user experience.
Optical requirements should be matched to the target environment. The currently published brightness information should be confirmed before finalizing the product design, particularly if the display will be used in high ambient-light environments.
Software integration is another important consideration. The display driver, initialization sequence, resolution configuration, touch driver, and operating-system support should be validated during prototype development.
Aptus Display provides standard LCD modules together with customization and OEM/ODM development support. The company offers customization options including cover glass, touch tuning, FPC pin-out, and driver boards.
For projects based on this 3.5-inch display, customization may be evaluated around:
Touch panel configuration
Cover glass
Touch sensitivity and tuning
FPC layout
FPC pin-out
Driver board
Display brightness
Mechanical integration
Interface configuration
Prototype development
Production requirements
Customization is particularly valuable when the standard module does not exactly match an existing PCB, enclosure, cable arrangement, or system architecture.
Instead of selecting an LCD only after the product has been mechanically designed, working with a display supplier during the early engineering stage can help reduce integration problems later in development.
For embedded and industrial products, display selection should include reliability considerations rather than focusing only on resolution.
Aptus identifies RoHS compliance, environmental testing, engineering support, sample availability, scalable production, and global shipping as part of its display service offering.
The published operating temperature range of -20°C to +70°C provides a useful reference for project evaluation. However, the final environmental specification should be matched to the actual application, especially when the equipment will be exposed to high humidity, vibration, temperature cycling, or other demanding conditions.
For production projects, customers should request the latest engineering documentation and validate samples before mass production.
Shenzhen Aptus Technology Co., Ltd. is a professional LCD module manufacturer and global display supplier providing standard and customized LCD solutions for international customers.
Aptus Display's product portfolio covers TFT LCD modules, touch panel LCD modules, wide-temperature displays, flight simulator displays, bar-type LCD displays, gaming display solutions, LCD accessories, and other specialized display products.
The company supports customers throughout the display development process, including product selection, technical evaluation, customization, prototype development, production, and delivery.
For customers developing OEM or ODM equipment, Aptus can provide support around touch-panel integration, FPC configuration, driver boards, cover glass, brightness requirements, and other display-related engineering requirements.
This integrated approach allows customers to work with one display supplier for multiple aspects of the display assembly rather than sourcing every component independently.
Aptus also provides international customer support and global shipping. Its website identifies its core service as professional LCD display and touch bonding manufacturing and design solutions.
The module uses a 720×1280 pixel resolution in a portrait-oriented 3.5-inch display format. This provides a relatively high pixel density for compact embedded equipment.
Yes. The module integrates an in-cell capacitive touch panel (CTP), allowing users to interact directly with the graphical interface.
The display uses a 20-pin MIPI interface. The detailed specification identifies the display interface as MIPI DSI with one lane.
The target processor or embedded platform should be checked for MIPI DSI compatibility before integration.
The published operating temperature range is -20°C to +70°C.
For applications requiring operation outside this range, customers should discuss a customized wide-temperature display solution with Aptus Display.
The product overview currently lists 430 cd/m², while the detailed technical specification lists 300 cd/m² typical. Because these specifications are inconsistent on the current page, customers should confirm the exact production brightness with Aptus Display before placing an engineering or production order.
Yes. Aptus lists customization options including cover glass, touch tuning, FPC pin-out, and driver board. Additional requirements can be evaluated according to the customer's application and mechanical/electrical specifications.
The display is suitable for a range of compact applications, including industrial control interfaces, diagnostic instruments, smart home panels, IoT equipment, embedded systems, and custom OEM/ODM products.
The module can be evaluated for applications exposed to bright ambient light, but the standard brightness and optical configuration should be checked against the actual environment.
For direct sunlight or demanding outdoor applications, higher brightness, anti-glare treatment, optical bonding, or other optical enhancements may be required. Aptus can evaluate these requirements as part of a customized display solution.
If you are developing an industrial control interface, diagnostic instrument, smart home panel, IoT device, handheld embedded system, or customized OEM/ODM product, the 3.5-inch 720×1280 MIPI IPS Touch Panel TFT LCD Module can provide a compact platform for high-resolution graphical interfaces and capacitive touch interaction.
